LI Hefei, YU Dongli, CHEN Shuai, GUO Xiaogang, SHU Yu, WANG Lin, GAO Yufei. Precision Modification of a Two-Stage Pressure Boosting System on a Domestic Cubic Press and Synthesized of Nano-Polycrystalline Diamond[J]. Chinese Journal of High Pressure Physics, 2026, 40(9): 090114. doi: 10.11858/gywlxb.20261120
Citation: LI Hefei, YU Dongli, CHEN Shuai, GUO Xiaogang, SHU Yu, WANG Lin, GAO Yufei. Precision Modification of a Two-Stage Pressure Boosting System on a Domestic Cubic Press and Synthesized of Nano-Polycrystalline Diamond[J]. Chinese Journal of High Pressure Physics, 2026, 40(9): 090114. doi: 10.11858/gywlxb.20261120
shu

Precision Modification of a Two-Stage Pressure Boosting System on a Domestic Cubic Press and Synthesized of Nano-Polycrystalline Diamond

doi: 10.11858/gywlxb.20261120

  • Center for High Pressure Science (CHiPS), State Key Laboratory of Metastable Materials Science and Technology, Yanshan University, Qinhuangdao 066004, Hebei, China

  • Received Date: 22 Jun 2026
  • Rev Recd Date: 31 Jul 2026
    • Available Online: 03 Sep 2026
  • Issue Publish Date: 05 Sep 2026
    Abstract

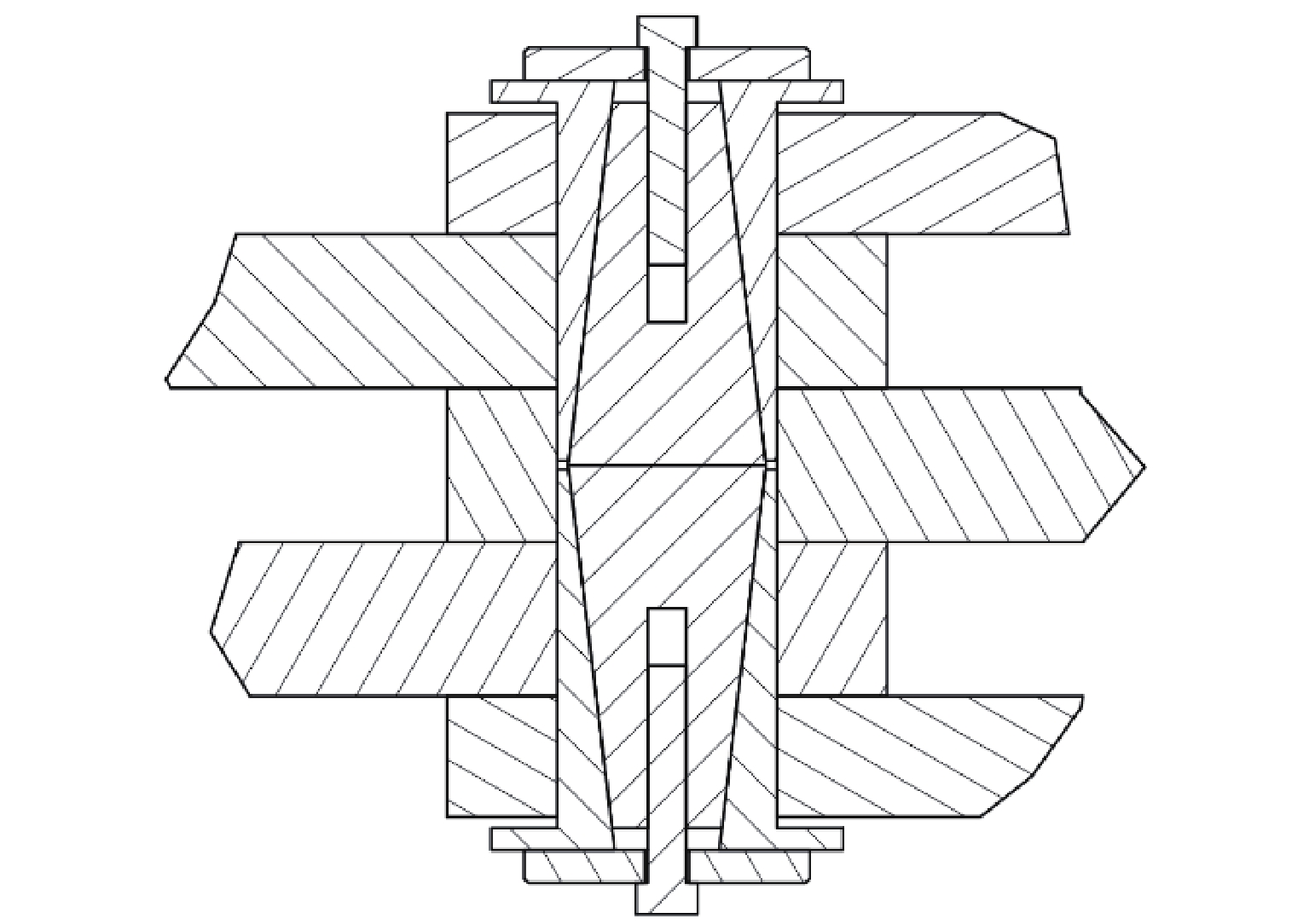

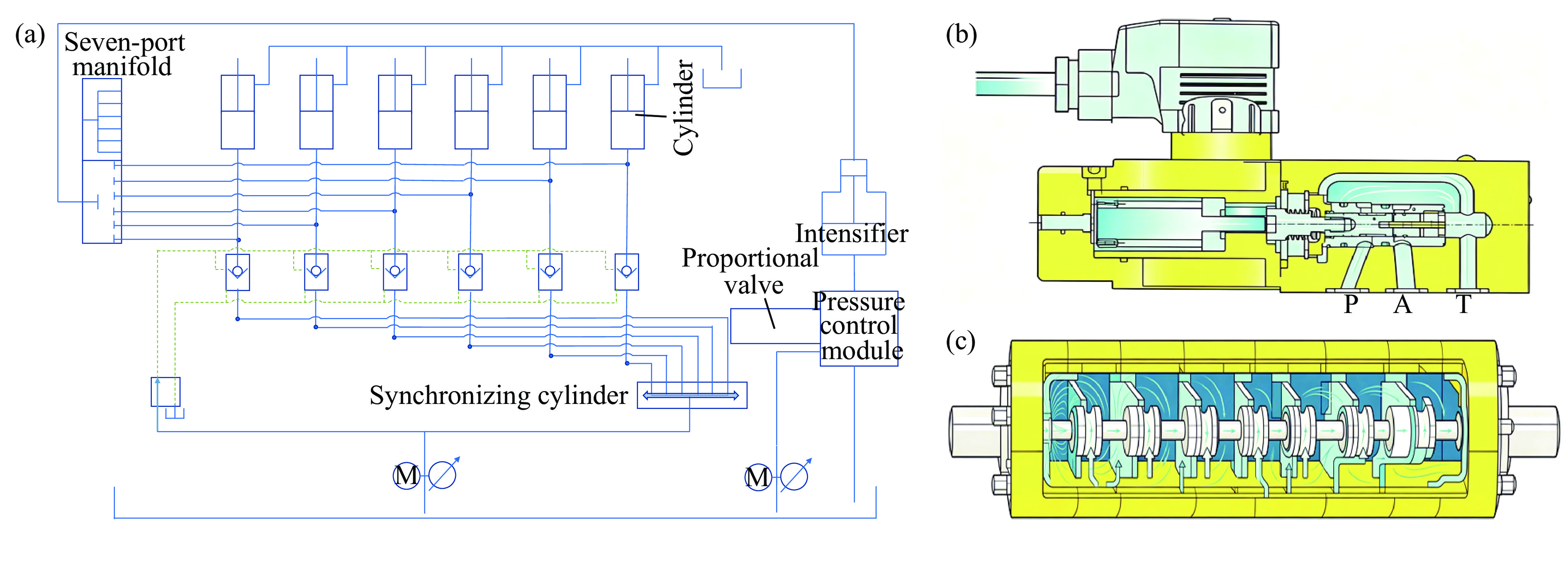

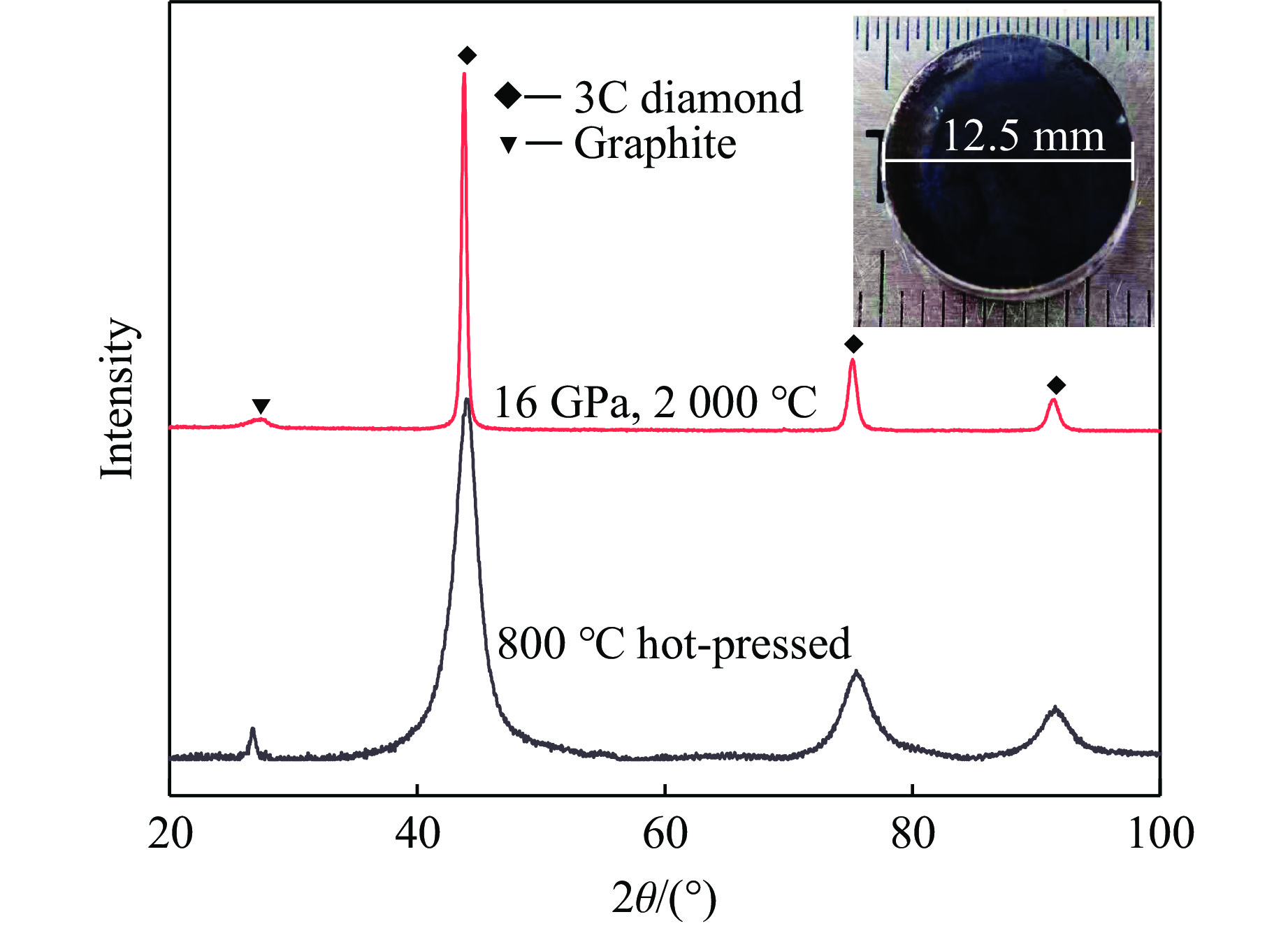

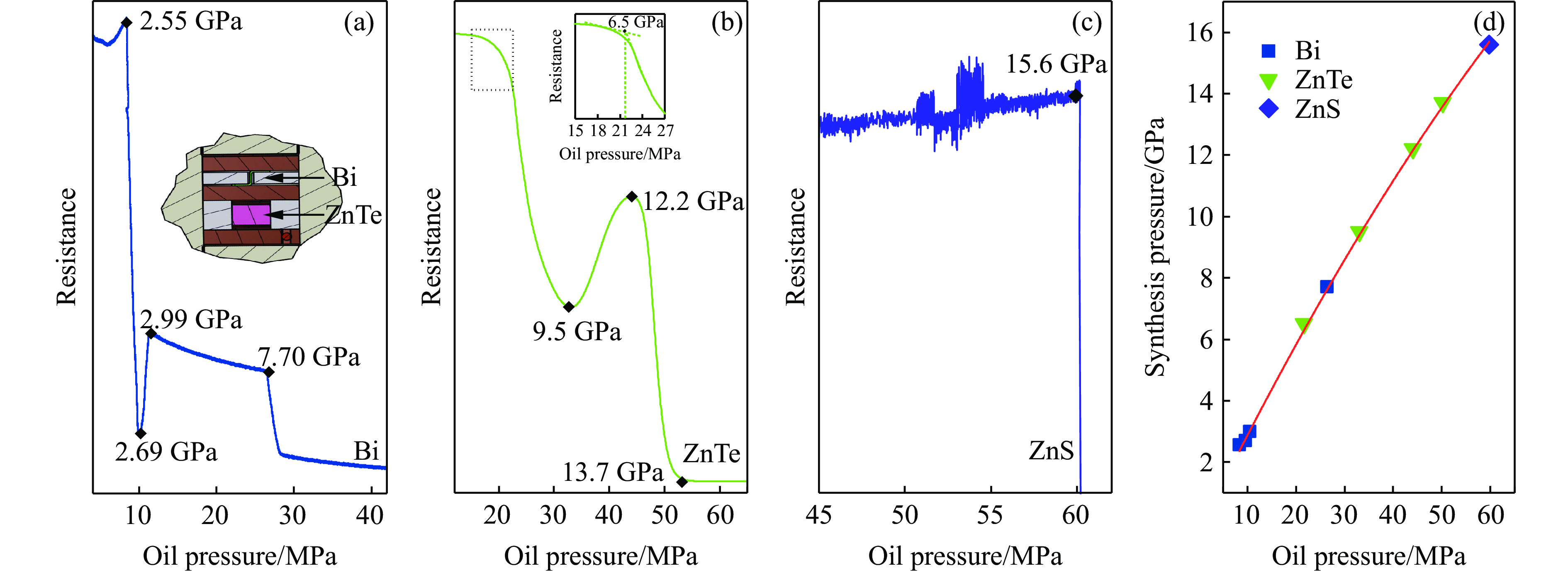

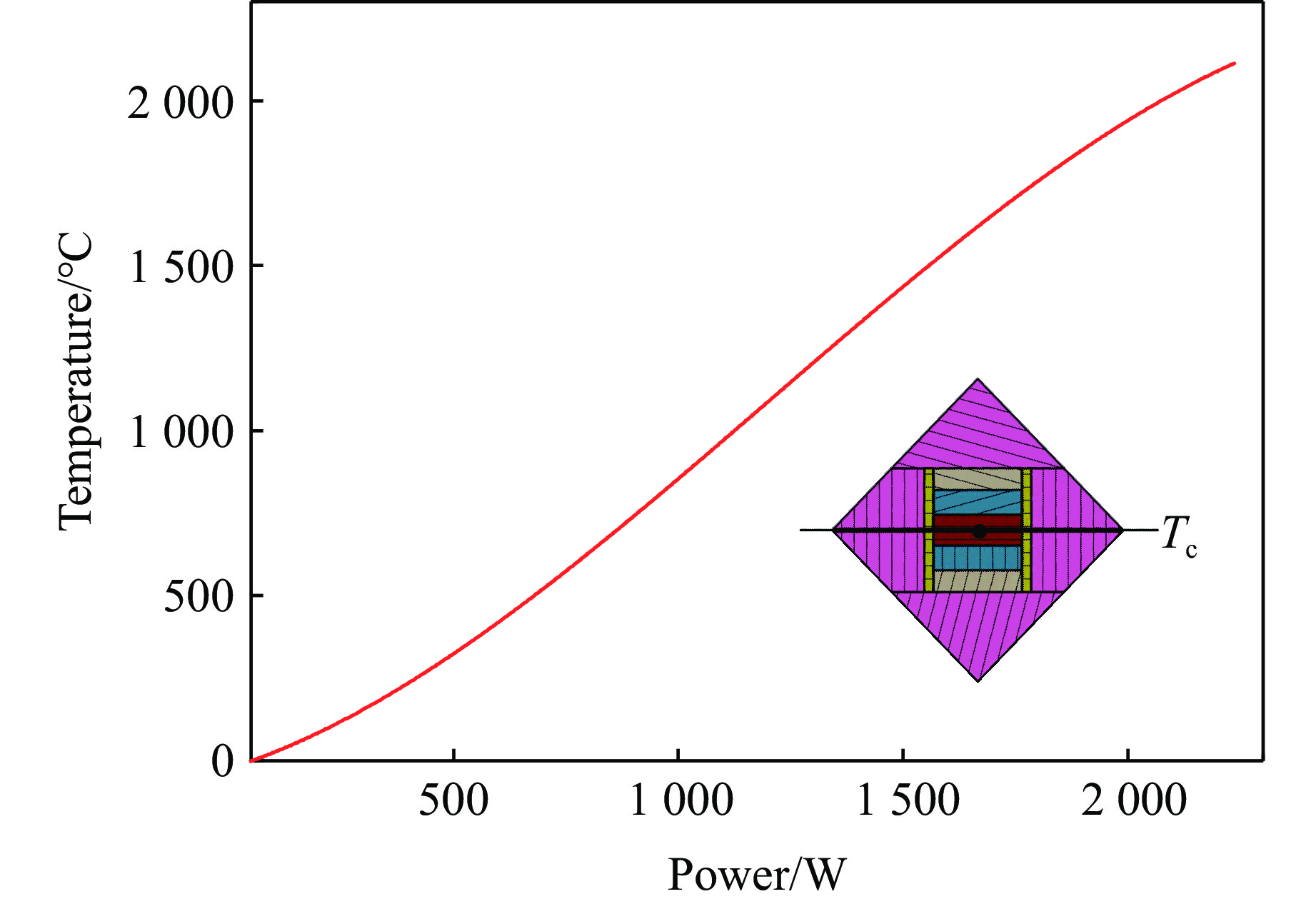

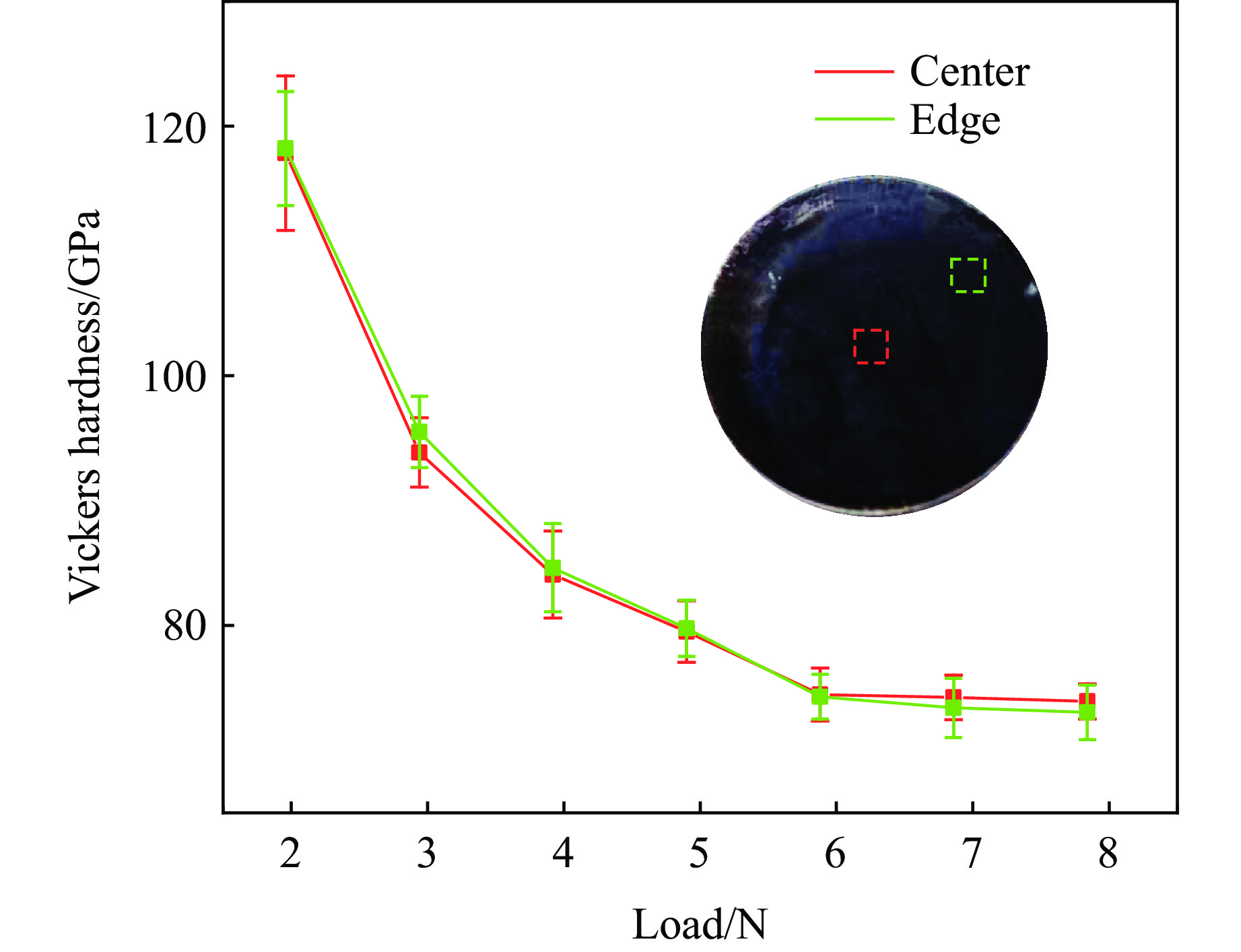

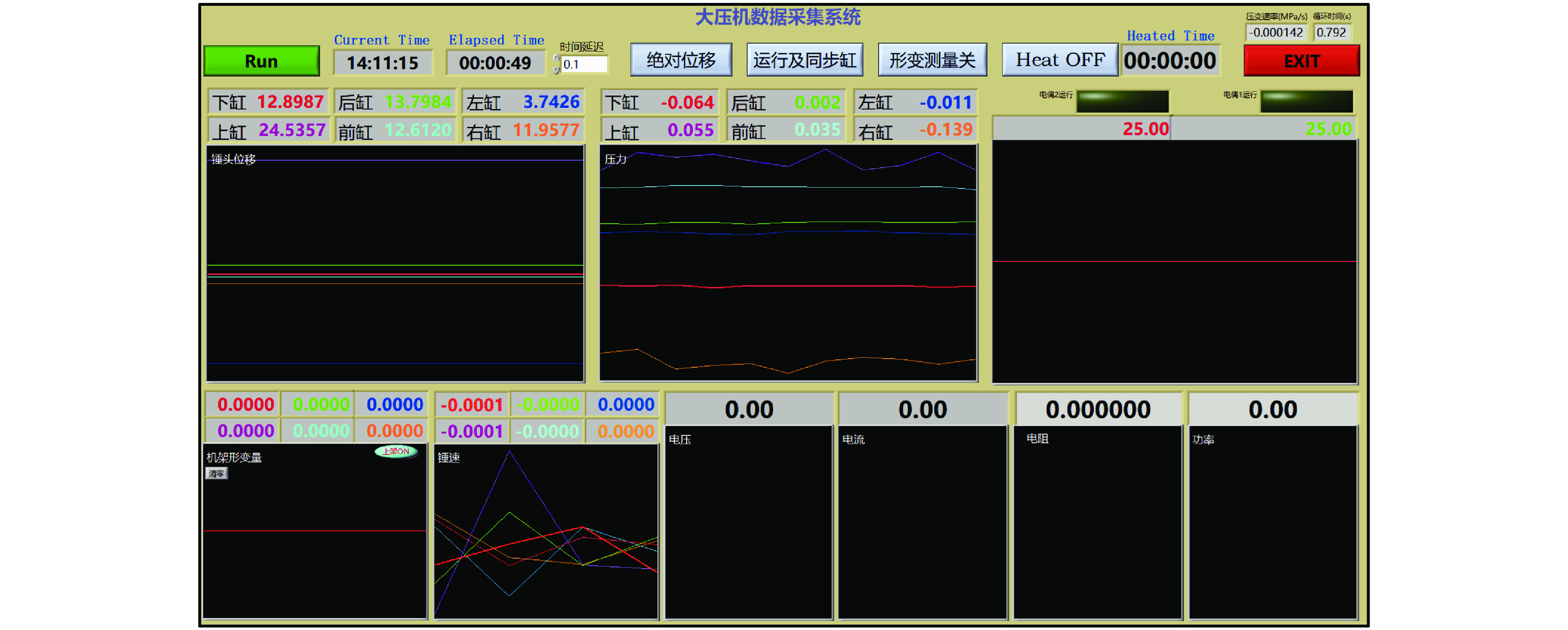

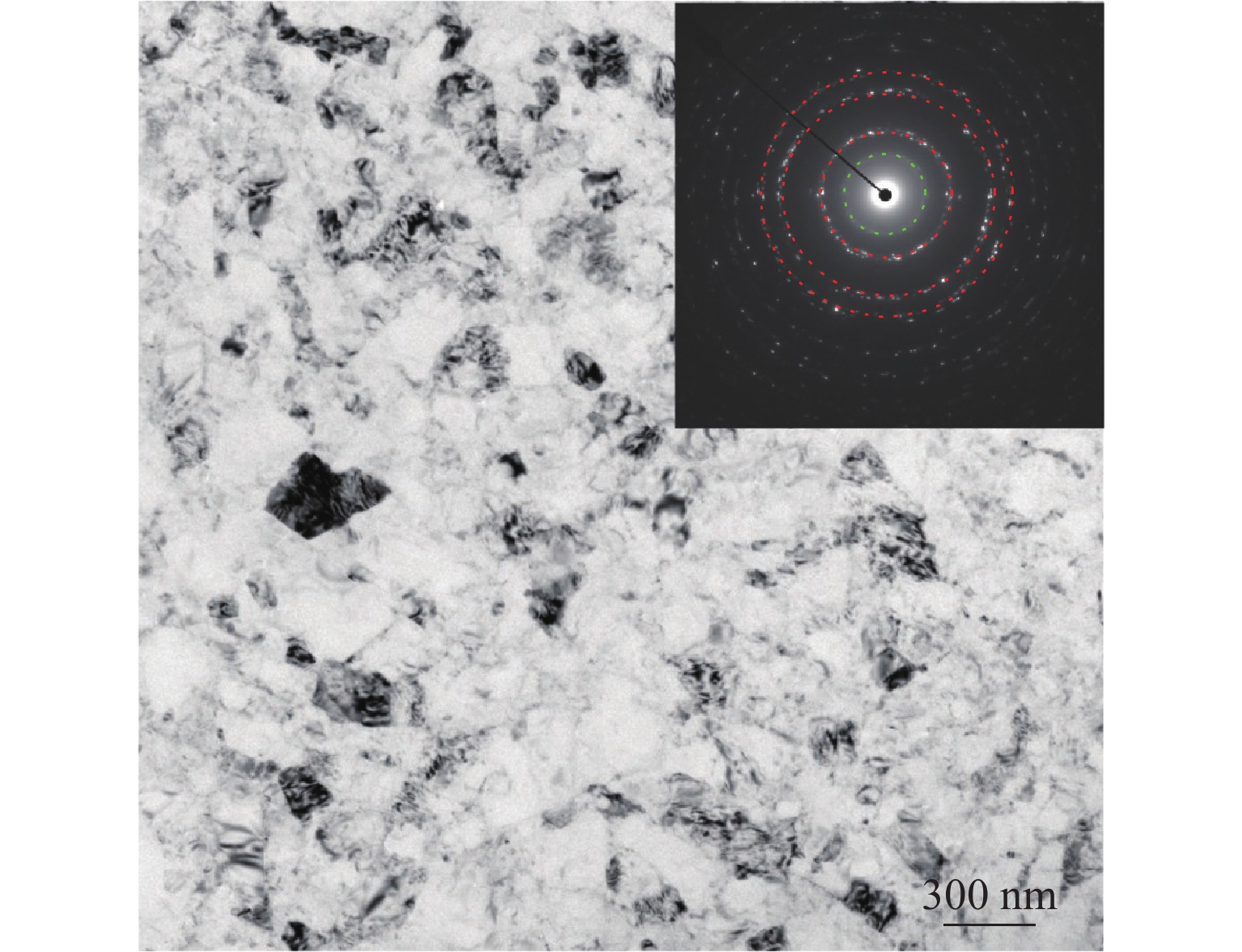

  • The traditional domestic hinge-type cubic presses are typically operated using limit switch for positioning, fully-open rapid hydraulic oil filling, and fixed-rate pressurization/depressurization modes. Such configurations are limited by poor six-cylinders positioning accuracy and hydraulic filling synchronization, and the pressurization and depressurization rates fail to meet the stringent requirements of ultra-high two-stage pressurization for eccentric load control and mechanical stability. In this study, systematic modification and upgrade were implemented on a domestic cubic press with 650 mm cylinders. To suppress or eliminate the floating and deformation of the frame under overpressure conditions, self-locking pin shaft was designed and assembled, and pre-compensation for frame deformation under high pressure was performed. In addition, aim at improving alignment accuracy and hydraulic filling synchronization, a dual-pump multi-mode hydraulic circuit and an equal-volume cylinder oil-filling process were built. Furthermore, a three-stage feeding method combined with an independent displacement action mode was innovatively proposed. A closed-loop control program was developed to operate in parallel with the original press control system, enabling the real-time acquisition, synchronous monitoring, and closed-loop adjustment of data sets including press operational status, oil pressure, and heating temperature. Additionally, a strategy combining proportional-integral-derivative (PID) control with precision pressure-control module components was proposed to achieve ultra-slow pressurization and depressurization. The correlation between synthesis chamber pressure and oil pressure, and the correlation between heating temperature and power were experimentally calibrated. Furthermore, the high-temperature and high-pressure (HTHP) synthesis of centimeter-sized nano-polycrystalline diamond bulk specimen was conducted. The results indicate that the optimized and upgraded domestic 650 mm cubic press is capable of synthesis large-volume samples at 15 GPa and over 2000 ℃, which significantly expands the application area of domestic cubic presses.



    • FullText(HTML)
  • loading
    • References(34)
  • [1]
    崔祥仁, 方啸虎, 邢英. 中国超硬材料高压设备的过去、现在与未来中国超硬材料行业的发展道路之一 [J]. 超硬材料工程, 2021, 33(2): 39–42. doi: 10.3969/j.issn.1673-1433.2021.02.013

    CUI X R, FANG X H, XING Y. The past, present and future of the superhard material high voltage equipment in China: one of the development paths of China superhard materials industry [J]. Superhard Material Engineering, 2021, 33(2): 39–42. doi: 10.3969/j.issn.1673-1433.2021.02.013
    [2]
    HALL H T. Ultra-high-pressure, high-temperature apparatus: the “Belt” [J]. Review of Scientific Instruments, 1960, 31(2): 125–131. doi: 10.1063/1.1716907
    [3]
    徐祖全, 李侃平, 孙璇, 等. 国产六面顶压机的精密化发展 [J]. 超硬材料工程, 2011, 23(4): 43–46. doi: 10.3969/j.issn.1673-1433.2011.04.012

    XU Z Q, LI K P, SUN X, et al. Precision development of domestic cubic hinge apparatus [J]. Superhard Material Engineering, 2011, 23(4): 43–46. doi: 10.3969/j.issn.1673-1433.2011.04.012
    [4]
    BRIDGMAN P W. Recent work in the field of high pressures [J]. Reviews of Modern Physics, 1946, 18(1): 1–93. doi: 10.1103/RevModPhys.18.1
    [5]
    ZHANG B, GUO W L. Cracking diamond anvil cells by compressed nanographite sheets near the contact edge [J]. Applied Physics Letters, 2005, 87(5): 051907. doi: 10.1063/1.2001161
    [6]
    方啸虎, 温简杰. 我国六面顶压机大型化的优势及压机继续大型化的难点和对策 [J]. 超硬材料工程, 2012, 24(1): 31–35. doi: 10.3969/j.issn.1673-1433.2012.01.008

    FANG X H, WEN J J. Advantages of large scale cubic press and the challenges and solutions to its continuous dimension enlargement in China [J]. Superhard Material Engineering, 2012, 24(1): 31–35. doi: 10.3969/j.issn.1673-1433.2012.01.008
    [7]
    HALL H T. Sintered diamond: a synthetic carbonado [J]. Science, 1970, 169(3948): 868–869. doi: 10.1126/science.169.3948.868
    [8]
    李志宏, 刘金昌, 宜云雷, 等. 我国人造金刚石工业现状及发展 [J]. 金刚石与磨料磨具工程, 2002(1): 49–53. doi: 10.3969/j.issn.1006-852X.2002.01.015

    LI Z H, LIU J C, YI Y L, et al. Present status and progress of China’s diamond industry [J]. Diamond & Abrasives Engineering, 2002(1): 49–53. doi: 10.3969/j.issn.1006-852X.2002.01.015
    [9]
    KAWAI N, ENDO S. The generation of ultrahigh hydrostatic pressures by a split sphere apparatus [J]. Review of Scientific Instruments, 1970, 41(8): 1178–1181. doi: 10.1063/1.1684753
    [10]
    LIEBERMANN R C. Multi-anvil, high pressure apparatus: a half-century of development and progress [J]. High Pressure Research, 2011, 31(4): 493–532. doi: 10.1080/08957959.2011.618698
    [11]
    WALKER D, CARPENTER M A, HITCH C M. Some simplifications to multianvil devices for high pressure experiments [J]. American Mineralogist, 1990, 75(9/10): 1020–1028.
    [12]
    HUANG Q, YU D L, Xu B, et al. Nanotwinned diamond with unprecedented hardness and stability [J]. Nature, 2014, 510(7504): 250–253. doi: 10.1038/nature13381
    [13]
    TIAN Y J, XU B, YU D L, et al. Ultrahard nanotwinned cubic boron nitride [J]. Nature, 2013, 493(7432): 385–388. doi: 10.1038/nature11728
    [14]
    王福龙, 贺端威, 房雷鸣, 等. 基于铰链式六面顶压机的二级6-8型大腔体静高压装置 [J]. 物理学报, 2008, 57(9): 5429–5434. doi: 10.7498/aps.57.5429

    WANG F L, HE D W, FANG L M, et al. Design and assembly of split-sphere high pressure apparatus based on the hinge-type cubic-anvil press [J]. Acta Physica Sinica, 2008, 57(9): 5429–5434. doi: 10.7498/aps.57.5429
    [15]
    王文丹, 贺端威, 王海阔, 等. 二级6-8型大腔体装置的高压发生效率机理研究 [J]. 物理学报, 2010, 59(5): 3107–3115. doi: 10.7498/aps.59.3107

    WANG W D, HE D W, WANG H K, et al. Reaserch on pressure generation efficiency of 6-8 type multianvil high pressure apparatus [J]. Acta Physica Sinica, 2010, 59(5): 3107–3115. doi: 10.7498/aps.59.3107
    [16]
    何飞, 贺端威, 马迎功, 等. 二级6-8型静高压装置厘米级腔体的设计原理与实验研究 [J]. 高压物理学报, 2015, 29(3): 161−168.

    HE F, HE D W, MA Y G, et al. Design principles and experimental study of centimeter-scale sample chamber for two-stage 6-8 type static high pressure apparatus [J]. Chinese Journal of High Pressure Physics, 2015, 29(5): 347−353.
    [17]
    王海阔, 贺端威, 许超, 等. 复合型多晶金刚石末级压砧的制备并标定六面顶压机6-8型压腔压力至35 GPa [J]. 物理学报, 2013, 62(18): 180703. doi: 10.7498/aps.62.180703

    WANG H K, HE D W, XU C, et al. Calibration of pressure to 35 GPa for the cubic press using the diamond-cemented carbide compound anvil [J]. Acta Physica Sinica, 2013, 62(18): 180703. doi: 10.7498/aps.62.180703
    [18]
    WANG H K, HE D W. A hybrid pressure cell of pyrophyllite and magnesium oxide to extend the pressure range for large volume cubic presses [J]. High Pressure Research, 2012, 32(2): 186–194. doi: 10.1080/08957959.2012.657636
    [19]
    WANG H K, HE D W, YAN X Z, et al. Quantitative measurements of pressure gradients for the pyrophyllite and magnesium oxide pressure-transmitting mediums to 8 GPa in a large-volume cubic cell [J]. High Pressure Research, 2011, 31(4): 581–591. doi: 10.1080/08957959.2011.614238
    [20]
    IRIFUNE T, ISOBE F, SHINMEI T. A novel large-volume Kawai-type apparatus and its application to the synthesis of sintered bodies of nano-polycrystalline diamond [J]. Physics of the Earth and Planetary Interiors, 2014, 228: 255–261. doi: 10.1016/j.pepi.2013.09.007
    [21]
    IRIFUNE T, KURIO A, SAKAMOTO S, et al. Ultrahard polycrystalline diamond from graphite [J]. Nature, 2003, 421(6923): 599–600. doi: 10.1038/421599b
    [22]
    SHATSKIY A, KATSURA T, LITASOV K D, et al. High pressure generation using scaled-up Kawai-cell [J]. Physics of the Earth and Planetary Interiors, 2011, 189(1/2): 92–108. doi: 10.1016/j.pepi.2011.08.001
    [23]
    王海阔, 贺端威, 许超, 等. 基于国产铰链式六面顶压机的大腔体静高压技术研究进展 [J]. 高压物理学报, 2013, 27(5): 633–661. doi: 10.11858/gywlxb.2013.05.001

    WANG H K, HE D W, XU C, et al. Development of large volume-high static pressure techniques based on the hinge-type cubic presses [J]. Chinese Journal of High Pressure Physics, 2013, 27(5): 633–661. doi: 10.11858/gywlxb.2013.05.001
    [24]
    李帅锜, 贺端威, 张佳威. 大腔体静高压技术的发展及应用 [J]. 物理, 2022, 51(4): 228–238. doi: 10.7693/wl20220402

    LI S Q, HE D W, ZHANG J W. Development and application of large volume, high static pressure technology [J]. Physics, 2022, 51(4): 228–238. doi: 10.7693/wl20220402
    [25]
    任东升, 李和平. DS 6×1400 t二级6-8型大腔体高压装置压力标定 [J]. 矿物学报, 2018, 38(3): 355–358. doi: 10.16461/j.cnki.1000-4734.2018.040

    REN D S, LI H P. Pressure calibration for two-stage 6-8 type large-volume multi-anvil high pressure apparatus [J]. Acta Mineralogica Sinica, 2018, 38(3): 355–358. doi: 10.16461/j.cnki.1000-4734.2018.040
    [26]
    张艳飞, 吴耀, 刘鹏雷, 等. Walker型28GPa多面砧压机及其在地球科学中的应用 [J]. 地球科学-中国地质大学学报, 2012, 37(5): 955–965. doi: 10.3799/dqkx.2012.104

    ZHANG Y F, WU Y, LIU P L, et al. Walker type multi-anvil apparatus and its applications in geosciences [J]. Earth Science-Journal of China University of Geosciences, 2012, 37(5): 955–965. doi: 10.3799/dqkx.2012.104
    [27]
    FROST D J, POE B T, TRØNNES R G, et al. A new large-volume multianvil system [J]. Physics of the Earth and Planetary Interiors, 2004, 143/144: 507–514.
    [28]
    王海阔, 贺端威. 基于国产六面顶压机的二级6-8型大腔体静高压装置(下) [J]. 超硬材料工程, 2015, 25(3): 25–30. doi: 10.3969/j.issn.1673-1433.2015.03.009

    WANG H K, HE D W. Two stage 6-8 type large cavity static high pressure device based on the domestic cubic press [J]. Superhard Material Engineering, 2015, 25(3): 25–30. doi: 10.3969/j.issn.1673-1433.2015.03.009
    [29]
    ZHANG J W, ZHAN G D, HE D W, et al. Transparent diamond ceramics from diamond powder [J]. Journal of the European Ceramic Society, 2023, 43(3): 853–861. doi: 10.1016/j.jeurceramsoc.2022.10.052
    [30]
    XU C, HE D W, WANG H K, et al. Nano-polycrystalline diamond formation under ultra-high pressure [J]. International Journal of Refractory Metals and Hard Materials, 2013, 36: 232–237. doi: 10.1016/j.ijrmhm.2012.09.004
    [31]
    SUMIYA H, IRIFUNE T. Hardness and deformation microstructures of nano-polycrystalline diamonds synthesized from various carbons under high pressure and high temperature [J]. Journal of Materials Research, 2007, 22(8): 2345–2351. doi: 10.1557/jmr.2007.0295
    [32]
    LIU J, ZHAN G D, WANG Q, et al. Superstrong micro-grained polycrystalline diamond compact through work hardening under high pressure [J]. Applied Physics Letters, 2018, 112(6): 061901. doi: 10.1063/1.5016110
    [33]
    TANG H, WANG M Z, HE D W, et al. Synthesis of nano-polycrystalline diamond in proximity to industrial conditions [J]. Carbon, 2016, 108: 1–6. doi: 10.1016/j.carbon.2016.07.004
    [34]
    YAO M G, SHEN F R, GUO D Z, et al. Super strengthening nano-polycrystalline diamond through grain boundary thinning [J]. Advanced Functional Materials, 2023, 33(18): 2214696. doi: 10.1002/adfm.202214696
