Nitrogen Aggregation Induced by High-Pressure High-Temperature Pretreatment and Its Effect on the Apparent Charge-State Ratio of NV Centers in Diamond

doi: 10.11858/gywlxb.20261106

Institute of High Pressure Physics, School of Physical Science and Technology, Ningbo University, Ningbo 315211, Zhejiang, China

Received Date: 27 May 2026
Rev Recd Date: 26 Jun 2026

Available Online: 02 Jul 2026

Issue Publish Date: 05 Sep 2026

Abstract

Abstract

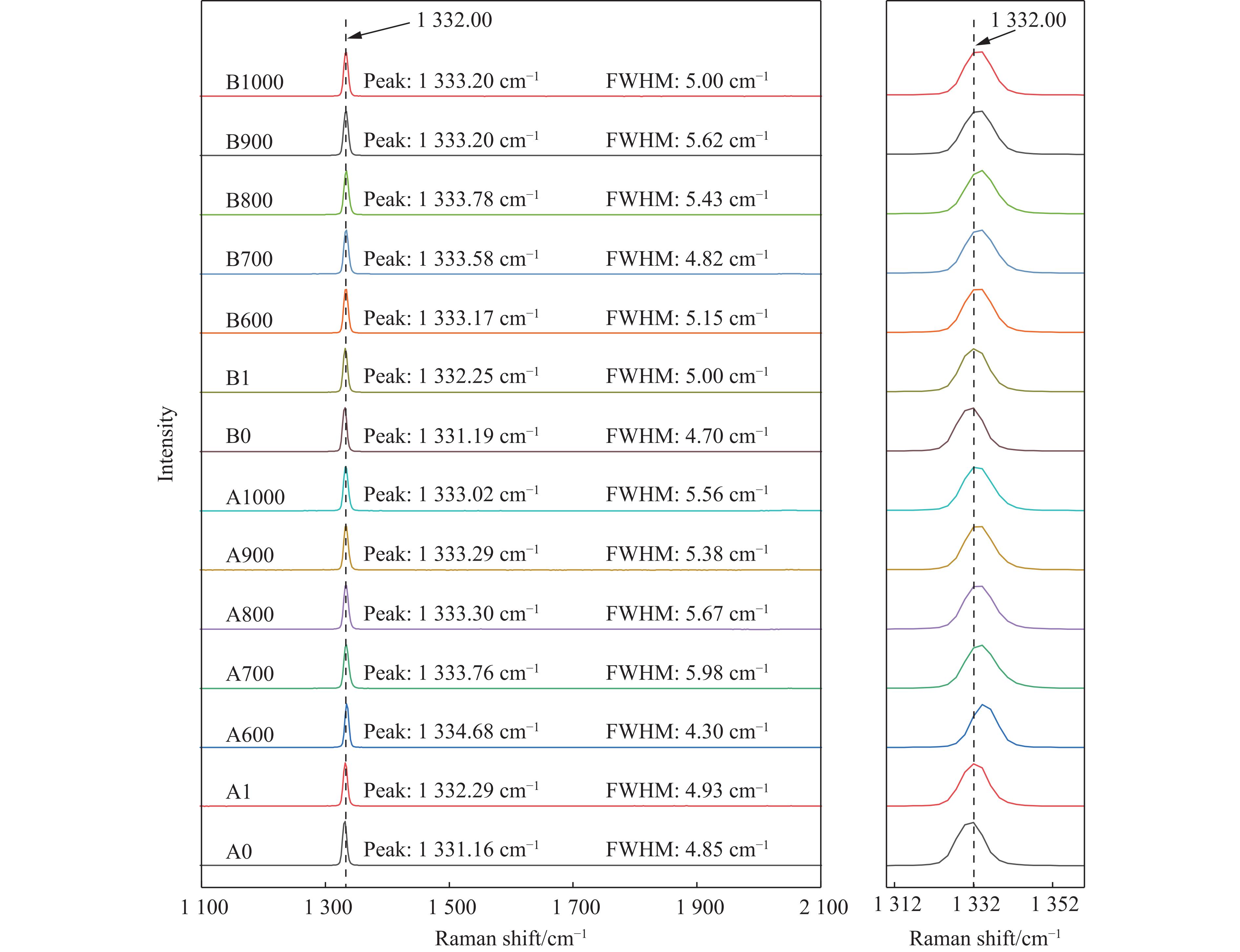

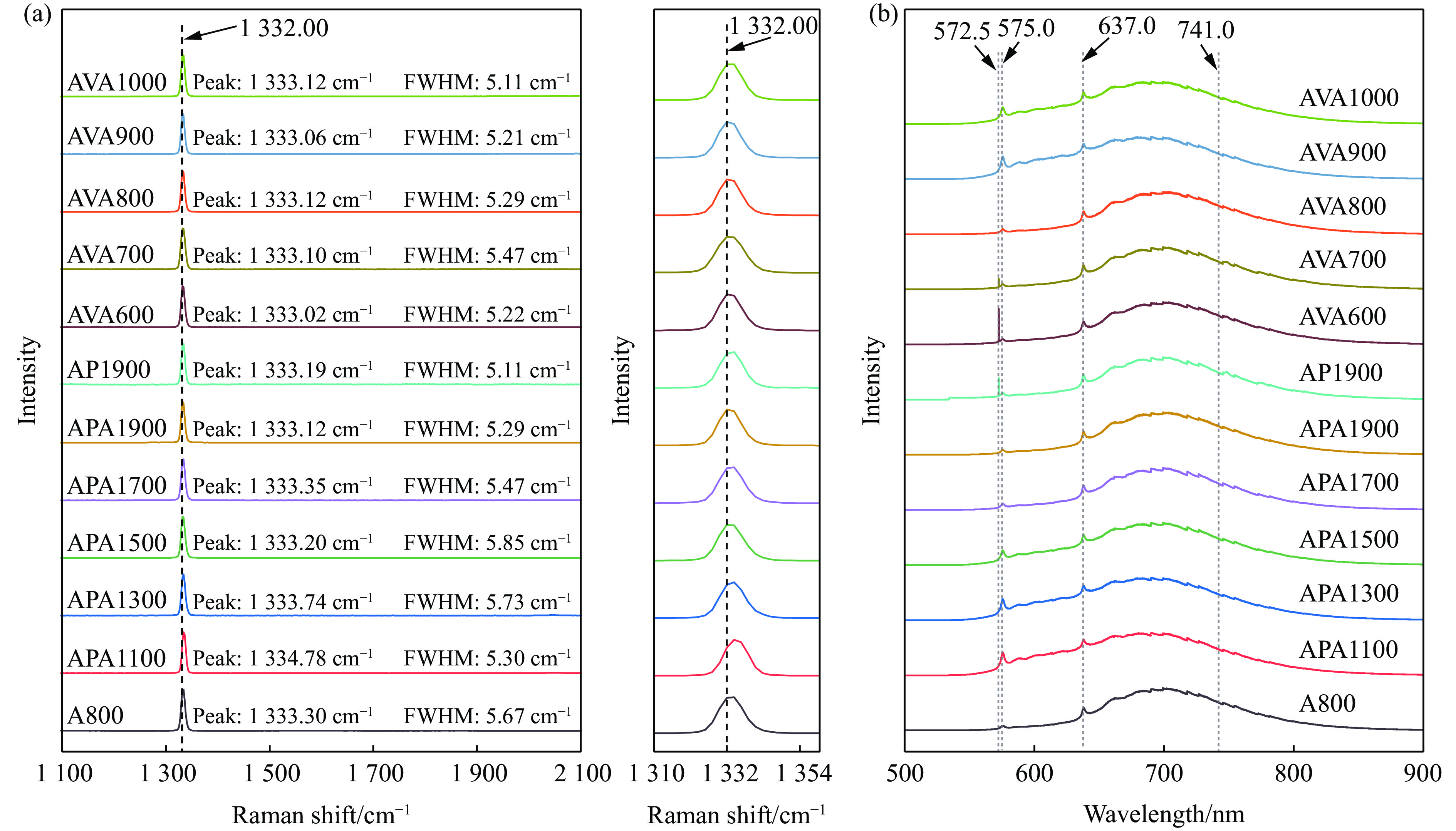

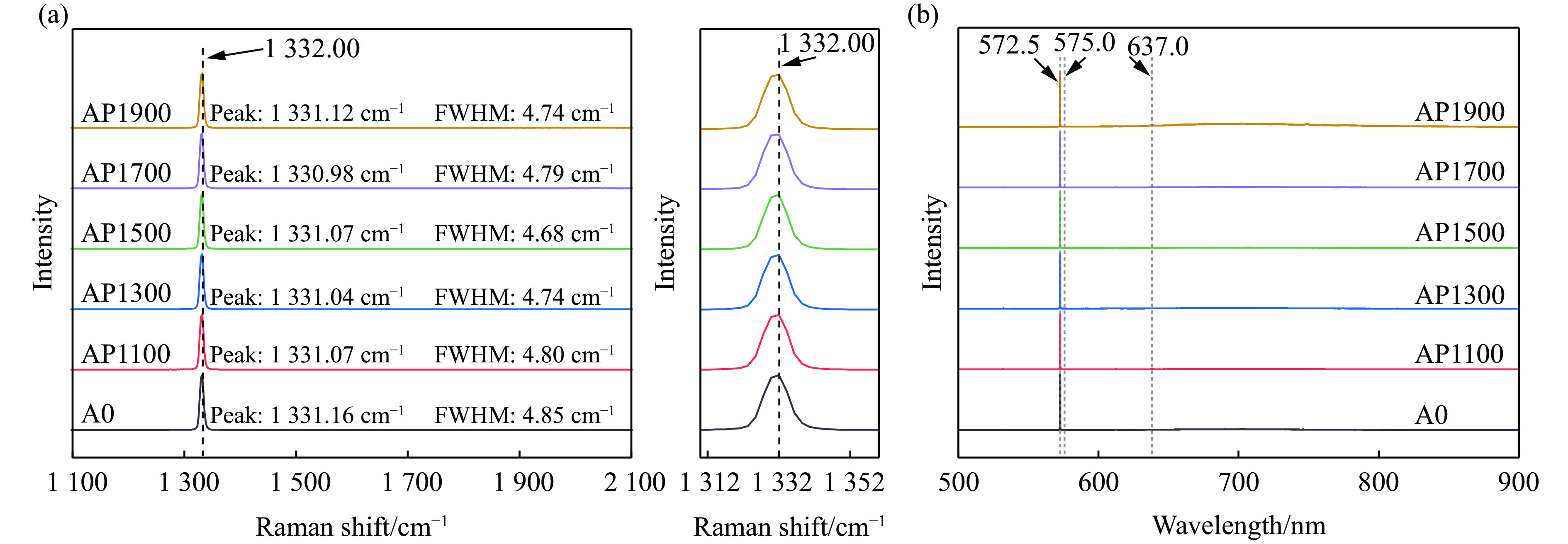

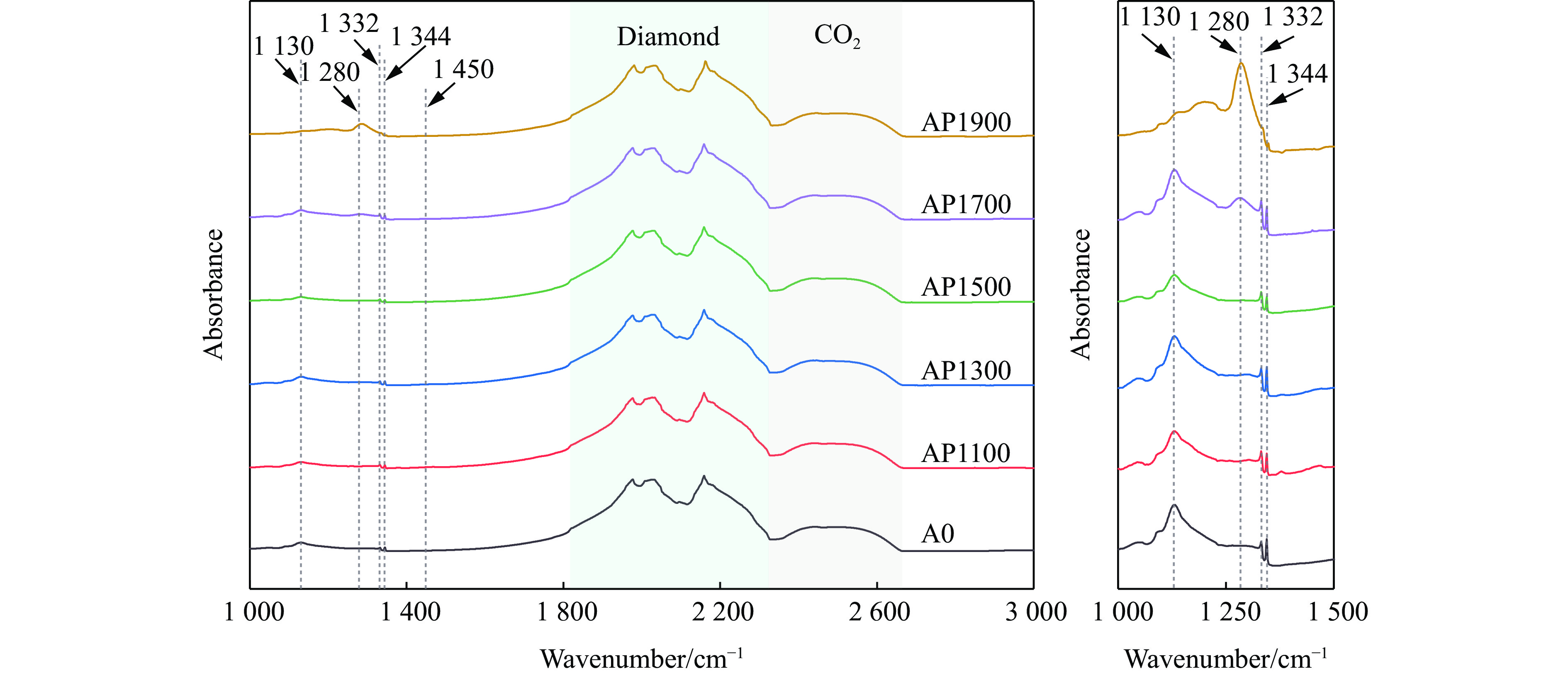

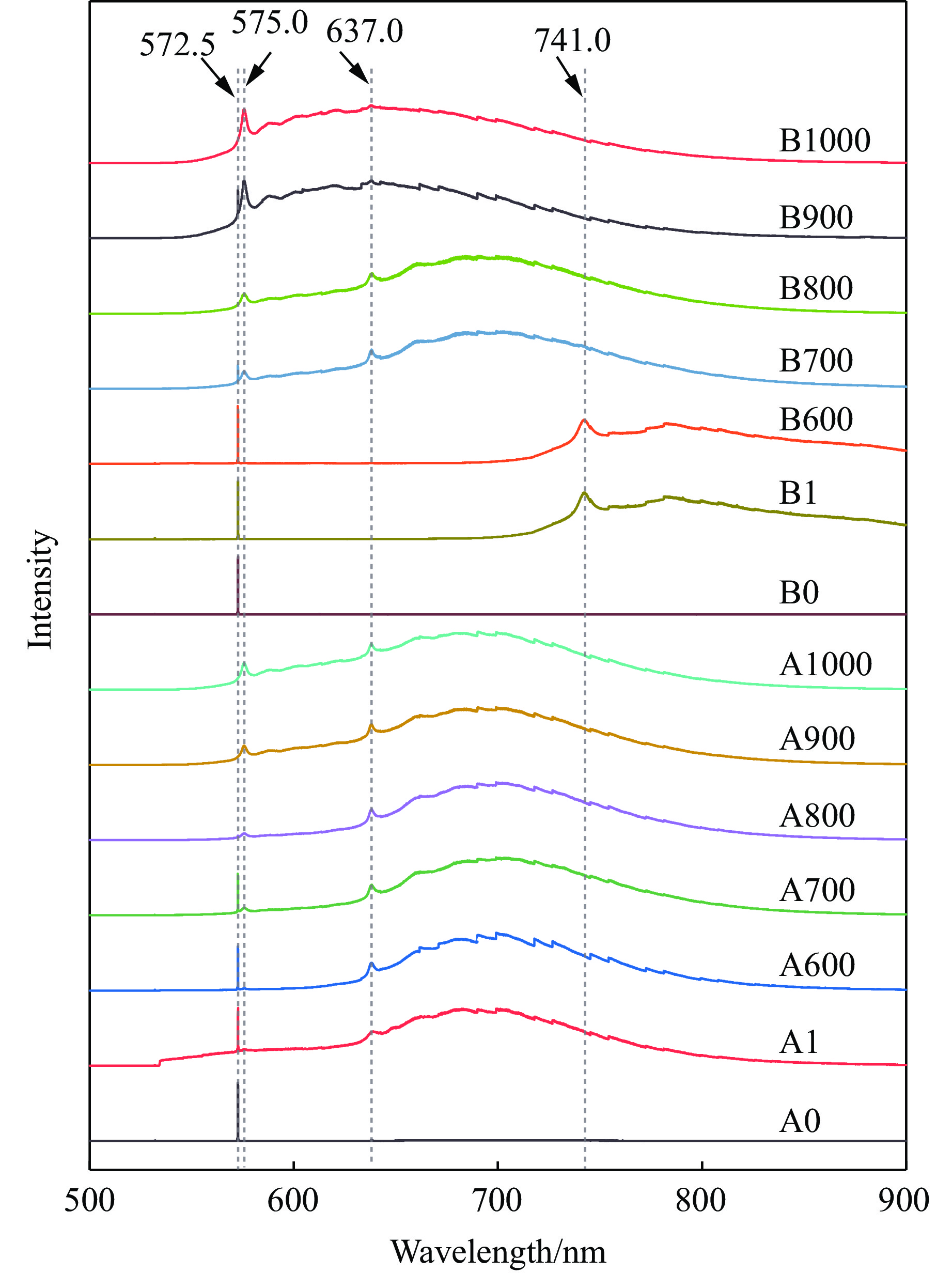

Formation of nitrogen-vacancy (NV) centers and their apparent charge-state response in high-pressure high-temperature (HPHT) type-Ⅰb diamond were investigated. Effects of the initial substitutional nitrogen content (C-center nitrogen), electron irradiation, vacuum annealing, and HPHT pretreatment on the photoluminescence (PL) behavior of NV centers were compared. Two groups of HPHT diamond single crystals with different C-center nitrogen contents were subjected to electron irradiation, vacuum annealing (600−1000 ℃), and HPHT pretreatment (5 GPa, 1100−1900 ℃). Fourier-transform infrared spectroscopy (FTIR), Raman spectroscopy, and photoluminescence spectroscopy were employed to analyze nitrogen aggregation, lattice state, and NV-related photoluminescence responses. The results show that high-nitrogen samples exhibit more pronounced NV-related emission, whereas irradiation-induced vacancies in the low-nitrogen samples tend to remain as GR1 centers. As the vacuum annealing temperature increases, the overall emission intensities of NV⁰ and NV⁻ increase, while the apparent photoluminescence response of NV⁻ relative to NV⁰ generally decreases. HPHT pretreatment does not directly generate a large number of NV centers but promotes nitrogen aggregation and modifies the apparent NV⁻/NV⁰ charge-state ratio during subsequent irradiation and annealing. These results indicate that HPHT pretreatment can serve as a preceding processing parameter for regulating the initial defect state before irradiation and the subsequent apparent charge-state ratio of NV centers.
- diamond,
- nitrogen-vacancy (NV) center,
- electron irradiation,
- vacuum annealing,
- high-pressure high-temperature

FullText(HTML)

References(27)

References

[1]	PEZZAGNA S, NAYDENOV B, JELEZKO F, et al. Creation efficiency of nitrogen-vacancy centres in diamond [J]. New Journal of Physics, 2010, 12(6): 065017. doi: 10.1088/1367-2630/12/6/065017
[2]	DOHERTY M W, MANSON N B, DELANEY P, et al. The nitrogen-vacancy colour centre in diamond [J]. Physics Reports, 2013, 528(1): 1–45. doi: 10.1016/j.physrep.2013.02.001
[3]	EDMONDS A M, D’HAENENS-JOHANSSON U F S, CRUDDACE R J, et al. Production of oriented nitrogen-vacancy color centers in synthetic diamond [J]. Physical Review B, 2012, 86(3): 035201. doi: 10.1103/PhysRevB.86.035201
[4]	KATSUMI R, TAKADA K, JELEZKO F, et al. Recent progress in hybrid diamond photonics for quantum information processing and sensing [J]. Communications Engineering, 2025, 4(1): 85. doi: 10.1038/s44172-025-00398-2
[5]	JU Z P, LIN J J, SHEN S, et al. Preparations and applications of single color centers in diamond [J]. Advances in Physics: X, 2021, 6(1): 1858721. doi: 10.1080/23746149.2020.1858721
[6]	BALASUBRAMANIAN G, LAZARIEV A, ARUMUGAM S R, et al. Nitrogen-vacancy color center in diamond—emerging nanoscale applications in bioimaging and biosensing [J]. Current Opinion in Chemical Biology, 2014, 20: 69–77. doi: 10.1016/j.cbpa.2014.04.014
[7]	SHI Z Y, GAO W, WANG Q, et al. Current sensor based on diamond nitrogen-vacancy color center [J]. Chinese Physics B, 2023, 32(7): 070704. doi: 10.1088/1674-1056/acc3fe
[8]	NUNN N, TORELLI M D, AJOY A, et al. Beauty beyond the eye: color centers in diamond particles for imaging and quantum sensing applications [J]. Reviews and Advances in Chemistry, 2022, 12(1): 1–21. doi: 10.1134/S2634827622010044
[9]	RODGERS L V H, HUGHES L B, XIE M Z, et al. Materials challenges for quantum technologies based on color centers in diamond [J]. MRS Bulletin, 2021, 46(7): 623–633. doi: 10.1557/s43577-021-00137-w
[10]	AHARONOVICH I, NEU E. Diamond nanophotonics [J]. Advanced Optical Materials, 2014, 2(10): 911–928. doi: 10.1002/adom.201400189
[11]	TALLAIRE A, BRINZA O, HUILLERY P, et al. High NV density in a pink CVD diamond grown with N₂O addition [J]. Carbon, 2020, 170: 421–429. doi: 10.1016/j.carbon.2020.08.048
[12]	王芳, 马宗敏, 赵敏, 等. 金刚石集群NV色心的光谱特征及浓度定量分析 [J]. 光谱学与光谱分析, 2017, 37(5): 1477–1481. doi: 10.3964/j.issn.1000-0593(2017)05-1477-05 WANG F, MA Z M, ZHAO M, et al. Spectral characteristics and concentration quantitative analysis of NV center ensembles in diamond [J]. Spectroscopy and Spectral Analysis, 2017, 37(5): 1477–1481. doi: 10.3964/j.issn.1000-0593(2017)05-1477-05
[13]	ZHANG X M, WANG S Y, SHI Y B, et al. Quantitative analysis of spectral characteristics and concentration of ensembles of NV⁻ centers in diamond [J]. Diamond and Related Materials, 2017, 76: 21–26. doi: 10.1016/j.diamond.2017.03.020
[14]	NUNN N, MILIKISIYANTS S, DANILOV E O, et al. Electron irradiation-induced paramagnetic and fluorescent defects in type Ⅰb high pressure-high temperature microcrystalline diamonds and their evolution upon annealing [J]. Journal of Applied Physics, 2022, 132(7): 075106. doi: 10.1063/5.0103313
[15]	LOSERO E, GOBLOT V, ZHU Y C, et al. Creation of NV centers in diamond under 155 MeV electron irradiation [J]. Advanced Physics Research, 2024, 3(2): 2300071. doi: 10.1002/apxr.202300071
[16]	LAWSON S C, FISHER D, HUNT D C, et al. On the existence of positively charged single-substitutional nitrogen in diamond [J]. Journal of Physics: Condensed Matter, 1998, 10(27): 6171–6180. doi: 10.1088/0953-8984/10/27/016
[17]	NIE Y, LI S S, HU Q, et al. Effects of high pressure and high temperature annealing on the characteristics of HPHT diamonds with high nitrogen content [J]. Optical Materials, 2023, 137: 113538. doi: 10.1016/j.optmat.2023.113538
[18]	BREEDING C M, SHIGLEY J E. The “type” classification system of diamonds and its importance in gemology [J]. Gems & Gemology, 2009, 45(2): 96–111. doi: 10.5741/GEMS.45.2.96
[19]	SHINEI C, MIYAKAWA M, ISHII S, et al. Equilibrium charge state of NV centers in diamond [J]. Applied Physics Letters, 2021, 119(25): 254001. doi: 10.1063/5.0079687
[20]	VINS V, YELISSEYEV A, TERENTYEV S, et al. Specifics of high-temperature annealing of brown CVD single crystal diamonds at graphite-stable and diamond-stable conditions [J]. Diamond and Related Materials, 2021, 118: 108511. doi: 10.1016/j.diamond.2021.108511
[21]	ZHENG L P, XIAO X, ZHOU C L, et al. HTHP-induced color transition and NV center engineering in MPCVD single-crystal diamond: defect mechanism and quantum-mechanical property synergy [J]. Diamond and Related Materials, 2026, 165: 113625. doi: 10.1016/j.diamond.2026.113625
[22]	POLO M C, CIFRE J, SÁNCHEZ G, et al. Pulsed laser deposition of diamond from graphite targets [J]. Applied Physics Letters, 1995, 67(4): 485–487. doi: 10.1063/1.114544
[23]	CATLEDGE S A, VOHRA Y K, LADI R, et al. Micro-Raman stress investigations and X-ray diffraction analysis of polycrystalline diamond (PCD) tools [J]. Diamond and Related Materials, 1996, 5(10): 1159–1165. doi: 10.1016/0925-9635(96)00534-1
[24]	STEEDS J W, KOHN S. Annealing of electron radiation damage in a wide range of Ⅰb and Ⅱa diamond samples [J]. Diamond and Related Materials, 2014, 50: 110–122. doi: 10.1016/j.diamond.2014.09.012
[25]	DEÁK P, ARADI B, KAVIANI M, et al. Formation of NV centers in diamond: a theoretical study based on calculated transitions and migration of nitrogen and vacancy related defects [J]. Physical Review B, 2014, 89(7): 075203. doi: 10.1103/PhysRevB.89.075203
[26]	GROTZ B, HAUF M V, DANKERL M, et al. Charge state manipulation of qubits in diamond [J]. Nature Communications, 2012, 3(1): 729. doi: 10.1038/ncomms1729
[27]	COLLINS A T. The Fermi level in diamond [J]. Journal of Physics: Condensed Matter, 2002, 14(14): 3743–3750. doi: 10.1088/0953-8984/14/14/307
