Synthesis and Characterization of P-Doped Diamond Crystals in the FeNiCo-C System under High Temperature and High Pressure

doi: 10.11858/gywlxb.20251285

School of Materials Science and Engineering, Henan Polytechnic University, Jiaozuo 454003, Henan, China

Received Date: 26 Dec 2025
Rev Recd Date: 08 Feb 2026
Accepted Date: 14 Jul 2026

Available Online: 11 Feb 2026

Issue Publish Date: 05 Sep 2026

Abstract

Abstract

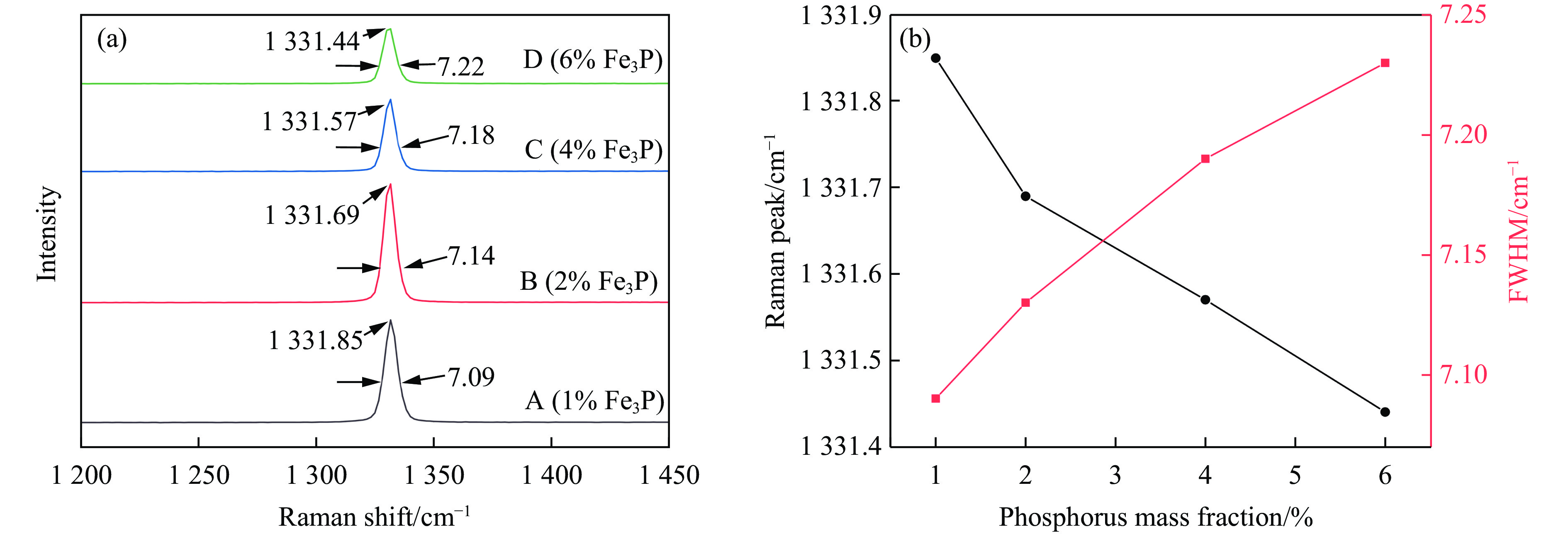

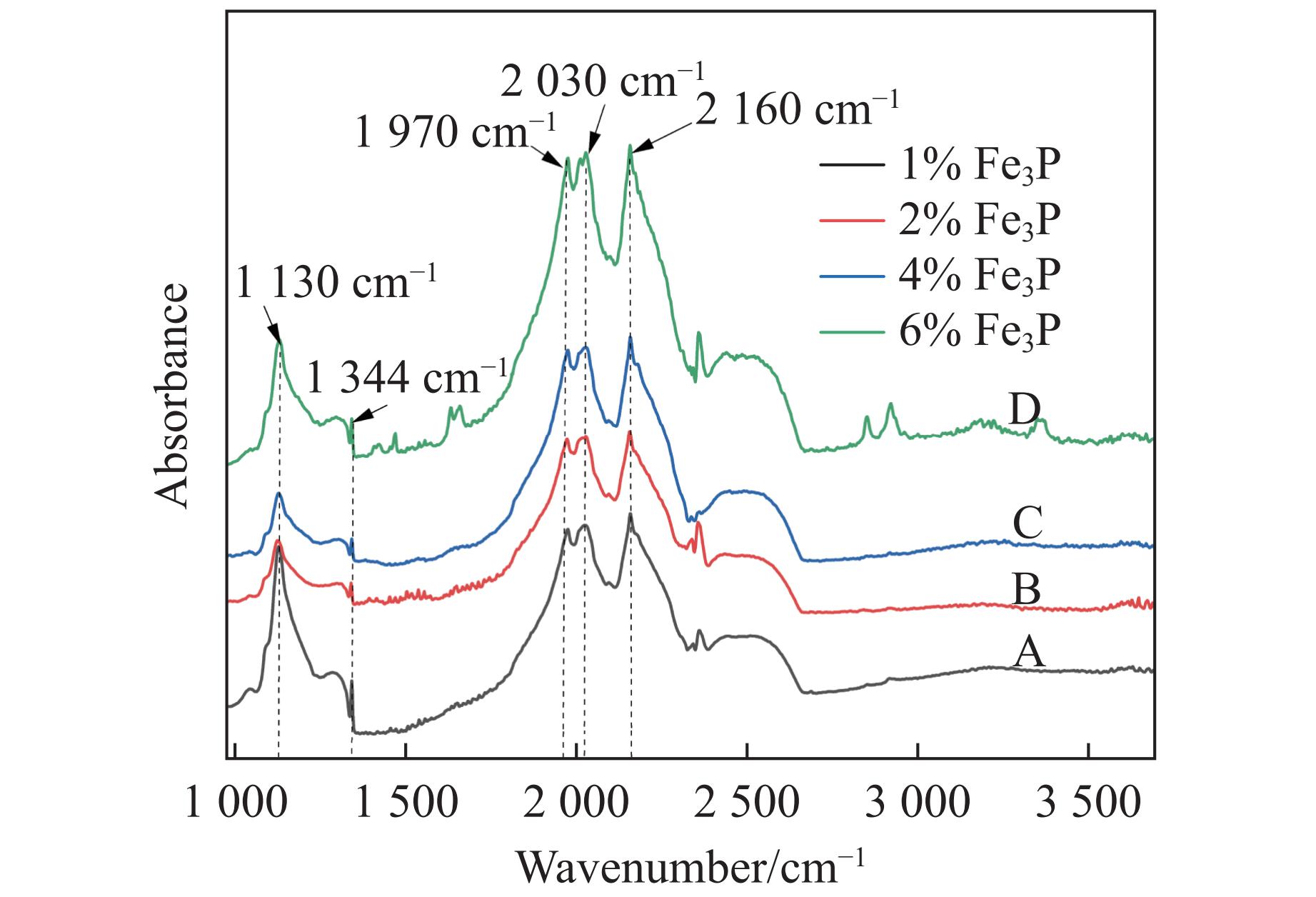

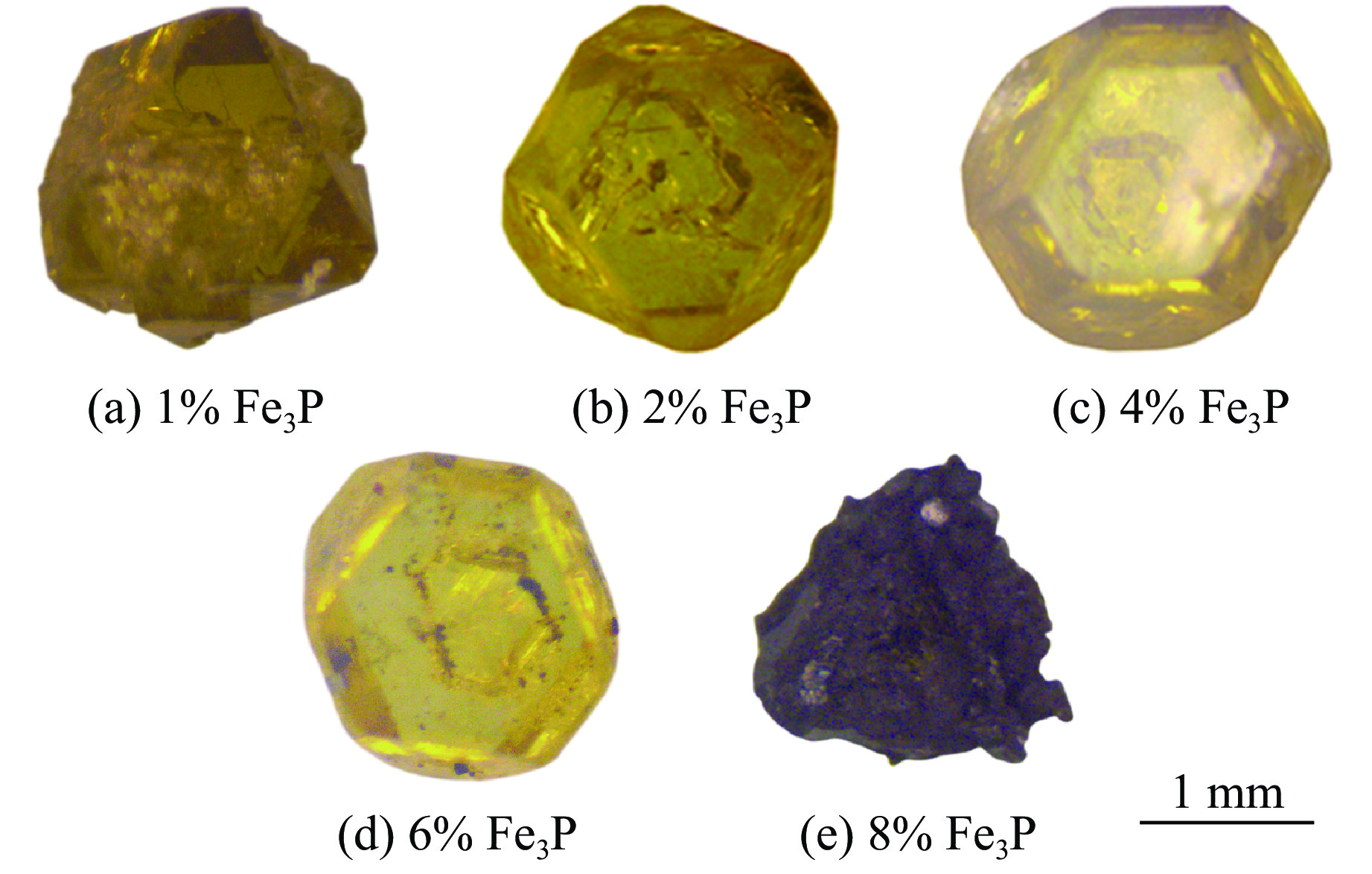

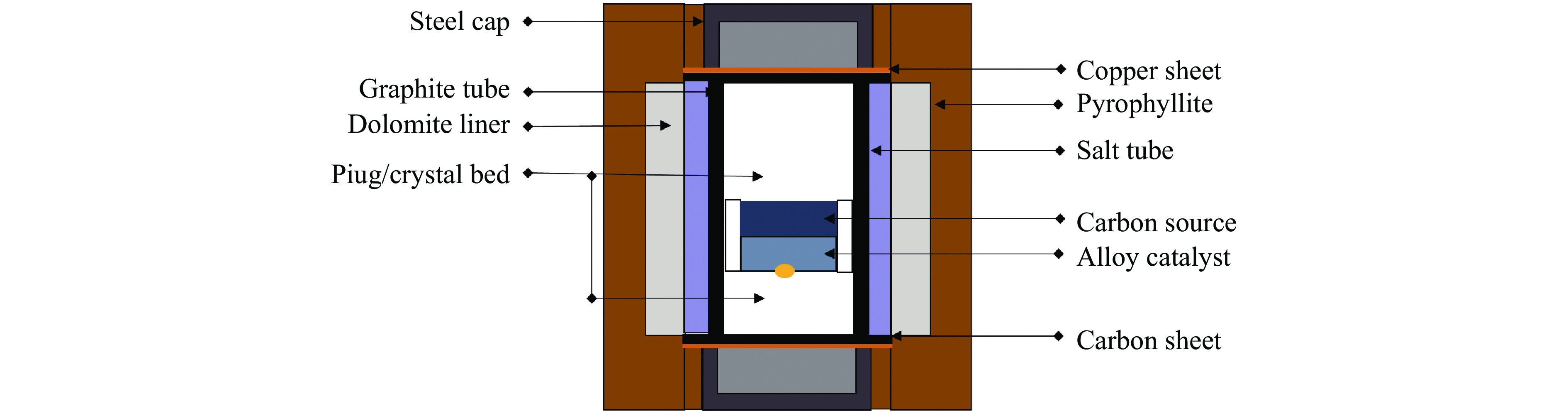

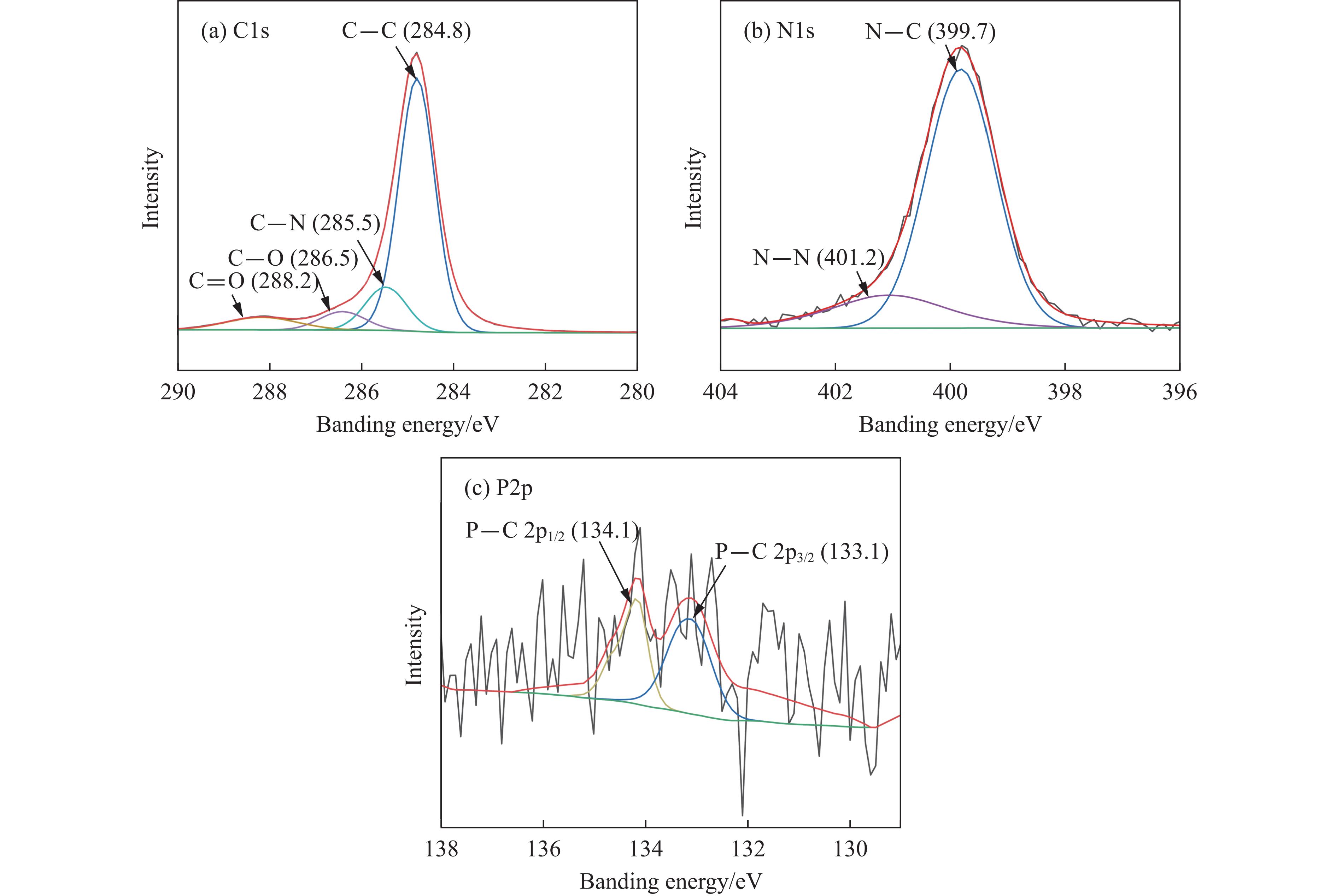

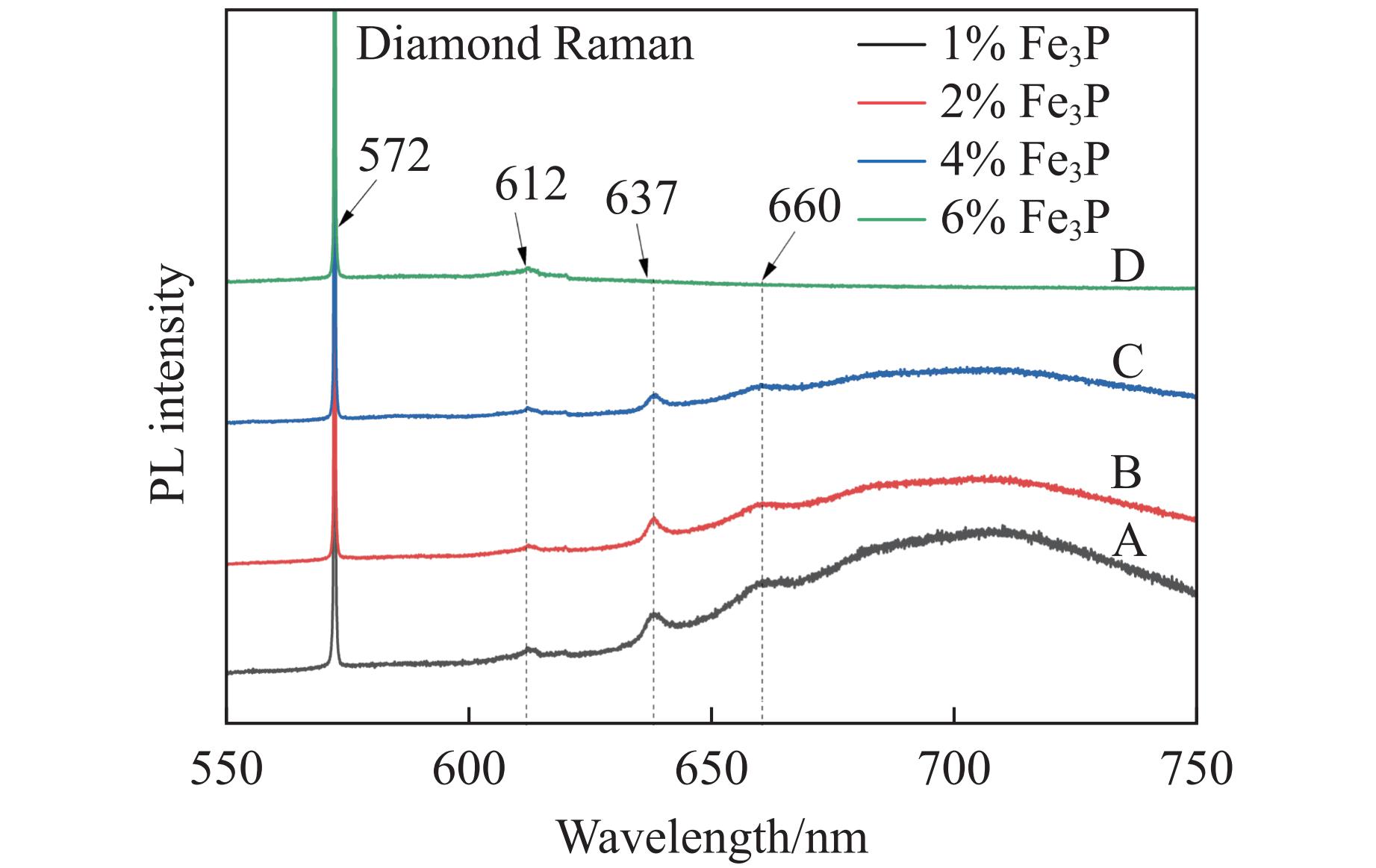

To investigate the effects of phosphorus doping on diamond crystal growth, diamond single crystals doped with phosphorus were synthesized along the (111) plane using the temperature gradient method. The experiments were conducted under conditions of 5.5 GPa and 1 300 ℃, with Fe₃P added into the FeNiCo-C system. The synthesized diamond samples were characterized by Fourier-transform infrared (FTIR) spectroscopy, Raman spectroscopy, photoluminescence (PL) spectroscopy, and X-ray photoelectron spectroscopy (XPS). With increasing Fe₃P addition, the diamond color gradually lightens, and the crystal morphology changes from octahedral to hexoctahedral. Moreover, the addition of Fe₃P alters the catalyst properties, leading to the increases of nitrogen solubility of the catalyst. Thus, fewer nitrogen atoms enter the diamond lattice, resulting in a decrease of nitrogen impurity content in the diamonds. Phosphorus doping increases internal stress and induces lattice distortion in the diamond crystal, resulting in degrading of the diamond quality. This conclusion is supported by the shift and broadening of the Raman peak. The incorporation of phosphorus atoms inhibits the formation of NV⁻ centers in diamond crystals. XPS results confirm the successful incorporation of phosphorus into the diamond lattice. This study provides useful insights for understanding the synthesis mechanism of phosphorus-doped diamond crystals, and supports potential applications of phosphorus-doped diamond crystals.
- high-temperature and high-pressure,
- diamond single crystal,
- superhard materials,
- phosphorus doping,
- n-type semiconductor

FullText(HTML)

References(34)

References

[1]	DENG H, HE J. A study of the grinding performance of laser micro-structured coarse-grained diamond grinding wheels [J]. The International Journal of Advanced Manufacturing Technology, 2017, 93(5): 1989–1997. doi: 10.1007/s00170-017-0639-9
[2]	DU J B, LIU H Z, YANG N, et al. Modification of diamond tool by focused ion beam in dry single-point diamond turning [J]. Applied Surface Science, 2023, 637: 157882. doi: 10.1016/j.apsusc.2023.157882
[3]	BOVENKERK H P, BUNDY F P, HALL H T, et al. Preparation of diamond [J]. Nature, 1959, 184(4693): 1094–1098. doi: 10.1038/1841094a0
[4]	NEBEL C E. Electrons dance in diamond [J]. Nature Materials, 2013, 12(8): 690–691. doi: 10.1038/nmat3724
[5]	罗宁, 李尚升, 贾晓鹏. 在FeNiCo-C系统中生长板状Ⅰb型宝石级金刚石 [J]. 金刚石与磨料磨具工程, 2012, 32(2): 15–19. doi: 10.13394/j.cnki.jgszz.2012.02.002 LUO N, LI S S, JIA X P. Growth of synthetic tabular Ⅰb-type large diamond crystal in FeNiCo-C system under HPHT [J]. Diamond & Abrasives Engineering, 2012, 32(2): 15–19. doi: 10.13394/j.cnki.jgszz.2012.02.002
[6]	王健康, 李尚升, 宋艳玲, 等. 有限元法在金刚石合成中的应用进展 [J]. 高压物理学报, 2019, 33(1): 013101. doi: 10.11858/gywlxb.20180550 WANG J K, LI S S, SONG Y L, et al. Progress in the application of finite element method in synthetic diamonds [J]. Chinese Journal of High Pressure Physics, 2019, 33(1): 013101. doi: 10.11858/gywlxb.20180550
[7]	郝敬林, 邓丽芬, 王凯悦, 等. 高温高压合成掺杂金刚石研究进展 [J]. 人工晶体学报, 2024, 53(2): 194–209. doi: 10.16553/j.cnki.issn1000-985x.20240004.004 HAO J L, DENG L F, WANG K Y, et al. Synthesis of doped diamond by high-pressure and high temperature: a review [J]. Journal of Synthetic Crystals, 2024, 53(2): 194–209. doi: 10.16553/j.cnki.issn1000-985x.20240004.004
[8]	JIA J F, GUO B, ZHANG Q H, et al. Grinding performance and acoustic emissions of structured CVD diamond micro-grinding tools [J]. Journal of Materials Processing Technology, 2023, 318: 118011. doi: 10.1016/j.jmatprotec.2023.118011
[9]	BULUSHEVA L G, ARKHIPOV V E, POPOV K M, et al. Electronic structure of nitrogen- and phosphorus-doped graphenes grown by chemical vapor deposition method [J]. Materials, 2020, 13(5): 1173. doi: 10.3390/ma13051173
[10]	BAUCH E, SINGH S, LEE J, et al. Decoherence of ensembles of nitrogen-vacancy centers in diamond [J]. Physical Review B, 2020, 102(13): 134210. doi: 10.1103/PhysRevB.102.134210
[11]	HU M H, BI N, LI S S, et al. Effects of FeNi-phosphorus-carbon system on crystal growth of diamond under high pressure and high temperature conditions [J]. Chinese Physics B, 2015, 24(3): 038101. doi: 10.1088/1674-1056/24/3/038101
[12]	PALYANOV Y N, KUPRIYANOV I N, SOKOL A G, et al. Diamond growth from a phosphorus-carbon system at high pressure high temperature conditions [J]. Crystal Growth & Design, 2011, 11(6): 2599–2605. doi: 10.1021/cg2003468
[13]	GONG C S, LI S S, ZHANG H R, et al. Study on synthesis and electrical properties of slab shape diamond crystals in FeNiMnCo-C-P system under HPHT [J]. International Journal of Refractory Metals and Hard Materials, 2017, 66: 116–121. doi: 10.1016/j.ijrmhm.2017.03.003
[14]	YU K P, LI S S, YANG Q, et al. Effects of phosphorus doping via Mn₃P₂ on diamond growth along the (100) surfaces [J]. CrystEngComm, 2019, 21(44): 6810–6818. doi: 10.1039/C9CE01257E
[15]	GUO R A, LI S Q, ZHANG J W, et al. Phosphorus-doped n-type diamond with high ionization efficiency through high-pressure thermal diffusion [J]. Science China Materials, 2025, 68(4): 1196–1202. doi: 10.1007/s40843-024-3233-5
[16]	GUO Z H, LI S S, NIE Y, et al. Synthesis and characterization of diamond single crystals with Fe₃P-doped under high pressure and high temperature [J]. Nano, 2026, 21(6): 2550093. doi: 10.1142/S1793292025500936
[17]	郝兆印, 王魁香. Fe基合金与金刚石单晶生长 [J]. 高压物理学报, 1991, 5(3): 177–181. doi: 10.11858/gywlxb.1991.03.003 HAO Z Y, WANG K X. Fe-based alloys and the growth of single crystal diamond [J]. Chinese Journal of High Pressure Physics, 1991, 5(3): 177–181. doi: 10.11858/gywlxb.1991.03.003
[18]	MA H A, JIA X P, CHEN L X, et al. High-pressure pyrolysis study of C₃N₆H₆: a route to preparing bulk C₃N₄ [J]. Journal of Physics: Condensed Matter, 2002, 14(44): 11269–11273. doi: 10.1088/0953-8984/14/44/466
[19]	王君卓, 李尚升, 宿太超, 等. Ⅰb型金刚石大单晶的限形生长 [J]. 物理学报, 2018, 67(16): 168101. doi: 10.7498/aps.67.20180356 WANG J Z, LI S S, SU T C, et al. Shape controlled growth for type Ⅰb large diamond crystals [J]. Acta Physica Sinica, 2018, 67(16): 168101. doi: 10.7498/aps.67.20180356
[20]	YIN L W, LI M S, CUI J J, et al. Planar defects and dislocations in HPHT as-grown diamond crystals [J]. Diamond and Related Materials, 2002, 11(2): 268–272. doi: 10.1016/S0925-9635(01)00690-2
[21]	王蒙召, 许安涛, 李尚升, 等. FeNi、NiMnCo及其复合触媒中Ⅰb型金刚石的生长特性 [J]. 人工晶体学报, 2021, 50(11): 2060–2066. doi: 10.16553/j.cnki.issn1000-985x.20211101.020 WANG M Z, XU A T, LI S S, et al. Growth characteristics of type Ⅰb diamonds in FeNi, NiMnCo and their composite catalysts [J]. Journal of Synthetic Crystals, 2021, 50(11): 2060–2066. doi: 10.16553/j.cnki.issn1000-985x.20211101.020
[22]	肖宏宇, 王帅, 康如威, 等. Li₃N添加金刚石单晶的高温高压生长研究 [J]. 物理学报, 2025, 74(7): 070701. doi: 10.7498/aps.74.20241769 XIAO H Y, WANG S, KANG R W, et al. Study on the growth of Li₃N doped diamond single crystals under HPHT [J]. Acta Physica Sinica, 2025, 74(7): 070701. doi: 10.7498/aps.74.20241769
[23]	LI L J, HE Y L, YANG Y H, et al. Recent advances in Mn, Fe, Co, and Ni-catalyzed organic reactions [J]. CCS Chemistry, 2024, 6(3): 537–584. doi: 10.31635/ccschem.023.202303412
[24]	LAI S L, SHEN W X, ZHANG Z F, et al. High-pressure high-temperature industrial preparation of micron-sized diamond single crystals with silicon-vacancy colour centres [J]. International Journal of Refractory Metals and Hard Materials, 2022, 105: 105806. doi: 10.1016/j.ijrmhm.2022.105806
[25]	FANG S, MA H A, WANG Z K, et al. Study on growth characteristics of Ⅰb-type diamond in an Fe-Ni-C-S system [J]. CrystEngComm, 2019, 21(40): 6010–6017. doi: 10.1039/C9CE01194C
[26]	FANG C, JIA X P, CHEN N, et al. HPHT synthesis of N-H co-doped diamond single crystals [J]. Journal of Crystal Growth, 2016, 436: 34–39. doi: 10.1016/j.jcrysgro.2015.11.042
[27]	LIANG Z Z, KANDA H, JIA X, et al. Synthesis of diamond with high nitrogen concentration from powder catalyst-C-additive NaN₃ by HPHT [J]. Carbon, 2006, 44(5): 913–917. doi: 10.1016/j.carbon.2005.10.018
[28]	BURNS R C, HANSEN J O, SPITS R A, et al. Growth of high purity large synthetic diamond crystals [J]. Diamond and Related Materials, 1999, 8(8/9): 1433–1437. doi: 10.1016/s0925-9635(99)00042-4
[29]	陈宁. 硫(氢)掺杂金刚石单晶的高压合成及金刚石色心研究 [D]. 长春: 吉林大学, 2018: 53–54. CHEN N. Synthesis and color center research of S (H) doped diamond under high pressure [D]. Changchun: Jilin University, 2018: 53–54.
[30]	YAN B M, JIA X P, FANG C, et al. The effect of phosphorus and nitrogen co-doped on the synthesis of diamond at high pressure and high temperature [J]. International Journal of Refractory Metals and Hard Materials, 2016, 54: 309–314. doi: 10.1016/j.ijrmhm.2015.08.009
[31]	韩飞, 李尚升, 朱丽飞, 等. 激光拉曼光谱法在金刚石研究中的应用 [J]. 人工晶体学报, 2018, 47(5): 1060–1065. doi: 10.16553/j.cnki.issn1000-985x.2018.05.030 HAN F, LI S S, ZHU L F, et al. Application of laser Raman spectroscopy method in research of diamond [J]. Journal of Synthetic Crystals, 2018, 47(5): 1060–1065. doi: 10.16553/j.cnki.issn1000-985x.2018.05.030
[32]	CHOUDHARY V R, JANA P. Synergetic effect of two halogen promoters present in acidic reaction medium or catalyst on the H₂O₂ formation (in H₂-to-H₂O₂ oxidation) and destruction over Pd/C (or Al₂O₃) catalyst [J]. Journal of Catalysis, 2007, 246(2): 434–439. doi: 10.1016/j.jcat.2006.12.012
[33]	LI M, GUO Q Y, TENG Y, et al. Effect of pressure on large size diamond single crystal synthesized by temperature gradient method under low nitrogen condition [J]. International Journal of Refractory Metals and Hard Materials, 2023, 115: 106307. doi: 10.1016/j.ijrmhm.2023.106307
[34]	吴晓磊, 徐帅, 赵延军, 等. CVD单晶金刚石[NV]和[SiV]缺陷的抑制与消除 [J]. 金刚石与磨料磨具工程, 2020, 40(5): 42–44. WU X L, XU S, ZHAO Y J, et al. Suppression and elimination of [NV] and [SiV] defects in CVD single crystal diamond [J]. Diamond & Abrasives Engineering, 2020, 40(5): 42–44.
