Role of Gradient Structure in the Integrated Performance of PDC Cutters

GAO Jun; ZHANG Zhicai; HOU Zhiqiang; WANG Chao; LI Hao; YANG Yikan; YANG Jiao; FANG Rui; TANG Yao; WANG Haikuo

doi:10.11858/gywlxb.20251233

Volume 40 Issue 9

Sep 2026

Turn off MathJax

Article Contents

Chinese Journal of High Pressure Physics > 2026 > 40(9): 090109.

GAO Jun, ZHANG Zhicai, HOU Zhiqiang, WANG Chao, LI Hao, YANG Yikan, YANG Jiao, FANG Rui, TANG Yao, WANG Haikuo. Role of Gradient Structure in the Integrated Performance of PDC Cutters[J]. Chinese Journal of High Pressure Physics, 2026, 40(9): 090109. doi: 10.11858/gywlxb.20251233

Citation:

GAO Jun, ZHANG Zhicai, HOU Zhiqiang, WANG Chao, LI Hao, YANG Yikan, YANG Jiao, FANG Rui, TANG Yao, WANG Haikuo. Role of Gradient Structure in the Integrated Performance of PDC Cutters[J]. Chinese Journal of High Pressure Physics, 2026, 40(9): 090109. doi: 10.11858/gywlxb.20251233

Citation:

GAO Jun, ZHANG Zhicai, HOU Zhiqiang, WANG Chao, LI Hao, YANG Yikan, YANG Jiao, FANG Rui, TANG Yao, WANG Haikuo. Role of Gradient Structure in the Integrated Performance of PDC Cutters[J]. Chinese Journal of High Pressure Physics, 2026, 40(9): 090109. doi: 10.11858/gywlxb.20251233

PDF( 21674 KB)

Role of Gradient Structure in the Integrated Performance of PDC Cutters

doi: 10.11858/gywlxb.20251233

College of Energy Engineering, Zhejiang University, Hangzhou 310027, Zhejiang, China

Received Date: 21 Oct 2025
Rev Recd Date: 08 Dec 2025
Accepted Date: 11 Jun 2026

Available Online: 11 Dec 2025

Issue Publish Date: 05 Sep 2026

Abstract

Abstract

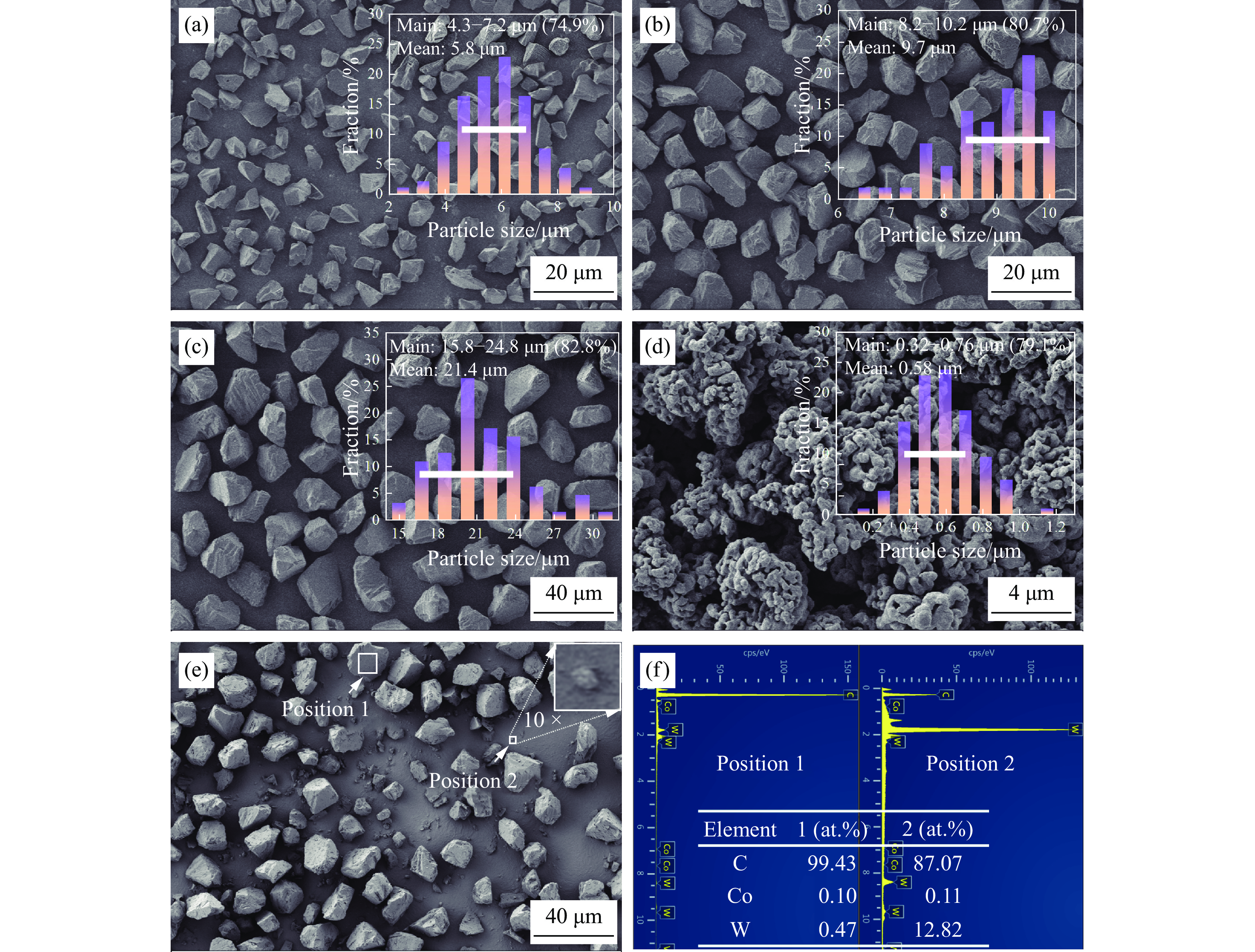

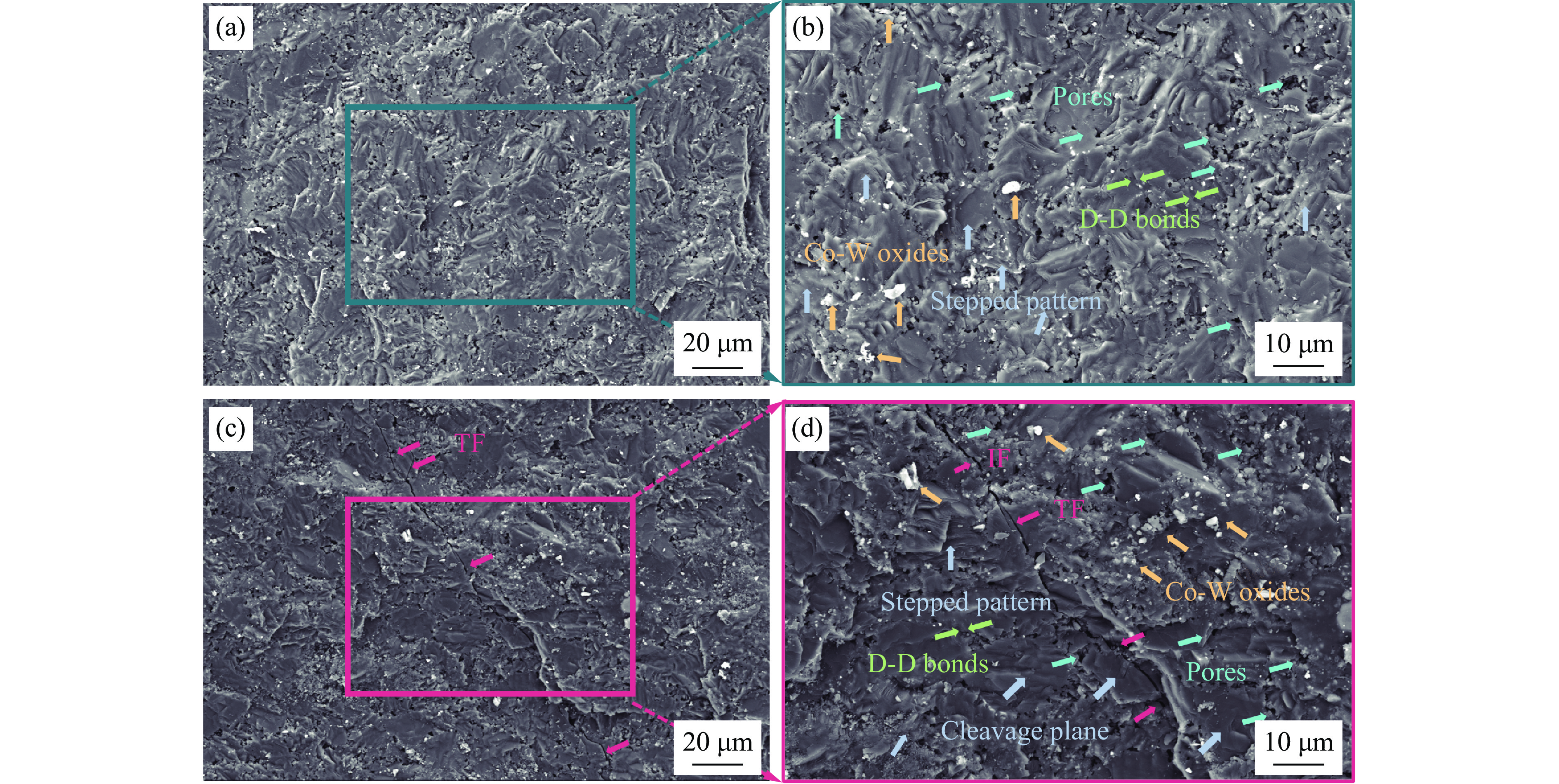

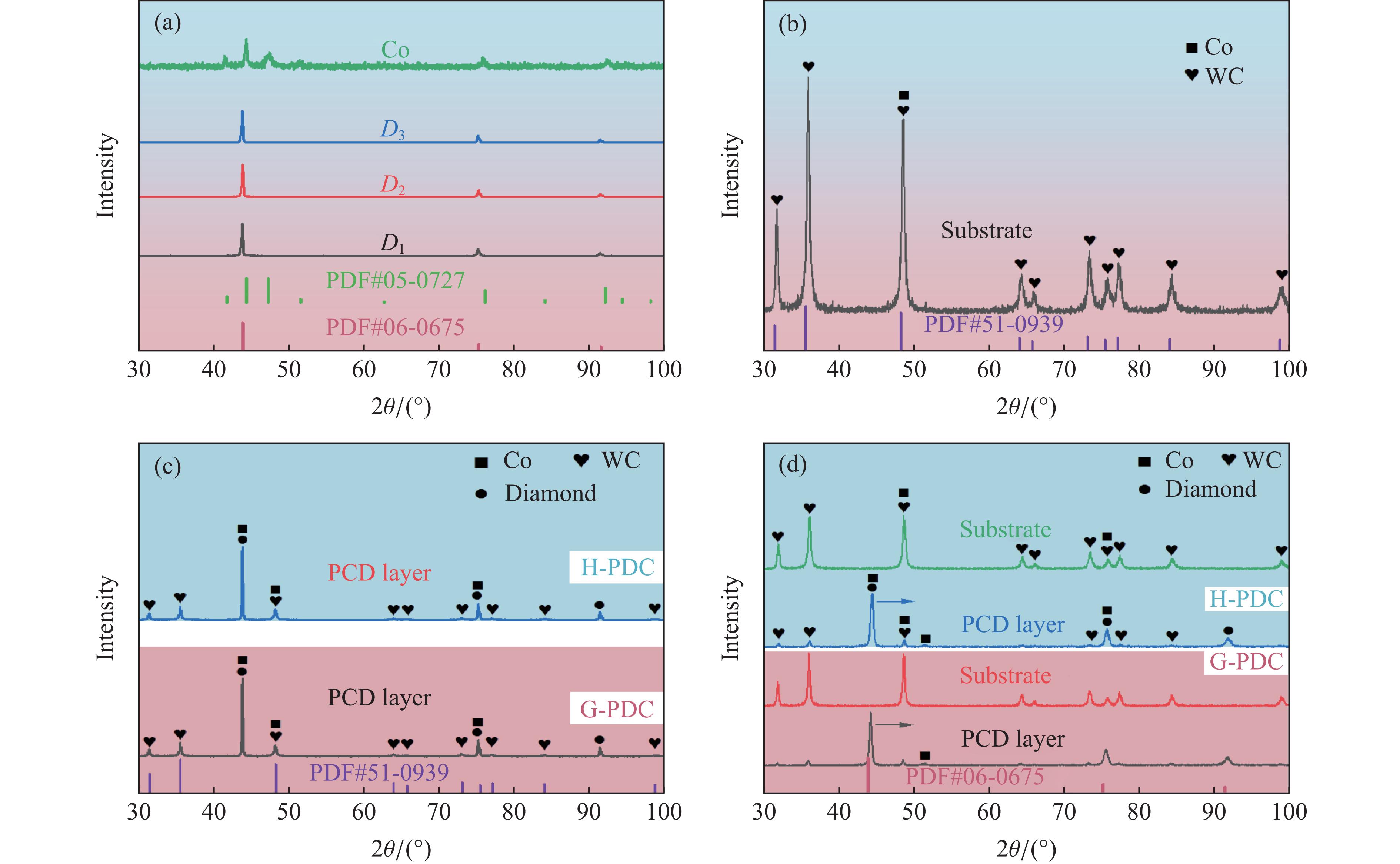

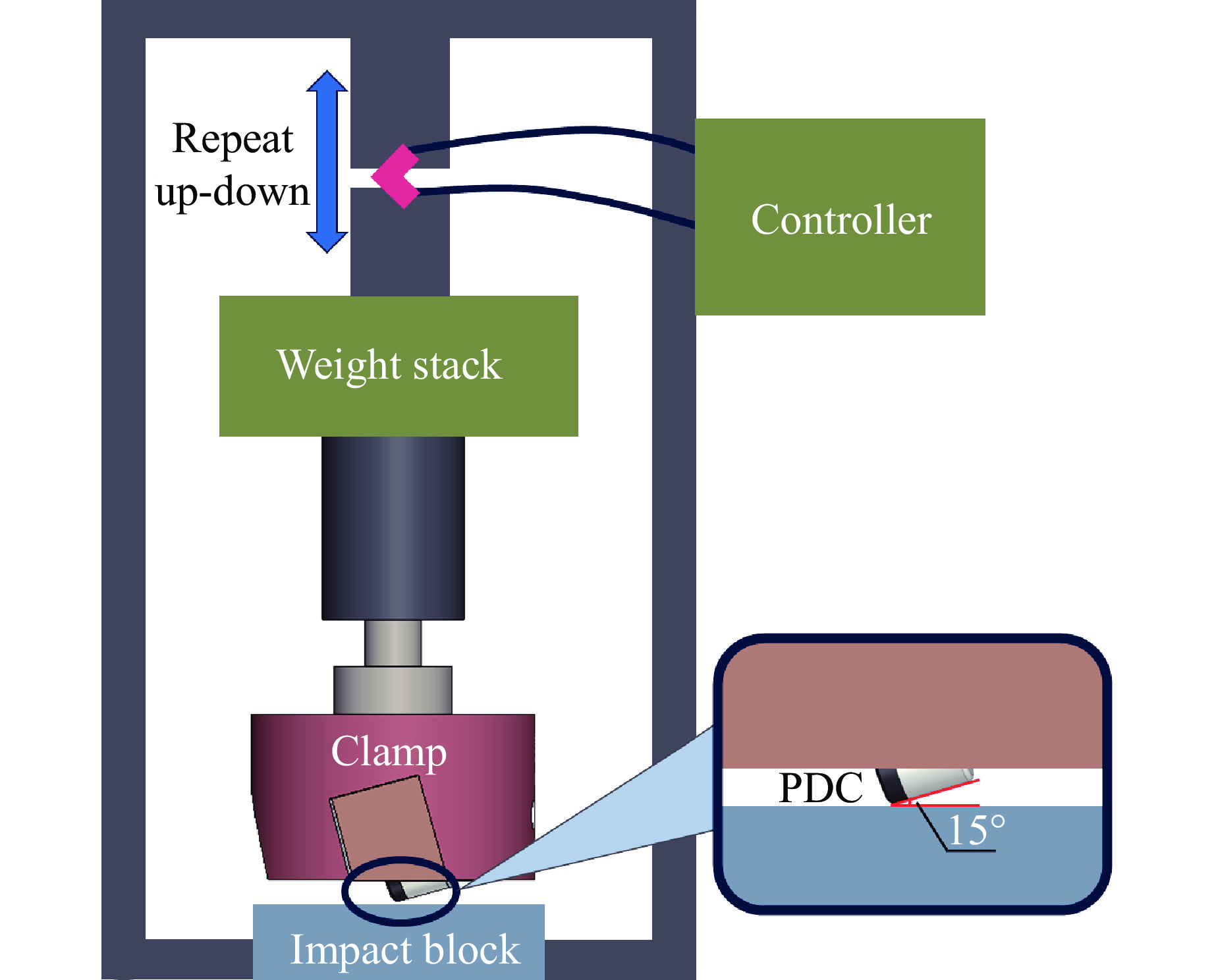

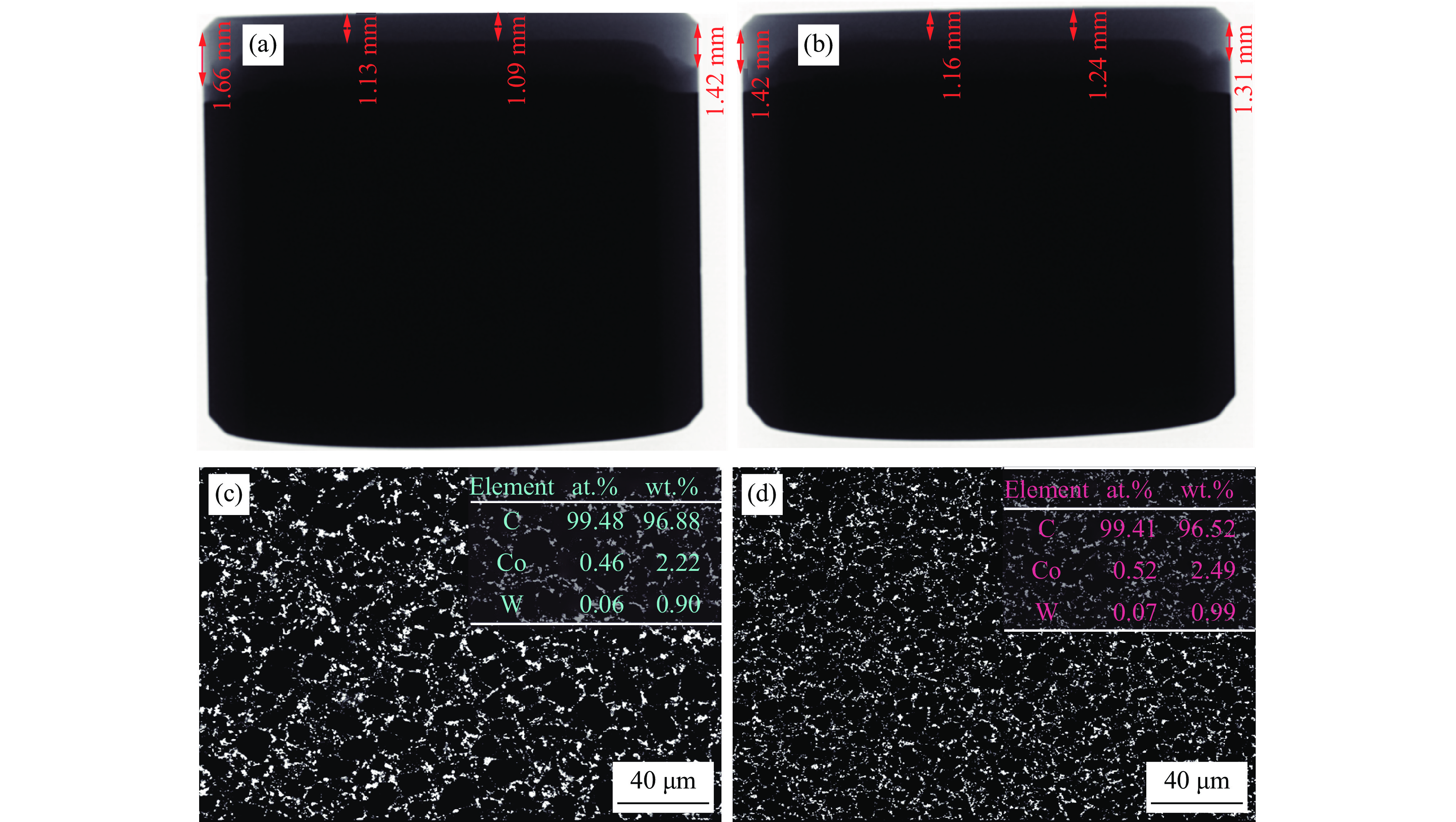

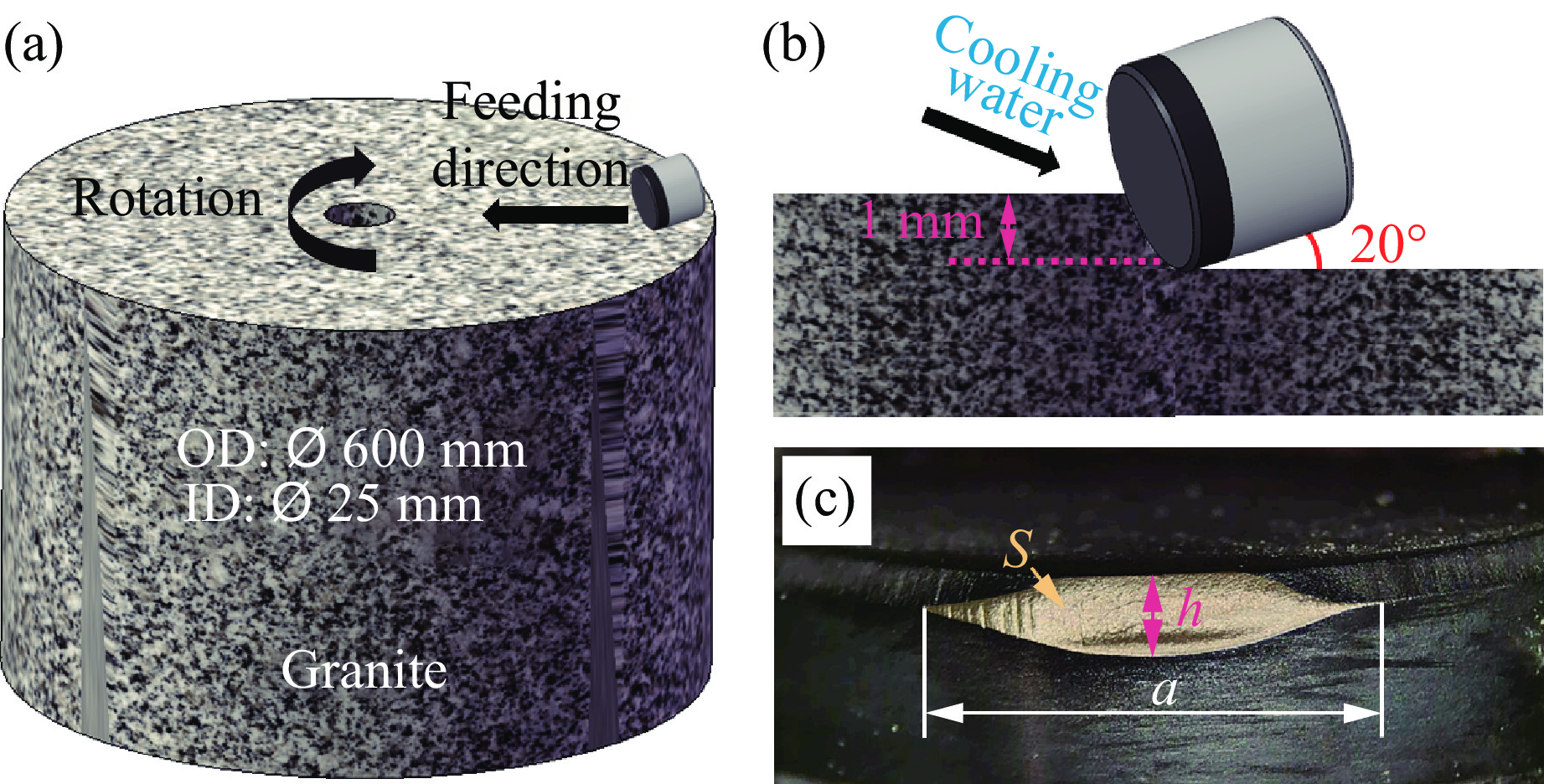

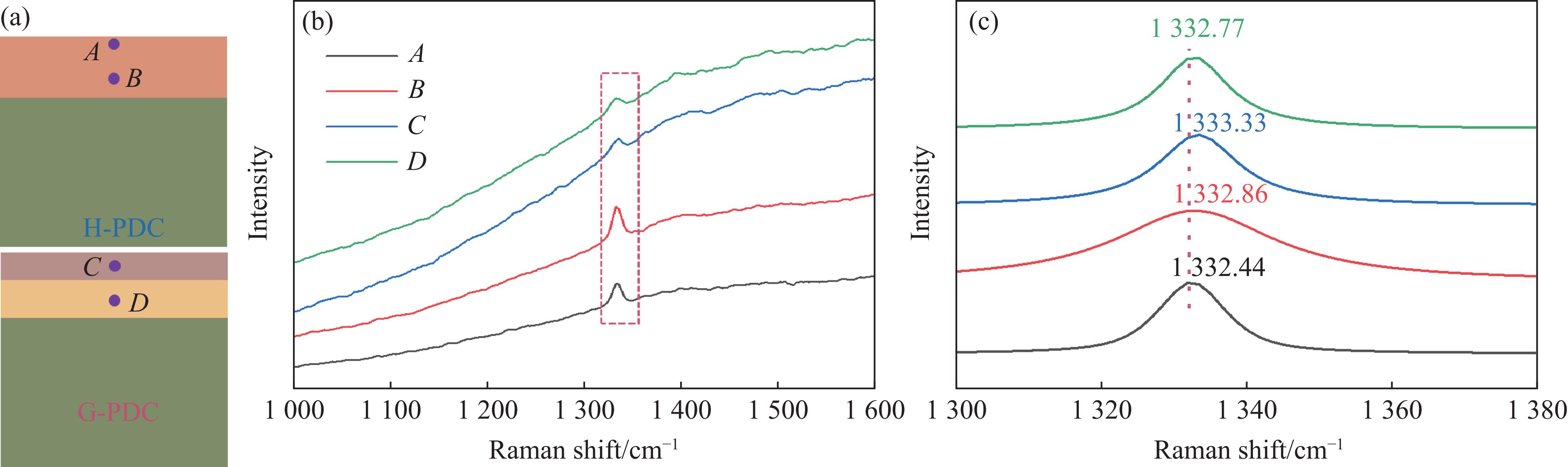

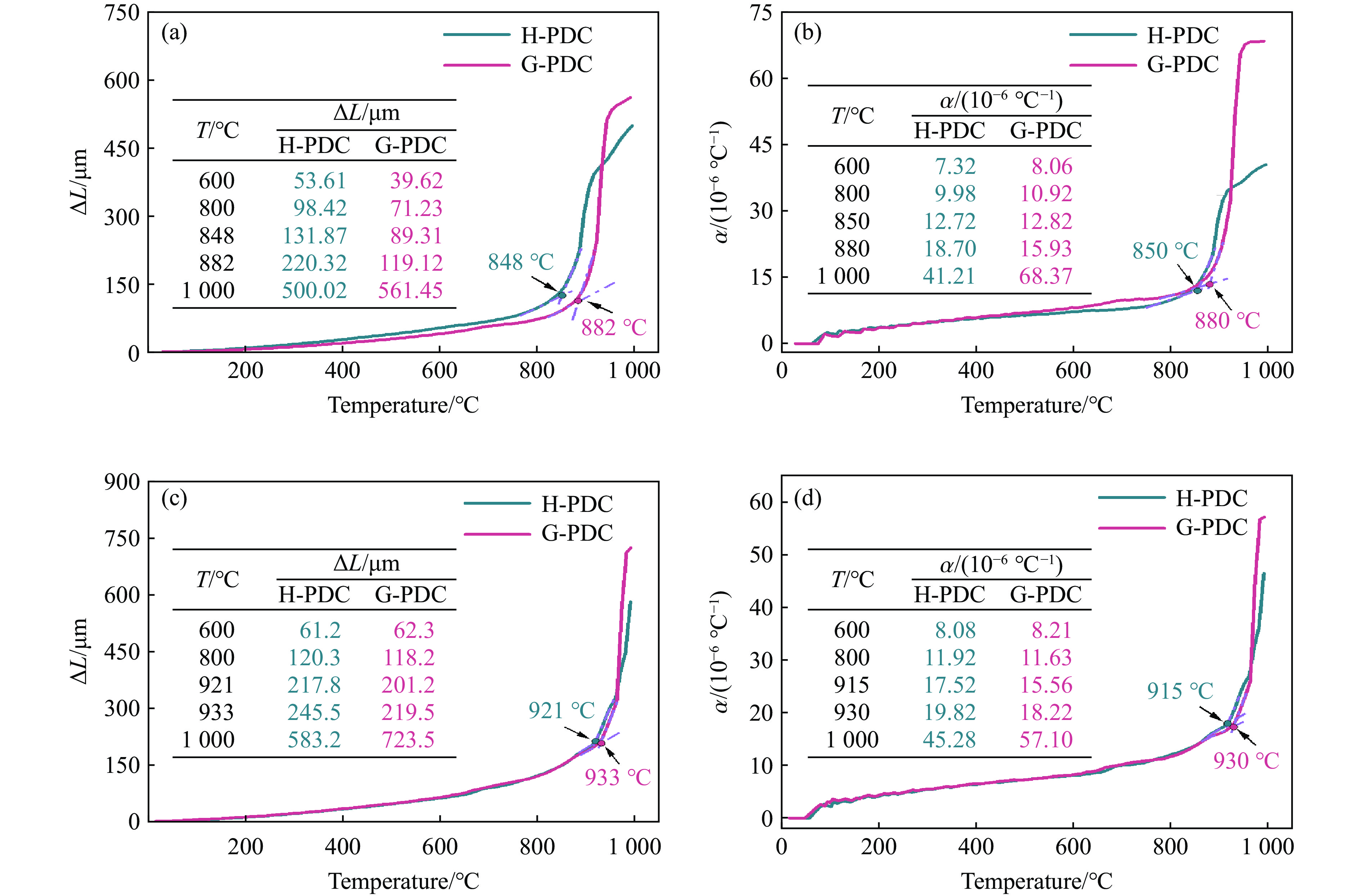

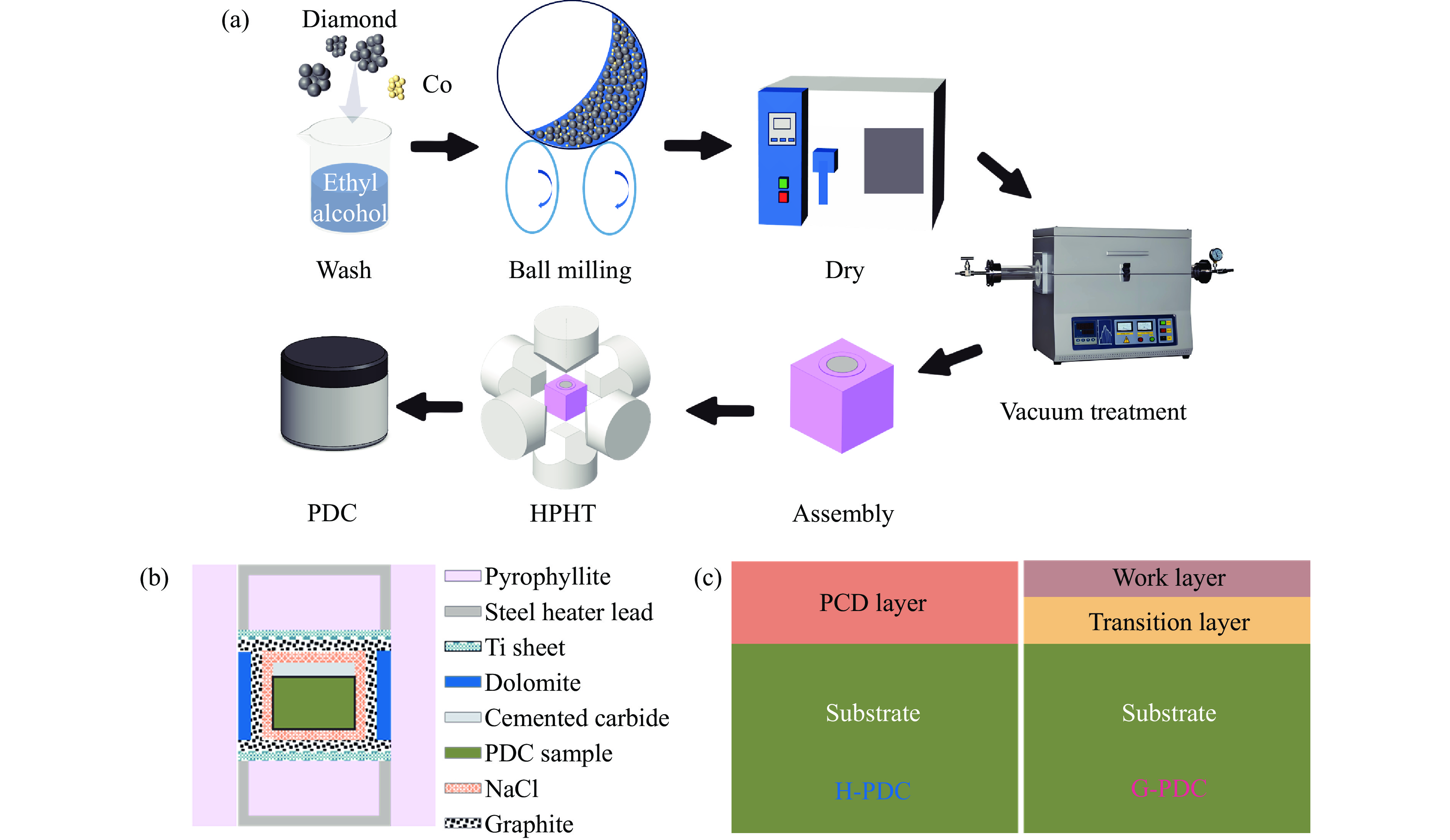

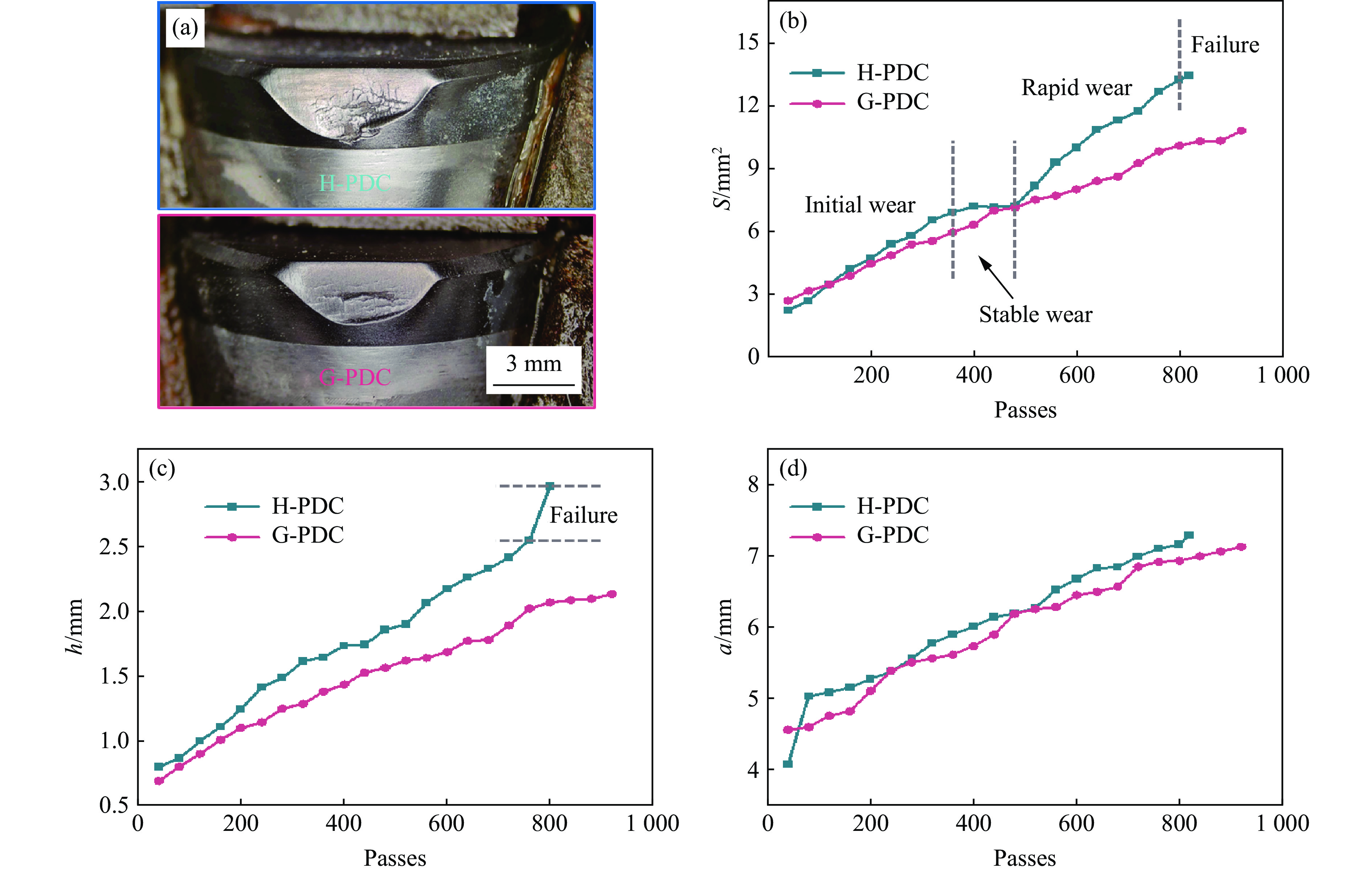

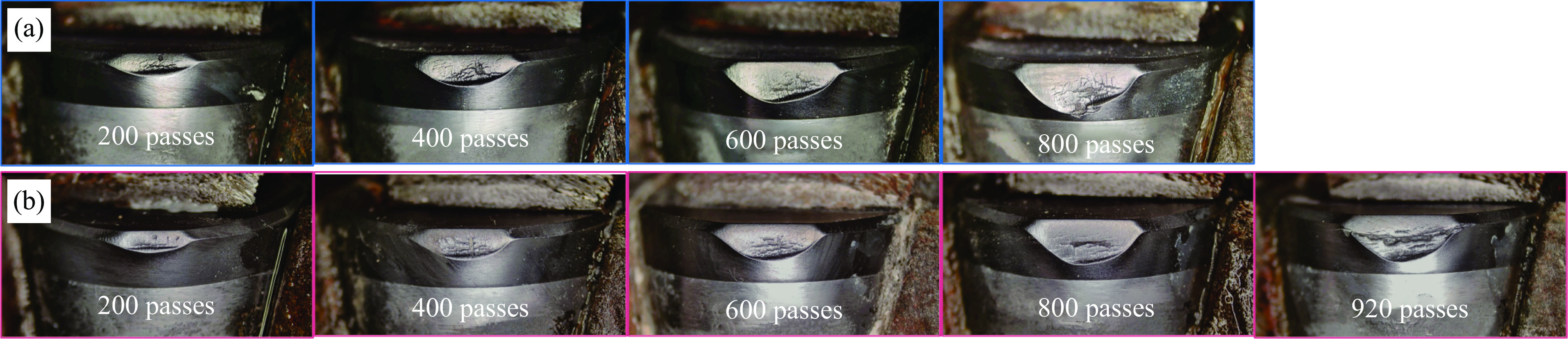

Addressing the urgent demand for high-performance polycrystalline diamond compact (PDC) cutters in deep/ultra-deep oil and gas exploration, this work optimized the PDC synthesis formulation through orthogonal experimental design. Under high pressure conditions (8.5 GPa and 1 750 ℃), we successfully fabricated both conventional homogeneous mixed PDC cutter (H-PDC) and gradient-structured PDC cutter (G-PDC) featuring a “fine-grained work layer/coarse-grained transition layer” structure. Microstructural characterization reveals that the gradient structure facilitates uniform distribution of cobalt binder, suppresses cobalt aggregation, enhances interlayer interfacial bonding, and generates higher residual compressive stress. The cobalt mass fraction in the G-PDC work layer is 9.16%. After acid leaching for cobalt removal, the cobalt mass fraction decreased to 2.49%. Performance evaluations demonstrate that G-PDC achieves a wear resistance lifespan of 920 passes, superior to H-PDC (800 passes). The average impact toughness of G-PDC reaches 740.0 J, representing approximately 107% improvement over H-PDC. Furthermore, the gradient structure alleviates thermal expansion mismatch, increasing the thermal stability temperature by about 30 ℃. This research confirms that combining high pressure synthesis technology with gradient structural design can synergistically enhance the wear resistance, impact toughness, and thermal stability of PDC cutters, providing a viable pathway for developing next-generation superhard composites for extreme conditions.
- polycrystalline diamond compact (PDC),
- gradient structure,
- impact performance,
- wear resistance,
- thermal stability,
- high pressure sintering

FullText(HTML)

References(32)

References

[1]	GUO Y Z, MENG D Z, CAI Z B, et al. Dynamic response and damage behavior of impact wear for polycrystalline diamond compact under low kinetic energy impact [J]. Carbon, 2024, 226: 119166. doi: 10.1016/j.carbon.2024.119166
[2]	WANG X Q, TU J B, LIU B C. High-impact-resistant polycrystalline diamond compact cutters with double working layers [J]. Diamond and Related Materials, 2025, 152: 111906. doi: 10.1016/j.diamond.2024.111906
[3]	王虎, 胡永, 赵洪波. PDC异形齿破岩研究与应用进展 [J]. 钻探工程, 2025, 52(5): 10–17. doi: 10.12143/j.ztgc.2025.05.002 WANG H, HU Y, ZHAO H B. Research and application progress of special-shaped PDC cutters in rock breaking [J]. Drilling Engineering, 2025, 52(5): 10–17. doi: 10.12143/j.ztgc.2025.05.002
[4]	RONG L L, ZHANG S H, WU D Y, et al. Optimization of functionally graded polycrystalline diamond compact based on residual stress: numerical simulation and experimental verification [J]. International Journal of Refractory Metals and Hard Materials, 2023, 117: 106414. doi: 10.1016/j.ijrmhm.2023.106414
[5]	崔行宇, 陈卫民. 合成工艺对聚晶金刚石复合片性能的影响 [J]. 超硬材料工程, 2024, 36(5): 44–49. doi: 10.3969/j.issn.1673-1433.2024.05.007 CUI X Y, CHEN W M. Effect of synthesis process on properties of PDC [J]. Superhard Material Engineering, 2024, 36(5): 44–49. doi: 10.3969/j.issn.1673-1433.2024.05.007
[6]	MA Y C, YOU M H, ZHANG W L, et al. Research on dynamic wear law of polycrystalline diamond compact (PDC) single cutter under thermal-mechanical coupling [J]. Geoenergy Science and Engineering, 2025, 247: 213673. doi: 10.1016/j.geoen.2025.213673
[7]	DING Y B, LI Q K, JIA R Z, et al. Surface texturing on polycrystalline diamond compact cutter by nanosecond laser processing [J]. Advanced Engineering Materials, 2025, 27(4): 2402204. doi: 10.1002/adem.202402204
[8]	JIANG B, KOU Z L, WANG C Q, et al. Effect of diamond layer thickness on tool wear of polycrystalline diamond composites [J]. Diamond and Related Materials, 2022, 122: 108800. doi: 10.1016/j.diamond.2021.108800
[9]	LI F J, LIU W, GAO D L, et al. Study on super impact resistant polycrystalline diamond compacts with homogeneous PCD/WC-Co interlayer [J]. International Journal of Refractory Metals and Hard Materials, 2024, 119: 106558. doi: 10.1016/j.ijrmhm.2024.106558
[10]	MENG D Z, LI Y, YUE W. Mechanism and evolution of polycrystalline diamond compact back rake angles by experiment and simulation on impact mechanical response [J]. International Journal of Refractory Metals and Hard Materials, 2025, 132: 107279. doi: 10.1016/j.ijrmhm.2025.107279
[11]	WU J J, ZHANG S H, DING X Y, et al. Abrasion rule of polycrystalline diamond compact bit cutter [J]. Journal of Failure Analysis and Prevention, 2019, 19(4): 1135–1143. doi: 10.1007/s11668-019-00714-x
[12]	CLAYTON R, CHEN S L, LEFORT G. New bit design, cutter technology extend PDC applications to hard rock drilling [C]//SPE/IADC Drilling Conference. Amsterdam: SPE, 2005: 23−25.
[13]	ZHOU L, HE D W, SU Y X, et al. Effect of residual cobalt on cutting edge wear behavior in polycrystalline diamond compact (PDC) [J]. International Journal of Refractory Metals and Hard Materials, 2025, 133: 107390. doi: 10.1016/j.ijrmhm.2025.107390
[14]	HUANG H F, ZHAO B, WEI W L, et al. Effect of cobalt content on the performance of polycrystalline diamond compacts [J]. International Journal of Refractory Metals and Hard Materials, 2020, 92: 105312. doi: 10.1016/j.ijrmhm.2020.105312
[15]	LUO X, GOU R Y. Friction and wear of polycrystalline diamond in oil drilling: a review [J]. Fullerenes, Nanotubes and Carbon Nanostructures, 2025, 33(5): 473–486. doi: 10.1080/1536383X.2024.2421809
[16]	GUO Z H, LI C G, MA Z F, et al. Preparation, wear resistance, and impact toughness of homoepitaxial diamond film deposited on polycrystalline diamond compact by HFCVD method [J]. Fullerenes, Nanotubes and Carbon Nanostructures, 2025, 33(3): 294–302. doi: 10.1080/1536383X.2024.2404475
[17]	KANYANTA V, DORMER A, MURPHY N, et al. Impact fatigue fracture of polycrystalline diamond compact (PDC) cutters and the effect of microstructure [J]. International Journal of Refractory Metals and Hard Materials, 2014, 46: 145–151. doi: 10.1016/j.ijrmhm.2014.06.003
[18]	TONG X, ZHOU L, TIAN Y, et al. Effect of pressure on sintering behavior of polycrystalline diamond [J]. Diamond and Related Materials, 2024, 144: 111049. doi: 10.1016/j.diamond.2024.111049
[19]	WANG X Q, TU J B, LIU B C. Effects of initial diamond particle size on the comprehensive mechanical properties of PDC [J]. Ceramics International, 2025, 51(8): 10433–10442. doi: 10.1016/j.ceramint.2024.12.476
[20]	DE MEDEIROS R B D, DE PAIVA BARRETO L P, GURGEL D P, et al. Study of tantalum as an alternative binder of polycrystalline diamond [J]. International Journal of Refractory Metals and Hard Materials, 2021, 99: 105587. doi: 10.1016/j.ijrmhm.2021.105587
[21]	TU J B, WANG X Q, DAI W H, et al. Mechanical properties and microstructures of HPHT sintered polycrystalline diamond compacts reinforced with SiC whiskers [J]. Journal of Materials Research and Technology, 2023, 27: 153–167. doi: 10.1016/j.jmrt.2023.09.254
[22]	LIU W, LI F J, ZHANG J W, et al. Synthesis of polycrystalline diamond using C₆₀ as binder for deep-Earth scientific exploration [J]. Advanced Composites and Hybrid Materials, 2025, 8(4): 299. doi: 10.1007/s42114-025-01377-z
[23]	NI P S, ZHAO Z, YANG W X, et al. Effect of feedstock diamond powder property on microstructure and mechanical properties of polycrystalline diamond compacts [J]. International Journal of Refractory Metals and Hard Materials, 2023, 111: 106102. doi: 10.1016/j.ijrmhm.2023.106102
[24]	YANG Y, DUAN L C, HU Y L, et al. Cobalt removal process from PDC with ultrasonication in neutral electrolyte [J]. Ceramics International, 2024, 50(20): 39298–39306. doi: 10.1016/j.ceramint.2024.07.300
[25]	LI L, WU W Y, LIU J, et al. Study on cobalt removal process of PDC by pressurized chemical precipitation method [J]. Diamond and Related Materials, 2023, 139: 110368. doi: 10.1016/j.diamond.2023.110368
[26]	ZHAO S Z, CUI X W, HAO J L, et al. An advanced investigation of polycrystalline diamond compact’s degradation mechanism during granite turning [J]. International Journal of Refractory Metals and Hard Materials, 2024, 120: 106615. doi: 10.1016/j.ijrmhm.2024.106615
[27]	ZHAO S, LI C F, DAVOODI D, et al. Tribological behavior of PDC-cutter including cemented carbide and polycrystalline diamond composites produced by HPHT for drilling applications [J]. International Journal of Refractory Metals and Hard Materials, 2024, 123: 106756. doi: 10.1016/j.ijrmhm.2024.106756
[28]	LIU W, LI Y, GAO D L. New understandings of the applications of PDC cutters in oil and gas drilling [J]. International Journal of Refractory Metals and Hard Materials, 2024, 122: 106724. doi: 10.1016/j.ijrmhm.2024.106724
[29]	KE X H, YANG X W, PRASAD V, et al. Effect of thermal residual stress on the impact failure of PDC in application [J]. International Journal of Refractory Metals and Hard Materials, 2025, 128: 107078. doi: 10.1016/j.ijrmhm.2025.107078
[30]	WANG X Q, TU J B, DAI W H, et al. Novel high-performance polycrystalline diamond compact enhanced using vanadium additives [J]. Ceramics International, 2024, 50(10): 17773–17782. doi: 10.1016/j.ceramint.2024.02.267
[31]	WANG X Q, TU J B, LIU B C. On the comprehensive performance enhancement of polycrystalline diamond compact by initial diamond particle ratio optimization and cobalt removal treatment [J]. International Journal of Refractory Metals and Hard Materials, 2025, 131: 107226. doi: 10.1016/j.ijrmhm.2025.107226
[32]	WANG X Q, TU J B, DAI W H, et al. Regulating the binder phase of polycrystalline diamond compact by adding tantalum to enhance the mechanical properties [J]. International Journal of Refractory Metals and Hard Materials, 2023, 116: 106344. doi: 10.1016/j.ijrmhm.2023.106344
