High-Pressure Synthesis of Copper-Based Rare-Earth Perovskite La1–xNdxCuO3 (0≤x≤1)

SUN Hao; YE Pengda; LIU Yuwei; JIN Meiling; LI Xiang

doi:10.11858/gywlxb.20230784

Volume 38 Issue 1

Feb 2024

Turn off MathJax

Article Contents

Chinese Journal of High Pressure Physics > 2024 > 38(1): 010104.

SUN Hao, YE Pengda, LIU Yuwei, JIN Meiling, LI Xiang. High-Pressure Synthesis of Copper-Based Rare-Earth Perovskite La1–xNdxCuO3 (0≤x≤1)[J]. Chinese Journal of High Pressure Physics, 2024, 38(1): 010104. doi: 10.11858/gywlxb.20230784

Citation:

SUN Hao, YE Pengda, LIU Yuwei, JIN Meiling, LI Xiang. High-Pressure Synthesis of Copper-Based Rare-Earth Perovskite La_1–xNd_xCuO₃ (0≤x≤1)[J]. Chinese Journal of High Pressure Physics, 2024, 38(1): 010104. doi: 10.11858/gywlxb.20230784

Citation:

PDF( 1305 KB)

High-Pressure Synthesis of Copper-Based Rare-Earth Perovskite La_1–xNd_xCuO₃ (0≤x≤1)

doi: 10.11858/gywlxb.20230784

SUN Hao^1
,,
YE Pengda²,
LIU Yuwei¹,
JIN Meiling^{1,*
,
,},
LI Xiang^{1,*
,
,}

1.
Key Laboratory of Advanced Optoelectronic Quantum Architecture and Measurement, School of Physics, Beijing Institute of Technology, Beijing 100081, China
2.
Jing Gong College, School of Mechatronical Engineering, Beijing Institute of Technology, Beijing 100081, China

Received Date: 08 Nov 2023
Rev Recd Date: 30 Dec 2023
Accepted Date: 02 Jan 2024
Issue Publish Date: 05 Feb 2024

Abstract

Abstract

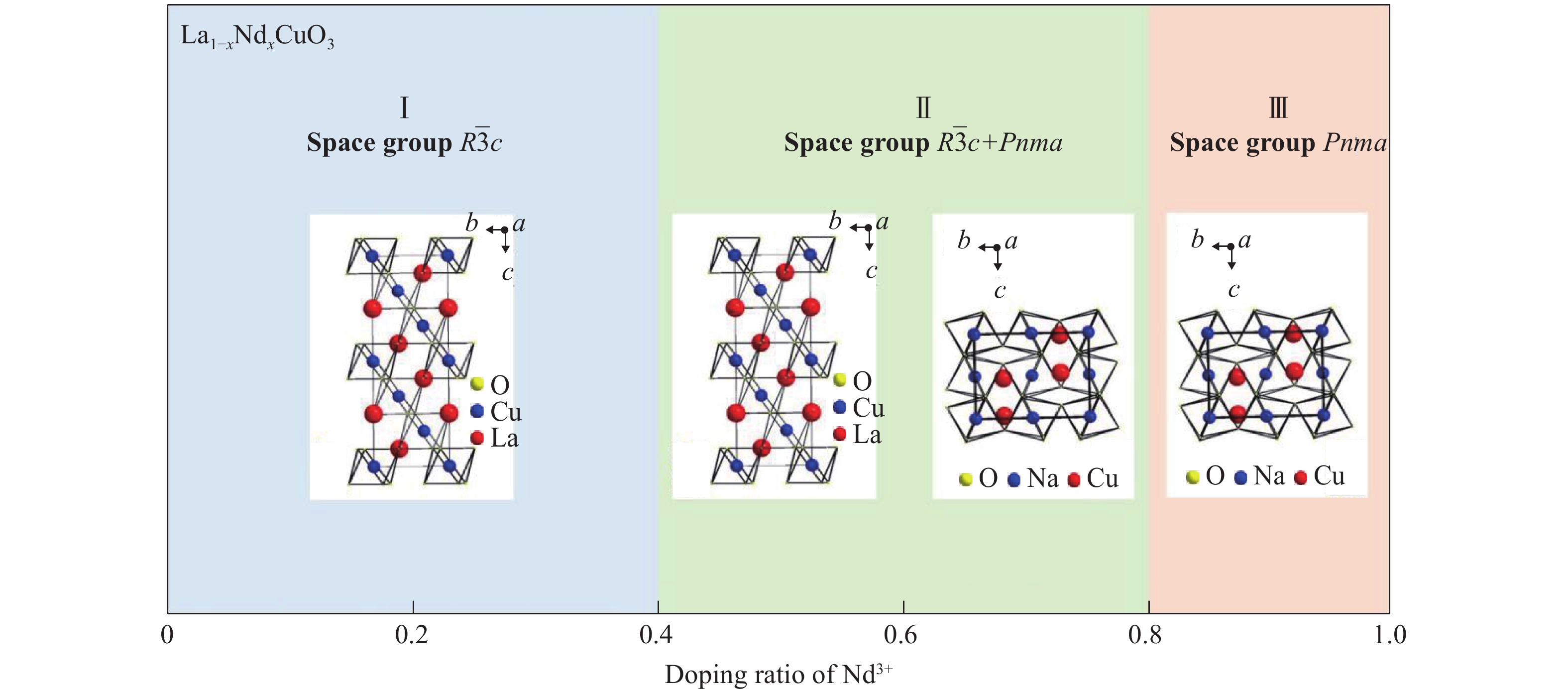

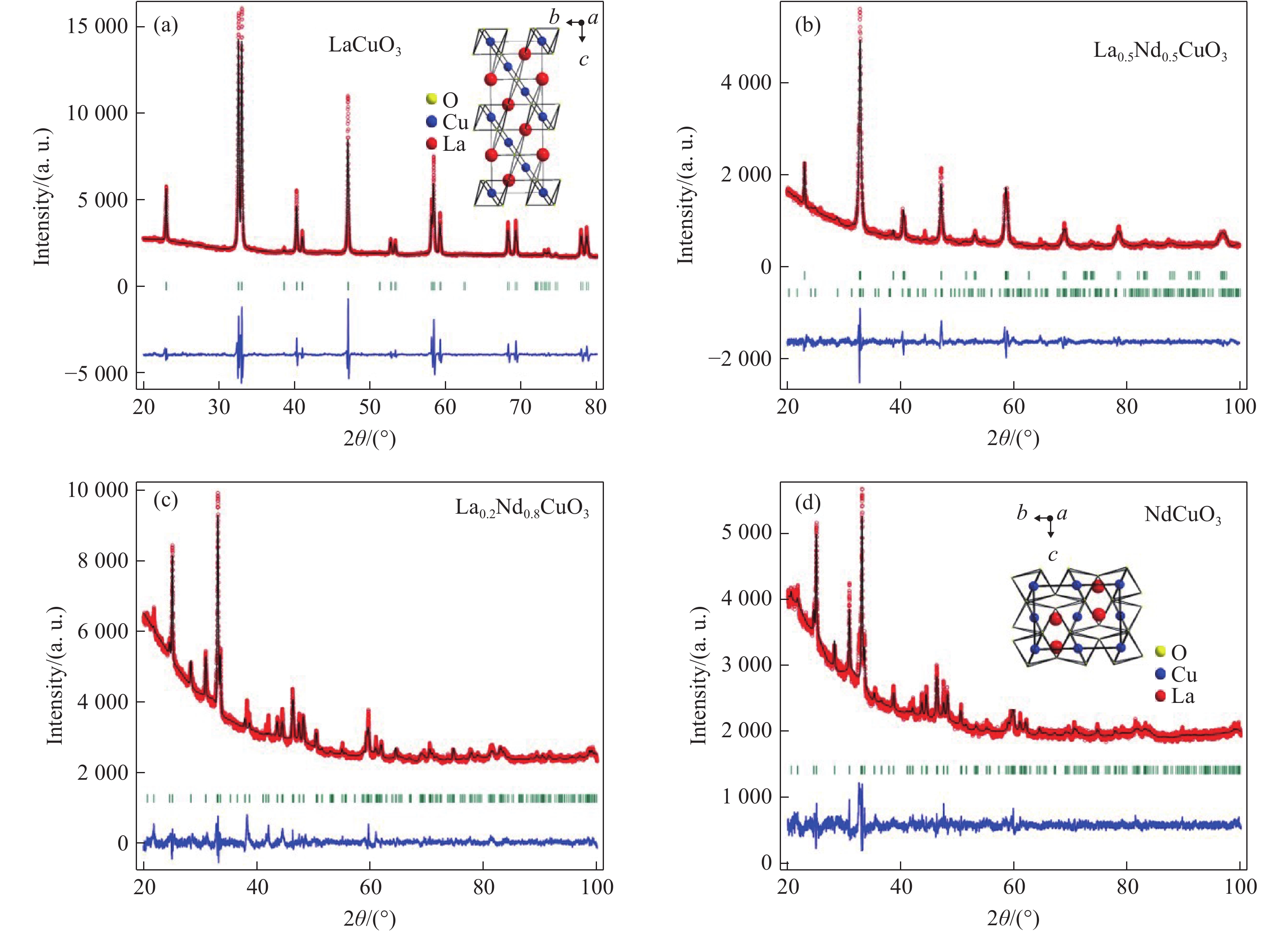

The copper-based rare-earth perovskites La_1–xNd_xCuO₃(0≤x≤1) have been synthesized in the two-stage Walker-type high-pressure apparatus. The refined crystal structure results revealed that La_1–xNd_xCuO₃ (0≤x≤0.4) adopts a rhombohedral structure with the space group $R\overline 3 c $. When 0.5≤x≤0.7, a mixed phase with both $R\overline 3 c $ rhombohedral and Pnma orthorhombic structures was observed in the system. With a further increase in Nd³⁺ doping, the system exhibits a single Pnma orthorhombic phase when x=0.8, 0.9 and 1. A comprehensive structural phase diagram of La_1–xNd_xCuO₃ (0≤x≤1) was established in this study, providing a new material platform for investigating the magnetic properties, metal-insulator transitions, and other physical property evolutions in rare-earth 3d transition metal oxides.
- high-pressure synthesis,
- copper-based rare-earth 3d transition metal oxides,
- metal-insulator transitions

FullText(HTML)

References(37)

References

[1]	FIEBIG M, LOTTERMOSER T, FRÖHLICH D, et al. Observation of coupled magnetic and electric domains [J]. Nature, 2002, 419(6909): 818–820. doi: 10.1038/nature01077
[2]	WU J G, WANG J. Multiferroic behavior of BiFeO₃–RTiO₃ (Mg, Sr, Ca, Ba, and Pb) thin films [J]. Journal of Applied Physics, 2010, 108(2): 026101. doi: 10.1063/1.3452324
[3]	DONG S, YU R, YUNOKI S, et al. Double-exchange model study of multiferroic RMnO₃ perovskites [J]. The European Physical Journal B, 2009, 71(3): 339–344. doi: 10.1140/epjb/e2009-00225-1
[4]	KHARE N. Handbook of high-temperature superconductor electronics [M]. New York: Marcel Dekker, 2003.
[5]	VON HELMOLT R, WECKER J, HOLZAPFEL B, et al. Giant negative magnetoresistance in perovskitelike La_2/3Ba_1/3MnO_x ferromagnetic films [J]. Physical Review Letters, 1993, 71(14): 2331–2333. doi: 10.1103/PhysRevLett.71.2331
[6]	GOODENOUGH J B, ZHOU J S. Orbital ordering in orthorhombic perovskites [J]. Journal of Materials Chemistry, 2007, 17(23): 2394–2405. doi: 10.1039/b701805c
[7]	MARTÍNEZ-LOPE M J, ALONSO J A, RETUERTO M, et al. Evolution of the crystal structure of RVO₃ (R=La, Ce, Pr, Nd, Tb, Ho, Er, Tm, Yb, Lu, Y) perovskites from neutron powder diffraction data [J]. Inorganic Chemistry, 2008, 47(7): 2634–2640. doi: 10.1021/ic701969q
[8]	KUMARI S, PAUL S, RAJ S. Electronic structure of RVO₃ (R=La and Y): effect of electron ( U) and exchange ( J) correlations [J]. Solid State Communications, 2017, 268: 20–25. doi: 10.1016/j.ssc.2017.09.017
[9]	SAGE M H. Orbital, charge and magnetic order of RVO₃ perovskites [D]. Groningen: University of Groningen, 2006.
[10]	SINGH K D, PANDIT R, KUMAR R. Effect of rare earth ions on structural and optical properties of specific perovskite orthochromates; RCrO₃ (R=La, Nd, Eu, Gd, Dy, and Y) [J]. Solid State Sciences, 2018, 85: 70–75. doi: 10.1016/j.solidstatesciences.2018.10.001
[11]	ZVEZDIN A K, GAREEVA Z V, CHEN X M. Multiferroic order parameters in rhombic antiferromagnets RCrO₃ [J]. Journal of Physics: Condensed Matter, 2021, 33(38): 385801. doi: 10.1088/1361-648X/ac0dd6
[12]	SIBANDA E T. Structural, magnetic and electronic properties of rare-earth based chromium oxides [D]. Johannesburg: University of Johannesburg, 2023.
[13]	ALONSO J A, MARTÍNEZ-LOPE M J, CASAIS M T, et al. Evolution of the Jahn-Teller distortion of MnO₆ octahedra in RMnO₃ perovskites (R=Pr, Nd, Dy, Tb, Ho, Er, Y): a neutron diffraction study [J]. Inorganic Chemistry, 2000, 39(5): 917–923. doi: 10.1021/ic990921e
[14]	KAJIMOTO R, MOCHIZUKI H, YOSHIZAWA H, et al. R-dependence of spin exchange interactions in RMnO₃ (R=rare-earth ions) [J]. Journal of the Physical Society of Japan, 2005, 74(9): 2430–2433. doi: 10.1143/JPSJ.74.2430
[15]	WARSHI M K, MISHRA V, SAGDEO A, et al. Structural, optical and electronic properties of RFeO₃ [J]. Ceramics International, 2018, 44(7): 8344–8349. doi: 10.1016/j.ceramint.2018.02.023
[16]	NAKHAEI M, KHOSHNOUD D S. Structural, magnetic, and electrical properties of RFeO₃ (R=Dy, Ho, Yb & Lu) compounds [J]. Journal of Materials Science: Materials in Electronics, 2021, 32(11): 14286–14300. doi: 10.1007/s10854-021-05992-6
[17]	SINGH N, RHEE J Y, AULUCK S. Electronic and magneto-optical properties of rare-earth orthoferrites RFeO₃ (R= Y, Sm, Eu, Gd and Lu) [J]. Journal of the Korean Physical Society, 2008, 53(2): 806–811. doi: 10.3938/jkps.53.806
[18]	ALONSO J A, MARTíNEZ-LOPE M J, DE LA CALLE C, et al. Preparation and structural study from neutron diffraction data of RCoO₃ (R=Pr, Tb, Dy, Ho, Er, Tm, Yb, Lu) perovskites [J]. Journal of Materials Chemistry, 2006, 16(16): 1555–1560. doi: 10.1039/B515607F
[19]	ITOH M, HASHIMOTO J, YAMAGUCHI S, et al. Spin state and metal-insulator transition in LaCoO₃ and RCoO₃ (R=Nd, Sm and Eu) [J]. Physica B: Condensed Matter, 2000, 281/282: 510–511. doi: 10.1016/S0921-4526(99)01044-3
[20]	WANG W R, XU D P, SU W H, et al. Raman active phonons in RCoO₃ (R=La, Ce, Pr, Nd, Sm, Eu, Gd, and Dy) perovskites [J]. Chinese Physics Letters, 2005, 22(9): 2400. doi: 10.1088/0256-307X/22/9/072
[21]	ZHOU J S, GOODENOUGH J B, DABROWSKI B. Exchange interaction in the insulating phase of RNiO₃ [J]. Physical Review Letters, 2005, 95(12): 127204. doi: 10.1103/PhysRevLett.95.127204
[22]	FERNÁNDEZ-DÍAZ M, ALONSO J A, MARTÍNEZ-LOPE M, et al. Charge disproportionation in RNiO₃ perovskites [J]. Physica B: Condensed Matter, 2000, 276/278: 218–221. doi: 10.1016/S0921-4526(99)01416-7
[23]	FREELAND J W, VAN VEENENDAAL M, CHAKHALIAN J. Evolution of electronic structure across the rare-earth RNiO₃ series [J]. Journal of Electron Spectroscopy and Related Phenomena, 2016, 208: 56–62. doi: 10.1016/j.elspec.2015.07.006
[24]	KARPPINEN M, YAMAUCHI H, ITO T, et al. High-pressure synthesis and thermal decomposition of LaCuO₃ [J]. Materials Science and Engineering: B, 1996, 41(1): 59–62. doi: 10.1016/S0921-5107(96)01624-8
[25]	ZHOU J S, ARCHIBALD W, GOODENOUGH J B. Approach to Curie-Weiss paramagnetism in the metallic perovskites La_{1– x}Nd_xCuO₃ [J]. Physical Review B, 2000, 61(5): 3196–3199. doi: 10.1103/PhysRevB.61.3196
[26]	CHEN B H, WALKER D, SUARD E, et al. High pressure synthesis of NdCuO_{3– δ} perovskites (0≤ δ≤0.5) [J]. Inorganic Chemistry, 1995, 34(8): 2077–2083. doi: 10.1021/ic00112a020
[27]	YU J B, LI Z H, SU W K. Synthesis of quinolines by N-Deformylation and aromatization via solvent-free, high-speed ball milling [J]. Synthetic Communications, 2013, 43(3): 361–374. doi: 10.1080/00397911.2011.599103
[28]	XU W H, LI C Y. Efficient synthesis of cucurbiturils and their derivatives using mechanochemical high-speed ball milling (HSBM) [J]. High Performance Polymers, 2021, 33(5): 509–518. doi: 10.1177/0954008320967057
[29]	HOSSEINI S G, POURMORTAZAVI S M, HAJIMIRSADEGHI S S. Thermal decomposition of pyrotechnic mixtures containing sucrose with either potassium chlorate or potassium perchlorate [J]. Combustion and Flame, 2005, 141(3): 322–326. doi: 10.1016/j.combustflame.2005.01.002
[30]	HUSBAND R J, O’BANNON E F, LIERMANN H P, et al. Compression-rate dependence of pressure-induced phase transitions in Bi [J]. Scientific Reports, 2021, 11(1): 14859. doi: 10.1038/s41598-021-94260-y
[31]	SOYKAN C, ÖZDEMIR KART S. Structural, mechanical and electronic properties of ZnTe polymorphs under pressure [J]. Journal of Alloys and Compounds, 2012, 529: 148–157. doi: 10.1016/j.jallcom.2012.02.170
[32]	CHEN X R, LI X F, CAI L C, et al. Pressure induced phase transition in ZnS [J]. Solid State Communications, 2006, 139(5): 246–249. doi: 10.1016/j.ssc.2006.05.043
[33]	SUZUKI T, YAGI T, AKIMOTO S. Precise determination of transition pressure of GaAs [C]//22nd High Pressure Conference. 1981.
[34]	CHENG J G, ISHII T, KOJITANI H, et al. High-pressure synthesis of the BaIrO₃ perovskite: a Pauli paramagnetic metal with a Fermi liquid ground state [J]. Physical Review B, 2013, 88(20): 205114. doi: 10.1103/PhysRevB.88.205114
[35]	YOUNG R A. The Rietveld method [M]. Oxford: International Union of Crystallography, 1993.
[36]	BRINGLEY J F, SCOTT B A, LA PLACA S J, et al. Structure and properties of the LaCuO_{3– δ} perovskites [J]. Physical Review B, 1993, 47(22): 15269. doi: 10.1103/PhysRevB.47.15269
[37]	ZHOU J S, GOODENOUGH J B, DABROWSKI B. Transition from Curie-Weiss to enhanced Pauli paramagnetism in RNiO₃ (R=La, Pr, … Gd) [J]. Physical Review B, 2003, 67(2): 020404. doi: 10.1103/PhysRevB.67.020404
