Dynamic Tensile Properties of CuCrZr Alloy under Electro-Magnetic-Thermal-Mechanical Multifield Coupled Loading
-
摘要: CuCrZr合金作为电磁轨道炮导轨的候选材料之一，获取其在电-磁-热-力多场耦合加载下的力学响应对于CuCrZr合金的工程应用具有重要意义。提出了一种外磁场辅助的电磁膨胀环实验技术，在不显著提升金属样品环中感应电流和焦耳热温升的情况下，稳定实现了104 s−1以上的高应变率加载。基于该技术，开展了电-磁-热-力耦合加载下CuCrZr合金的动态拉伸性能研究，获得了高电流密度、高应变率、高温升率、强磁场环境下CuCrZr合金的应力-应变曲线和断裂应变，研究成果可为CuCrZr合金在多物理场耦合工况下的应用提供重要参考。Abstract: Obtaining the mechanical response of CuCrZr alloy under coupled electro-magnetic-thermal-mechanical loading is significant for the engineering application of CuCrZr alloy, which is one of the candidate materials for electromagnetic railgun rails. This paper proposes an external-magnetic-field-assisted electromagnetic expanding ring technique, which stably achieves high strain rate loading exceeding 104 s–1 without the significant increase in the induced current and Joule heating temperature rise in the metal sample ring. Based on this technique, a study on the dynamic tensile properties of CuCrZr alloy under coupled electro-magnetic-thermal-mechanical loading was conducted. The stress-strain curves and fracture strain of CuCrZr alloy under conditions of high current density, high strain rate, high temperature rise rate, and strong magnetic field were obtained. The results provide important references for the application of CuCrZr alloy under multi-physics field coupling conditions.
-

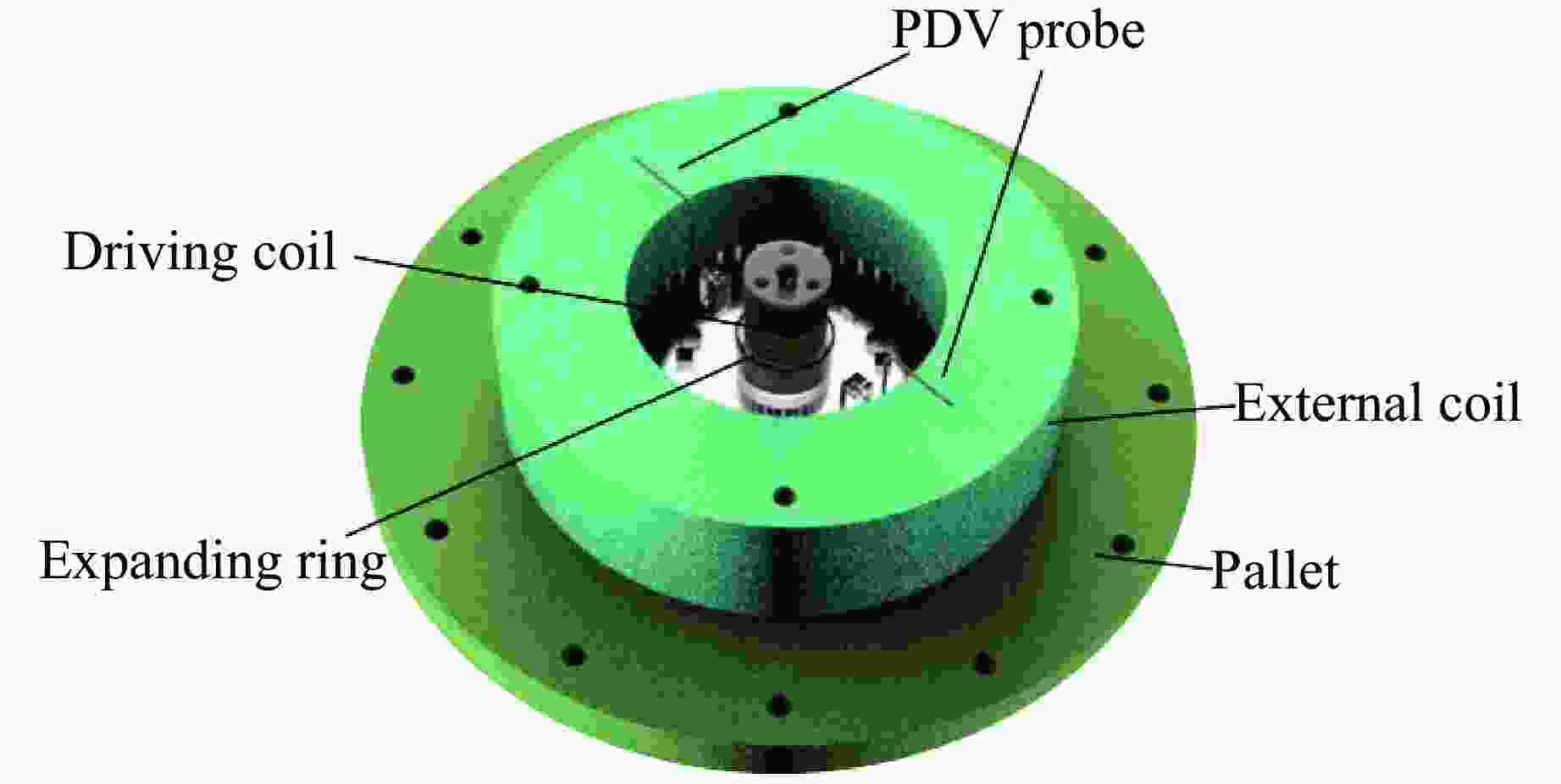

图 1 外磁场辅助的电磁膨胀环实验装置示意图
Figure 1. Schematic diagram of electromagnetic expansion ring experimental apparatus assisted by external magnetic field

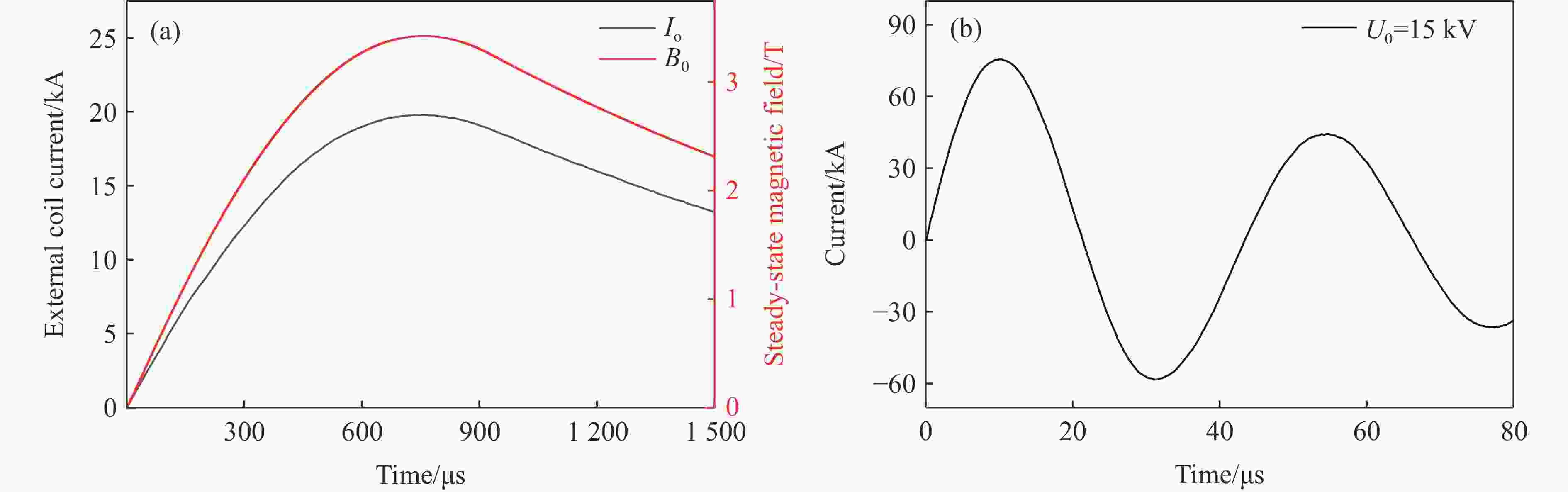

图 2 2个线圈的典型电流曲线：(a) 外线圈的电流和外磁场曲线，(b) 驱动线圈的电流曲线
Figure 2. Typical current waveforms of the two coils: (a) external coil current waveform and external steady-state magnetic field curve; (b) driving coil current waveform

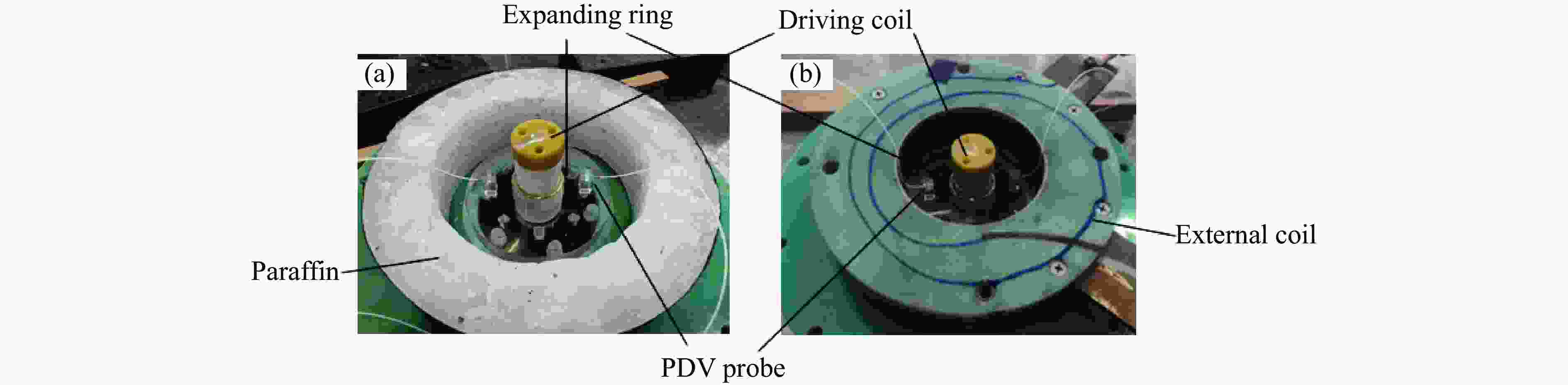

图 3 实验装置照片：(a) 无外磁场实验，(b) 外磁场辅助实验
Figure 3. Experimental setup diagrams: (a) without external magnetic field experiment, (b) external magnetic field assisted experiment

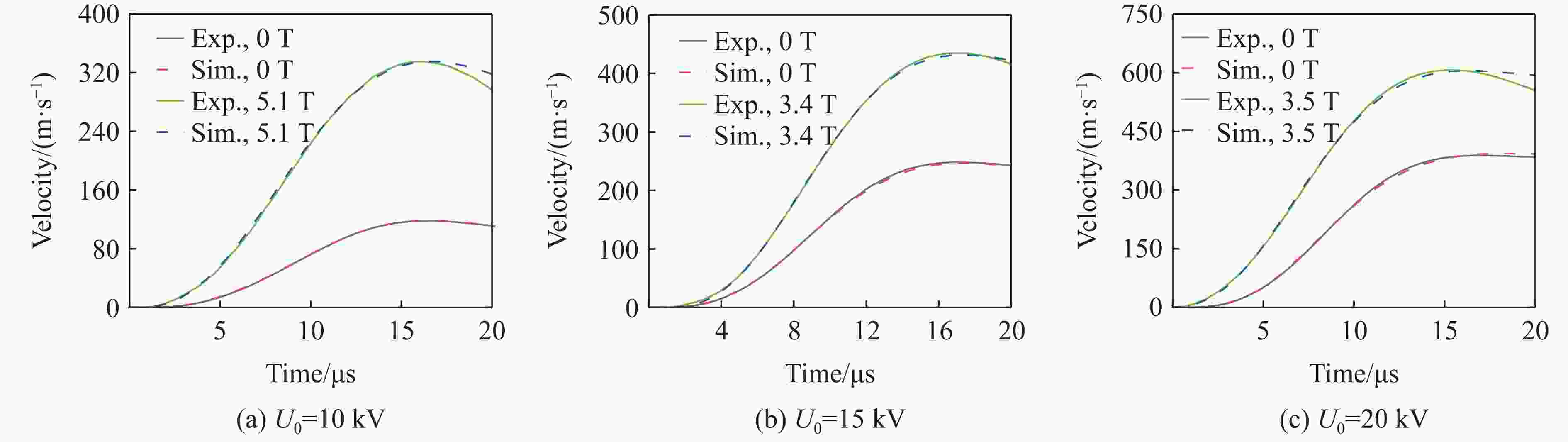

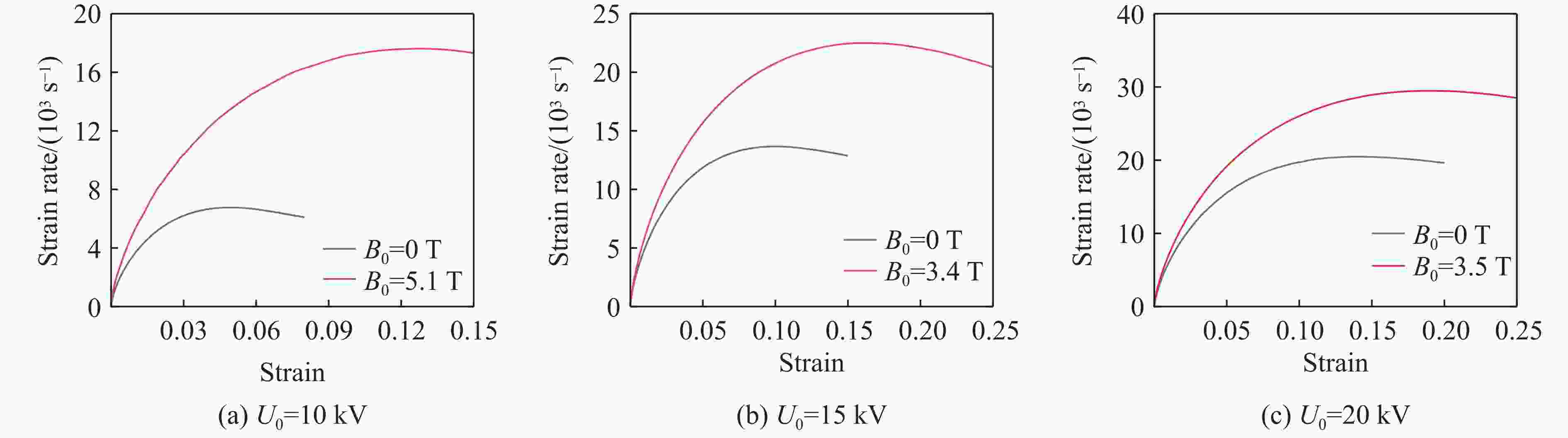

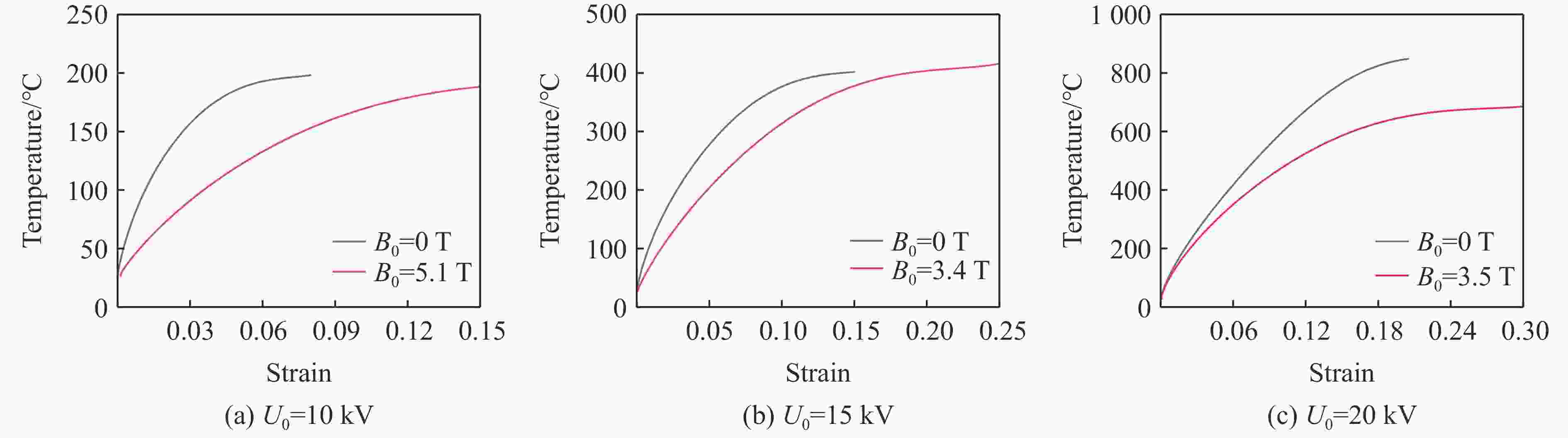

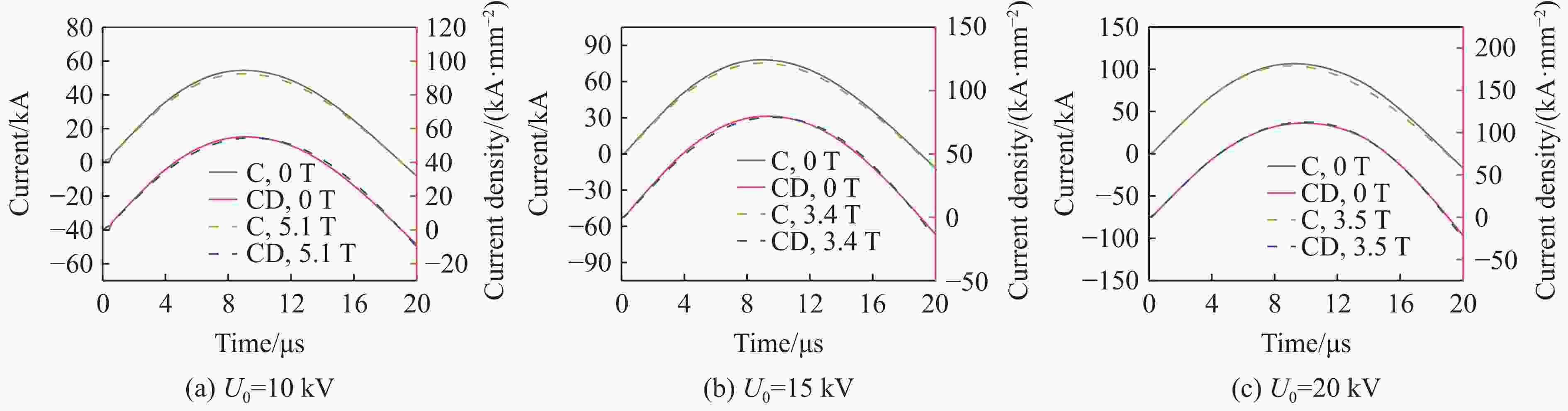

图 8 CuCrZr合金样品环的感应电流（C）和电流密度（CD）
Figure 8. Current and current density of CuCrZr alloy

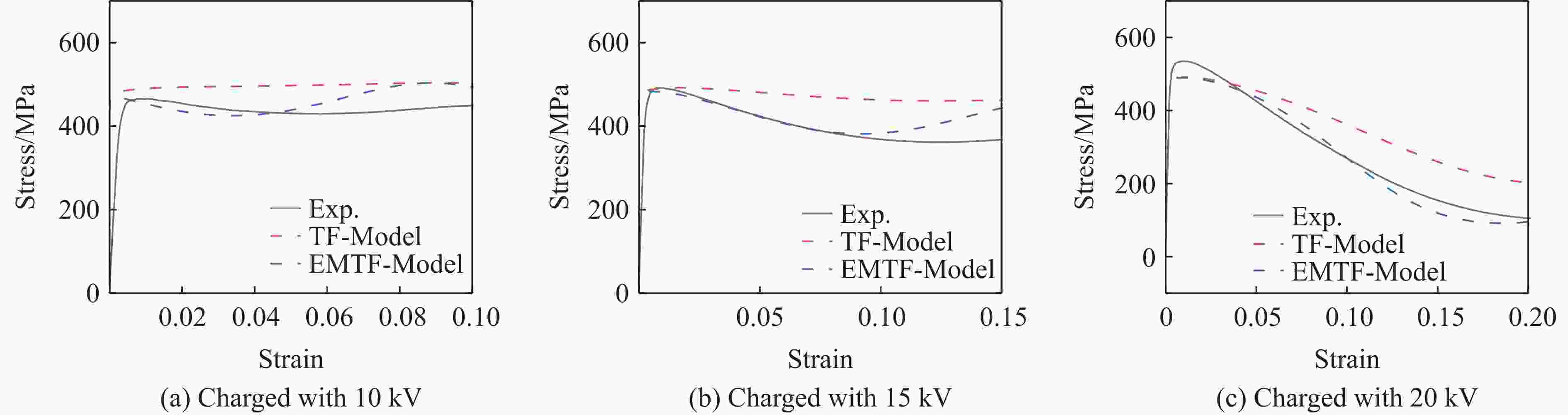

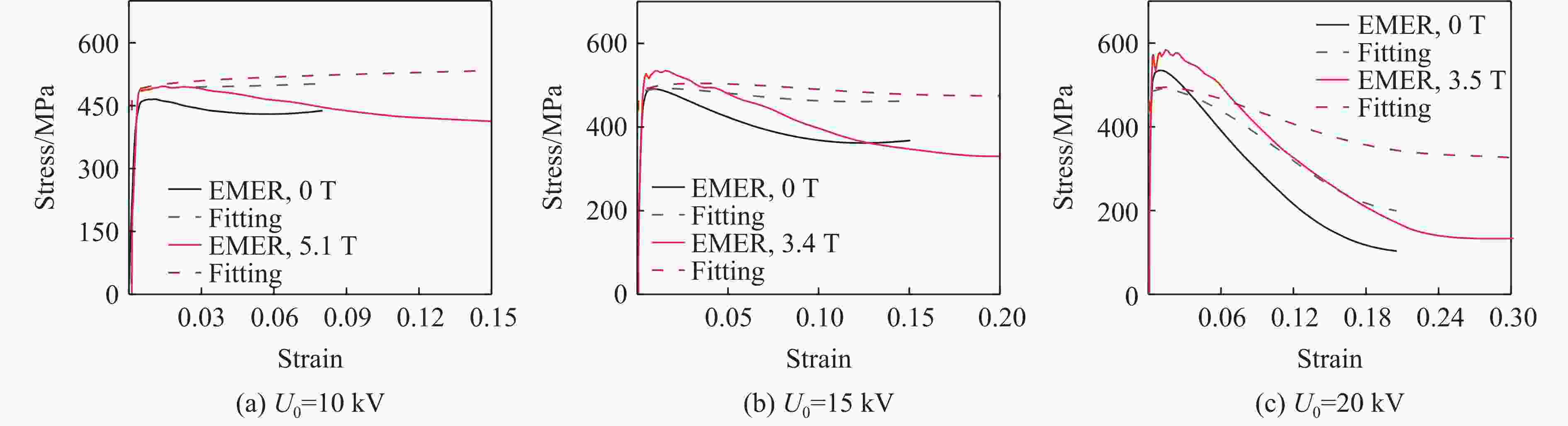

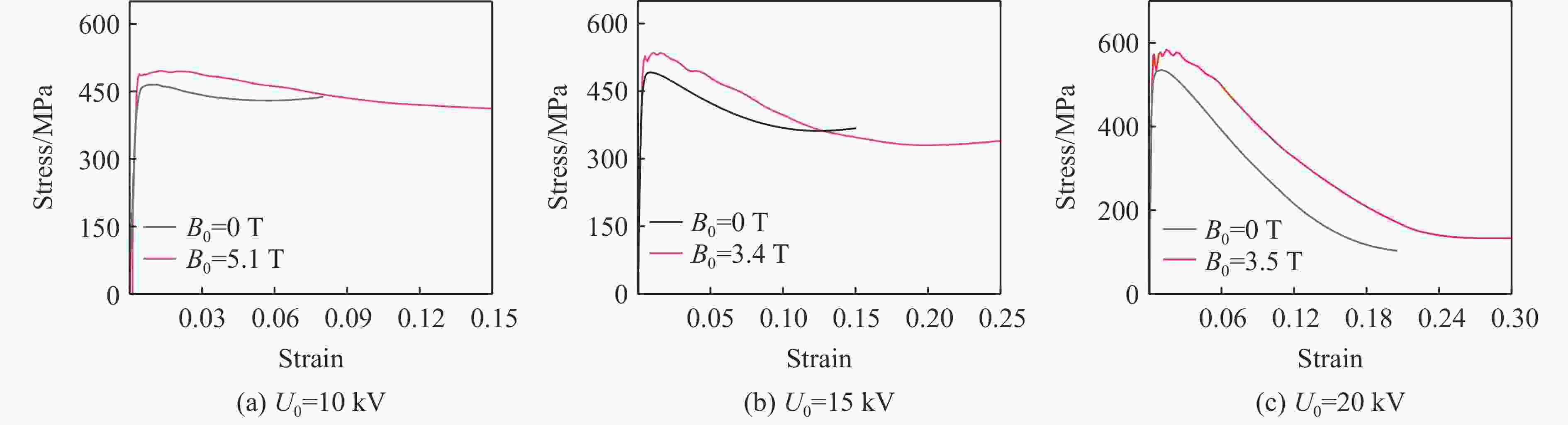

图 9 多场耦合加载下CuCrZr合金的应力-应变曲线的实验结果与热力耦合模型预测结果对比
Figure 9. Comparison of stress-strain curves of CuCrZr alloy under multi-field coupled loading with thermo-mechanical coupling model predictions

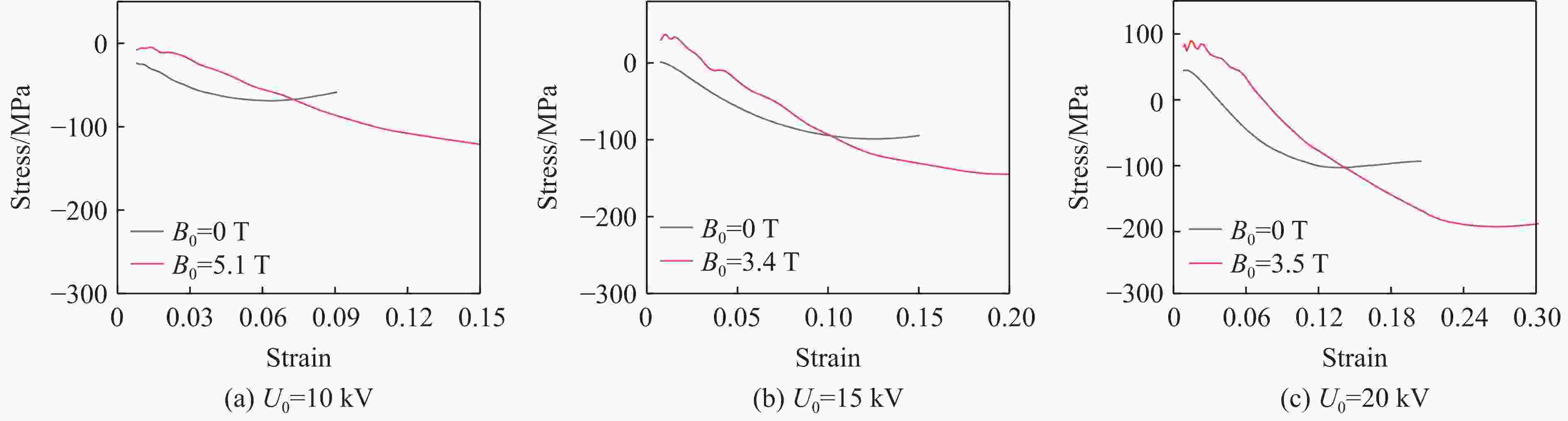

图 10 多场耦合加载下CuCrZr合金的应力-应变曲线的实验结果与热力耦合模型预测结果的差异
Figure 10. Differences between stress-strain curves of CuCrZr alloy under multi-field coupled loading and thermo-mechanical coupling model predictions
图 11 应力-应变曲线的实验与拟合结果对比
Figure 11. Comparison of experimental and fitted stress-strain curves

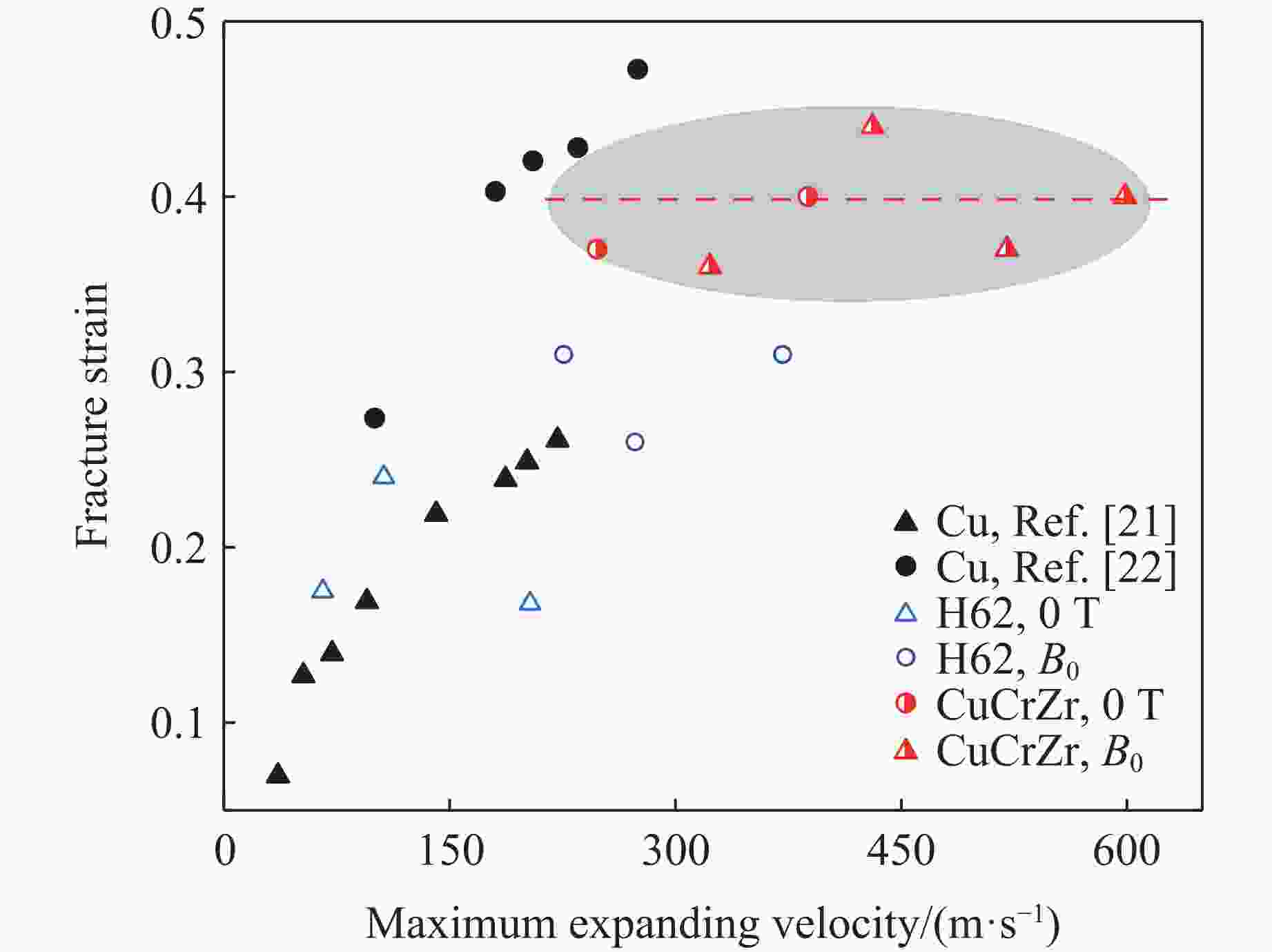

图 12 CuCrZr合金断裂应变-最大膨胀速度关系
Figure 12. Relationship between fracture strain and maximum expansion velocity of CuCrZr alloy

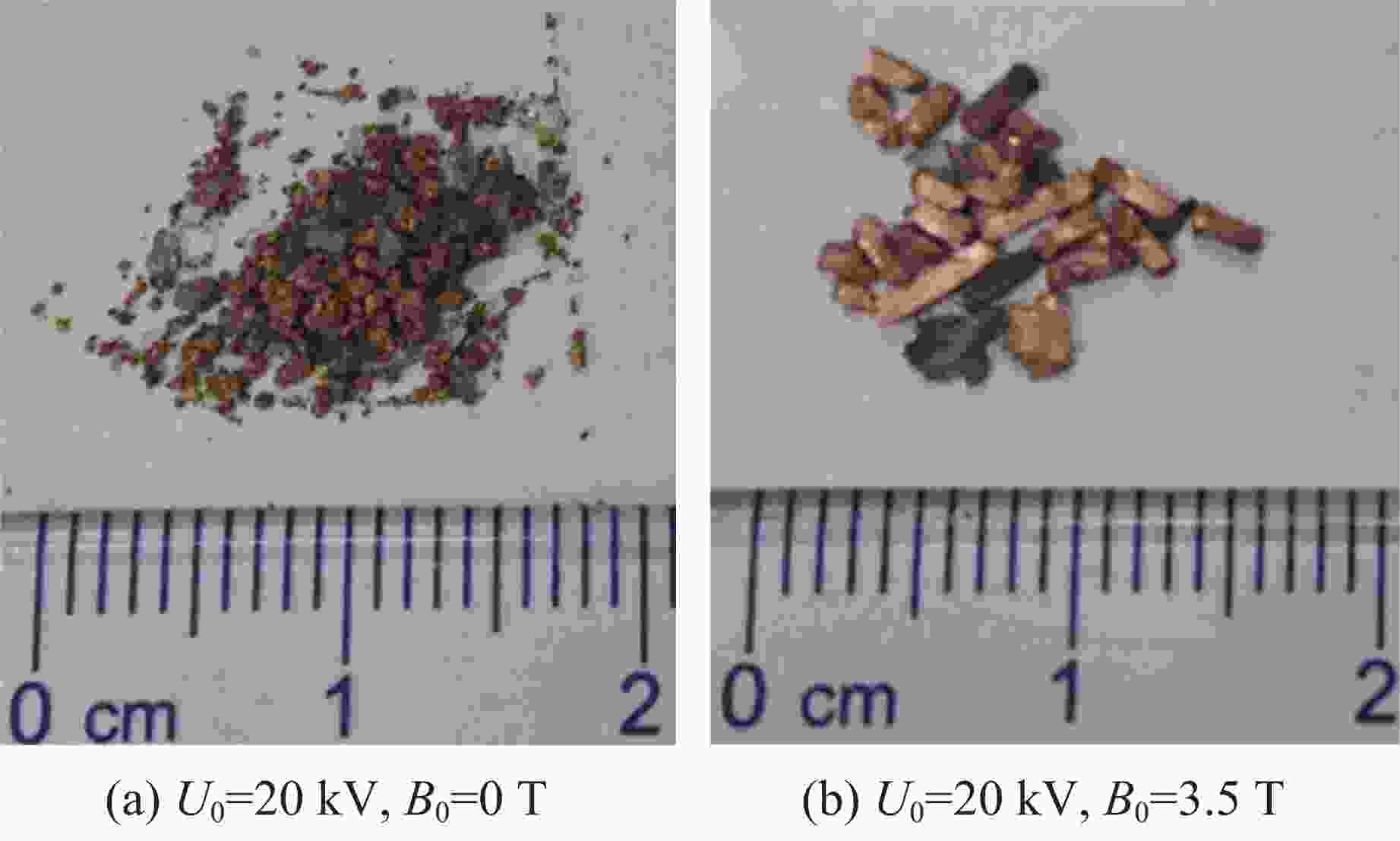

图 13 有无磁场条件下CuCrZr膨胀环回收照片
Figure 13. Recovered CuCrZr expansion ring specimens with and without magnetic field

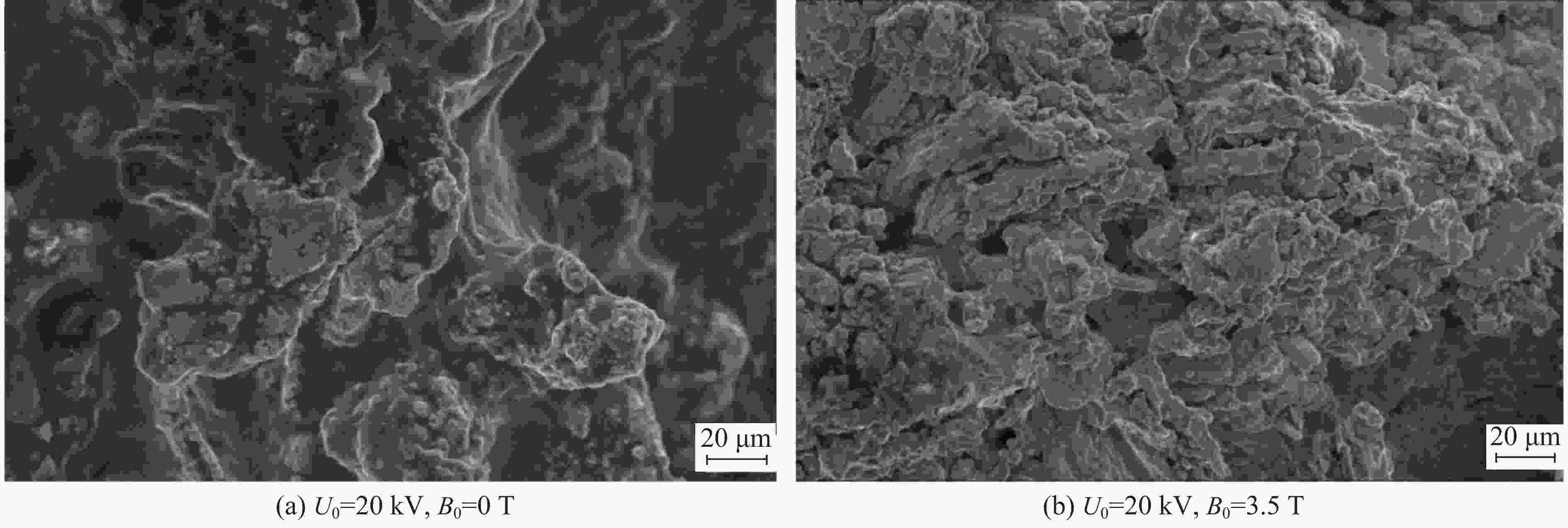

表 1 实验结果
Table 1. Experimental results
Group U0/kV UE/kV Ii/kA Io/kA B0/T vP/(m·s−1) $ {\dot{\varepsilon }}_{\max } $/s−1 tF/μs $ {\varepsilon }_{\text{F}} $ (Ts$ \varepsilon $–1)/℃ Smax/mm 1 10 0 50.5 0 0 117 8180 518/0.24 6 50.4 29.6 5.1 334 17610 267/0.24 2 15 0 77.8 0 0 248 13660 35.8 0.37 665/0.25 7 4 76.6 18.5 3.4 435 22490 28.6 0.40 466/0.25 8 3 20 0 100.1 0 0 388 20480 32.3 0.44 635/0.10 4 98.6 18.4 3.5 593 29470 24.5 0.40 485/0.10 4
下载: 导出CSV
表 2 应变为0.01时CuCrZr合金的多场耦合加载参数与流动应力
Table 2. Multifield coupling loading parameters and flow stress of CuCrZr alloy at 0.01 strain
Loading conditions Stress/MPa Temperature/℃ Strain rate/s−1 Current density/(kA·mm−2) Magnetic field strength/T 10 kV/0 T 465 95.43 3745 55.1 2.2 15 kV/0 T 491 112.00 4937 76.1 2.7 20 kV/0 T 534 131.00 6153 96.2 3.0 10 kV/5.1 T 492 53.88 5832 48.8 6.7 15 kV/3.4 T 534 77.00 6588 71.2 5.6 20 kV/3.5 T 567 123.00 7571 75.0 5.9
下载: 导出CSV
-
[1] 马伟明, 鲁军勇, 李湘平. 电磁发射超高速一体化弹丸 [J]. 国防科技大学学报, 2019, 41(4): 1–10. doi: 10.11887/j.cn.201904001MA W M, LU J Y, LI X P. Electromagnetic launch hypervelocity integrated projectile [J]. Journal of National University of Defense Technology, 2019, 41(4): 1–10. doi: 10.11887/j.cn.201904001 [2] GHARIB L, KESHTKAR A. Electromagnetic interference of railgun and its effect on surrounding electronics [J]. IEEE Transactions on Plasma Science, 2019, 47(8): 4196–4202. doi: 10.1109/TPS.2019.2923061 [3] CIOLINI R, SCHNEIDER M, TELLINI B. The use of electronic components in railgun projectiles [C]//2008 14th Symposium on Electromagnetic Launch Technology. Victoria: IEEE, 2008: 1−6. [4] SHEN K C, GONG Q T, SUN Z Y, et al. Damage characteristics of Cu-Cr-Zr alloy rail of electromagnetic railgun after simulated launch [J]. Transactions of Nonferrous Metals Society of China, 2024, 34(8): 2589–2604. doi: 10.1016/S1003-6326(24)66562-3 [5] WANG X, YAO P P, ZHOU H B, et al. Research progress on surface damage and protection strategies of armature-rail friction pair materials for electromagnetic rail launch [J]. Materials, 2024, 17(2): 277. doi: 10.3390/ma17020277 [6] 康丽, 王兴, 刘梓屹, 等. 超高速滑动电接触CuCrZr合金轨道表面磨损机制及电接触性能 [J]. 润滑与密封, 2024, 49(5): 8–14. doi: 10.3969/j.issn.0254-0150.2024.05.002KANG L, WANG X, LIU Z Y, et al. Investigation on wear mechanism and electrical contact performance of CuCrZr alloy rail surfaces for high-speed sliding electrical contact [J]. Lubrication Engineering, 2024, 49(5): 8–14. doi: 10.3969/j.issn.0254-0150.2024.05.002 [7] WANG Y Q, MOHAMED O, DUNN K, et al. Effects of stress triaxiality and strain rate on the fracture of a CuCrZr alloy [J]. Journal of Nuclear Materials, 2021, 543: 152546. doi: 10.1016/j.jnucmat.2020.152546 [8] QIAN X Y, PENG X B, SONG Y T, et al. Dynamic constitutive relationship of CuCrZr alloy based on Johnson-Cook model [J]. Nuclear Materials and Energy, 2020, 24: 100768. doi: 10.1016/j.nme.2020.100768 [9] HUANG Y C, LI M, MA C Q, et al. Flow behaviour constitutive model of CuCrZr alloy and 35CrMo steel based on dynamic recrystallization softening effect under elevated temperature [J]. Journal of Central South University, 2019, 26(6): 1550–1562. doi: 10.1007/s11771-019-4111-x [10] ZHANG X X, YUAN Y L, ZHAO S Q, et al. Microstructure stability, softening temperature and strengthening mechanism of pure copper, CuCrZr and Cu-Al2O3 up to 1000 ℃ [J]. Nuclear Materials and Energy, 2022, 30: 101123. doi: 10.1016/j.nme.2022.101123[11] SUZUKI R, SAITO M, HATANO T. Fracture strength of CuCrZr in high temperature environment [J]. Fusion Science and Technology, 2003, 44(1): 242–246. doi: 10.13182/FST03-A341 [12] NIORDSON F I. A unit for testing materials at high strain rates [J]. Experimental Mechanics, 1965, 5(1): 29–32. doi: 10.1007/BF02320901 [13] GOURDIN W H. VISAR analysis in the presence of large intensity changes: application to the expanding ring [J]. Review of Scientific Instruments, 1989, 60(4): 754–759. doi: 10.1063/1.1141015 [14] GOURDIN W H. Analysis and assessment of electromagnetic ring expansion as a high-strain-rate test [J]. Journal of Applied Physics, 1989, 65(2): 411–422. doi: 10.1063/1.343121 [15] DAN J K, GUO Z L, CHEN Y, et al. Preliminary investigations on dynamic fracture of ductile metals by using electromagnetically driven expanding ring [J]. AIP Advances, 2020, 10(10): 105001. doi: 10.1063/5.0016527 [16] HUANG L T, HAN X T, CHEN Q, et al. Effect of electromagnetic ring expansion on the mechanical property of A5083 aluminum alloy [J]. IEEE Transactions on Applied Superconductivity, 2014, 24(3): 7100104. doi: 10.1109/TASC.2013.2280722 [17] MA H J, HUANG L, WU M Q, et al. Dynamic ductility and fragmentation for aluminum alloy using electromagnetic ring expansion [J]. Procedia Engineering, 2014, 81: 787–792. doi: 10.1016/j.proeng.2014.10.077 [18] YANG K, TABER G, SAPANATHAN T, et al. Suitability of the electromagnetic ring expansion test to characterize materials under high strain rate deformation [J]. MATEC Web of Conferences, 2016, 80: 15002. doi: 10.1051/matecconf/20168015002 [19] OKAZAKI K, KAGAWA M, CONRAD H. An evaluation of the contributions of skin, pinch and heating effects to the electroplastic effect in titatnium [J]. Materials Science and Engineering, 1980, 45(2): 109–116. doi: 10.1016/0025-5416(80)90216-5 [20] 李桂荣, 王宏明, 李沛思, 等. 磁致塑性效应下的位错动力学机制 [J]. 物理学报, 2015, 64(14): 148102. doi: 10.7498/aps.64.148102LI G R, WANG H M, LI P S, et al. Mechanism of dislocation kinetics under magnetoplastic effect [J]. Acta Physica Sinica, 2015, 64(14): 148102. doi: 10.7498/aps.64.148102 [21] MOLOTSKII M, FLEUROV V. Magnetic effects in electroplasticity of metals [J]. Physical Review B, 1995, 52(22): 15829–15834. doi: 10.1103/PhysRevB.52.15829 [22] JIANG Y, CHEN Y, GUO Z L, et al. Effect of strain rate on ductility of Cu TU1 in electromagnetic ring expansion [J]. International Journal of Impact Engineering, 2024, 184: 104832. doi: 10.1016/j.ijimpeng.2023.104832 [23] JANISZEWSKI J. Ductility of selected metals under electromagnetic ring test loading conditions [J]. International Journal of Solids and Structures, 2012, 49(7/8): 1001–1008. doi: 10.1016/j.ijsolstr.2012.01.005 [24] 郭昭亮, 范诚, 刘明涛, 等. 爆炸与电磁加载下无氧铜环、柱壳的断裂模式转变 [J]. 爆炸与冲击, 2017, 37(6): 1072–1079. doi: 10.11883/1001-1455(2017)06-1072-08GUO Z L, FAN C, LIU M T, et al. Fracture mode transition in expanding ring and cylindrical shell under electromagnetic and explosive loadings [J]. Explosion and Shock Waves, 2017, 37(6): 1072–1079. doi: 10.11883/1001-1455(2017)06-1072-08 -
