Research Progress on Design Strategies and Mechanical Behaviors of Self-Locking Structure
-
摘要: 自锁结构凭借对单胞连接方式的巧妙设计，使结构内部的单胞无需额外添加约束条件，就能实现彼此相互锁定。自锁结构具备轻质便携、快速组装与拆卸等优势，在抗冲击、防爆等多个领域具有广阔的应用前景。自锁结构在自然界多种生物结构中天然存在，首先，从仿生自锁结构的设计启发、周期性结构的吸能机制以及周期性结构剪切带失效3个方面，阐述自锁结构的设计理念；接着，依据自锁方向对自锁结构进行分类，介绍了二维单向自锁结构、三维多向自锁结构以及曲面自锁结构的研究进展，其中，三维多向自锁结构能够承受更为复杂的多向载荷，介绍了基于哑铃型结构、生物骨缝、褶皱设计的3种代表性多向自锁结构；最后，对自锁结构的研究进行总结，并对其研究前景进行展望。Abstract: The self-locking structure achieves interlocking property through ingenious design of the connection mode between cells, which enables the cells to lock with each other without the need for any additional constraints. The self-locking structure possesses significant advantages, such as light weight, portability, rapid assembly, and disassembly. Therefore, this structure is widely applied in various fields, such as shock resistance and explosion prevention. Self-locking structures exist in many structures in nature. The design concepts of self-locking structures are introduced from three aspects: the inspiration from biomimetic self-locking structures, the energy absorption mechanism of periodic structures, and failure of shear bands in periodic structures. The research progress of two-dimensional unidirectional self-locking structures, three-dimensional multi-directional self-locking structures and curved self-locking structures are then respectively introduced based on the classification of self-locking direction. Among them, the multi-directional self-locking structure withstands more complex loading conditions. Therefore, research progress of three representative multi-directional self-locking structures based on dumbbell-type, bone stitching, and origami design are further introduced. Finally, the research on the self-locking structure is summarized, and its future research prospects are discussed.
-
Key words:
- self-locking structure /
- periodic structure /
- biomimetic structure /
- foldcore /
- energy absorption
-
图 1 自然界中的自锁结构研究：(a) 铁甲虫鞘翅自锁增韧机制[17]，(b) 红腹啄木鸟波纹形自锁喙[18]，(c) 嵌锁螺旋状鱼鳞[19]，(d) 堆叠渐进锁紧的珍珠层[21]
Figure 1. Research on self-locking structures in nature: (a) self-locking and toughening mechanism of a diabolical ironclad beetle[17]; (b) corrugated self-locking beak of a red-bellied woodpecker[18]; (c) interlocking spiral-shaped fish scales[19]; (d) compactly stacked and gradually self-locking nacre[21]

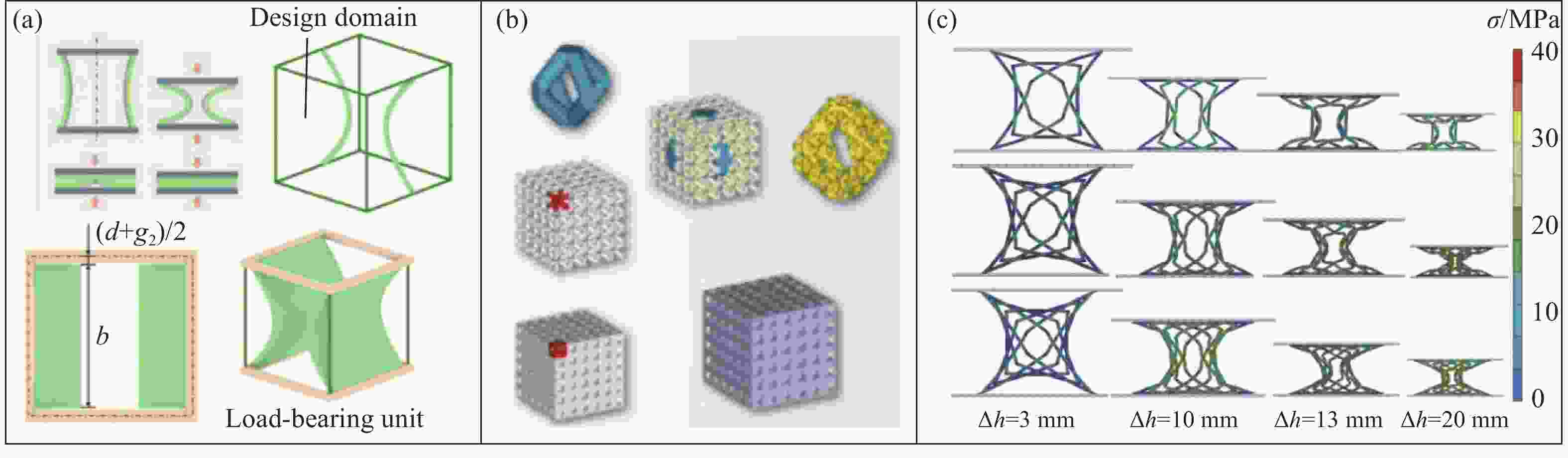

图 3 周期性结构单胞的精巧设计：(a) 正弦薄壁网格式防护结构[39]，(b) 可编程混合杂化自锁晶格[40]，(c) 双应力平台星形结构（Δh为压缩位移）[41]
Figure 3. Ingenious design of the periodic structure: (a) sinusoidal thin-walled grid-type protective structure[39]; (b) programmable hybrid self-locking lattice[40]; (c) star-shaped structure with double stress plateaus[41], where Δh stands for the displacement of compression

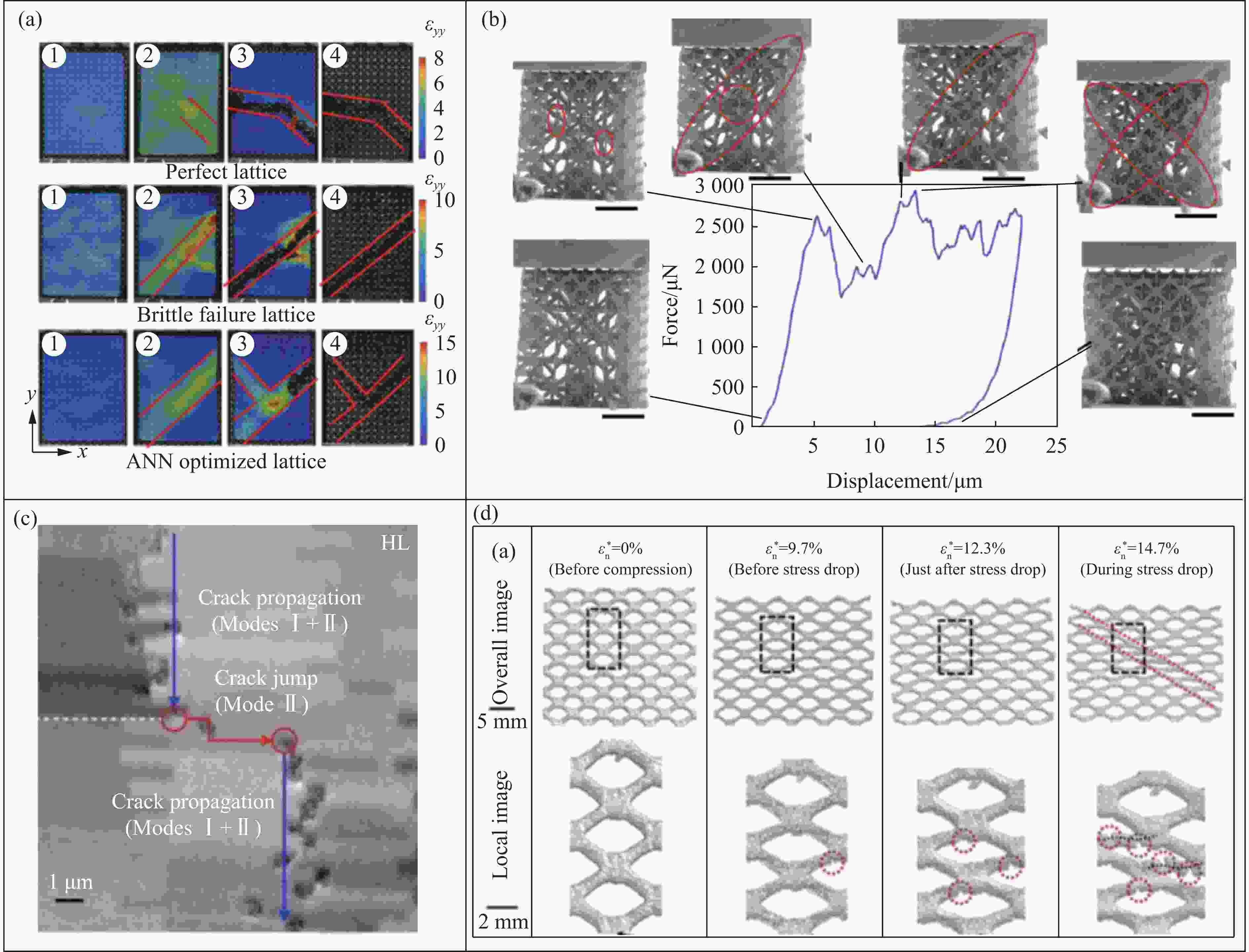

图 4 剪切带失效的设计和调控：(a) 单向剪切带转为分叉或扭曲剪切带[45]，(b) 遗传算法调控剪切带形状[46]，(c) 约束位错滑移控制剪切带失效[47]，(d) 支柱形状对剪切带失效模式的影响（$ \varepsilon_{\rm n}^{\ast} $为压缩载荷下的应变）[48]
Figure 4. Design and regulation of shear-band failure: (a) transformation from unidirectional shear band to a shear band with bifurcation or twist[45]; (b) regulation of the shear-band shape using genetic algorithms[46]; (c) restriction of dislocation slip to control the failure of shear band[47]; (d) influence of truss shape on the failure mode of shear band[48], where $ \varepsilon_{\rm n}^{\ast} $ stands for the strain under compression

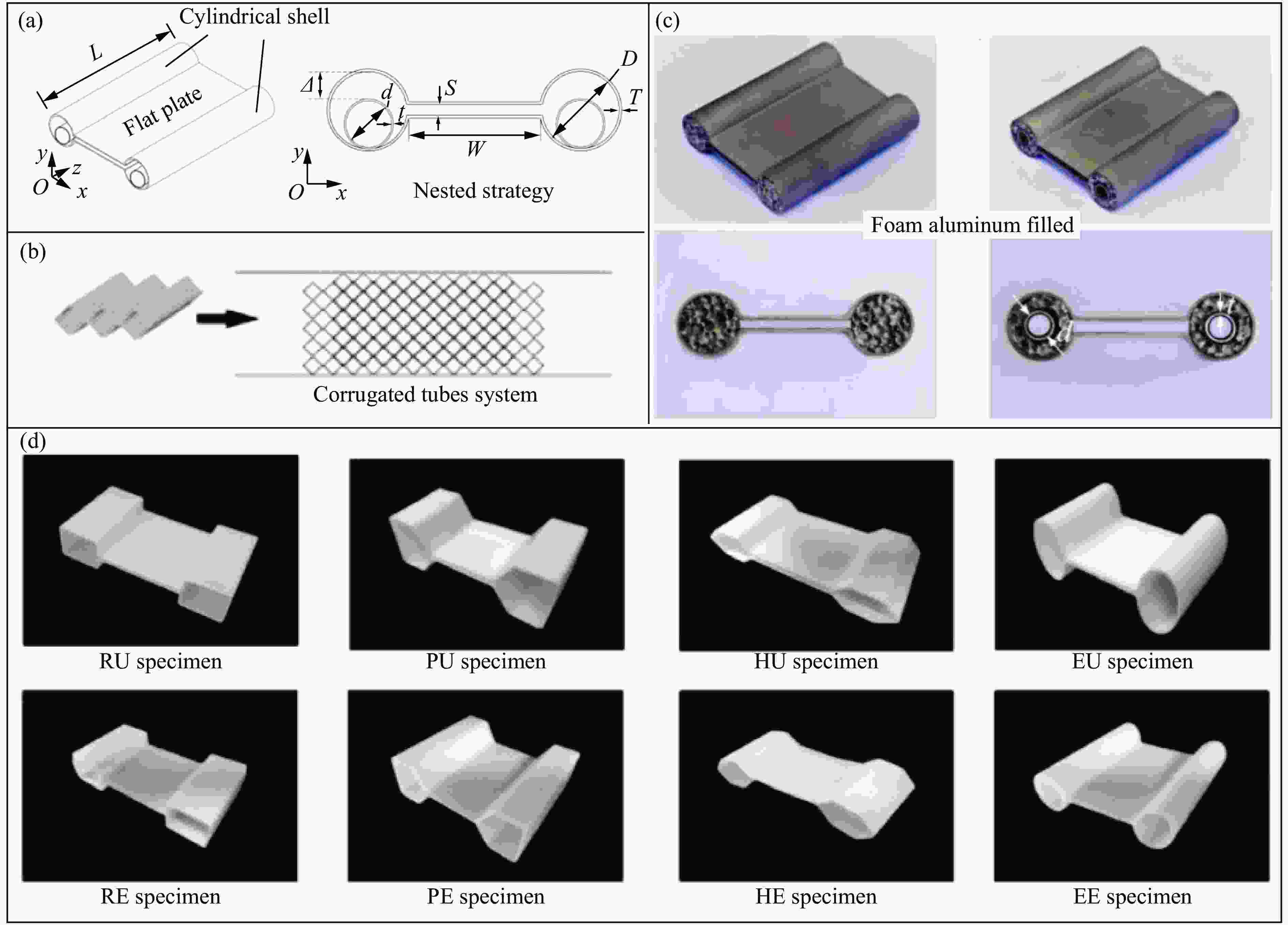

图 5 受哑铃型单胞启发的二维自锁结构设计：(a) 嵌套式哑铃管自锁系统[51]，(b) 缩短连接平台的波纹管自锁系统[56]，(c) 泡沫铝及内管填充哑铃型结构[53]，(d) 多形状自锁管设计[54]
Figure 5. Design of two-dimensional self-locking structure inspired by the dumbbell-shaped single cell: (a) nested dumbbell-shaped tube self-locking system[51]; (b) self-locking system with shortened connecting platform[56]; (c) foam aluminum or inner tube filled dumbbell-shaped structure[53]; (d) design of multi-shaped self-locking tube[54]

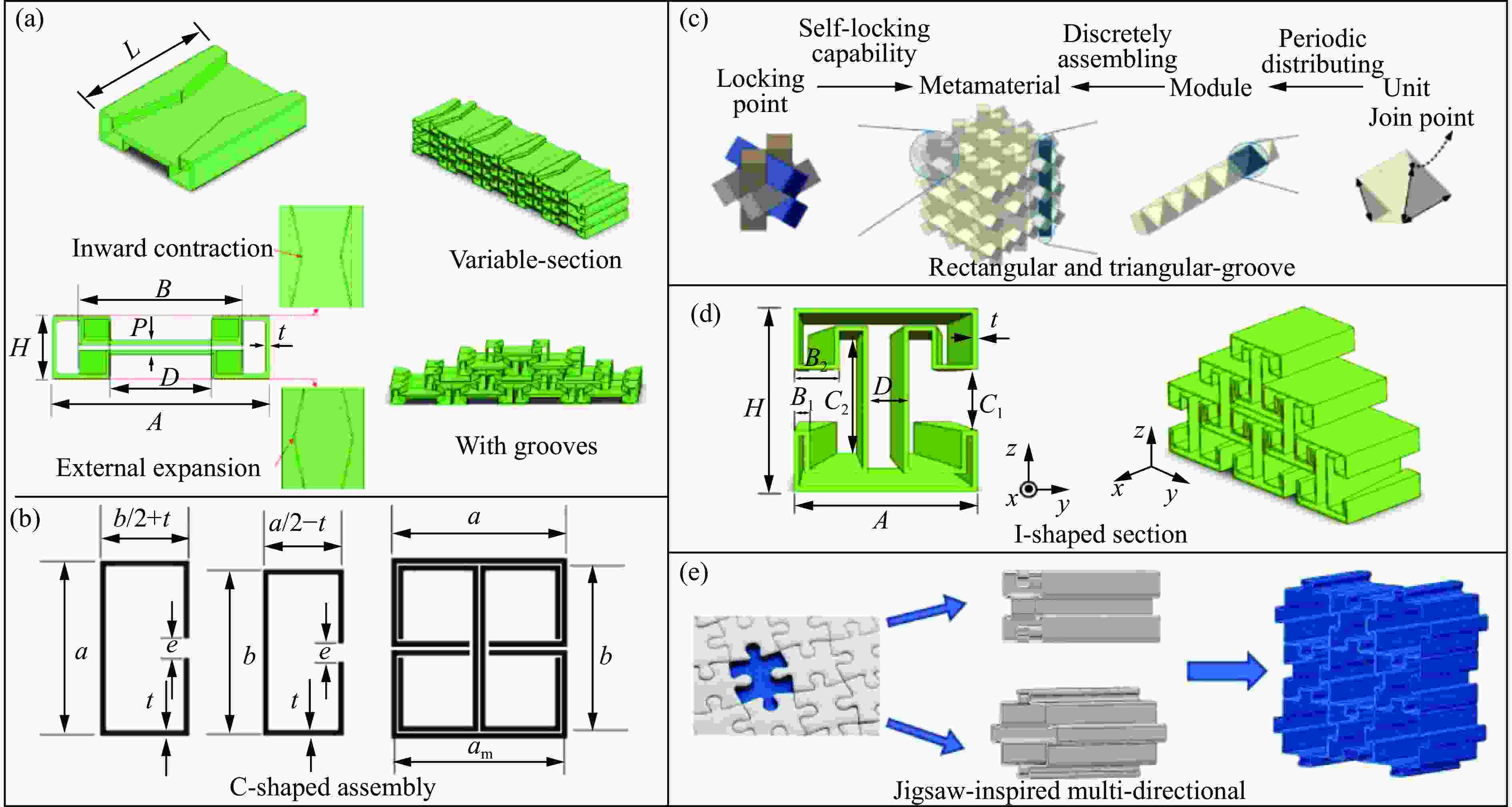

图 6 受哑铃型单胞启发的三维自锁结构设计：(a) 添加凹槽的变截面薄壁管自锁系统[57]，(b) C形开口组装自锁系统[58]，(c) 矩形三角形组合设计凹槽自锁系统[59]，(d) 工字形截面自锁系统[60]，(e) 拼图启发凹凸多向自锁系统[61]
Figure 6. Design of three-dimensional self-locking structure inspired by the dumbbell-shaped single cell: (a) variable-section self-locking thin-wall tube with grooves[57]; (b) C-shaped assembly self-locking system[58]; (c) rectangular and triangular-groove self-locking system[59]; (d) I-shaped section self-locking system[60]; (e) jigsaw-inspired multi-directional self-locking system[61]

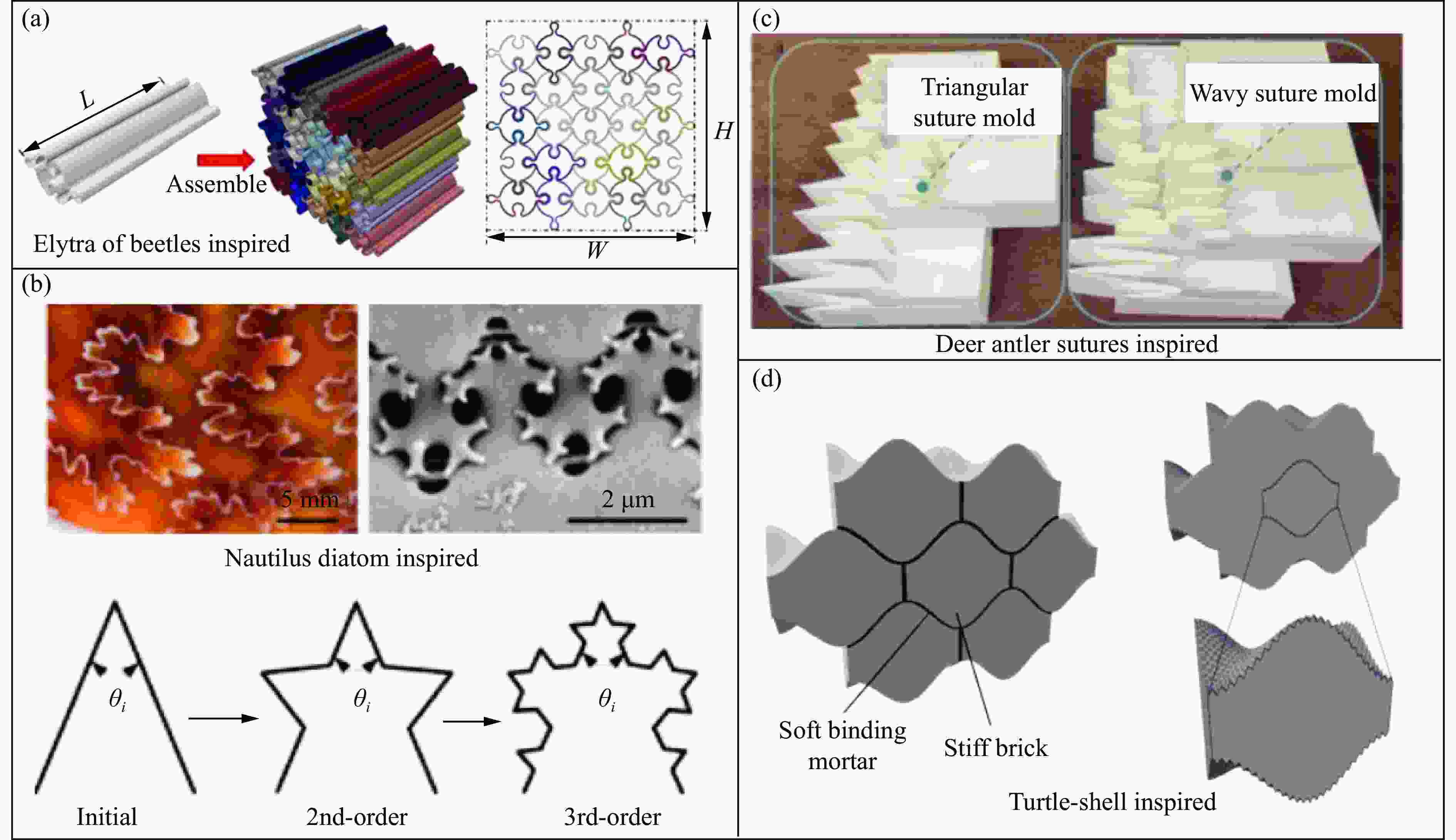

图 7 受生物骨缝启发的三维自锁结构设计：(a) 受铁甲虫鞘翅启发的薄壁模块化自锁系统[65]，(b) 受鹦鹉螺硅藻结构启发的三角形缝合自锁结构[66]，(c) 受鹿角缝合线启发的波纹自锁结构[68]，(d) 受龟壳启发的柔性黏合复合自锁结构[72]
Figure 7. Three-dimensional self-locking structure inspired by biological bone joints: (a) thin-walled modular self-locking system inspired by elytra of beetles[65]; (b) triangular suture self-locking structure inspired by nautilus diatom[66]; (c) corrugated self-locking structure inspired by deer antler sutures[68]; (d) bionic turtle-shell inspired flexible adhesive composite self-locking structure[72]

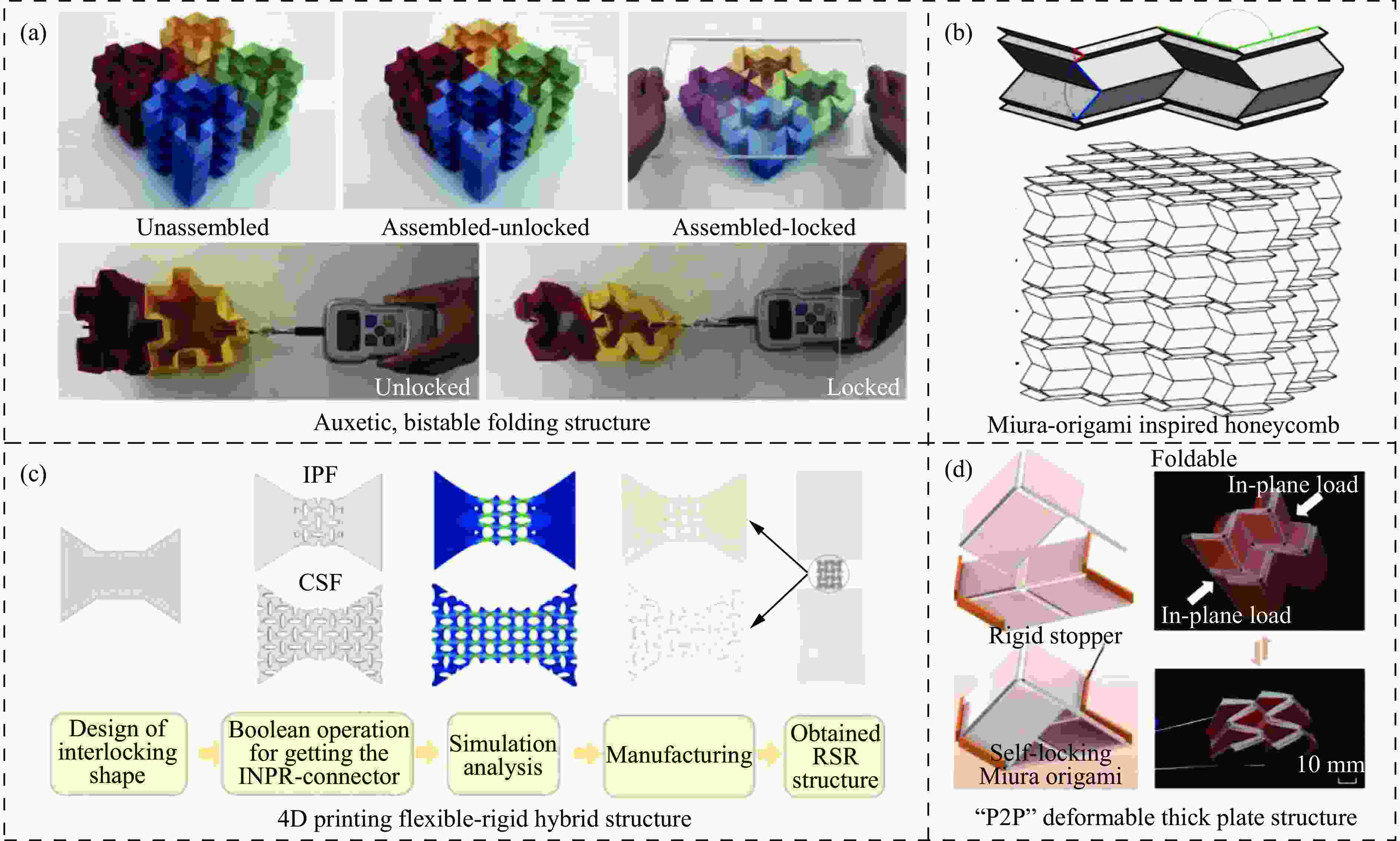

图 8 基于褶皱的自锁结构设计：(a) 拉胀双稳态自锁褶皱结构[73]，(b) 三浦折纸新型蜂窝自锁结构[74]，(c) 联锁负泊松比连接器设计流程（IPF、CSF、RSR分别表示中间构件填充（intermediate part filling）、完全结构填充（complete structure filling）和刚性-柔性-刚性（rigid-soft-rigid））[77]，(d)“P2P”变形厚板自锁褶皱结构[80]
Figure 8. Self-locking structure design inspired by folding structure: (a) folding structure with auxetic, bistable, and self-locking properties[73]; (b) miura-origami inspired honeycomb self-locking structure[74]; (c) interlocking negative Poisson’s ratio connectors design flow[77], where IPF stands for intermediate part filling, CSF stands for complete structure filling, and RSR stands for rigid-soft-rigid; (d) “P2P” deformable thick plate self-locking folding structure[80]
-
[1] XU M C, ZHAO Z A, WANG P D, et al. Mechanical performance of bio-inspired hierarchical honeycomb metamaterials [J]. International Journal of Solids and Structures, 2022, 254/255: 111866. [2] DUDTE L H, VOUGA E, TACHI T, et al. Programming curvature using origami tessellations [J]. Nature Materials, 2016, 15(5): 583–588. doi: 10.1038/nmat4540 [3] MELONI M, CAI J G, ZHANG Q, et al. Engineering origami: a comprehensive review of recent applications, design methods, and tools [J]. Advanced Science, 2021, 8(13): 2000636. doi: 10.1002/advs.202000636 [4] 方虹斌, 吴海平, 刘作林, 等. 折纸结构和折纸超材料动力学研究进展 [J]. 力学学报, 2022, 54(1): 1–38. doi: 10.6052/0459-1879-21-478FANG H B, WU H P, LIU Z L, et al. Advances in the dynamics of origami structures and origami metamaterials [J]. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(1): 1–38. doi: 10.6052/0459-1879-21-478 [5] HANUHOV T, COHEN N. Thermally activated tunable auxeticity in periodic lattice structures [J]. International Journal of Mechanical Sciences, 2025, 295: 110085. doi: 10.1016/j.ijmecsci.2025.110085 [6] DENG J Q, LI X, LIU Z F, et al. Mechanical properties of three-dimensional printed combination-design truss lattice materials: static and dynamic loading [J]. Journal of Aerospace Engineering, 2022, 35(5): 04022067. doi: 10.1061/(ASCE)AS.1943-5525.0001448 [7] 刘嘉婧, 李子豪, 王志华, 等. 三周期极小曲面结构混合设计及其在冲击载荷下的力学行为 [J]. 高压物理学报, 2024, 38(5): 054102. doi: 10.11858/gywlxb.20240783LIU J J, LI Z H, WANG Z H, et al. Hybrid design of triply periodic minimal surface structure and its mechanical behavior under impact loading [J]. Chinese Journal of High Pressure Physics, 2024, 38(5): 054102. doi: 10.11858/gywlxb.20240783 [8] WANG H X, CHENG L D, YU J Y, et al. Self-adaptable mechanical ceramic fibrous aerogels from prestressed topology and multistable constraints [J]. Nature Communications, 2025, 16(1): 6885. doi: 10.1038/s41467-025-62164-4 [9] EJEH C J, BARSOUM I, AL-RUB R K A. Impact behavior of periodic, stochastic, and anisotropic minimal surface-lattice sandwich structures [J]. International Journal of Mechanical Sciences, 2024, 276: 109359. doi: 10.1016/j.ijmecsci.2024.109359 [10] LIU C, LERTTHANASARN J, PHAM M S. The origin of the boundary strengthening in polycrystal-inspired architected materials [J]. Nature Communications, 2021, 12(1): 4600. doi: 10.1038/s41467-021-24886-z [11] 廖芳, 李世强, 吴桂英. 冲击载荷下周期性多孔夹芯结构拓扑优化及动力响应 [J]. 高压物理学报, 2022, 36(5): 054201. doi: 10.11858/gywlxb.20220560LIAO F, LI S Q, WU G Y. Topological optimization and dynamic response of periodic porous sandwich structure under impact load [J]. Chinese Journal of High Pressure Physics, 2022, 36(5): 054201. doi: 10.11858/gywlxb.20220560 [12] CHEN Z B, WEI X Y, YANG L H, et al. Origami-based bidirectional self-locking system for energy absorption [J]. Journal of the Mechanics and Physics of Solids, 2024, 188: 105672. doi: 10.1016/j.jmps.2024.105672 [13] LI Z H, LI S Q, LIU J J, et al. Response mechanisms and energy absorption properties of hybrid sheet TPMS lattices under static and dynamic loading [J]. Thin-Walled Structures, 2025, 210: 112980. doi: 10.1016/j.tws.2025.112980 [14] GAO H J, LIU Y S, TAN Q B, et al. Assembled suture multi-cell structures with enhanced interlocking and tailored energy absorption [J]. Composite Structures, 2025, 371: 119467. doi: 10.1016/j.compstruct.2025.119467 [15] SCHAEDLER T A, CARTER W B. Architected cellular materials [J]. Annual Review of Materials Research, 2016, 46: 187–210. doi: 10.1146/annurev-matsci-070115-031624 [16] UM H J, RHO H J, JEON N H, et al. Mechanical performance of novel curved sandwich structures featuring 3D printed continuous carbon fiber/polyamide 6 composite corrugated core with rail interlocking [J]. Composites Part B: Engineering, 2025, 295: 112222. doi: 10.1016/j.compositesb.2025.112222 [17] RIVERA J, HOSSEINI M S, RESTREPO D, et al. Toughening mechanisms of the elytra of the diabolical ironclad beetle [J]. Nature, 2020, 586(7830): 543–548. doi: 10.1038/s41586-020-2813-8 [18] LEE N, HORSTEMEYER M F, RHEE H, et al. Hierarchical multiscale structure: property relationships of the red-bellied woodpecker (Melanerpes carolinus) beak [J]. Journal of the Royal Society Interface, 2014, 11(96): 20140274. doi: 10.1098/rsif.2014.0274 [19] BROWNING A, ORTIZ C, BOYCE M C. Mechanics of composite elasmoid fish scale assemblies and their bioinspired analogues [J]. Journal of the Mechanical Behavior of Biomedical Materials, 2013, 19: 75–86. doi: 10.1016/j.jmbbm.2012.11.003 [20] ZOLOTOVSKY K, VARSHNEY S, REICHERT S, et al. Fish-inspired flexible protective material systems with anisotropic bending stiffness [J]. Communications Materials, 2021, 2(1): 35. doi: 10.1038/s43246-021-00140-3 [21] ESPINOSA H D, RIM J E, BARTHELAT F, et al. Merger of structure and material in nacre and bone: perspectives on de novo biomimetic materials [J]. Progress in Materials Science, 2009, 54(8): 1059–1100. doi: 10.1016/j.pmatsci.2009.05.001 [22] RABIEI R, BEKAH S, BARTHELAT F. Failure mode transition in nacre and bone-like materials [J]. Acta Biomaterialia, 2010, 6(10): 4081–4089. doi: 10.1016/j.actbio.2010.04.008 [23] ALHEIT B, BARGMANN S, REDDY B D. Computationally modelling the mechanical behaviour of turtle shell sutures—a natural interlocking structure [J]. Journal of the Mechanical Behavior of Biomedical Materials, 2020, 110: 103973. doi: 10.1016/j.jmbbm.2020.103973 [24] CHEN Y L, QIAO C, QIU X M, et al. A novel self-locked energy absorbing system [J]. Journal of the Mechanics and Physics of Solids, 2016, 87: 130–149. doi: 10.1016/j.jmps.2015.11.008 [25] ISLAM M. Unraveling the differences in distracted driving injury severities in passenger car, sport utility vehicle, pickup truck, and minivan crashes [J]. Accident Analysis & Prevention, 2024, 196: 107444. doi: 10.1016/j.aap.2023.107444 [26] DONG Y, MUMTARIN M, WOOD J S. Impacts of traffic barrier types on crash severity [J]. Transportation Research Interdisciplinary Perspectives, 2025, 32: 101517. doi: 10.1016/j.trip.2025.101517 [27] NGUYEN H V, HUYNH V V, CHO S R, et al. Residual ultimate strength of a container ship under dropped object impact: numerical simulations and empirical formulations [J]. Ocean Engineering, 2025, 341(Pt 3): 122732. [28] 李万, 张志华, 李华, 等. 水下爆炸载荷作用下水下目标结构的可靠性研究 [J]. 高压物理学报, 2014, 28(3): 324–330. doi: 10.11858/gywlxb.2014.03.010LI W, ZHANG Z H, LI H, et al. Reliability on underwater target structure subjected to underwater explosion [J]. Chinese Journal of High Pressure Physics, 2014, 28(3): 324–330. doi: 10.11858/gywlxb.2014.03.010 [29] YANG A, ROMANYK D, HOGAN J D. High-velocity impact study of an advanced ceramic using finite element model coupling with a machine learning approach [J]. Ceramics International, 2023, 49(7): 10481–10498. doi: 10.1016/j.ceramint.2022.11.234 [30] SIMPSON G, GRANT J, WEIHS T P, et al. Size-dependent fragment shape in high-velocity anvil impact of spherical metal powder-compacts [J]. Acta Materialia, 2025, 286: 120647. doi: 10.1016/j.actamat.2024.120647 [31] SU R Y, CHEN J Y, ZHANG X Q, et al. 3D-printed micro/nano-scaled mechanical metamaterials: fundamentals, technologies, progress, applications, and challenges [J]. Small, 2023, 19(29): 2206391. doi: 10.1002/smll.202206391 [32] SCHAEDLER T A, JACOBSEN A J, TORRENTS A, et al. Ultralight metallic microlattices [J]. Science, 2011, 334(6058): 962–965. doi: 10.1126/science.1211649 [33] ZHU Q, HUANG Q, GUANG C. et al. Metallic nanocrystals with low angle grain boundary for controllable plastic reversibility [J]. Nature Communications, 2020, 11: 3100. doi: 10.1038/s41467-020-16869-3 [34] ZHANG X, WANG Y J, DING B, et al. Design, fabrication, and mechanics of 3D micro-/nanolattices [J]. Small, 2020, 16(15): 1902842. doi: 10.1002/smll.201902842 [35] YIN H F, ZHANG W Z, ZHU L C, et al. Review on lattice structures for energy absorption properties [J]. Composite Structures, 2023, 304: 116397. doi: 10.1016/j.compstruct.2022.116397 [36] LIN X, PAN F, YANG K, et al. A Stair-building strategy for tailoring mechanical behavior of re-customizable metamaterials [J]. Advanced Functional Materials, 2021, 31(37): 2101808. doi: 10.1002/adfm.202101808 [37] SURJADI J U, FENG X B, FAN R, et al. Hollow medium-entropy alloy nanolattices with ultrahigh energy absorption and resilience [J]. NPG Asia Materials, 2021, 13(1): 36. doi: 10.1038/s41427-021-00306-y [38] FENG X B, SURJADI J U, FAN R, et al. Microalloyed medium-entropy alloy (MEA) composite nanolattices with ultrahigh toughness and cyclability [J]. Materials Today, 2021, 42: 10–16. doi: 10.1016/j.mattod.2020.10.003 [39] JIA M, DAI N, WANG T W, et al. A compact quasi-zero stiffness metamaterial for energy absorption and impact protection [J]. Thin-Walled Structures, 2024, 205: 112360. doi: 10.1016/j.tws.2024.112360 [40] LI N, PANG S M, CHEN S G, et al. Design and application of hybrid lattice metamaterial structures with high energy absorption and compressive resistance [J]. Journal of Materials Research and Technology, 2024, 33: 7100–7112. doi: 10.1016/j.jmrt.2024.11.113 [41] 徐豪, 卢传浩, 刘志芳, 等. 双应力平台星形结构的设计与力学性能 [J]. 高压物理学报, 2023, 37(3): 034106. doi: 10.11858/gywlxb.20230614XU H, LU C H, LIU Z F, et al. Design and mechanical properties of star-shaped structure with double stress plateaus [J]. Chinese Journal of High Pressure Physics, 2023, 37(3): 034106. doi: 10.11858/gywlxb.20230614 [42] LIU L, KAMM P, GARCÍA-MORENO F, et al. Elastic and failure response of imperfect three-dimensional metallic lattices: the role of geometric defects induced by selective laser melting [J]. Journal of the Mechanics and Physics of Solids, 2017, 107: 160–184. doi: 10.1016/j.jmps.2017.07.003 [43] YIN S, GUO W H, WANG H T, et al. Strong and tough bioinspired additive-manufactured dual-phase mechanical metamaterial composites [J]. Journal of the Mechanics and Physics of Solids, 2021, 149: 104341. doi: 10.1016/j.jmps.2021.104341 [44] 郭璐, 刘志芳, 李世强, 等. 改进型FCC晶格材料设计与吸能特性 [J]. 高压物理学报, 2022, 36(1): 014206. doi: 10.11858/gywlxb.20210853GUO L, LIU Z F, LI S Q, et al. Design and energy absorption characteristic of improved FCC lattice materials [J]. Chinese Journal of High Pressure Physics, 2022, 36(1): 014206. doi: 10.11858/gywlxb.20210853 [45] BHUWAL A S, PANG Y, ASHCROFT I, et al. Discovery of quasi-disordered truss metamaterials inspired by natural cellular materials [J]. Journal of the Mechanics and Physics of Solids, 2023, 175: 105294. doi: 10.1016/j.jmps.2023.105294 [46] SHEN S C Y, BUEHLER M J. Nature-inspired architected materials using unsupervised deep learning [J]. Communications Engineering, 2022, 1(1): 37. doi: 10.1038/s44172-022-00037-0 [47] VANGELATOS Z, KOMVOPOULOS K, GRIGOROPOULOS C P. Regulating the mechanical behavior of metamaterial microlattices by tactical structure modification [J]. Journal of the Mechanics and Physics of Solids, 2020, 144: 104112. doi: 10.1016/j.jmps.2020.104112 [48] LIU X Y, WADA T, SUZUKI A, et al. Understanding and suppressing shear band formation in strut-based lattice structures manufactured by laser powder bed fusion [J]. Materials & Design, 2021, 199: 109416. doi: 10.1016/j.matdes.2020.109416 [49] LOH H C, DIVOUX T, GLUDOVATZ B, et al. Nacre toughening due to cooperative plastic deformation of stacks of co-oriented aragonite platelets [J]. Communications Materials, 2020, 1(1): 77. doi: 10.1038/s43246-020-00078-y [50] PAPOULIDOU S, HE S, ŠAVIJA B, et al. Concrete-to-concrete interfaces: interlocking architecture for improved toughness [J]. Engineering Fracture Mechanics, 2025, 329: 111547. doi: 10.1016/j.engfracmech.2025.111547 [51] YANG K J, CHEN Y L, LIU S B, et al. Internally nested self-locked tube system for energy absorption [J]. Thin-Walled Structures, 2017, 119: 371–384. doi: 10.1016/j.tws.2017.06.014 [52] CHEN B C, SHENG Y, FAM A, et al. Torsional behavior of a new dumbbell-shaped concrete-filled steel tubes [J]. Thin-Walled Structures, 2017, 110: 35–46. doi: 10.1016/j.tws.2016.10.016 [53] PAN J X, ZHU W Y, YANG K J, et al. Energy absorption of discretely assembled composite self-locked systems [J]. Composite Structures, 2022, 292: 115686. doi: 10.1016/j.compstruct.2022.115686 [54] YANG K J, CHEN Y L, ZHANG L, et al. Shape and geometry design for self-locked energy absorption systems [J]. International Journal of Mechanical Sciences, 2019, 156: 312–328. doi: 10.1016/j.ijmecsci.2019.04.006 [55] YANG K J, QIAO C, XIONG F, et al. Theoretical investigation on the energy absorption of ellipse-shaped self-locked tubes [J]. Science China Physics, Mechanics & Astronomy, 2020, 63(9): 294611. [56] CHEN Z B, WU Q Q, YANG H T, et al. A periodic dissipative system with self-locking capacity [J]. International Journal of Impact Engineering, 2022, 166: 104233. doi: 10.1016/j.ijimpeng.2022.104233 [57] ZHAO Y, CHEN L M, DU B, et al. Bidirectional self-locked energy absorbing system: design and quasi-static compression properties [J]. Thin-Walled Structures, 2019, 144: 106366. doi: 10.1016/j.tws.2019.106366 [58] ZHANG X, ZHANG H, YANG C Y, et al. Static and dynamic axial crushing of self-locking multi-cell tubes [J]. International Journal of Impact Engineering, 2019, 127: 17–30. doi: 10.1016/j.ijimpeng.2019.01.002 [59] YANG K J, RAO L Y, HU L L, et al. Flexible, efficient and adaptive modular impact-resistant metamaterials [J]. International Journal of Mechanical Sciences, 2023, 239: 107893. doi: 10.1016/j.ijmecsci.2022.107893 [60] DENG J Q, ZHAO W Q, WANG J Z, et al. A novel design of an I-shape self-locked thin-walled system with mortise and tenon joints [J]. Thin-Walled Structures, 2024, 201: 111966. doi: 10.1016/j.tws.2024.111966 [61] XU Y Y, YANG J S, HAN H, et al. Design and energy absorption performance of a new jigsaw-inspired multi-directional self-locking system [J]. Composite Structures, 2025, 357: 118947. doi: 10.1016/j.compstruct.2025.118947 [62] BALANI K, PATEL R R, KESHRI A K, et al. Multi-scale hierarchy of Chelydra serpentina: microstructure and mechanical properties of turtle shell [J]. Journal of the Mechanical Behavior of Biomedical Materials, 2011, 4(7): 1440–1451. doi: 10.1016/j.jmbbm.2011.05.014 [63] LIU B, XU X H. Study on impact resistance of bionic interlocking brick-mud structures [J]. Composite Structures, 2023, 318: 117103. doi: 10.1016/j.compstruct.2023.117103 [64] KRISHNA P H , DHILIPKUMAR T, SHANKAR K V, et al. Review on nature-inspired interfaces and mechanical interlocking techniques in additively manufactured adhesively bonded joints [J]. Journal of Materials Research and Technology, 2025, 39: 998–1016. [65] LI J X, SUI C, SANG Y N, et al. A flexible, reusable and adjustable high-performance energy absorption system inspired by interlocking suture structures [J]. International Journal of Solids and Structures, 2024, 296: 112839. doi: 10.1016/j.ijsolstr.2024.112839 [66] WANG W Z, SUN Y P, LU Y Y, et al. Tensile behavior of bio-inspired hierarchical suture joint with uniform fractal interlocking design [J]. Journal of the Mechanical Behavior of Biomedical Materials, 2021, 113: 104137. doi: 10.1016/j.jmbbm.2020.104137 [67] NI Y Z, BAI H R, WANG Z Y, et al. Bio-inspired, metal additive manufacturing interlocked structures: geometrically design and fracture performance analysis [J]. Composite Structures, 2023, 321: 117220. doi: 10.1016/j.compstruct.2023.117220 [68] LI S P, SUN Y, QIAN Y. Flexural behavior of strain-hardening cementitious composite beams with bio-inspired triangular and wavy suture joints [J]. Composite Structures, 2025, 357: 118917. doi: 10.1016/j.compstruct.2025.118917 [69] CURREY J D. Mechanical properties of mother of pearl in tension [J]. Proceedings of the Royal Society of London. Series B, Biological Sciences, 1977, 196(1125): 443–463. doi: 10.1098/rspb.1977.0050 [70] DJUMAS L, MOLOTNIKOV A, SIMON G P, et al. Enhanced mechanical performance of bio-inspired hybrid structures utilising topological interlocking geometry [J]. Scientific Reports, 2016, 6(1): 26706. doi: 10.1038/srep26706 [71] JARADAT M, SOLIMAN E, TAHA M R. 3D-printed bio-inspired mechanically interlocked viscoelastic dampers for energy dissipation [J]. Materials & Design, 2023, 228: 111826. doi: 10.1016/j.matdes.2023.111826 [72] ALHEIT B, BARGMANN S, REDDY B D. Dynamic mechanical behaviour of suture interfaces as inspiration for architectured hierarchical interlocking composites [J]. Journal of the Mechanics and Physics of Solids, 2021, 157: 104620. doi: 10.1016/j.jmps.2021.104620 [73] KAMRAVA S, MOUSANEZHAD D, EBRAHIMI H, et al. Origami-based cellular metamaterial with auxetic, bistable, and self-locking properties [J]. Scientific Reports, 2017, 7(1): 46046. doi: 10.1038/srep46046 [74] GAO J Y, YOU Z. Origami-inspired Miura-ori honeycombs with a self-locking property [J]. Thin-Walled Structures, 2022, 171: 108806. doi: 10.1016/j.tws.2021.108806 [75] WANG Y H, YE H T, HE J, et al. Electrothermally controlled origami fabricated by 4D printing of continuous fiber-reinforced composites [J]. Nature Communications, 2024, 15(1): 2322. doi: 10.1038/s41467-024-46591-3 [76] HO D T, KIM S Y, SCHWINGENSCHLÖGL U. Graphene origami structures with superflexibility and highly tunable auxeticity [J]. Physical Review B, 2020, 102(17): 174106. doi: 10.1103/PhysRevB.102.174106 [77] XU W P, ZHANG M Y, XU H, et al. INPR-connector: interlocking negative Poisson’s ratio connectors design for deployable energy absorption structures [J]. Composites Part B: Engineering, 2025, 297: 112243. doi: 10.1016/j.compositesb.2025.112243 [78] CAI Z X, WU H P, LIU Z L, et al. Folding kinematics and mechanical properties of 4-vertex origami structures with self-locking [J]. International Journal of Mechanical Sciences, 2025, 289: 110021. doi: 10.1016/j.ijmecsci.2025.110021 [79] FANG H B, CHU S C A, XIA Y T, et al. Programmable self-locking origami mechanical metamaterials [J]. Advanced Materials, 2018, 30(15): 1706311. doi: 10.1002/adma.201706311 [80] YE H T, LIU Q J, CHENG J X, et al. Multimaterial 3D printed self-locking thick-panel origami metamaterials [J]. Nature Communications, 2023, 14(1): 1607. doi: 10.1038/s41467-023-37343-w [81] CASAPULLA C, MOUSAVIAN E, ZARGHANI M. A digital tool to design structurally feasible semi-circular masonry arches composed of interlocking blocks [J]. Computers & Structures, 2019, 221: 111–126. doi: 10.1016/j.compstruc.2019.05.001 [82] WANG Y F, LI L C, HOFMANN D, et al. Structured fabrics with tunable mechanical properties [J]. Nature, 2021, 596(7871): 238–243. doi: 10.1038/s41586-021-03698-7 [83] XU J W, CHANG L J, CHEN T W, et al. Study of the bending properties of variable stiffness chain mail fabrics [J]. Composite Structures, 2023, 322: 117369. doi: 10.1016/j.compstruct.2023.117369 [84] XU J W, ZHANG Y, HUANG Y J, et al. Dynamic response of chain mail fabrics with variable stiffness [J]. International Journal of Mechanical Sciences, 2024, 264: 108840. doi: 10.1016/j.ijmecsci.2023.108840 -
