Experimental Study on Directional Rock Fracture by Energy-Gathering Cutting under Dynamic Impact
-

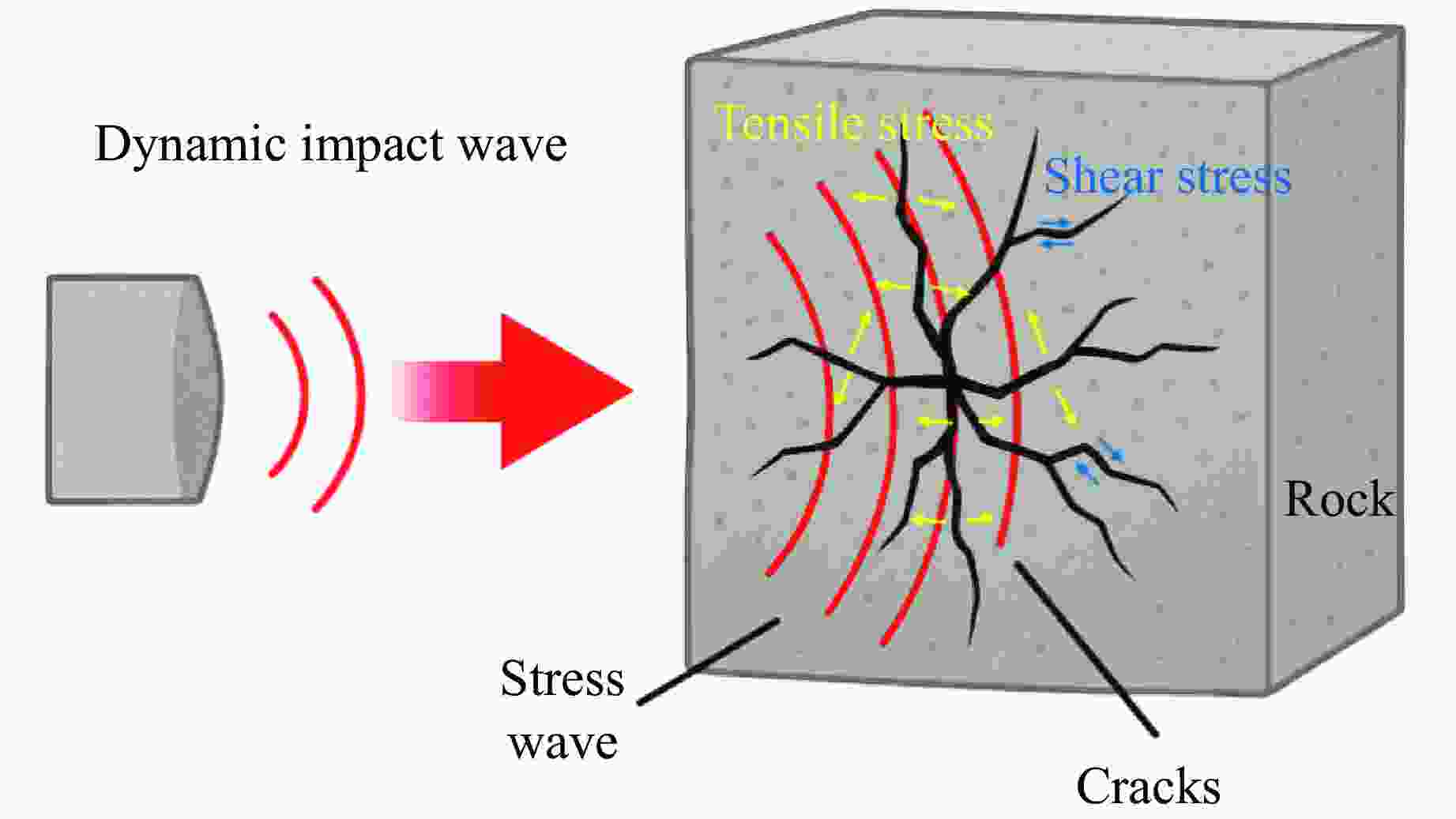

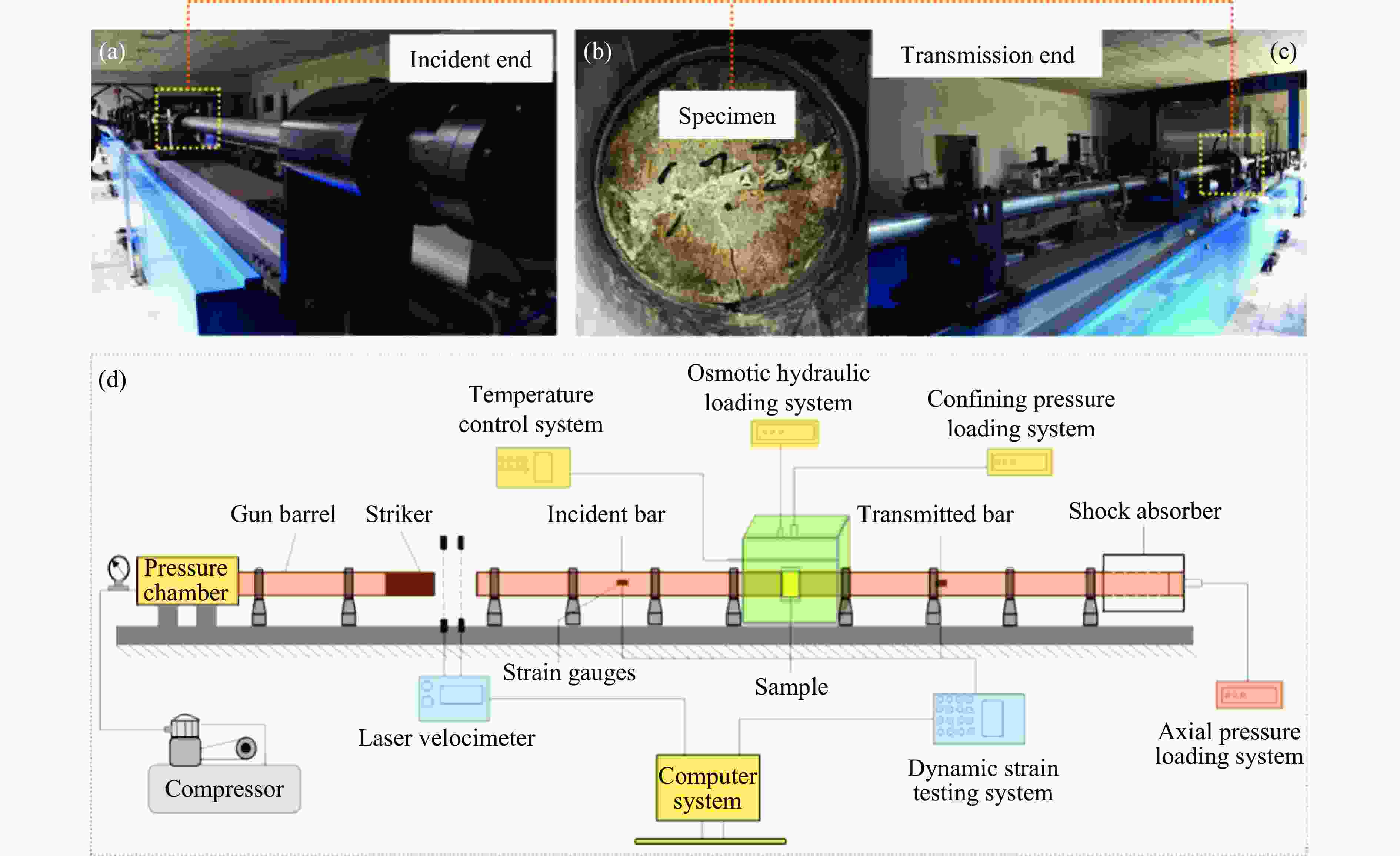

摘要: 针对隧道掘进中遇到的凝灰质砂岩地层非均质性问题，提出了一种基于动力冲击的聚能切缝破岩新技术。采用自主研发的岩土体动态冲击力学试验系统，在尺寸为$\varnothing $100 mm×50 mm的圆柱形凝灰质砂岩试样一端粘贴厚度为10 mm的聚氨酯垫片，在垫片上沿径向分别开设直径为3、6、9 mm的孔洞，共嵌入6根对应直径的相同聚能钉。设置了冲击气压为0.35～0.65 MPa的7组试验，考察了不同冲击能量和钉径对定向切缝破岩效果的影响。结果表明：随着冲击气压增加，试样的峰值应力和能量吸收显著增大，而裂缝贯通程度增强，破裂模式由沿晶破坏为主向穿晶破坏为主转变。3 mm聚能钉易因局部压溃而无法形成有效贯通切缝；9 mm聚能钉在高气压下促使岩石产生块状或粉碎破裂；6 mm聚能钉在多种气压下均表现出稳定连续的定向切缝特征，形成较多穿晶裂纹，展现出优异的能量利用效率。扫描电镜分析结果验证了冲击应变率效应：低应变率（低冲击力）下裂纹多沿晶界扩展，高应变率下裂纹趋于穿晶扩展。该技术充分利用了冲击动力学中压缩-反射-张应力闭合链的破裂机制，实现了无炸药、无液体介质的可控定向破岩。合理匹配冲击参数和聚能钉直径，可在深埋隧道非均质岩层中高效诱导裂缝沿预定方向扩展，为复杂地质条件下隧道掘进中的超欠挖控制提供新思路和参考。Abstract: This study addresses the challenge of excavating through heterogeneous tuffaceous sandstone formations in tunnel construction by proposing a novel energy-gathering slotting rock-breaking technique based on dynamic impact. Using self-developed geotechnical dynamic impact testing system, cylindrical tuffaceous sandstone specimens ($\varnothing $100 mm×50 mm) were prepared with 10 mm thick polyurethane pads adhered to one end. Radially arranged holes of 3, 6, and 9 mm in diameter were drilled into the pads, each fitted with six corresponding energy-gathering nails. Seven groups of tests were conducted under impact air pressures ranging from 0.35 MPa to 0.65 MPa to investigate the effects of varying impact energy and nail diameter on directional rock fracturing performance. The results show that as the impact pressure increases, the peak stress and energy absorption of the specimens rise significantly, with fracture patterns transitioning from primarily intergranular to transgranular cracking. The 3 mm nails were prone to local crushing and failed to produce effective through-cutting cracks, while the 9 mm nails caused blocky or pulverized failure under high pressure. In contrast, the 6 mm nails consistently induced stable, continuous, and directional fractures under various pressures, producing more transgranular cracks, and demonstrating excellent energy utilization efficiency. Scanning electron microscopy confirmed the strain-rate effect of impact: cracks were predominantly intergranular under low strain rates (low impact forces), and became transgranular under high strain rates. This technique leverages the compressive-reflective-tensile stress chain mechanism inherent in dynamic fracture mechanics to achieve controlled, directional rock breaking without explosives or liquid media. By properly matching impact parameters and nail diameters, this method can efficiently guide crack propagation along predetermined paths in deep, heterogeneous rock masses, offering a promising strategy for controlling over- and under-excavation in complex geological tunneling conditions.
-

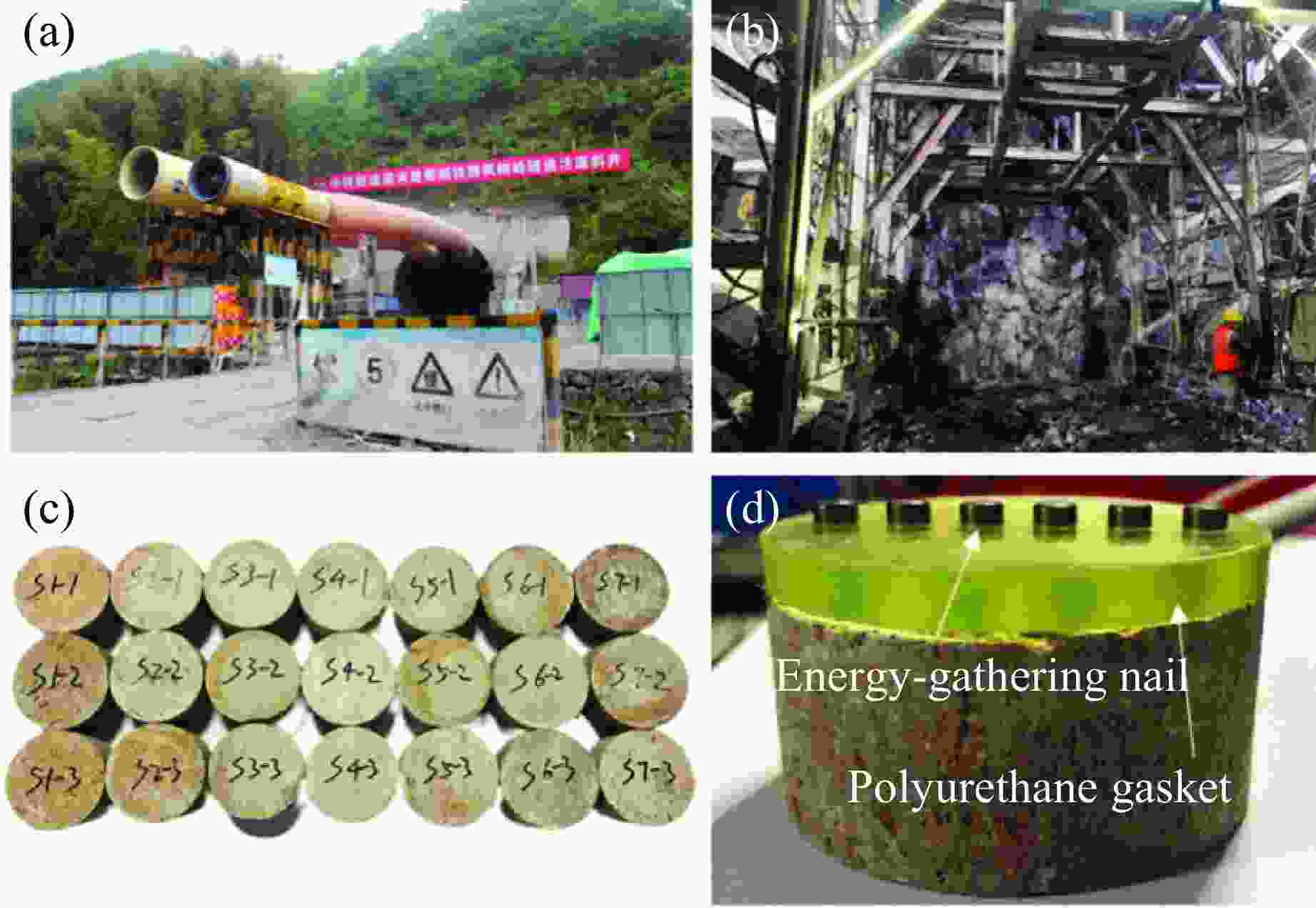

图 2 试验用凝灰质砂岩试样：(a) 枫树岭隧道活源斜井，(b) 隧道掌子面，(c) 试样，(d) 聚能钉
Figure 2. Tuffaceous sandstone samples used in the test: (a) Huoyuan inclined shaft of Fengshuling tunnel, (b) tunnel face, (c) specimen, and (d) energy gathering nail

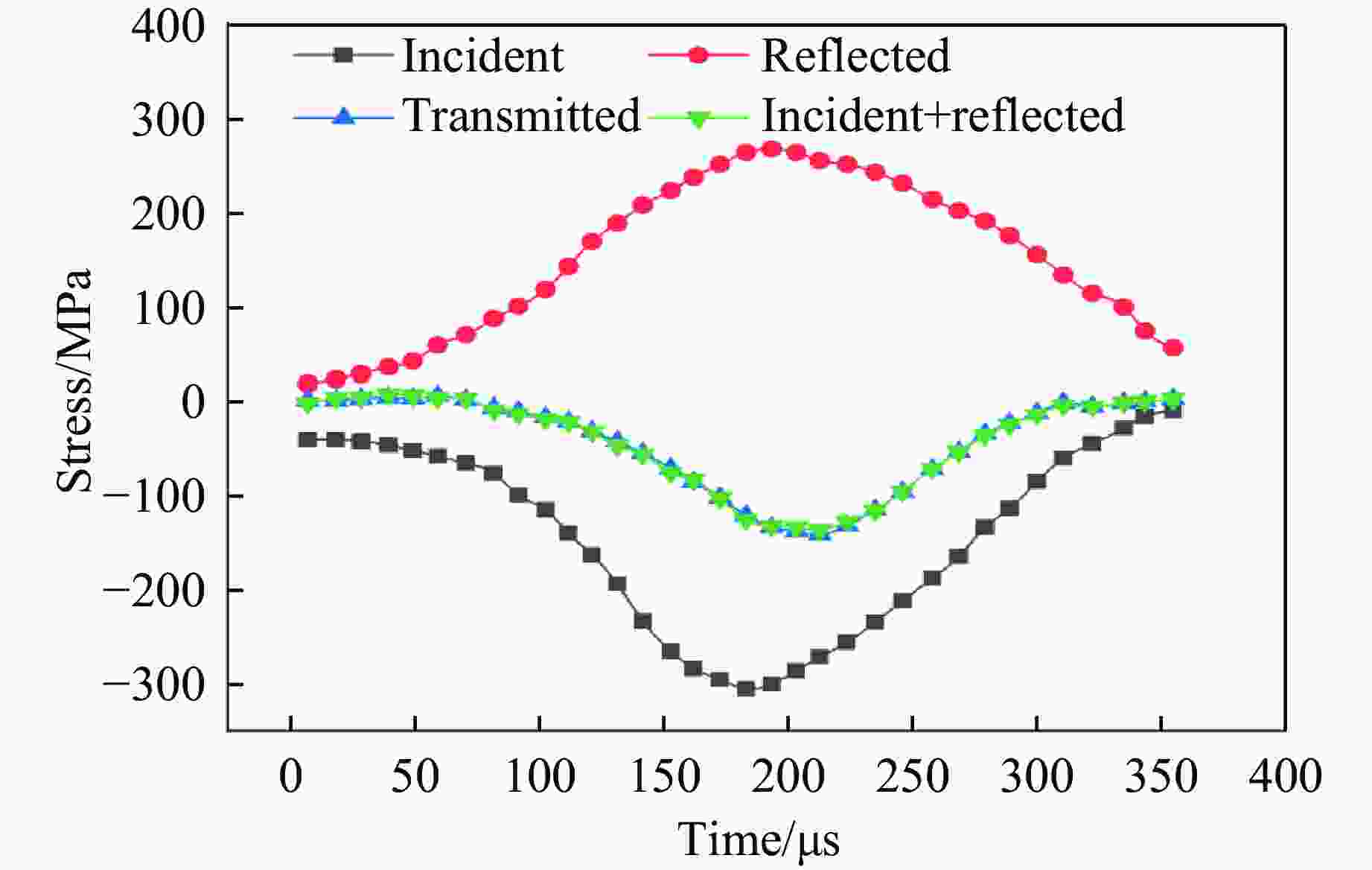

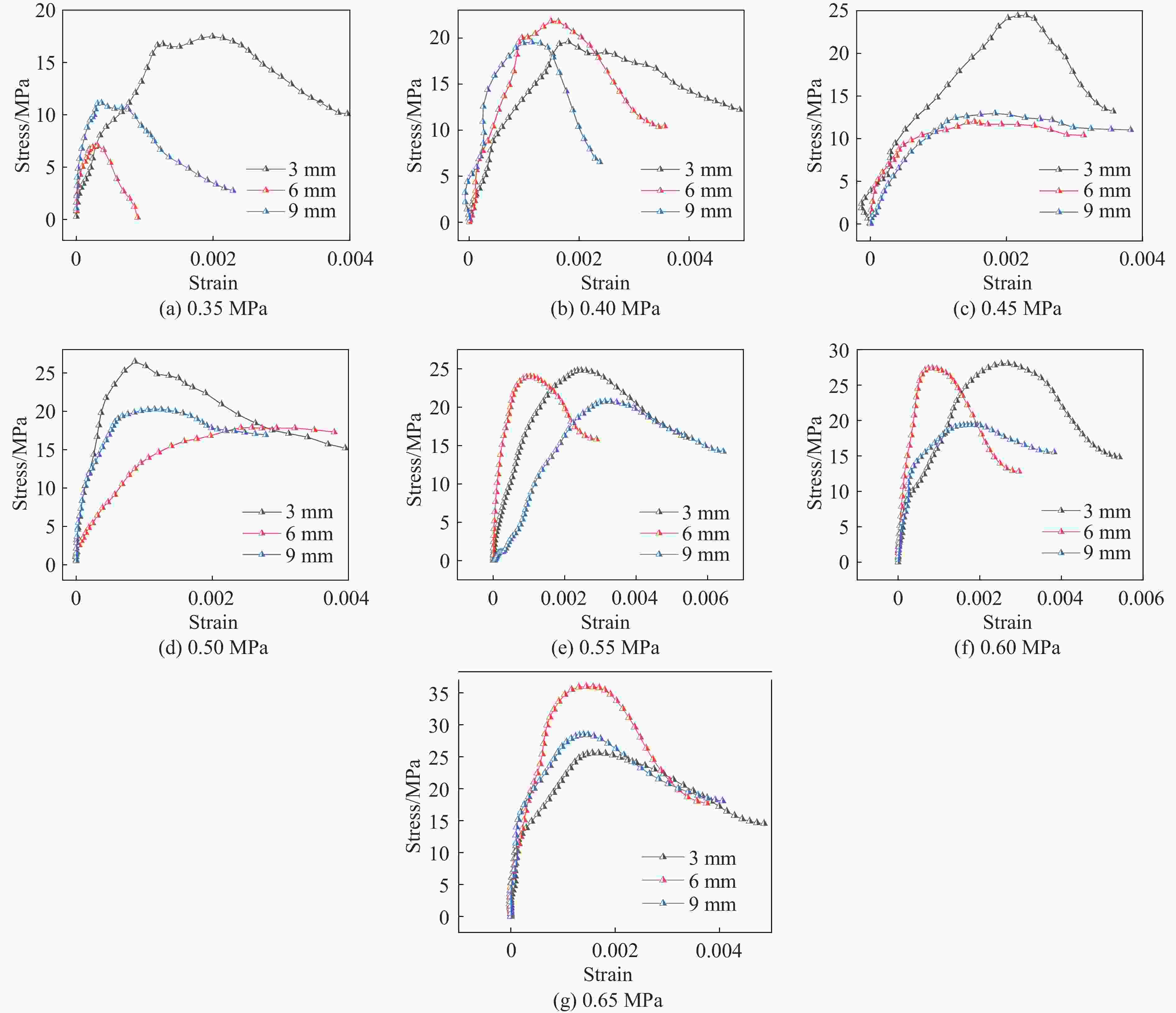

图 5 冲击荷载下凝灰质砂岩的动态应力-应变曲线
Figure 5. Stress-strain curves of tuffaceous sandstone under impact loading

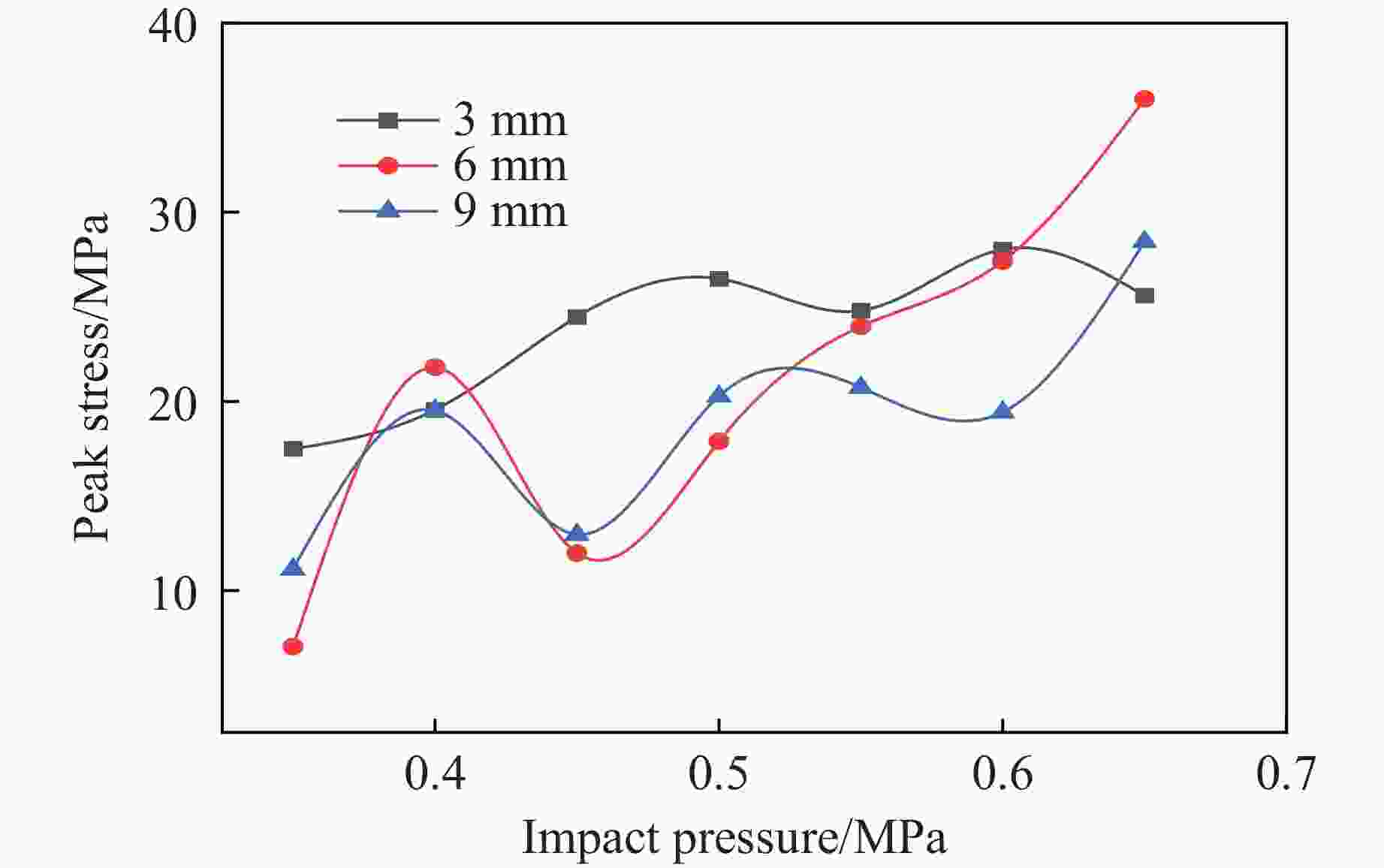

图 6 不同冲击气压下凝灰质砂岩的动态峰值应力
Figure 6. Dynamic peak stress of tuffaceous sandstone under different impact pressures

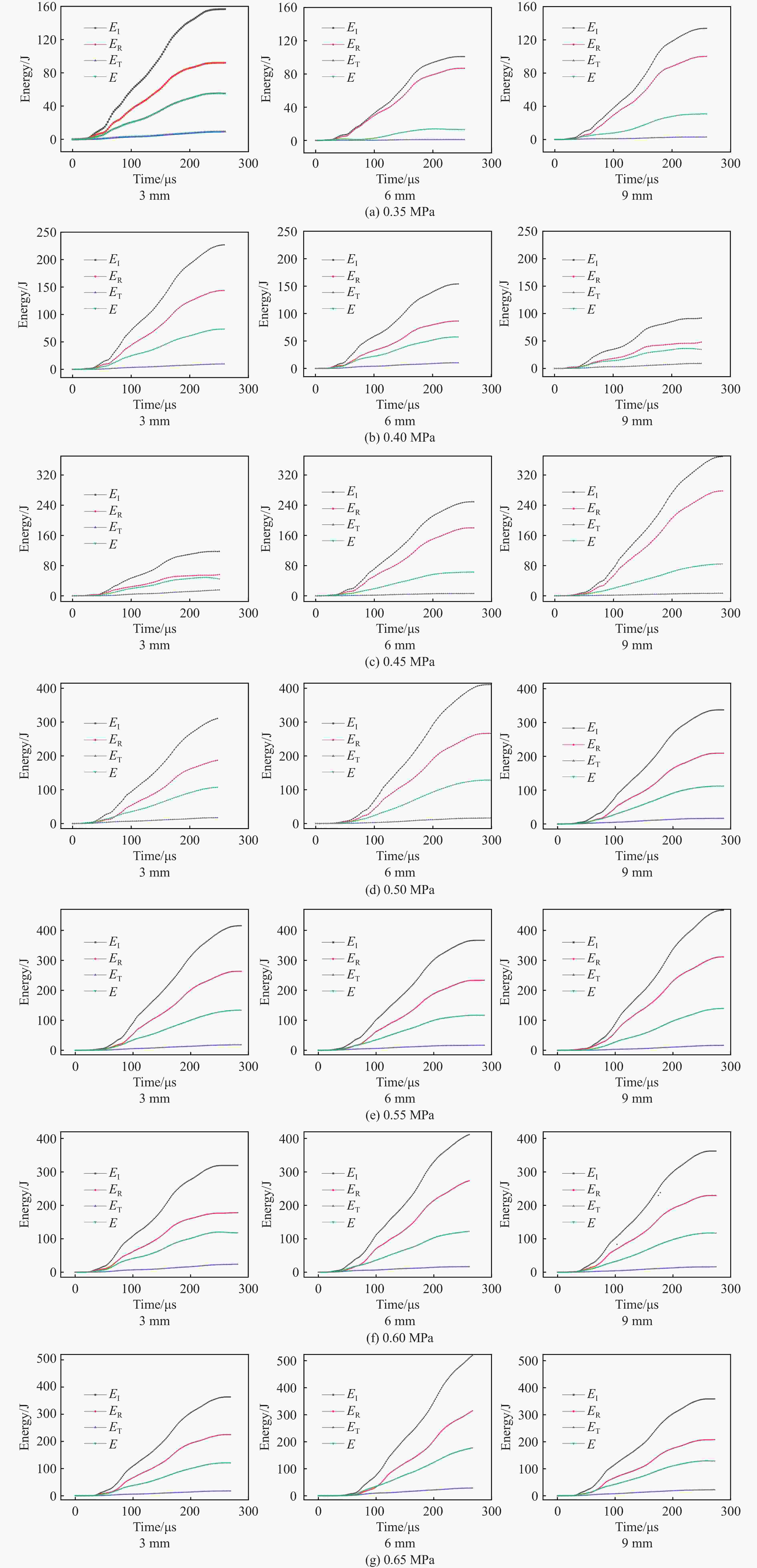

图 7 冲击荷载下凝灰质砂岩能量演化曲线
Figure 7. Energy evolution curves of tuffaceous sandstone under impact loading

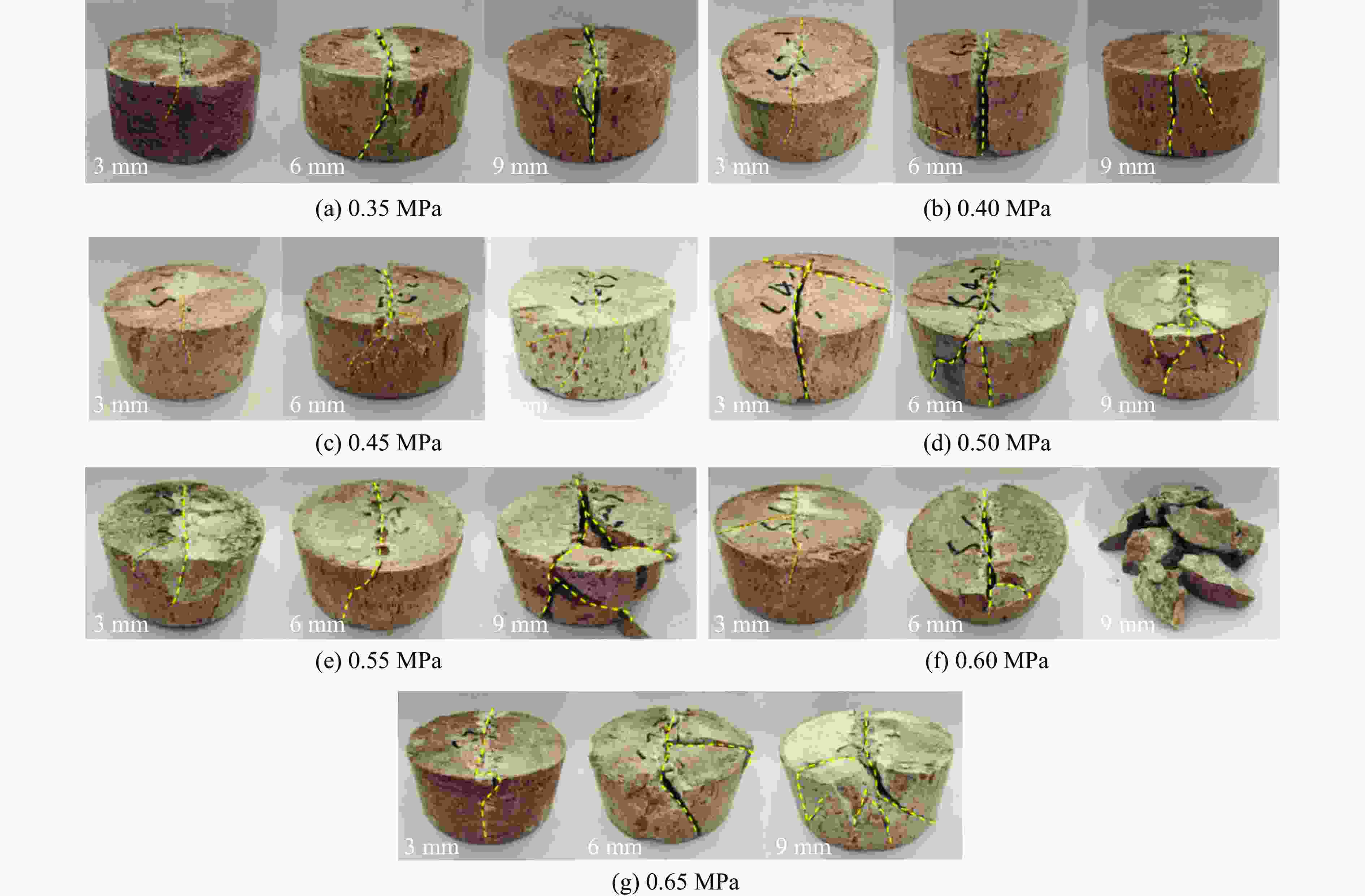

图 8 冲击荷载下凝灰质砂岩的破坏特征
Figure 8. Failure characteristics of tuffaceous sandstone under impact loading

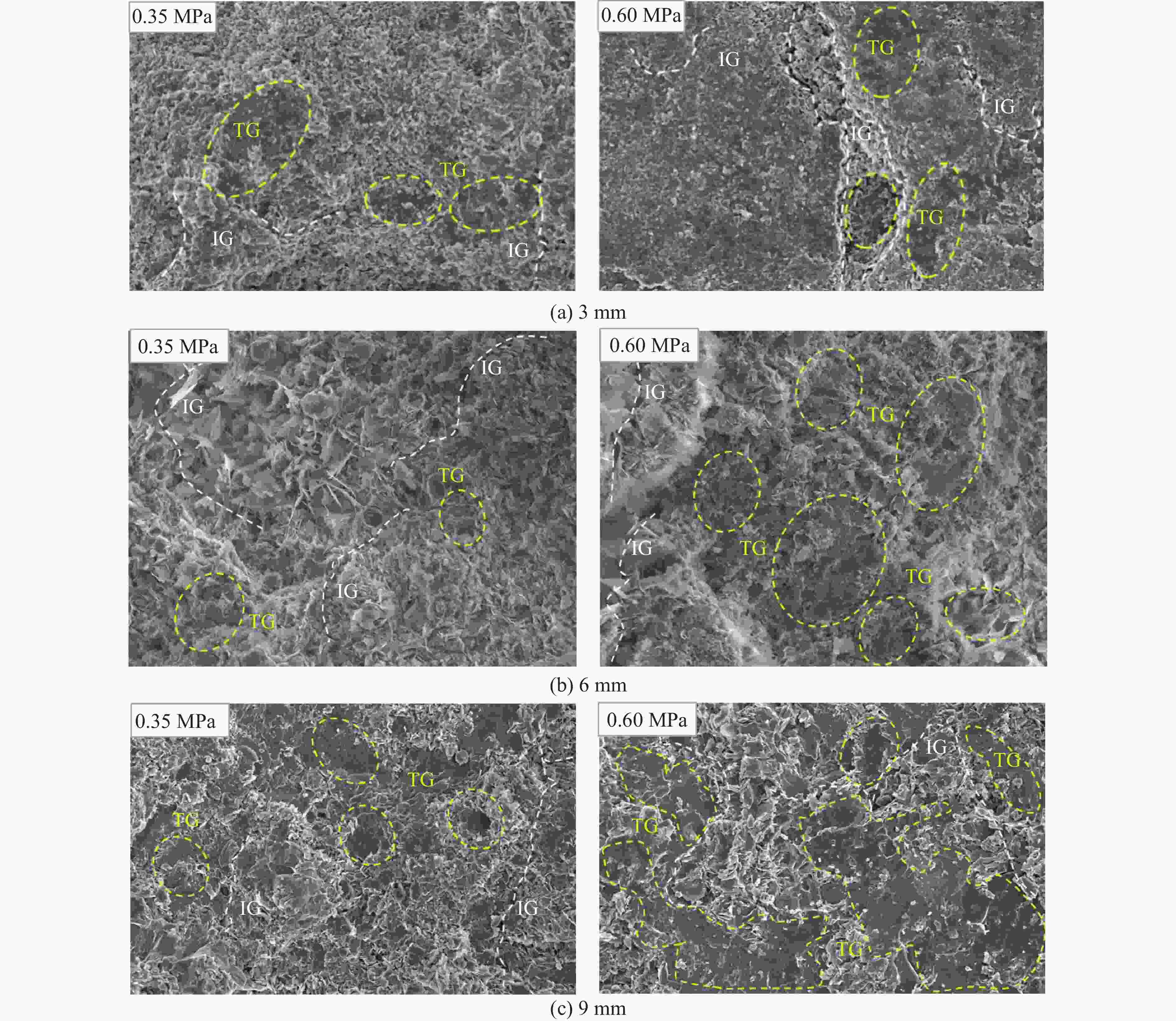

图 9 不同直径聚能钉在0.35和0.60 MPa冲击下岩石试样的SEM图像
Figure 9. SEM images of rock specimens under impact of 0.35 and 0.60 MPa using different diameter energy-gathering nails
表 1 3种聚能钉直径对应的钉间距参数
Table 1. Nail spacing parameters corresponding to the diameters of three types of energy gathering nails
Nail diameter/mm Outermost clear edge
distance/mmAdjacent center-to-center
distance/mmAdjacent clear edge
spacing/mm3 10 15.4 12.4 6 10 14.8 8.8 9 10 14.2 5.2
下载: 导出CSV
-
[1] 闫军. 倾斜节理发育条件下凝灰岩地层隧道拱顶聚能控制爆破施工技术研究 [D]. 长沙: 中南大学, 2012.YAN J. Research on over-or-under excavation control of tunnels in tuff layer with developed cutters [D]. Changsha: Central South University, 2012. [2] 郭建, 李兵, 刘桂勇, 等. 钻爆法施工隧道超欠挖控制研究 [J]. 工程爆破, 2021, 27(1): 79–84. doi: 10.19931/j.EB.20210026GUO J, LI B, LIU G Y, et al. Study on control of backbreak and underbreak in tunnel excavation by drilling-and-blasting [J]. Engineering Blasting, 2021, 27(1): 79–84. doi: 10.19931/j.EB.20210026 [3] YANG J H, JIANG Q H, ZHANG Q B, et al. Dynamic stress adjustment and rock damage during blasting excavation in a deep-buried circular tunnel [J]. Tunnelling and Underground Space Technology, 2018, 71: 591–604. doi: 10.1016/j.tust.2017.10.010 [4] GUAN X M, YANG N, ZHANG W J, et al. Vibration response and failure modes analysis of the temporary support structure under blasting excavation of tunnels [J]. Engineering Failure Analysis, 2022, 136: 106188. doi: 10.1016/j.engfailanal.2022.106188 [5] 刘增辉, 孔春艳, 吕瑞, 等. 锯片-冲击锤组合刀头联合破岩特性研究 [J]. 振动与冲击, 2024, 43(24): 301–311. doi: 10.13465/j.cnki.jvs.2024.24.033LIU Z H, KONG C Y, LYU R, et al. Characteristics of rock breaking by a saw blade-impact hammer combination cutterhead [J]. Journal of Vibration and Shock, 2024, 43(24): 301–311. doi: 10.13465/j.cnki.jvs.2024.24.033 [6] LU Y Y, HUANG F, LIU X C, et al. On the failure pattern of sandstone impacted by high-velocity water jet [J]. International Journal of Impact Engineering, 2015, 76: 67–74. doi: 10.1016/j.ijimpeng.2014.09.008 [7] REN F S, FANG T C, CHENG X Z. Study on rock damage and failure depth under particle water-jet coupling impact [J]. International Journal of Impact Engineering, 2020, 139: 103504. doi: 10.1016/j.ijimpeng.2020.103504 [8] 张权, 何满潮, 郭山, 等. 煤基固废非爆炸性膨胀剂高效定向破岩机制及初步应用研究 [J]. 岩石力学与工程学报, 2025, 44(4): 898–911. doi: 10.3724/1000-6915.jrme.2024.0553ZHANG Q, HE M C, GUO S, et al. Study on the mechanism and preliminary application of efficient directional rock breaking using a coal-based solid waste non-explosive expansive agent [J]. Chinese Journal of Rock Mechanics and Engineering, 2025, 44(4): 898–911. doi: 10.3724/1000-6915.jrme.2024.0553 [9] ZHANG Q, HE M C, WANG J, et al. Non-explosive directional fracturing blasting using coal-based solid waste expanding agent [J]. Journal of Rock Mechanics and Geotechnical Engineering, 2025, 17(6): 3691–3710. doi: 10.1016/j.jrmge.2025.04.003 [10] 鞠明和, 陶泽军, 蔚立元, 等. 钢粒子迟滞重复冲击破岩硬岩损伤破裂特征研究 [J]. 岩土力学, 2024, 45(4): 1242–1255. doi: 10.16285/j.rsm.2023.0515JU M H, TAO Z J, WEI L Y, et al. Damage and fracture characteristics of hard rocks caused by hysterisis and repeated impacts of steel particles [J]. Rock and Soil Mechanics, 2024, 45(4): 1242–1255. doi: 10.16285/j.rsm.2023.0515 [11] 魏建平, 蔡玉波, 刘勇, 等. 非刀具破岩理论与技术研究进展与趋势 [J]. 煤炭学报, 2024, 49(2): 801–832. doi: 10.13225/j.cnki.jccs.ST23.1199WEI J P, CAI Y B, LIU Y, et al. Progress and trends in non-tool rock breaking theory and technology [J]. Journal of China Coal Society, 2024, 49(2): 801–832. doi: 10.13225/j.cnki.jccs.ST23.1199 [12] 孙南翔. 低阶煤热敏特性及其热力破碎机理研究 [D]. 北京: 中国矿业大学(北京), 2016.SUN N X. Thermal sensitive characteristics and mechanism of thermal fragmentation of low rank coal [D]. Beijing: China University of Mining and Technology (Beijing), 2016. [13] 程刚. 成孔液压涨裂破岩机理研究 [D]. 徐州: 中国矿业大学, 2018.CHENG G. Research on rock breaking mechanism of hydraulic fracturing breaking rock [D]. Xuzhou: China University of Mining and Technology, 2018. [14] 张琳, 胡少斌, 蔡余康, 等. 地应力对高温高压CO2热冲击破岩的影响研究 [J]. 地下空间与工程学报, 2024, 26(6): 1818–1829. doi: 10.20174/j.JUSE.2024.06.07ZHANG L, HU S B, CAI Y K, et al. Study on the effect of in-situ stress on rock breaking by high temperature and high pressure CO2 thermal shock [J]. Chinese Journal of Underground Space and Engineering, 2024, 26(6): 1818–1829. doi: 10.20174/j.JUSE.2024.06.07 [15] 董学成, 熊继有, 王国华, 等. 振荡冲击器破岩机理数值模拟分析 [J]. 西南石油大学学报(自然科学版), 2014, 36(6): 160–167. doi: 10.11885/j.issn.1674-5086.2014.08.15.01DONG X C, XIONG J Y, WANG G H, et al. Numerical simulation analysis of rock breaking mechanism for oscillation impacter [J]. Journal of Southwest Petroleum University (Science & Technology Edition), 2014, 36(6): 160–167. doi: 10.11885/j.issn.1674-5086.2014.08.15.01 [16] 李玮, 闫铁, 张志超, 等. 高频振动钻具冲击下岩石响应机理及破岩试验分析 [J]. 石油钻探技术, 2013, 41(6): 25–28. doi: 10.3969/j.issn.1001-0890.2013.06.005LI W, YAN T, ZHANG Z C, et al. Rock response mechanism and rock breaking test analysis for impact of high frequency vibration drilling tool [J]. Petroleum Drilling Techniques, 2013, 41(6): 25–28. doi: 10.3969/j.issn.1001-0890.2013.06.005 [17] 祝效华, 刘伟吉, 石昌帅, 等. 重载冲击破岩提速机理实验 [J]. 石油学报, 2024, 45(10): 1529–1537. doi: 10.7623/syxb202410007ZHU X H, LIU W J, SHI C S, et al. Experiment on the rock-breaking and speed-up mechanism under heavy-dutyimpac [J]. Acta Petrolei Sinica, 2024, 45(10): 1529–1537. doi: 10.7623/syxb202410007 [18] 胡思成, 管志川, 路保平, 等. 锥形齿旋冲及扭冲的破岩过程与破岩效率分析 [J]. 石油钻探技术, 2021, 49(3): 87–93. doi: 10.11911/syztjs.2021035HU S C, GUAN Z C, LU B P, et al. Rock breaking process and efficiency analysis of conical cutting teeth under rotary and torsional impact [J]. Petroleum Drilling Techniques, 2021, 49(3): 87–93. doi: 10.11911/syztjs.2021035 [19] LINDHOLM U S. Some experiments with the split Hopkinson pressure bar [J]. Journal of the Mechanics and Physics of Solids, 1964, 12(5): 317–335. doi: 10.1016/0022-5096(64)90028-6 [20] ZHOU Y X, XIA K, LI X B, et al. Suggested methods for determining the dynamic strength parameters and mode-Ⅰ fracture toughness of rock materials [J]. International Journal of Rock Mechanics and Mining Sciences, 2012, 49: 105–112. doi: 10.1016/j.ijrmms.2011.10.004 [21] 谢磊, 李庆华, 徐世烺. 冲击荷载下免蒸养活性粉末混凝土分形特征研究 [J]. 工程力学, 2021, 38(3): 169–180. doi: 10.6052/j.issn.1000-4750.2020.05.0298XIE L, LI Q H, XU S L. Experimental study on fractal characteristics of steam free reactive powder concrete under impact load [J]. Engineering Mechanics, 2021, 38(3): 169–180. doi: 10.6052/j.issn.1000-4750.2020.05.0298 [22] 李淼, 乔兰, 李庆文. 高应变率下预制单节理岩石SHPB劈裂试验能量耗散分析 [J]. 岩土工程学报, 2017, 39(7): 1336–1343. doi: 10.11779/CJGE201707021LI M, QIAO L, LI Q W. Energy dissipation of rock specimens under high strain rate with single joint in SHPB tensile tests [J]. Chinese Journal of Geotechnical Engineering, 2017, 39(7): 1336–1343. doi: 10.11779/CJGE201707021 [23] HONG L, ZHOU Z L, YIN T B, et al. Energy consumption in rock fragmentation at intermediate strain rate [J]. Journal of Central South University of Technology, 2009, 16(4): 677–682. doi: 10.1007/s11771-009-0112-5 [24] CHEN C F, XU T, LI S H. Microcrack evolution and associated deformation and strength properties of sandstone samples subjected to various strain rates [J]. Minerals, 2018, 8(6): 231. doi: 10.3390/min8060231 [25] ABOAYANAH K R, ABDELAZIZ A, HAILE B F, et al. Evaluation of damage stress thresholds and mechanical properties of granite: new insights from digital image correlation and GB-FDEM [J]. Rock Mechanics and Rock Engineering, 2024, 57(7): 4679–4706. doi: 10.1007/s00603-024-03789-7 -
