高压下卤素化合物的反常物性

刘妍; 李达; 崔田

doi:10.11858/gywlxb.20220672

高压下卤素化合物的反常物性

doi: 10.11858/gywlxb.20220672

刘妍^1,,
李达^1,*, ,,
崔田^{1, 2,*, ,}

1.
吉林大学物理学院超硬材料国家重点实验室, 吉林长春　130012
2.
宁波大学物理科学与技术学院, 浙江宁波　315211

详细信息

作者简介:
刘　妍（1996－），女，博士研究生，主要从事高压下新型材料的结构设计与性质研究.E-mail：liu_yan20@mails.jlu.edu.cn

通讯作者:
李　达（1983－），男，博士，教授，主要从事高压下凝聚态物质结构与性质研究.E-mail：dali@jlu.edu.cn

崔　田（1964－），男，博士，教授，主要从事高压下凝聚态物质结构与性质研究.E-mail：cuitian@nbu.edu.cn

中图分类号: O521.2
计量
- 文章访问数: 1277
- HTML全文浏览量: 135
- PDF下载量: 74
出版历程
- 收稿日期: 2022-10-08
- 修回日期: 2022-11-01
- 网络出版日期: 2022-11-30
- 刊出日期: 2022-12-05

Abnormal Properties of Halogen Compounds under High Pressure

LIU Yan^1
,,
LI Da^{1,*
, ,},
CUI Tian^{1, 2,*
, ,}

1.
State Key Laboratory of Superhard Materials, College of Physics, Jilin University, Changchun 130012, Jilin, China
2.
School of Physical Science and Technology, Ningbo University, Ningbo 315211, Zhejiang, China

摘要

摘要: 凝聚态物质的基本性质强烈依赖其微观构型及电子结构，而高压可以有效地减小原子间距离，引起物质电子构型的重新排布并改变键合模式，从而使物质以有违传统的物理、化学状态存在，形成常压下无法获得的新结构、新现象和新性质。以第七主族卤素为例，简要介绍卤素化合物在高压下所呈现的反常物理性质。相关研究表明：在高压下卤素化合物呈现出异于常压的价态、配位以及成键方式。这些研究不仅提升了对卤素的基本认识，同时也拓宽了高压物理研究的新视野。
- 高压 /
- 卤素化合物 /
- 超配位 /
- 晶体结构
Abstract: The fundamental properties of condensed matter strongly depend on its microscopic configuration and electronic structure. High pressure can effectively reduce the distance between atoms, result in the rearrangement of electronic configuration and change the bonding mode, so that enabling the matter to exist in unconventional physical and chemical state, forming new structures, new phenomena and new properties that cannot be obtained under ambient pressure. In this paper, taking the main-group halogens as example, the abnormal physical properties of halogen compounds under high pressure are briefly introduced. Related studies have shown that the valence states, coordination, and bonding modes of halogen compounds under high pressure are different from those under ambient pressure. These studies not only enhance the basic understanding of halogen, but also broaden the view of high-pressure physics.
- high pressure /
- halogen compounds /
- hypercoordinate /
- crystal structure

HTML全文

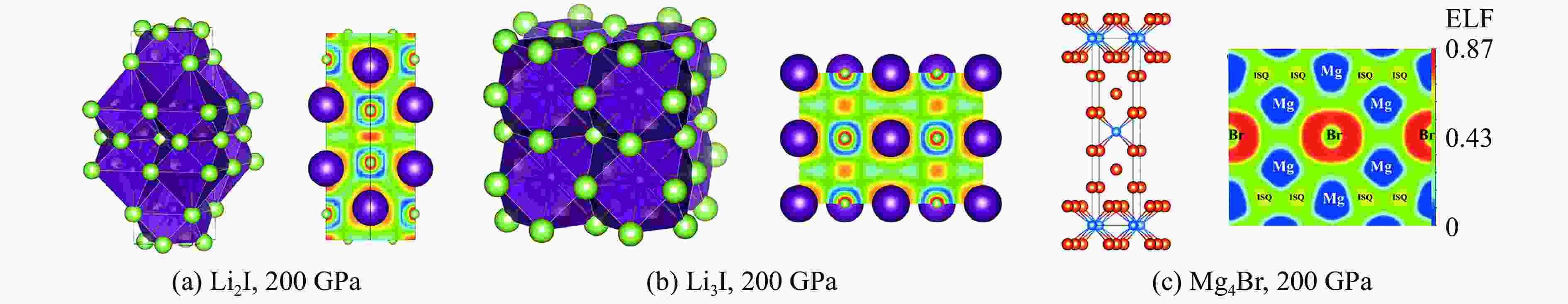

图 1 高压下Li-I^[34]和Mg-Br^[35]化合物的晶体结构和电子局域函数

Figure 1. Crystal structure and electron localized function (ELF) of Li-I^[34] and Mg-Br^[35] compounds under high pressure

下载: 全尺寸图片幻灯片

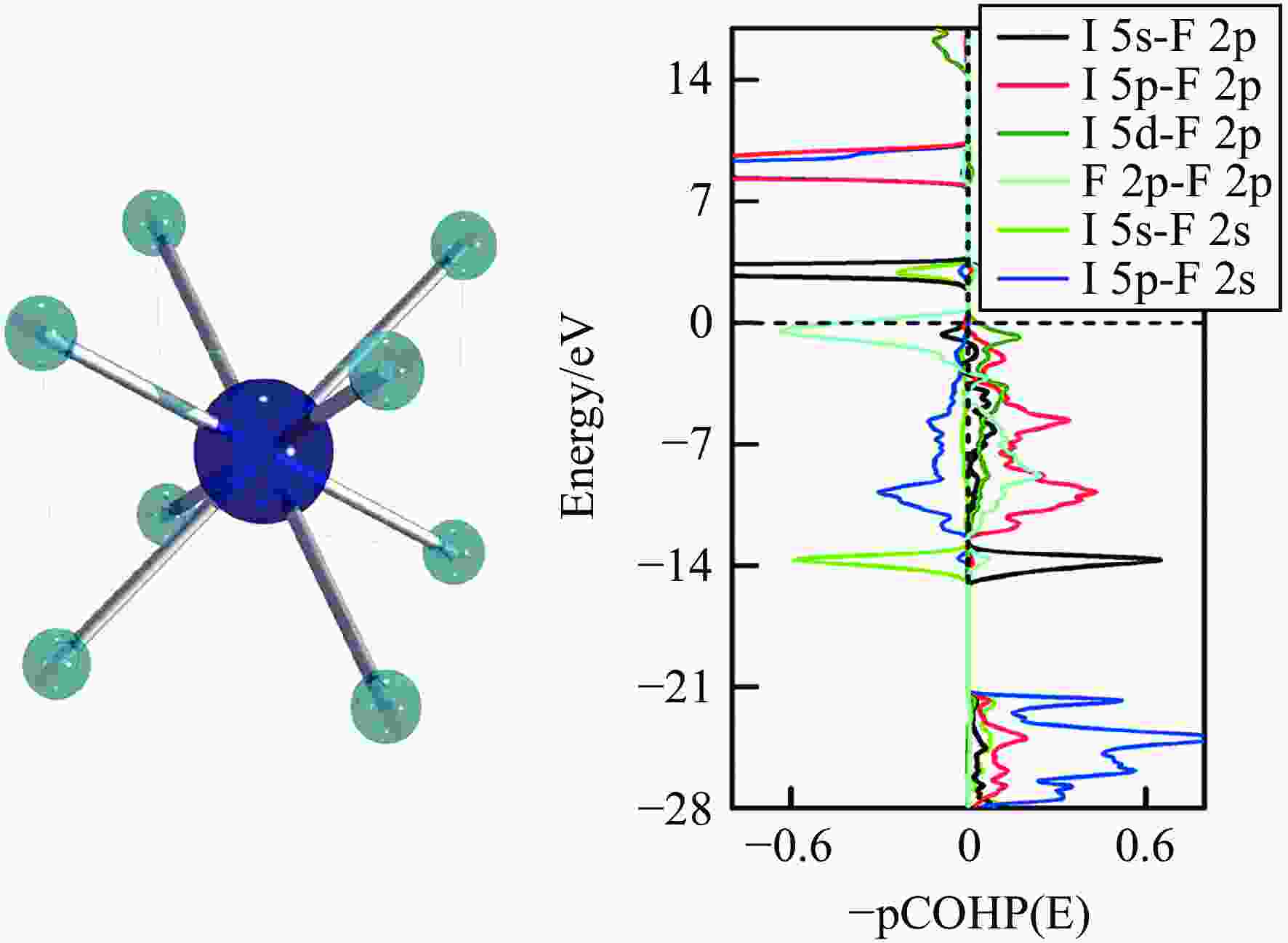

图 2 IF₈在300 GPa下的晶体结构和投影晶体轨道哈密顿布局分析^[49]

Figure 2. Crystal structure and projected crystal orbital Hamilton population (COHP) of IF₈ at 300 GPa^[49]

下载: 全尺寸图片幻灯片

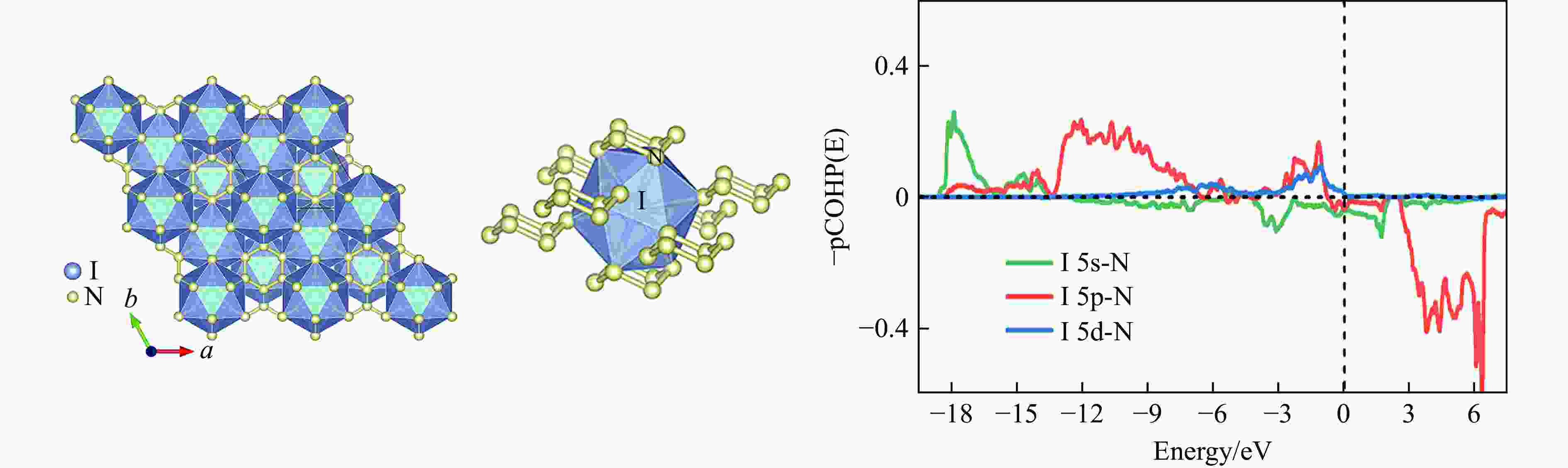

图 3 IN₆在100 GPa下的晶体结构和投影晶体轨道哈密顿布局分析^[56]

Figure 3. Crystal structure and projected crystal orbital Hamilton population of IN₆ at 100 GPa^[56]

下载: 全尺寸图片幻灯片

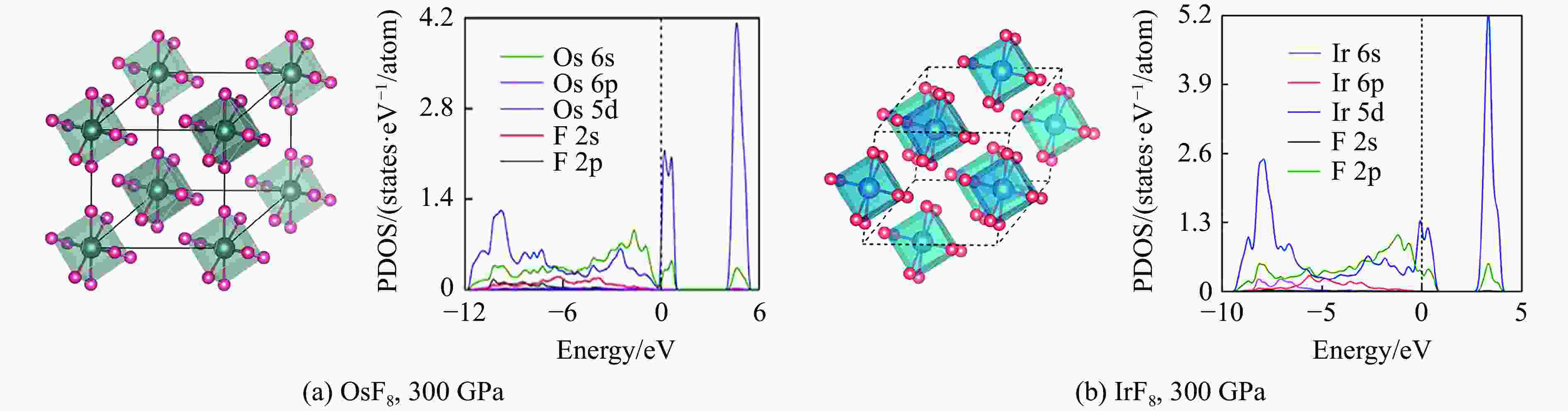

图 4 OsF₈^[64]和IrF₈^[65]在300 GPa下的晶体结构和投影态密度

Figure 4. Crystal structure and projected density of states (PDOS) of OsF₈^[64] and IrF₈^[65] at 300 GPa

下载: 全尺寸图片幻灯片

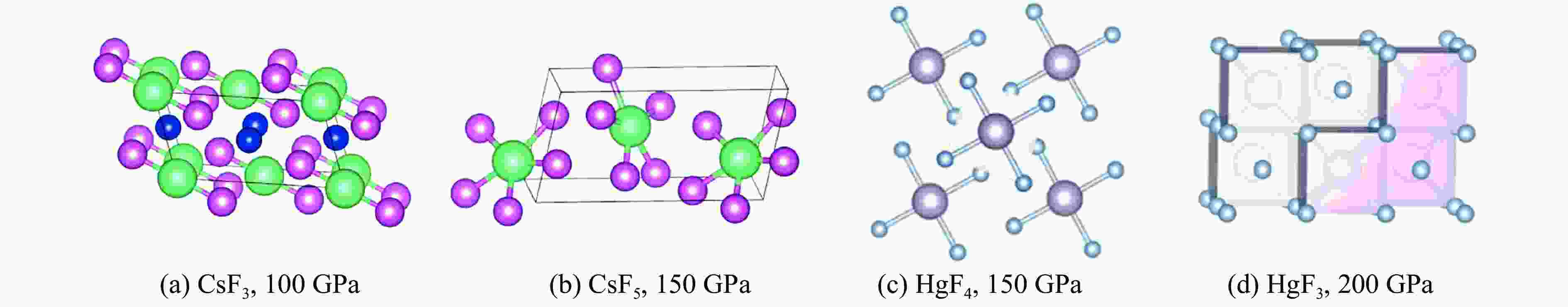

图 5 高压下Cs-F^[67]和Hg-F^[71]化合物的晶体结构

Figure 5. Crystal structure of Cs-F^[67] and Hg-F^[71] compounds under high pressure

下载: 全尺寸图片幻灯片

参考文献(72)

[1]	LANDAU L D, LIFSHITZ E M. Quantum mechanics: non-relativistic theory [M]. 3rd ed. London: Butterworth-Heinemann, 2003.
[2]	PAULING L. The nature of the chemical bond and the structure of molecules and crystals [M]. 2nd ed. Ithaca: Cornell University Press, 1960.
[3]	MURREL J N, KETTLE S F A, TEDDER J M. The chemical bond [M]. New York: John Willey & Sons, 1985.
[4]	ZHANG L J, WANG Y C, LV J, et al. Materials discovery at high pressures [J]. Nature Reviews Materials, 2017, 2(4): 17005. doi: 10.1038/natrevmats.2017.5
[5]	MIAO M S, SUN Y H, ZUREK E, et al. Chemistry under high pressure [J]. Nature Reviews Chemistry, 2020, 4(10): 508–527. doi: 10.1038/s41570-020-0213-0
[6]	DONG X, OGANOV A R, GONCHAROV A F, et al. A stable compound of helium and sodium at high pressure [J]. Nature Chemistry, 2017, 9(5): 440–445. doi: 10.1038/nchem.2716
[7]	ZHU L, LIU H Y, PICKARD C J, et al. Reactions of xenon with iron and nickel are predicted in the Earth’s inner core [J]. Nature Chemistry, 2014, 6(7): 644–648. doi: 10.1038/nchem.1925
[8]	MA Y M, EREMETS M, OGANOV A R, et al. Transparent dense sodium [J]. Nature, 2009, 458(7235): 182–185. doi: 10.1038/nature07786
[9]	MIAO M S, WANG X L, BRGOCH J, et al. Anionic chemistry of noble gases: formation of Mg-NG (NG = Xe, Kr, Ar) compounds under pressure [J]. Journal of the American Chemical Society, 2015, 137(44): 14122–14128. doi: 10.1021/jacs.5b08162
[10]	DUAN D F, LIU Y X, TIAN F B, et al. Pressure-induced metallization of dense (H₂S)₂H₂ with high-T_c superconductivity [J]. Scientific Reports, 2014, 4: 6968. doi: 10.1038/srep06968
[11]	DROZDOV A P, EREMETS M I, TROYAN I A, et al. Conventional superconductivity at 203 kelvin at high pressures in the sulfur hydride system [J]. Nature, 2015, 525(7567): 73–76. doi: 10.1038/nature14964
[12]	GREENWOOD N N, EARNSHAW A. Chemistry of the elements [M]. 2nd ed. Oxford: Butterworth-Heinemann, 1997.
[13]	SHEN Y Q, OGANOV A R, QIAN G R, et al. Novel lithium-nitrogen compounds at ambient and high pressures [J]. Scientific Reports, 2015, 5: 14204. doi: 10.1038/srep14204
[14]	DROZDOV A P, KONG P P, MINKOV V S, et al. Superconductivity at 250 K in lanthanum hydride under high pressures [J]. Nature, 2019, 569(7757): 528–531. doi: 10.1038/s41586-019-1201-8
[15]	PENG F, SUN Y, PICKARD C J, et al. Hydrogen clathrate structures in rare earth hydrides at high pressures: possible route to room-temperature superconductivity [J]. Physical Review Letters, 2017, 119(10): 107001. doi: 10.1103/PhysRevLett.119.107001
[16]	HORVATH-BORDON E, RIEDEL R, ZERR A, et al. High-pressure chemistry of nitride-based materials [J]. Chemical Society Reviews, 2006, 35(10): 987–1014. doi: 10.1039/b517778m
[17]	SAN-MIGUEL A, LIBOTTE H, GAUTHIER M, et al. New phase transition of solid bromine under high pressure [J]. Physical Review Letters, 2007, 99(1): 015501. doi: 10.1103/PhysRevLett.99.015501
[18]	KUME T, HIRAOKA T, OHYA Y, et al. High pressure Raman study of bromine and iodine: soft phonon in the incommensurate phase [J]. Physical Review Letters, 2005, 94(6): 065506. doi: 10.1103/PhysRevLett.94.065506
[19]	DUAN D F, JIN X L, MA Y M, et al. Effect of nonhydrostatic pressure on superconductivity of monatomic iodine: an ab initio study [J]. Physical Review B, 2009, 79(6): 064518. doi: 10.1103/PhysRevB.79.064518
[20]	ZHANG W W, OGANOV A R, GONCHAROV A F, et al. Unexpected stable stoichiometries of sodium chlorides [J]. Science, 2013, 342(6165): 1502–1505. doi: 10.1126/science.1244989
[21]	ZHANG W W, OGANOV A R, ZHU Q, et al. Stability of numerous novel potassium chlorides at high pressure [J]. Scientific Reports, 2016, 6: 26265. doi: 10.1038/srep26265
[22]	PORȨBA T, RACIOPPI S, GARBARINO G, et al. Investigating the structural symmetrization of CsI₃ at high pressures through combined X-ray diffraction experiments and theoretical analysis [J]. Inorganic Chemistry, 2022, 61(28): 10977–10985. doi: 10.1021/acs.inorgchem.2c01690
[23]	HOLZAPFEL W B. Physics of solids under strong compression [J]. Reports on Progress in Physics, 1996, 59(1): 29–90. doi: 10.1088/0034-4885/59/1/002
[24]	WENTORF JR R H. Cubic form of boron nitride [J]. Journal of Chemical Physics, 1957, 26(4): 956. doi: 10.1063/1.1745964
[25]	TOMASINO D, KIM M, SMITH J, et al. Pressure-induced symmetry-lowering transition in dense nitrogen to layered polymeric nitrogen (LP-N) with colossal raman intensity [J]. Physical Review Letters, 2014, 113(20): 205502. doi: 10.1103/PhysRevLett.113.205502
[26]	EREMETS M I, GAVRILIUK A G, TROJAN I A, et al. Single-bonded cubic form of nitrogen [J]. Nature Materials, 2004, 3(8): 558–563. doi: 10.1038/nmat1146
[27]	MIAO M S, HOFFMANN R. High pressure electrides: a predictive chemical and physical theory [J]. Accounts of Chemical Research, 2014, 47(4): 1311–1317. doi: 10.1021/ar4002922
[28]	BUZEA C, ROBBIE K. Assembling the puzzle of superconducting elements: a review [J]. Superconductor Science and Technology, 2005, 18(1): R1–R8. doi: 10.1088/0953-2048/18/1/R01
[29]	DUBROVINSKY L, DUBROVINSKAIA N, BYKOVA E, et al. The most incompressible metal osmium at static pressures above 750 gigapascals [J]. Nature, 2015, 525(7568): 226–229. doi: 10.1038/nature14681
[30]	DUBROVINSKAIA N, DUBROVINSKY L, SOLOPOVA N A, et al. Terapascal static pressure generation with ultrahigh yield strength nanodiamond [J]. Science Advances, 2016, 2(7): e1600341. doi: 10.1126/sciadv.1600341
[31]	ZHAI S M, ITO E. Recent advances of high-pressure generation in a multianvil apparatus using sintered diamond anvils [J]. Geoscience Frontiers, 2011, 2(1): 101–106. doi: 10.1016/j.gsf.2010.09.005
[32]	MUJICA A, RUBIO A, MUÑOZ A, et al. High-pressure phases of group-Ⅳ, Ⅲ-Ⅴ, and Ⅱ-Ⅵ compounds [J]. Reviews of Modern Physics, 2003, 75(3): 863–912. doi: 10.1103/RevModPhys.75.863
[33]	WANG Y C, MA Y M. Perspective: crystal structure prediction at high pressures [J]. Journal of Chemical Physics, 2014, 140(4): 040901. doi: 10.1063/1.4861966
[34]	BOTANA J, BRGOCH J, HOU C J, et al. Iodine anions beyond −1: formation of Li_nI (n = 2–5) and its interaction with quasiatoms [J]. Inorganic Chemistry, 2016, 55(18): 9377–9382. doi: 10.1021/acs.inorgchem.6b01561
[35]	WANG C, LIU Y X, CHEN X, et al. Pressure-induced unexpected −2 oxidation states of bromine and superconductivity in magnesium bromide [J]. Physical Chemistry Chemical Physics, 2020, 22(5): 3066–3072. doi: 10.1039/C9CP05627K
[36]	YANG L M, GANZ E, CHEN Z F, et al. Four decades of the chemistry of planar hypercoordinate compounds [J]. Angewandte Chemie International Edition, 2015, 54(33): 9468–9501. doi: 10.1002/anie.201410407
[37]	ZHANG H J, LI Y F, HOU J H, et al. FeB₆ monolayers: the graphene-like material with hypercoordinate transition metal [J]. Journal of the American Chemical Society, 2016, 138(17): 5644–5651. doi: 10.1021/jacs.6b01769
[38]	LIPKE M C, TILLEY T D. Hypercoordinate ketone adducts of electrophilic η³-H₂SiRR’ ligands on ruthenium as key intermediates for efficient and robust catalytic hydrosilation [J]. Journal of the American Chemical Society, 2014, 136(46): 16387–16398. doi: 10.1021/ja509073c
[39]	WANG Z X, VON RAGUÉ SCHLEYER P. Planar hypercoordinate carbons joined: wheel-shaped molecules with C-C axles [J]. Angewandte Chemie International Edition, 2002, 41(21): 4082–4085. doi: 10.1002/1521-3773(20021104)41:21<4082::AID-ANIE4082>3.0.CO;2-Q
[40]	KHAN A, FOUCHER D. Hypercoordinate compounds of the group 14 elements containing κⁿ-C, N-, C, O-, C, S- and C, P-ligands [J]. Coordination Chemistry Reviews, 2016, 312: 41–66. doi: 10.1016/j.ccr.2015.10.009
[41]	WILLEMSENS L C, VAN DER KERK G J M. Investigations on organolead compounds: Ⅰ. a novel red organolead compound a reinvestigation of krause’s red diphenyllead [J]. Journal of Organometallic Chemistry, 1964, 2(3): 271–276. doi: 10.1016/S0022-328X(00)80522-7
[42]	MUSHER J I. The chemistry of hypervalent molecules [J]. Angewandte Chemie International Edition, 1969, 8(1): 54–68. doi: 10.1002/anie.196900541
[43]	SCHLEYER P. Hypervalent compounds [J]. Chemical & Engineering News, 1984, 62(22): 4.
[44]	RAHM M, HOFFMANN R, ASHCROFT N W. Atomic and ionic radii of elements 1–96 [J]. Chemistry: A European Journal, 2016, 22(41): 14625–14632. doi: 10.1002/chem.201602949
[45]	CHRISTE K O, CURTIS E C, DIXON D A. On the problem of heptacoordination: vibrational spectra, structure, and fluxionality of iodine heptafluoride [J]. Journal of the American Chemical Society, 1993, 115(4): 1520–1526. doi: 10.1021/ja00057a044
[46]	CHRISTE K O, DIXON D A, SANDERS J C P, et al. Heptacoordination: pentagonal bipyramidal ${\rm XeF_7^+ }$ and ${\rm TeF_7^- }$ ions [J]. Journal of the American Chemical Society, 1993, 115(21): 9461–9467. doi: 10.1021/ja00074a011
[47]	CHRISTE K O, SANDERS J C P, SCHROBILGEN G J, et al. High-coordination number fluoro- and oxofluoro-anions; IF₆O^–, ${\rm TeF_6O_2^- }$ , ${\rm TeF_7^- }$ , ${\rm IF_8^-} $ and ${\rm TeF_8^{2-}} $ [J]. Journal of the Chemical Society, Chemical Communications, 1991(13): 837–840. doi: 10.1039/C39910000837
[48]	RIEDEL S, KAUPP M. The highest oxidation states of the transition metal elements [J]. Coordination Chemistry Reviews, 2009, 253(5/6): 606–624. doi: 10.1016/j.ccr.2008.07.014
[49]	LUO D B, LV J, PENG F, et al. A hypervalent and cubically coordinated molecular phase of IF₈ predicted at high pressure [J]. Chemical Science, 2019, 10(8): 2543–2550. doi: 10.1039/C8SC04635B
[50]	TANG S, WU Y, LIAO W Q, et al. Revealing the metal-like behavior of iodine: an iodide-catalysed radical oxidative alkenylation [J]. Chemical Communications, 2014, 50(34): 4496–4499. doi: 10.1039/C4CC00644E
[51]	LIANG H, CIUFOLINI M A. Chiral hypervalent iodine reagents in asymmetric reactions [J]. Angewandte Chemie International Edition, 2011, 50(50): 11849–11851. doi: 10.1002/anie.201106127
[52]	SREENITHYA A, PATEL C, HADAD C M, et al. Hypercoordinate iodine catalysts in enantioselective transformation: the role of catalyst folding in stereoselectivity [J]. ACS Catalysis, 2017, 7(6): 4189–4196. doi: 10.1021/acscatal.7b00975
[53]	BRILL T B. d orbitals in main group elements [J]. Journal of Chemical Education, 1973, 50(6): 392. doi: 10.1021/ed050p392
[54]	CONNERADE J P, DOLMATOV V K, LAKSHMI P A. The filling of shells in compressed atoms [J]. Journal of Physics B: Atomic, Molecular and Optical Physics, 2000, 33(2): 251–264. doi: 10.1088/0953-4075/33/2/310
[55]	ALLRED A L. Electronegativity values from thermochemical data [J]. Journal of Inorganic and Nuclear Chemistry, 1961, 17(3/4): 215–221. doi: 10.1016/0022-1902(61)80142-5
[56]	LIU Y, WANG R, WANG Z G, et al. Formation of twelve-fold iodine coordination at high pressure [J]. Nature Communications, 2022, 13(1): 412. doi: 10.1038/s41467-022-28083-4
[57]	VOGT T, FITCH A N, COCKCROFT J K. Crystal and molecular structures of rhenium heptafluoride [J]. Science, 1994, 263(5151): 1265–1267. doi: 10.1126/science.263.5151.1265
[58]	SEPPELT K. Molecular hexafluorides [J]. Chemical Reviews, 2015, 115(2): 1296–1306. doi: 10.1021/cr5001783
[59]	MOLSKI M J, SEPPELT K. The transition metal hexafluorides [J]. Dalton Transactions, 2009(18): 3379–3383. doi: 10.1039/b821121c
[60]	DREWS T, SUPEŁ J, HAGENBACH A, et al. Solid state molecular structures of transition metal hexafluorides [J]. Inorganic Chemistry, 2006, 45(9): 3782–3788. doi: 10.1021/ic052029f
[61]	CHRISTE K O. Bartlett’s discovery of noble gas fluorides, a milestone in chemical history [J]. Chemical Communications, 2013, 49(41): 4588–4590. doi: 10.1039/c3cc41387j
[62]	BARTLETT N. Xenon hexafluoroplatinate (V) Xe⁺[PtF₆]^– [J]. Proceedings of the Chemical Society, 1962, 112(6): 218.
[63]	RIEDEL S, KAUPP M. Where is the limit of highly fluorinated high-oxidation-state osmium species? [J]. Inorganic Chemistry, 2006, 45(26): 10497–10502. doi: 10.1021/ic061054y
[64]	LIN J Y, DU X, RAHM M, et al. Exploring the limits of transition-metal fluorination at high pressures [J]. Angewandte Chemie International Edition, 2020, 59(23): 9155–9162. doi: 10.1002/anie.202002339
[65]	LIN J Y, ZHAO Z Y, LIU C Y, et al. IrF₈ molecular crystal under high pressure [J]. Journal of the American Chemical Society, 2019, 141(13): 5409–5414. doi: 10.1021/jacs.9b00069
[66]	MIAO M S, BOTANA J, PRAVICA M, et al. Inner-shell chemistry under high pressure [J]. Japanese Journal of Applied Physics, 2017, 56(5S3): 05FA10. doi: 10.7567/JJAP.56.05FA10
[67]	MIAO M S. Caesium in high oxidation states and as a p-block element [J]. Nature Chemistry, 2013, 5(10): 846–852. doi: 10.1038/nchem.1754
[68]	AGRON P A, BEGUN G M, LEVY H A, et al. Xenon difluoride and the nature of the xenon-fluorine bond [J]. Science, 1963, 139(3557): 842–844. doi: 10.1126/science.139.3557.842
[69]	CHRISTE K O, CURTIS E C, DIXON D A, et al. The pentafluoroxenate (Ⅳ) anion, ${\rm XeF_5^-} $ : the first example of a pentagonal planar AX₅ species [J]. Journal of the American Chemical Society, 1991, 113(9): 3351–3361. doi: 10.1021/ja00009a021
[70]	LUO D B, WANG Y C, YANG G C, et al. Barium in high oxidation states in pressure-stabilized barium fluorides [J]. The Journal of Physical Chemistry C, 2018, 122(23): 12448–12453. doi: 10.1021/acs.jpcc.8b03459
[71]	BOTANA J, WANG X L, HOU C J, et al. Mercury under pressure acts as a transition metal: calculated from first principles [J]. Angewandte Chemie International Edition, 2015, 54(32): 9280–9283. doi: 10.1002/anie.201503870
[72]	WANG X F, ANDREWS L, RIEDEL S, et al. Mercury is a transition metal: the first experimental evidence for HgF₄ [J]. Angewandte Chemie International Edition, 2007, 46(44): 8371–8375. doi: 10.1002/anie.200703710
