深部煤层水压爆破裂纹扩展规律

李真珍; 于建新; 杨小林; 褚怀保; 王金星; 刘焕春

doi:10.11858/gywlxb.20210912

深部煤层水压爆破裂纹扩展规律

doi: 10.11858/gywlxb.20210912

李真珍^1,,
于建新^{1, 2,*, ,},
杨小林¹,
褚怀保¹,
王金星¹,
刘焕春²

1.
河南理工大学土木工程学院, 河南焦作　454003
2.
河南理工大学安全科学与工程学院, 河南焦作　454003

基金项目: 国家自然科学基金（42107200）；河南省科技攻关计划（212102310598）；中国职业安全健康协会创新创业项目（CXCY-2021-23）

详细信息

作者简介:
李真珍（1996－），女，硕士，主要从事地下工程爆破及防灾减灾研究. E-mail：578425526@qq.com

通讯作者:
于建新（1986－），男，博士，副教授，主要从事地下工程爆破及防灾减灾研究.E-mail：jianxinyu@hpu.edu.cn

中图分类号: O347; TU43
计量
- 文章访问数: 1045
- HTML全文浏览量: 306
- PDF下载量: 39
出版历程
- 收稿日期: 2021-12-01
- 修回日期: 2021-12-21
- 刊出日期: 2022-05-30

Crack Propagation Regularity of Hydraulic Blasting in Deep Coal Seam

1.
School of Civil Engineering, Henan Polytechnic University, Jiaozuo 454003, Henan, China
2.
College of Safety Science and Engineering, Henan Polytechnic University, Jiaozuo 454003, Henan, China

摘要

摘要: 深部煤层的地应力高、瓦斯含量高、渗透系数低，严重威胁煤炭的高效安全生产，必须进行强化增透以提高瓦斯的抽采率。水压爆破具有传能效率高、安全性好的特点，可应用于深部煤层增透。为研究深部煤层水压爆破裂纹扩展规律，基于LS-DYNA数值模拟，分析了不同的地应力、不耦合系数、耦合介质等条件下煤层的致裂效果。结果表明：地应力对水压爆破产生的冲击荷载有削减作用，地应力增大致使煤层裂纹长度变短，裂隙区范围减小，地应力在1～20 MPa范围内时，随着地应力的增大，爆破应力波的衰减逐渐减弱；不耦合系数处于1.0～3.0区间时，随着不耦合系数的增大，破碎区范围减小，裂隙区范围先增大后减小，煤层水压爆破裂纹扩展范围先增大后减小，不耦合系数为2.0时，爆破致裂效果最佳；采用不同的耦合介质爆破时，水介质耦合下爆破煤层裂隙区范围大于空气介质，水介质条件下爆破产生的有效应力最大值是空气介质下的1.35倍，水介质更有利于煤层裂纹的扩展发育。研究成果对于深部煤层水压爆破致裂增透工程实践具有一定的指导作用。
- 煤层增透 /
- 水压爆破 /
- 地应力 /
- 不耦合系数
Abstract: Deep coal seam has high geostress, high gas content and low permeability coefficient, which seriously threaten the safety and efficiency of coal production, so it is necessary to strengthen the permeability enhancement and improve the gas extraction rate. Hydraulic blasting has the characteristics of high energy transfer efficiency and good safety, and can be better applied to the permeability enhancement of deep coal seam. In order to study the crack propagation regularity of hydraulic blasting in deep coal seam, LS-DYNA numerical method was used to analyze the effect of fracture of coal seam under different geostresses, uncoupling coefficient and coupling medium. The results show that the geostress can reduce the impact load caused by hydraulic blasting. With the increase of geostress, the crack length of coal seam becomes shorter and the range of crack zone decreases. When the geostress is within the range of 1−20 MPa, the attenuation trend of blasting stress wave weakens gradually with the increase of geostress. With the increase of the uncoupling coefficient, the range of crushing zone decreases, the range of fracture zone increases at first and then decreases. When the uncoupling coefficient is in the range of 1.0−3.0 and the uncoupling coefficient is 2.0, the blasting cracking effect is the best. When blasting in different coupling media, and the range of blasting fracture zone in water is larger than that in air. The maximum effective stress produced by blasting in water is 1.35 times higher than that in air, the water is more beneficial to the propagation and development of coal seam cracks. This research results have a certain guiding role for the engineering practice of crack propagation and permeability enhancement caused by hydraulic blasting in deep coal seam.
- coal seam permeability enhancement /
- hydraulic blasting /
- geostress /
- uncoupling coefficient

HTML全文

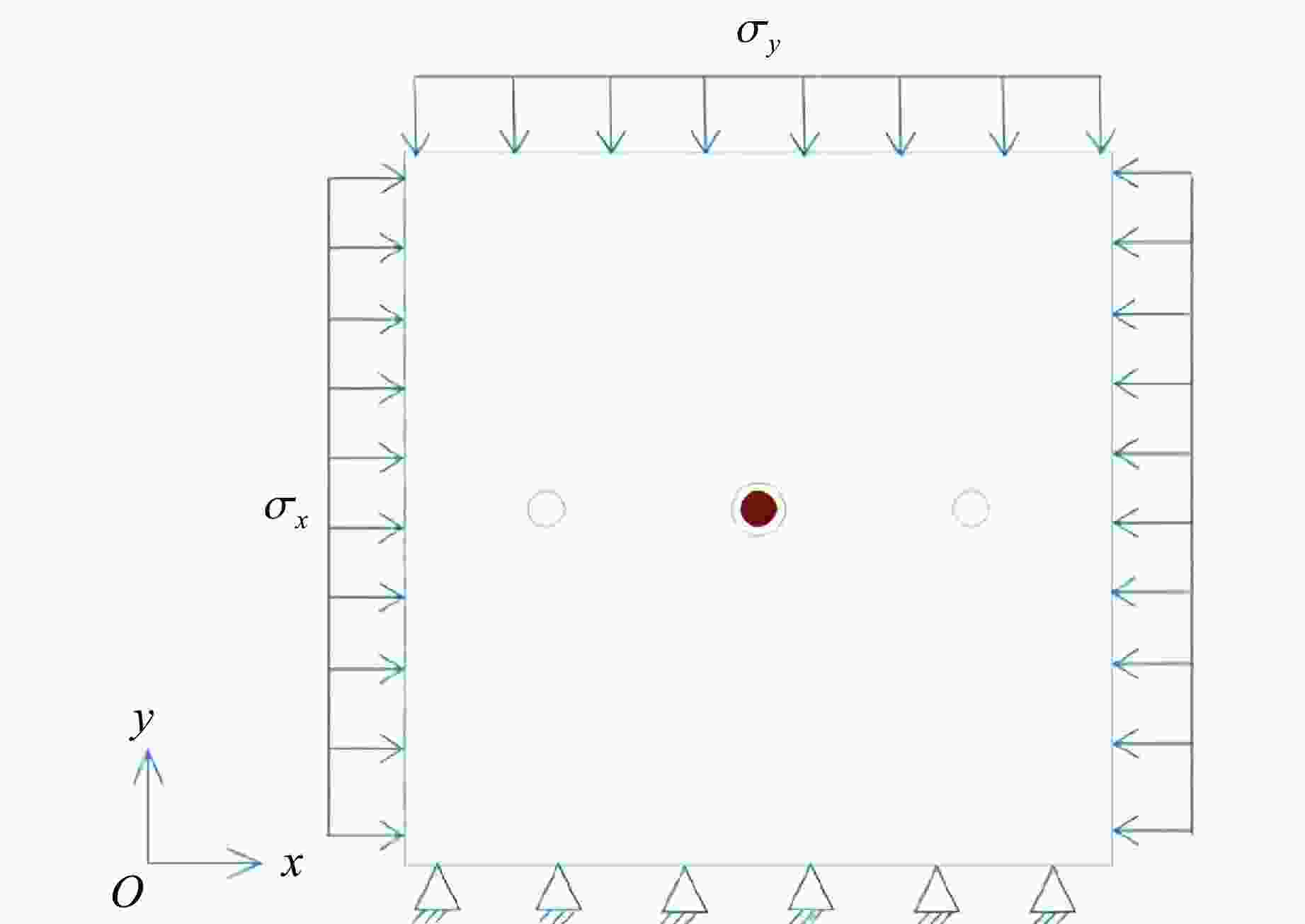

图 1 数值计算模型

Figure 1. Model of numerical calculation

下载: 全尺寸图片幻灯片

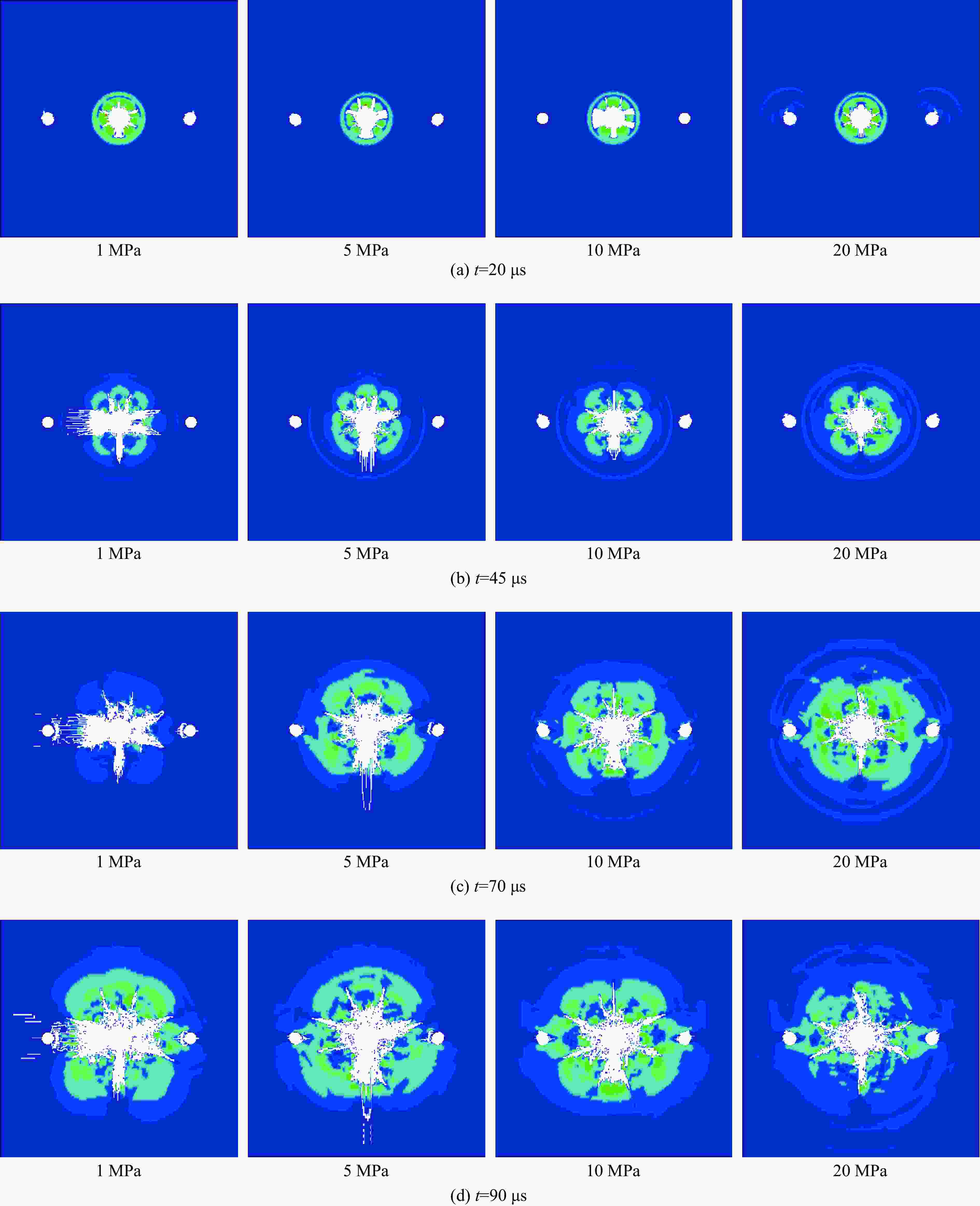

图 2 不同地应力条件下不同时刻应力波的传播及裂纹扩展

Figure 2. Propagation of stress wave and cracks at different time under different geostresses

下载: 全尺寸图片幻灯片

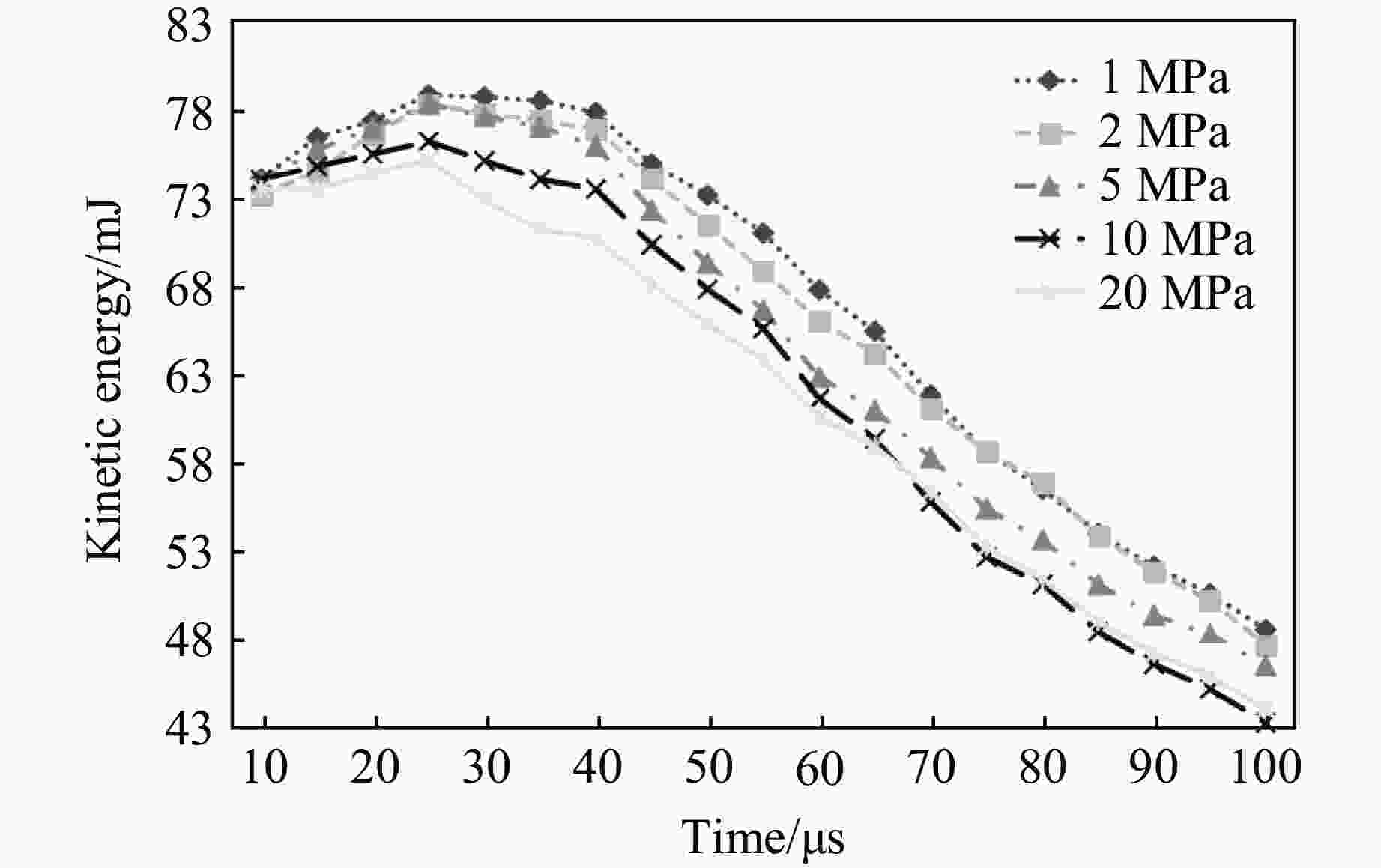

图 3 不同地应力条件下的动能-时间曲线

Figure 3. Kinetic energy-time curves under different geostress conditions

下载: 全尺寸图片幻灯片

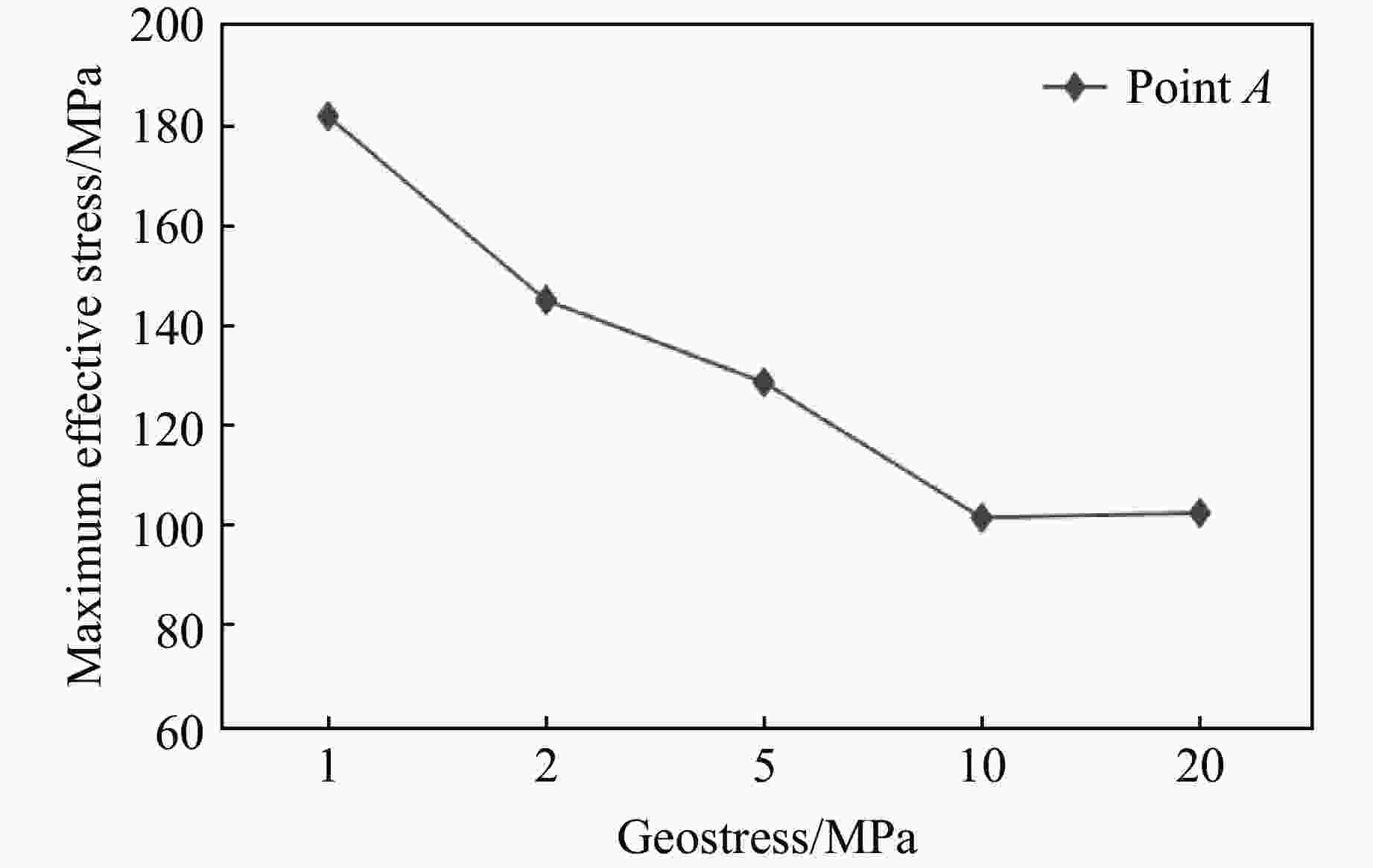

图 4 点A的最大有效应力

Figure 4. Maximum effective stress at point A

下载: 全尺寸图片幻灯片

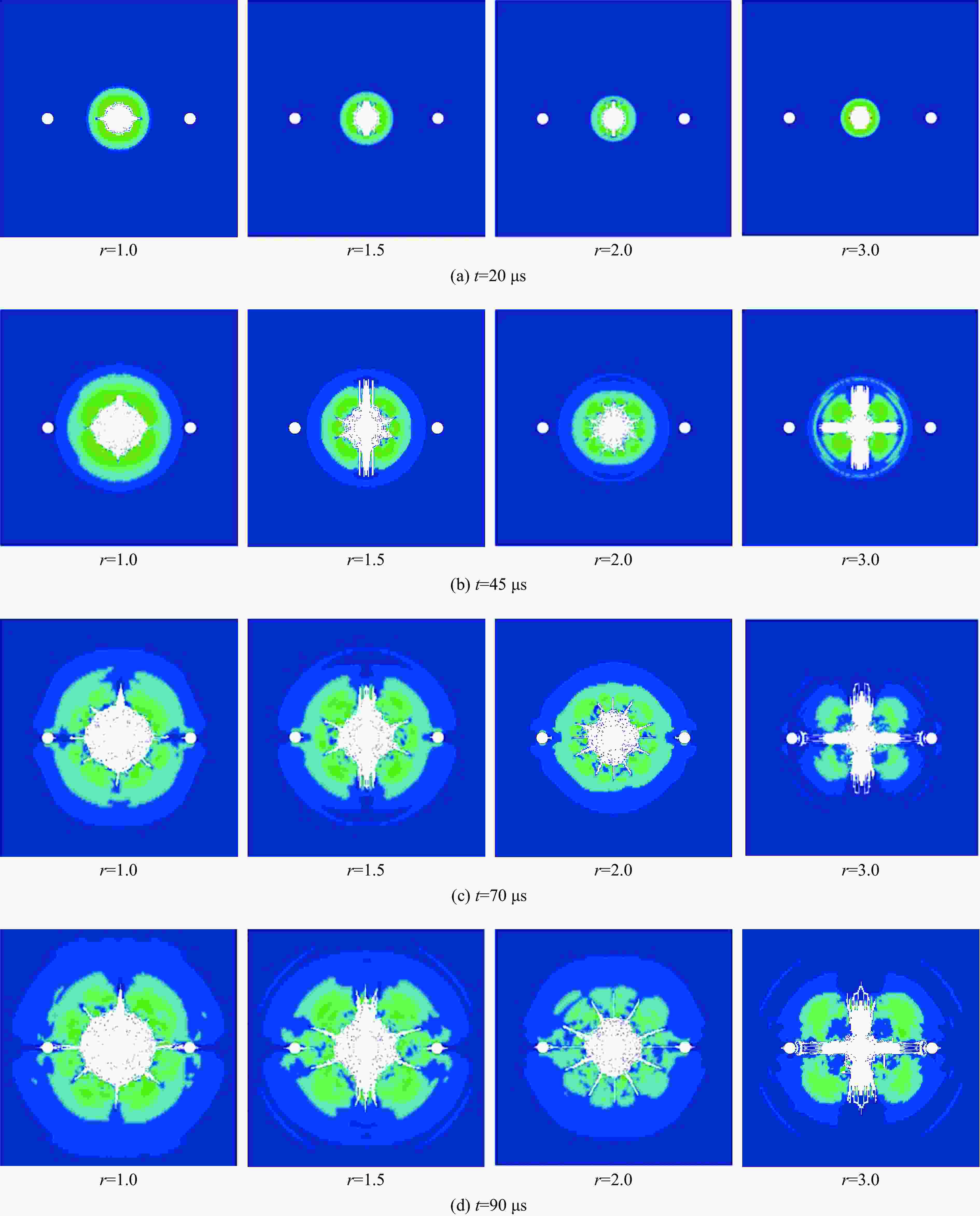

图 5 不同时刻不同不耦合系数条件下的应力波传播及裂纹扩展

Figure 5. Propagation of stress wave and cracks at different time under different uncoupling coefficients

下载: 全尺寸图片幻灯片

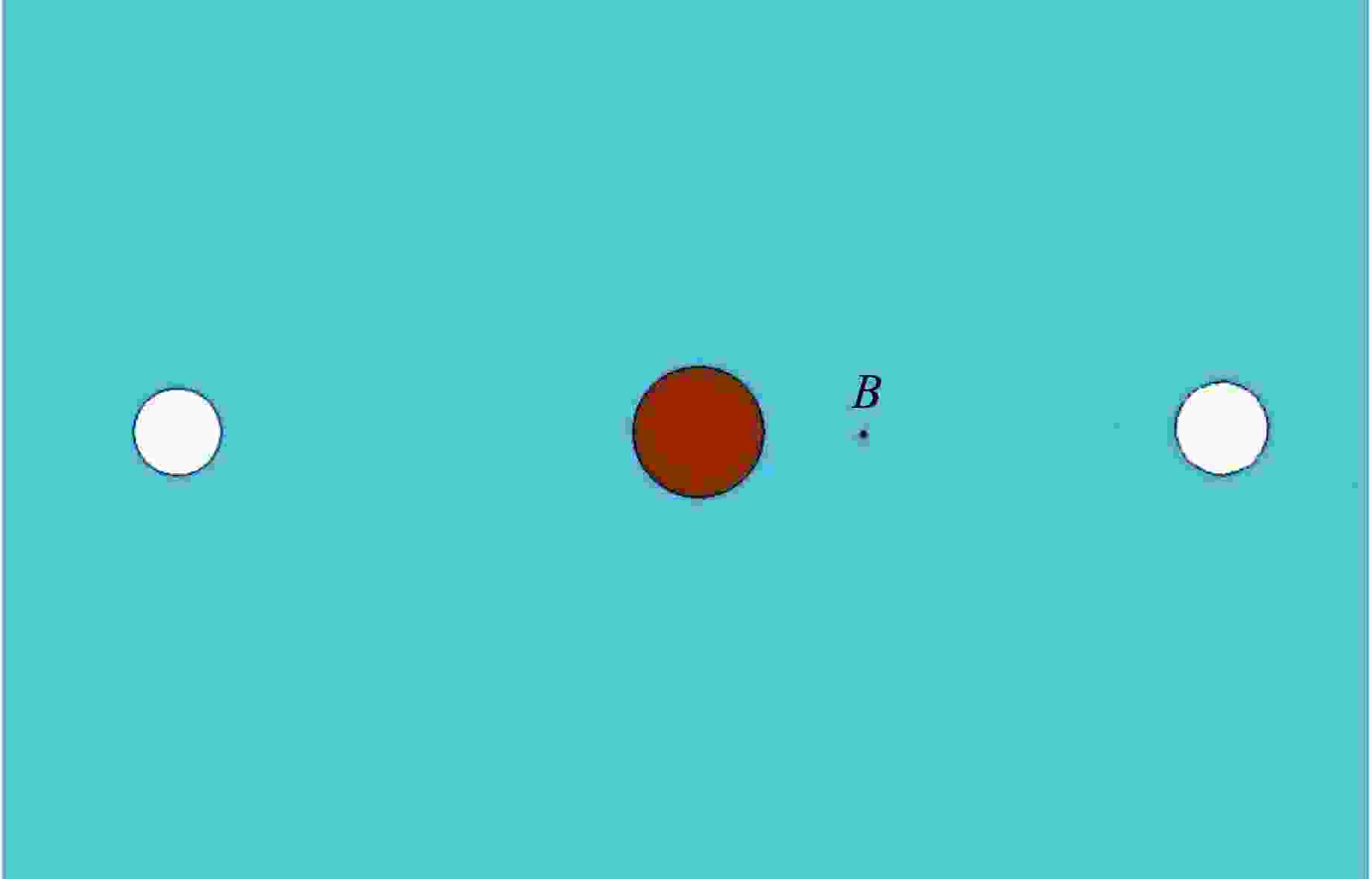

图 6 目标点B的选取

Figure 6. Selection of target point B

下载: 全尺寸图片幻灯片

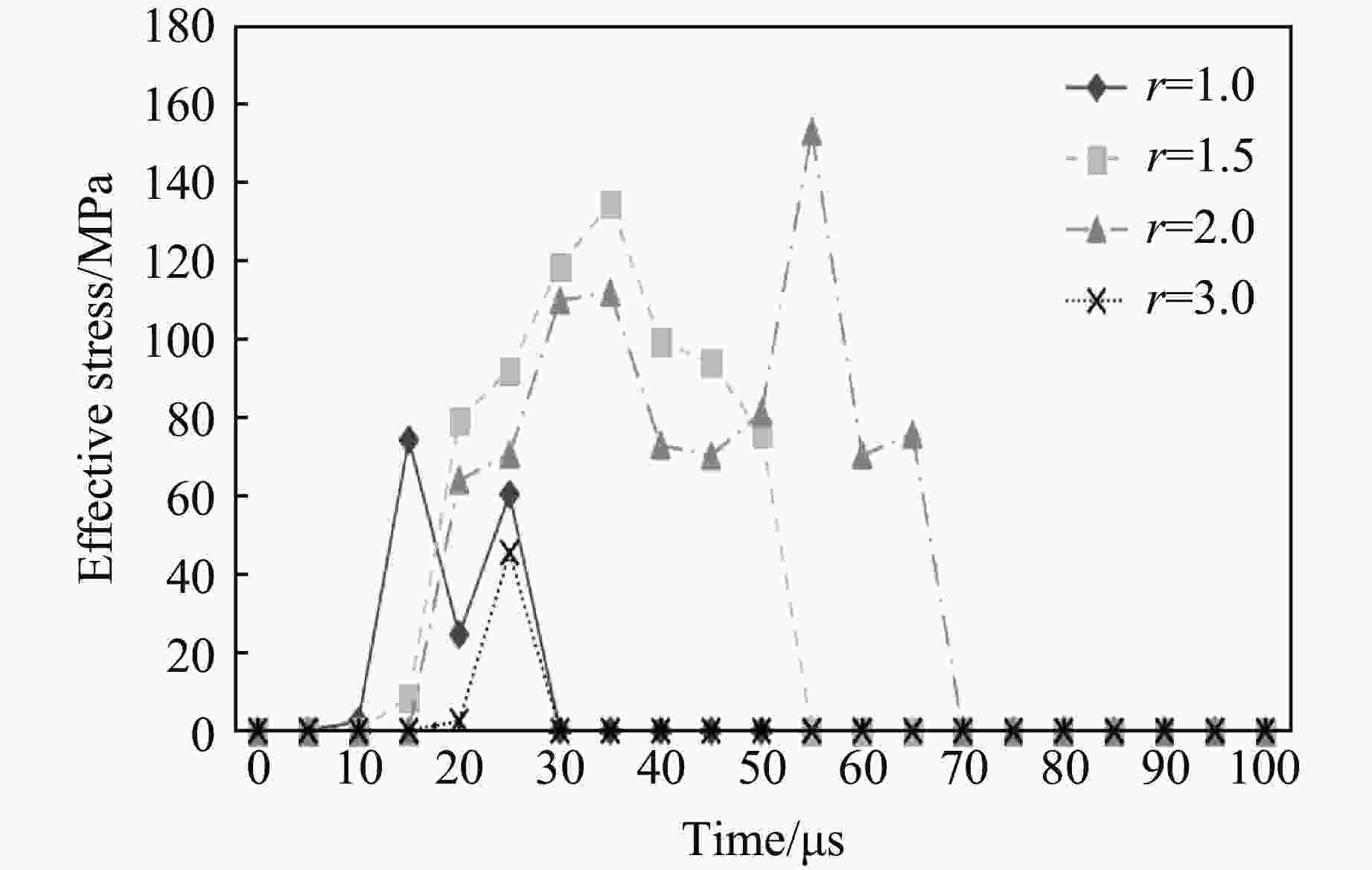

图 7 目标点B的有效应力随时间变化曲线

Figure 7. Relationship between effective stress and time at point B

下载: 全尺寸图片幻灯片

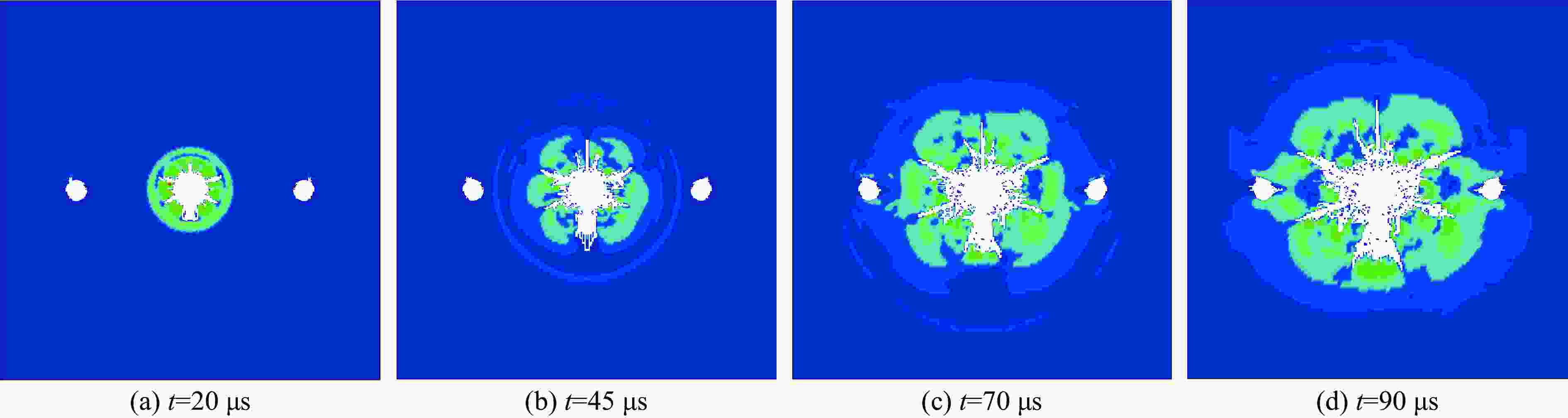

图 8 水耦合条件下应力波传播及裂纹扩展

Figure 8. Propagation of stress wave and cracks under the condition of water coupling

下载: 全尺寸图片幻灯片

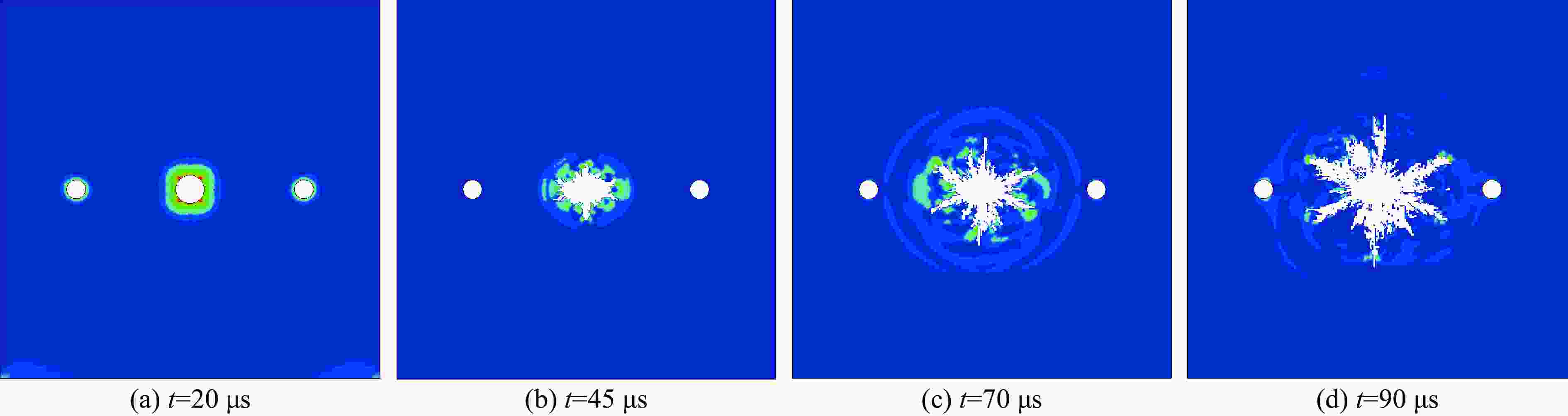

图 9 空气耦合条件下应力波传播及裂纹扩展

Figure 9. Propagation of stress wave and cracks under the condition of air coupling

下载: 全尺寸图片幻灯片

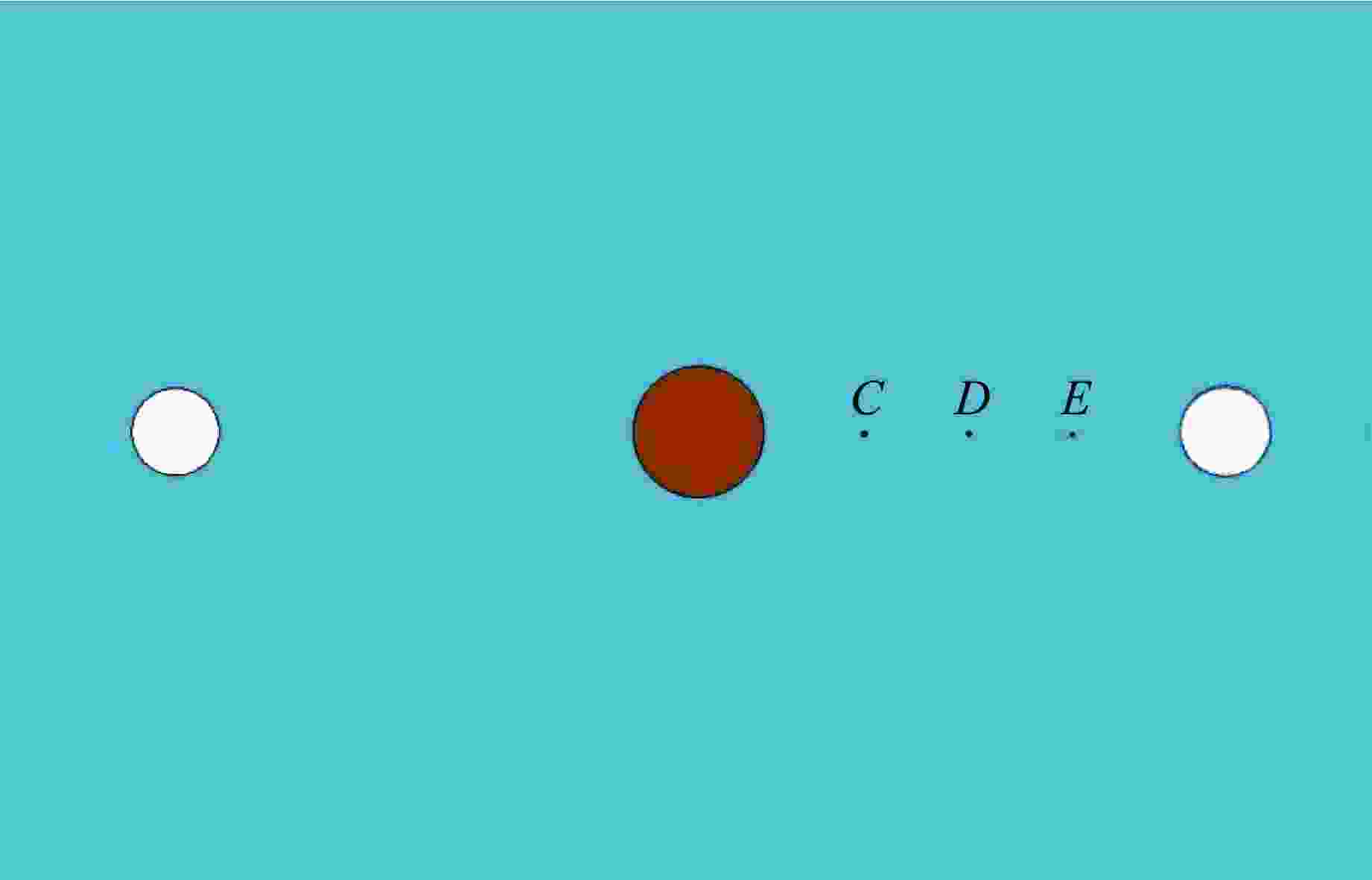

图 10 目标点C、D、E的选择

Figure 10. Selection of target points C, D and E

下载: 全尺寸图片幻灯片

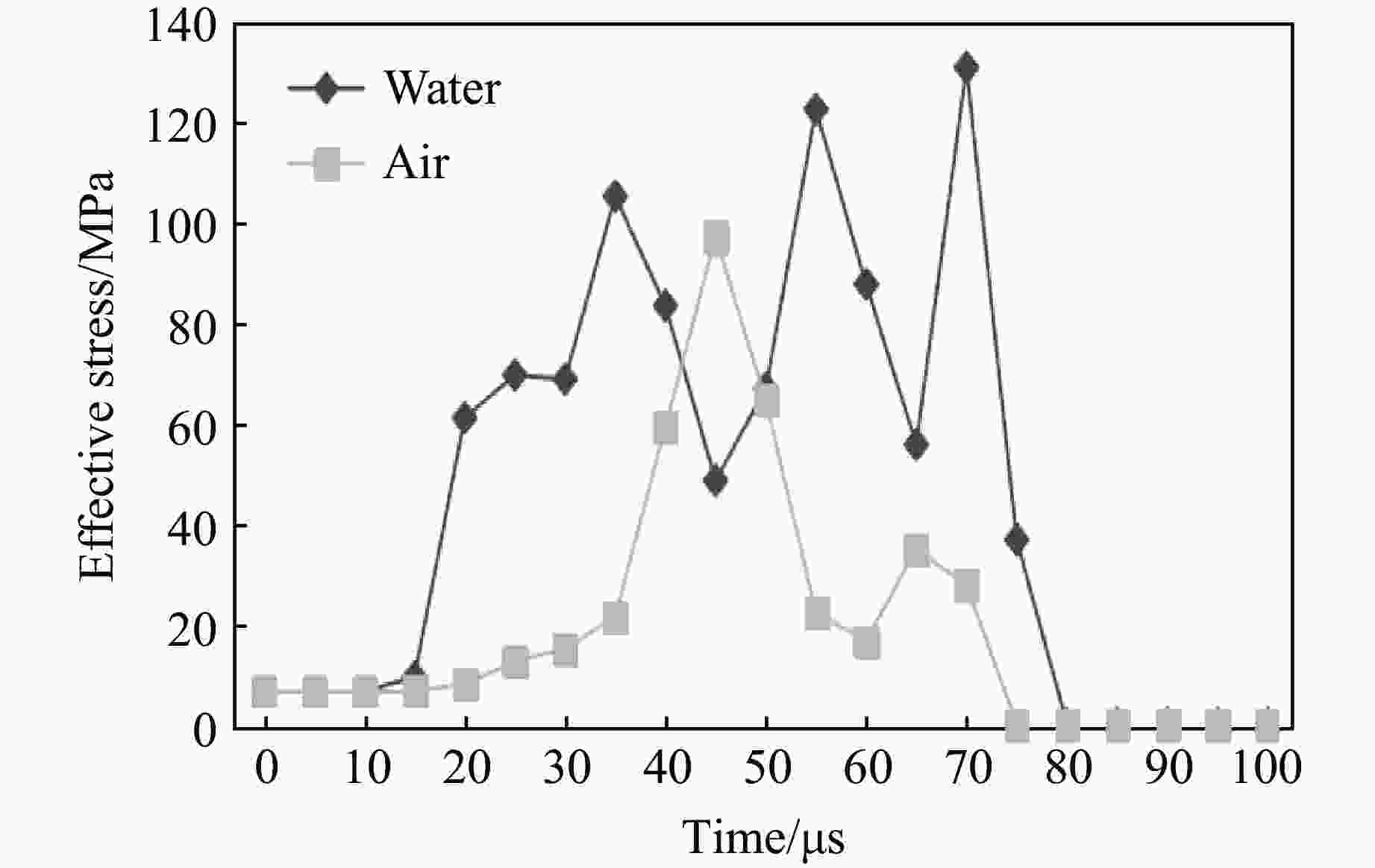

图 11 目标点C的有效应力时程曲线

Figure 11. Effective stress-time curves at point C

下载: 全尺寸图片幻灯片

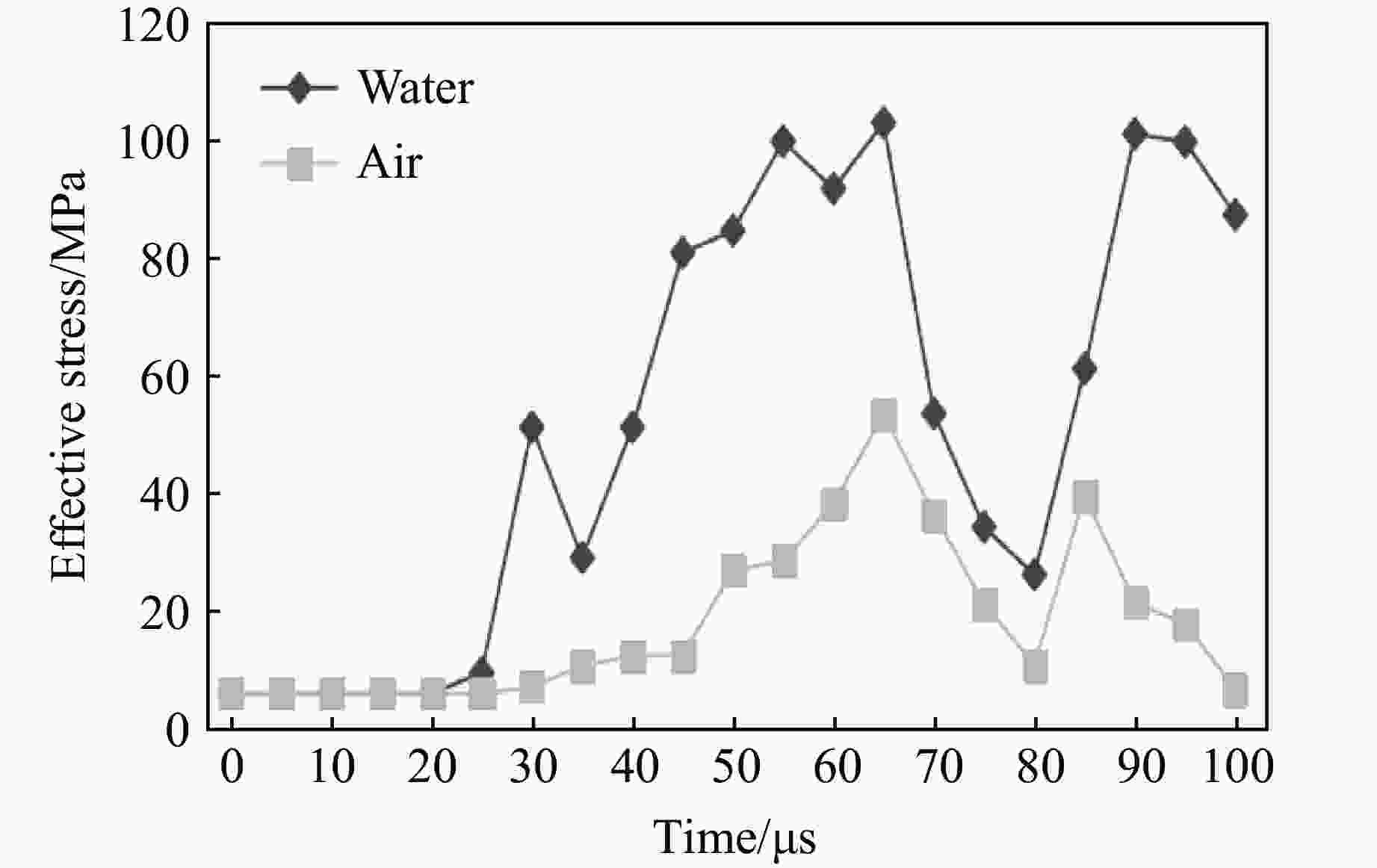

图 12 目标点D的有效应力时程曲线

Figure 12. Effective stress-time curves at point D

下载: 全尺寸图片幻灯片

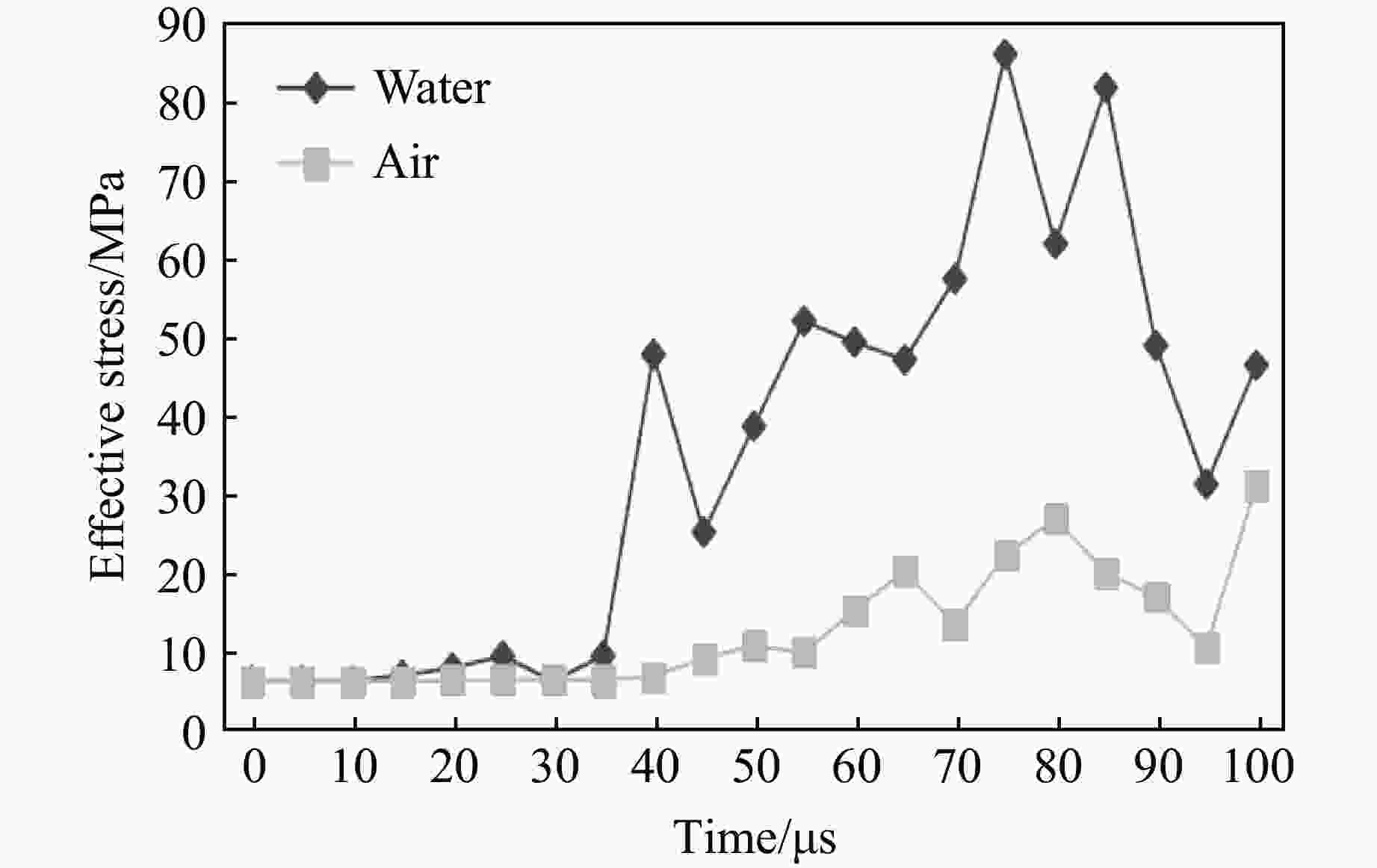

图 13 目标点E的有效应力时程曲线

Figure 13. Effective stress-time curves at point E

下载: 全尺寸图片幻灯片

表 1 煤层的主要力学参数

Table 1. Main mechanical parameters of coal seam

$\,\rho $/(g·cm⁻³) E/GPa c $\nu $

2.6 68.69 2.63 0.25

下载: 导出CSV

表 2 炸药及其状态方程的主要参数

Table 2. Main parameters of explosive and equation of state

$\rho $/(g·cm⁻³) D/(m·s⁻¹) p_CJ/GPa A/GPa B/GPa R₁ R₂ E₀/GPa $\omega $

1.15 4300 3.43 214.4 0.182 4.5 0.9 3.5 0.15

下载: 导出CSV

表 3 空气及其状态方程的主要参数

Table 3. Main parameters of air and equation of state

$\,\rho$/(kg·m⁻³) C₀ C₁ C₂ C₃ C₄ C₅ C₆ e₀/(J·m⁻³)

1.29 0 0 0 0 0.4 0.4 0 2.5×10⁵

下载: 导出CSV

表 4 水及其状态方程的主要参数

Table 4. Main parameters of water and equation of state

${\,\rho }$₀/(g·cm⁻³) C/(km·s⁻¹) S₁ S₂ S₃

1.0 1.480 2.560 −1.986 0.227

下载: 导出CSV
