头部带肋板的异形结构弹体斜贯穿混凝土薄靶实验和数值模拟

张健东; 武海军; 李伟; 李金柱; 皮爱国

doi:10.11858/gywlxb.20210723

头部带肋板的异形结构弹体斜贯穿混凝土薄靶实验和数值模拟

doi: 10.11858/gywlxb.20210723

北京理工大学爆炸科学与技术国家重点实验室, 北京 100081

基金项目: 国家自然科学基金（12072039，11572048）

详细信息

作者简介:
张健东（1996－），男，硕士研究生，主要从事材料与结构冲击动力学研究. E-mail：zjd_bit@163.com

通讯作者:
武海军（1974－），男，博士，教授，主要从事爆炸与冲击动力学研究. E-mail：wuhj@bit.edu.cn

中图分类号: O383
计量
- 文章访问数: 644
- HTML全文浏览量: 337
- PDF下载量: 45
出版历程
- 收稿日期: 2021-03-04
- 修回日期: 2021-03-18

Experiment and Numerical Simulation on Oblique Penetrating Concrete Targets by a Special-Shaped Projectile with Ribbed Head

State Key Laboratory of Explosion Science and Technology, Beijing Institute of Technology, Beijing 100081, China

摘要

摘要: 为了探究一种新型头部带肋板的异形结构弹体斜贯穿混凝土靶的能力和弹道稳定性，利用一级轻气炮，开展了250～350 m/s速度范围内，以0°、15°和30°倾角贯穿300 mm厚混凝土靶的实验，并对同质量、同质心位置的尖卵形头部弹体和头部带肋板异形弹进行了不同速度和倾角下贯穿混凝土靶的模拟计算，模拟结果与实验结果吻合较好。实验和数值模拟结果表明：斜侵彻会降低弹体的贯穿能力，同时影响弹体姿态；在实验工况下，靶板贯穿只有开坑区和冲塞区，开坑区会增大弹体姿态角，而冲塞区会减小弹体姿态角；与尖卵形弹相比，虽然该异形弹头部凸台结构增加了弹靶作用面积导致侵彻能力下降，但是头部的肋板结构使得弹体侵入靶体时受到的偏转力矩更小，弹体有更为优异的抗偏转效果和弹道稳定性。
- 异形弹 /
- 斜贯穿 /
- 混凝土 /
- 姿态角
Abstract: This paper is focused on a special-shaped projectile with ribbed plate head. In order to explore its penetration ability and trajectory stability, the 152 mm diameter light gas gun was used to launch projectiles to penetrate concrete targets of 300 mm thickness at different angles within the speed range of 250–350 m/s. In the meantime, numerical simulations of ogive-nose projectile and ribbed-head projectile perforating concrete targets with different velocities and inclination angles were implemented with LS-DYNA, and the simulation results are in good agreement with the experimental results. The experimental and simulation results show that oblique penetration will reduce the penetration ability and affect the trajectory stability of projectile. Under experimental conditions, the main damage of the target plate includes the open pit area and the shear plug area. The crater area will increase the attitude angle of projectile, while the caving zone will reduce the attitude angle. Compared with the ogive-nose projectile, although the penetration ability of the special-shaped projectile decreases due to the increase of the action area, the rib structure of the special-shaped projectile makes the missile body suffer less deflection moment when the projectile intrudes into the target, which makes the projectile body have an excellent anti-deflection effect and trajectory stability.
- special-shaped projectile /
- oblique perforation /
- concrete targets /
- attitude angle

HTML全文

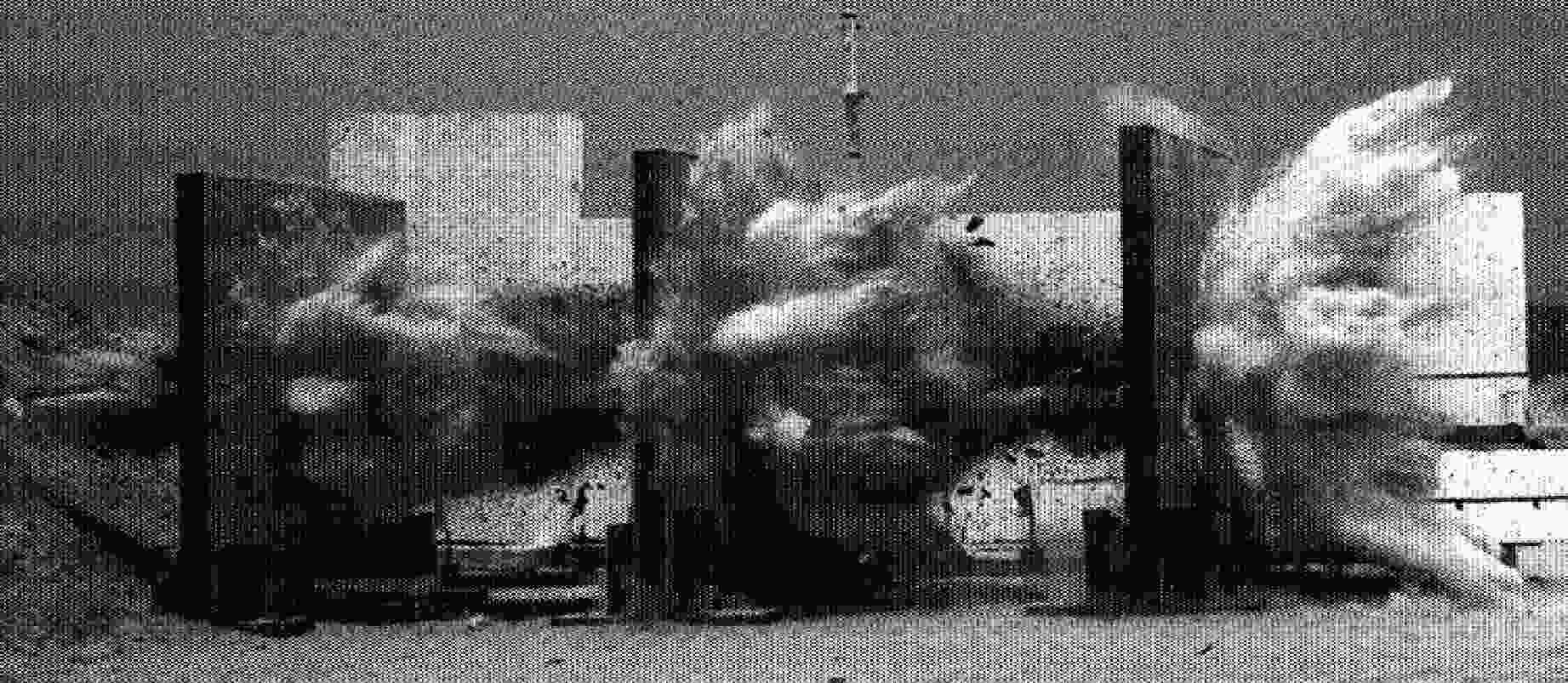

图 1 战斗部以10°倾角贯穿多层混凝土靶^[10]

Figure 1. Projectile perforated the multilayerconcrete targets at 10° inclination^[10]

下载: 全尺寸图片幻灯片

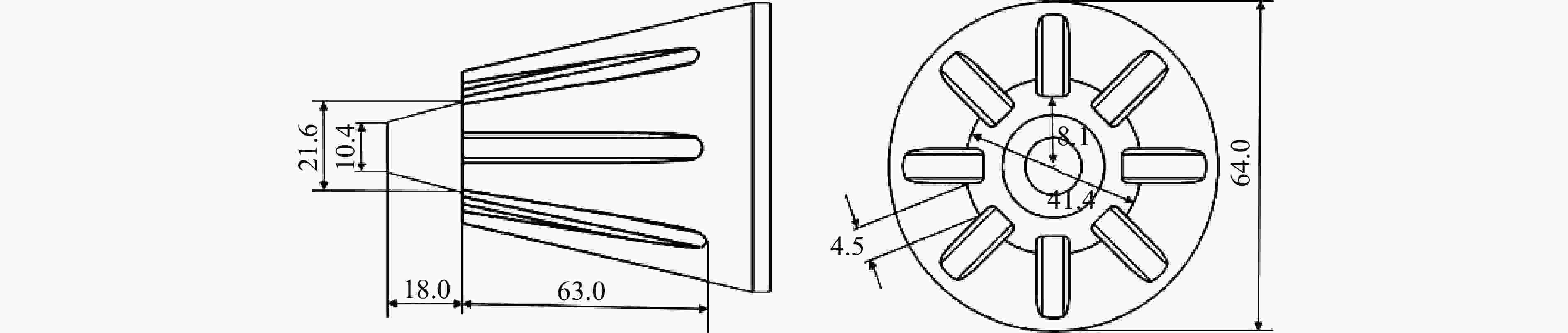

图 2 弹体头部结构示意图（单位：mm）

Figure 2. Sketch of the projectile (Unit: mm)

下载: 全尺寸图片幻灯片

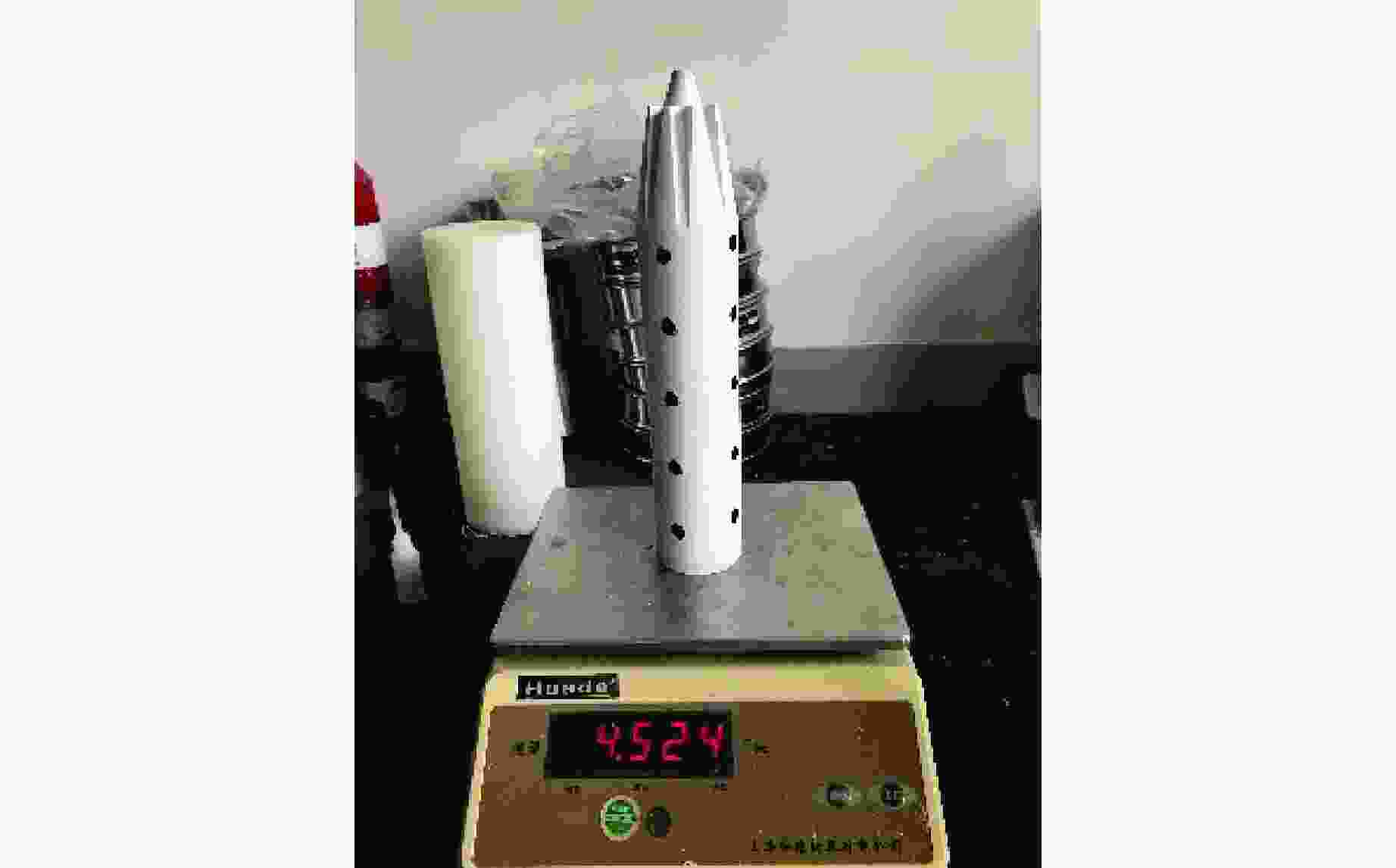

图 3 弹体实物

Figure 3. Photograph of the projectile

下载: 全尺寸图片幻灯片

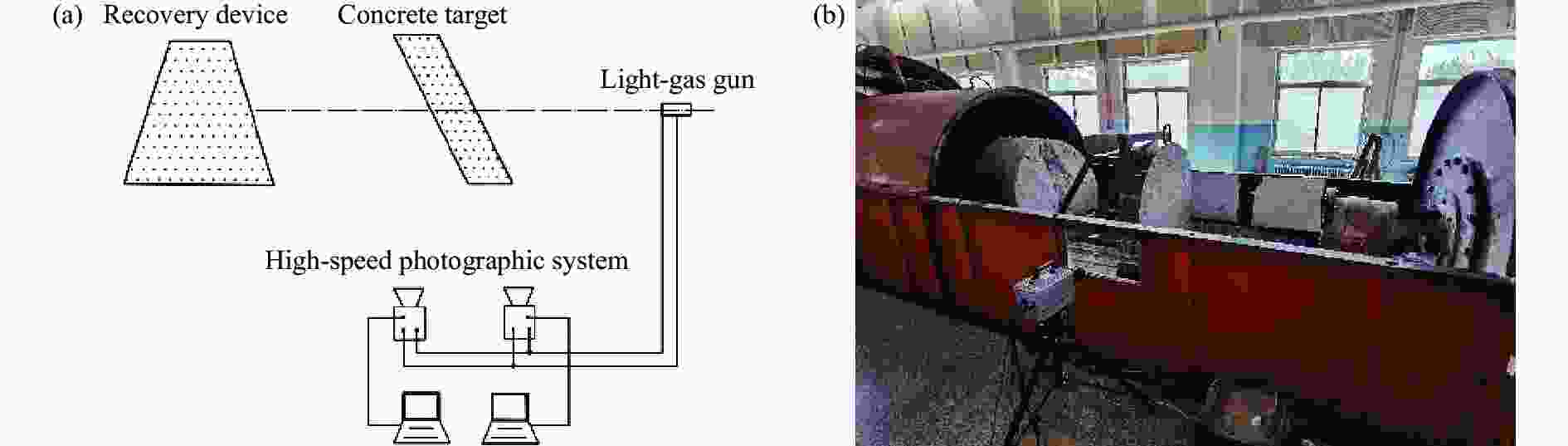

图 4 实验系统示意图(a) 和实验现场(b)

Figure 4. Sketch of the experimental system (a) and experimental site (b)

下载: 全尺寸图片幻灯片

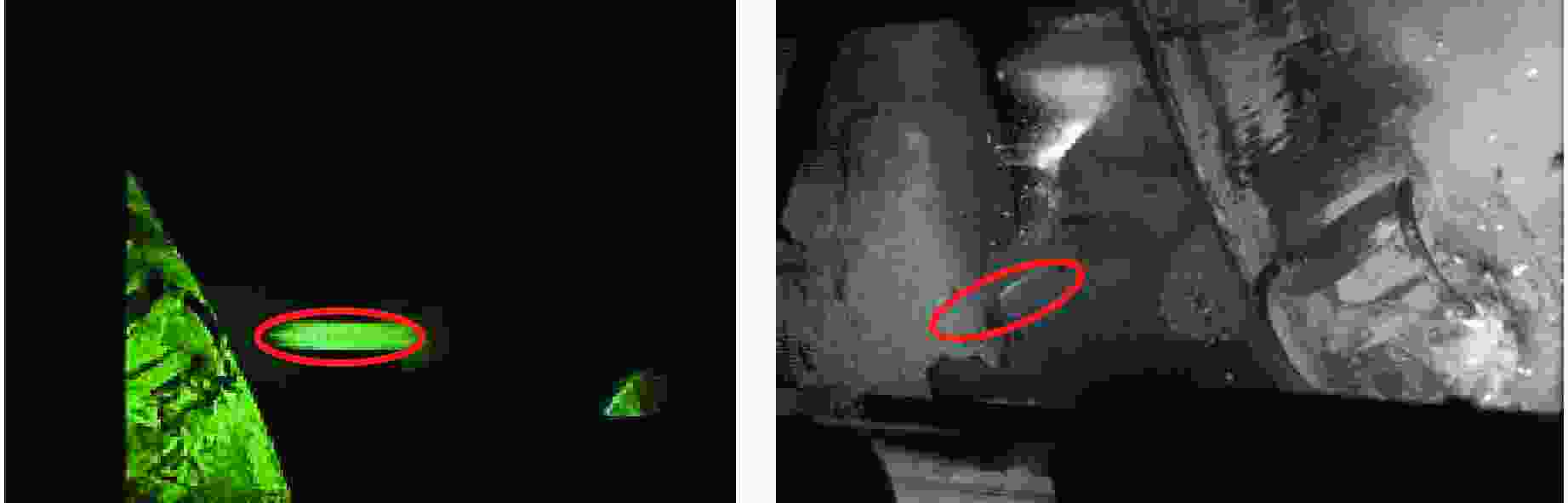

图 5 弹体斜侵彻姿态

Figure 5. Oblique penetration attitude of the projectile

下载: 全尺寸图片幻灯片

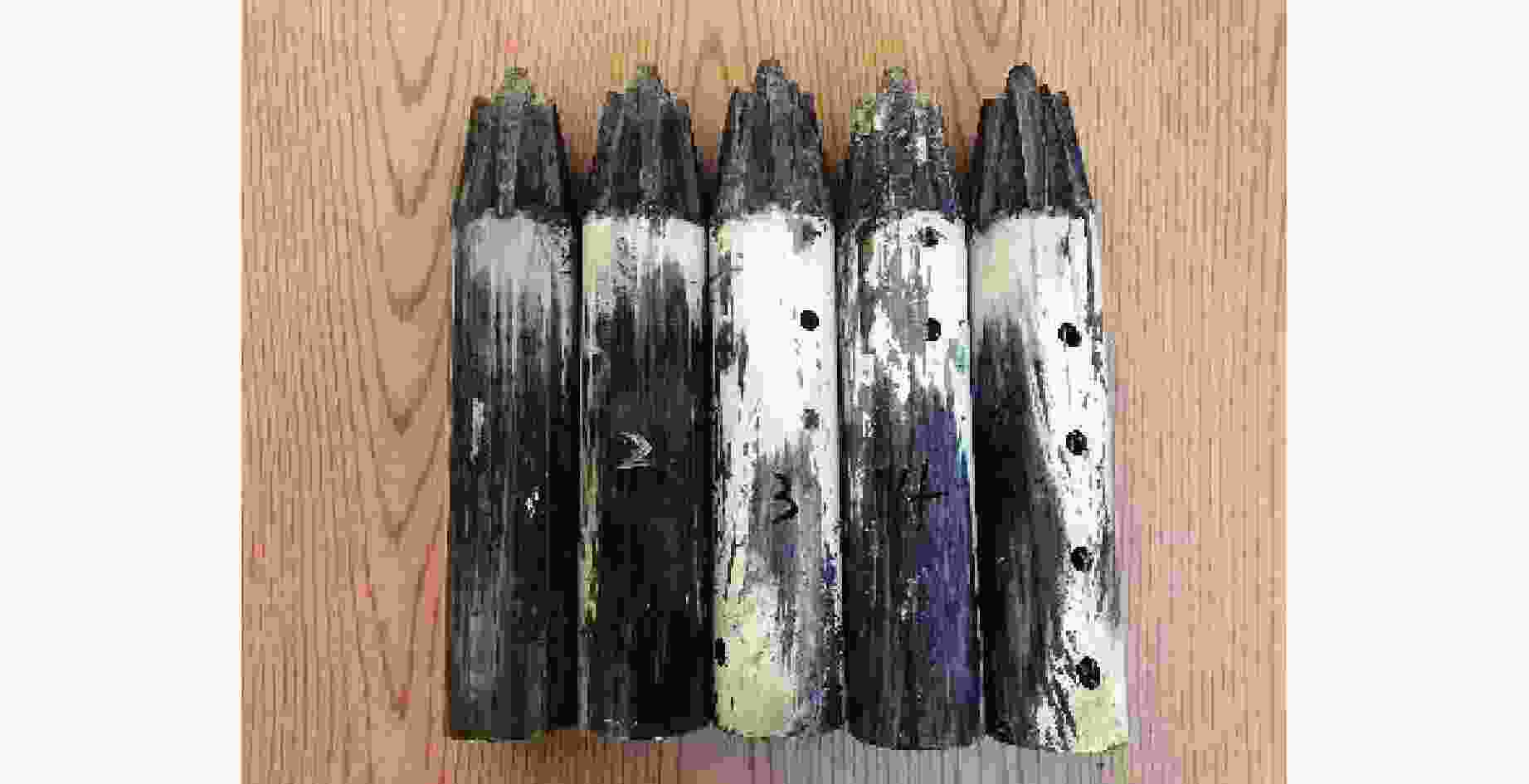

图 6 回收弹体

Figure 6. Residual projectiles

下载: 全尺寸图片幻灯片

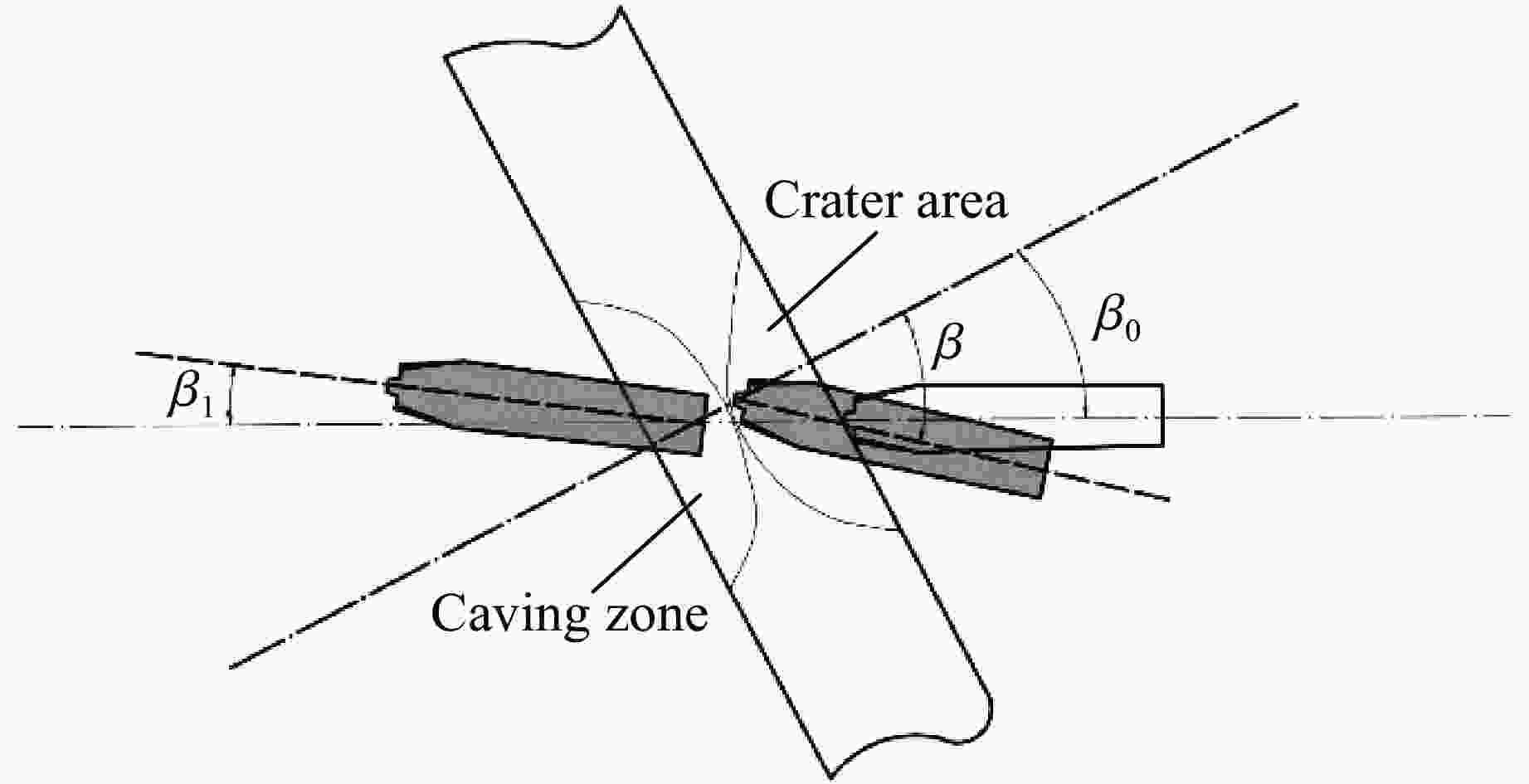

图 7 弹道轨迹示意图

Figure 7. Attitude deflection of the projectile

下载: 全尺寸图片幻灯片

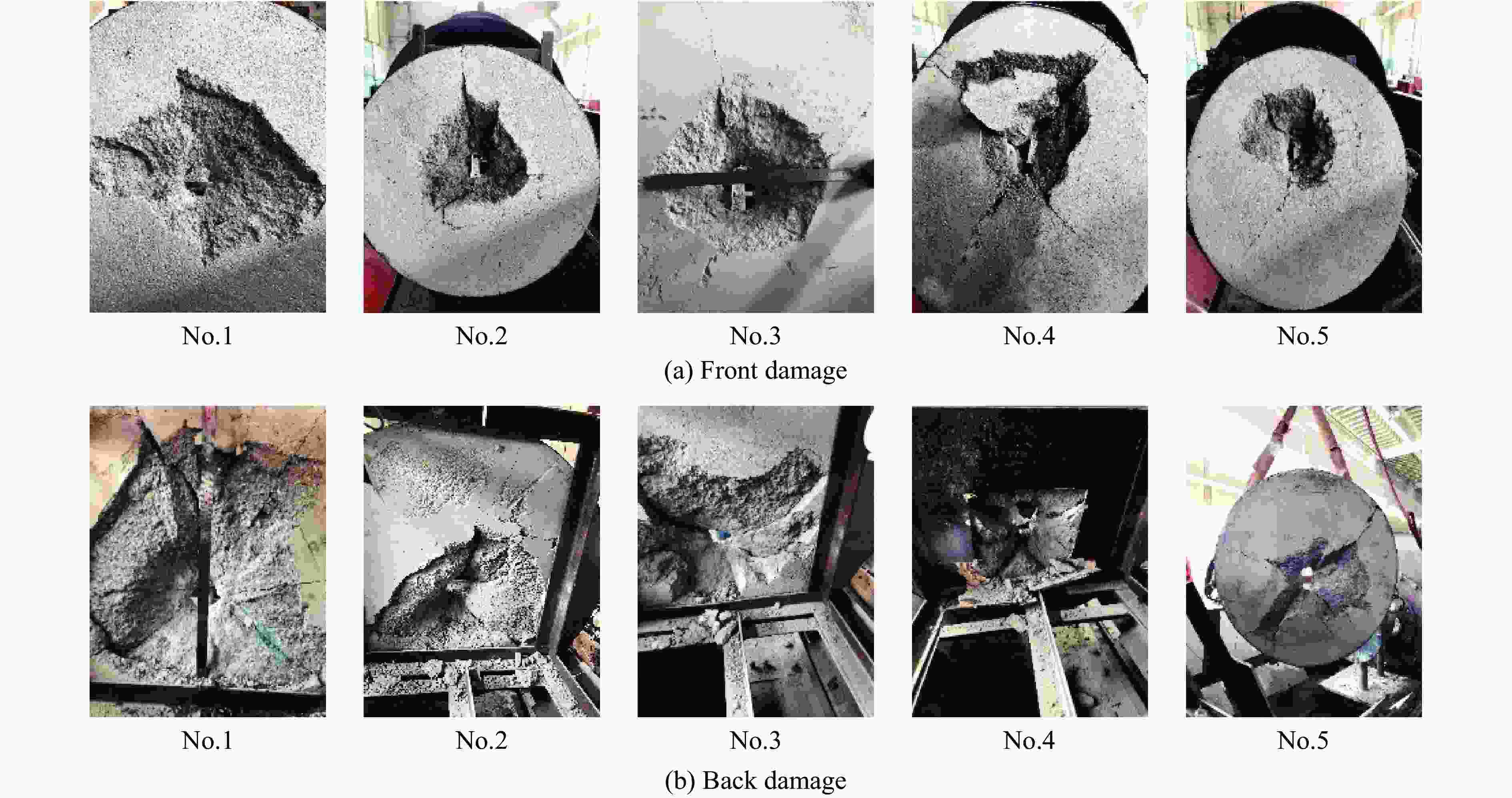

图 8 5发实验靶体的正面(a) 和背面(b) 破坏情况

Figure 8. Damage condition of front (a) and back (b) of the experimental target

下载: 全尺寸图片幻灯片

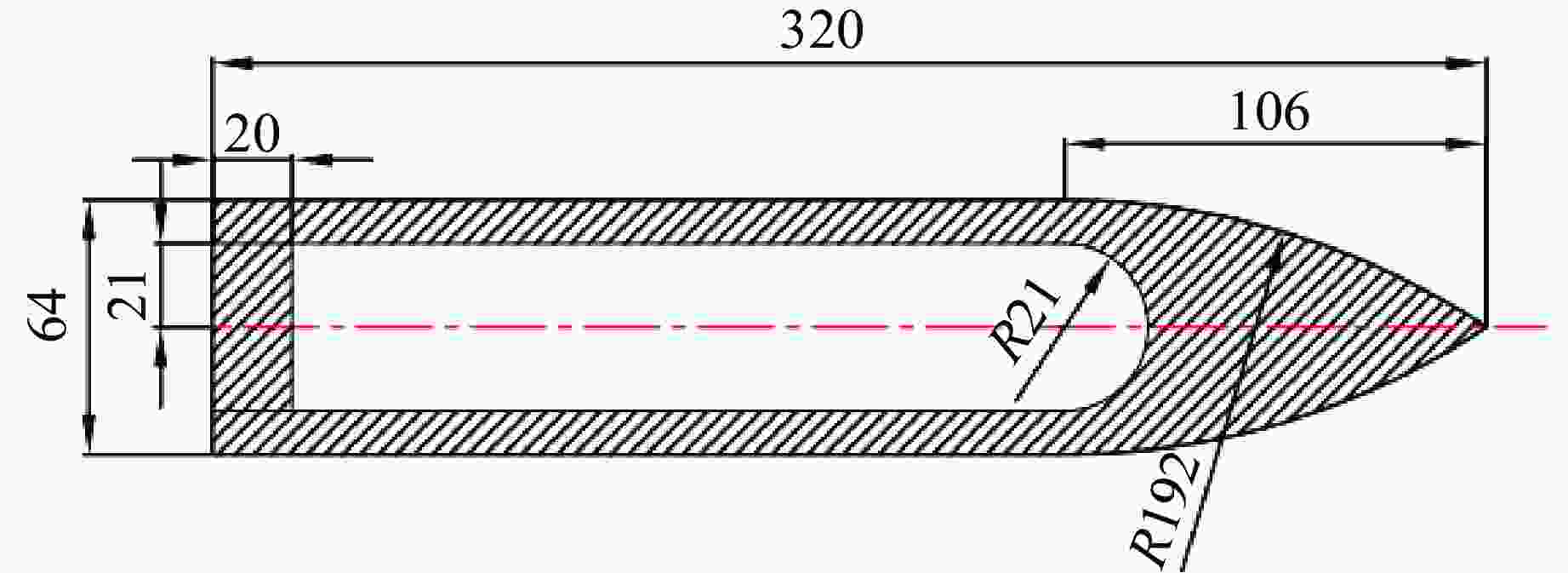

图 9 尖卵形弹体结构示意图（单位：mm）

Figure 9. Sketches of the ogive-nose projectile (Unit: mm)

下载: 全尺寸图片幻灯片

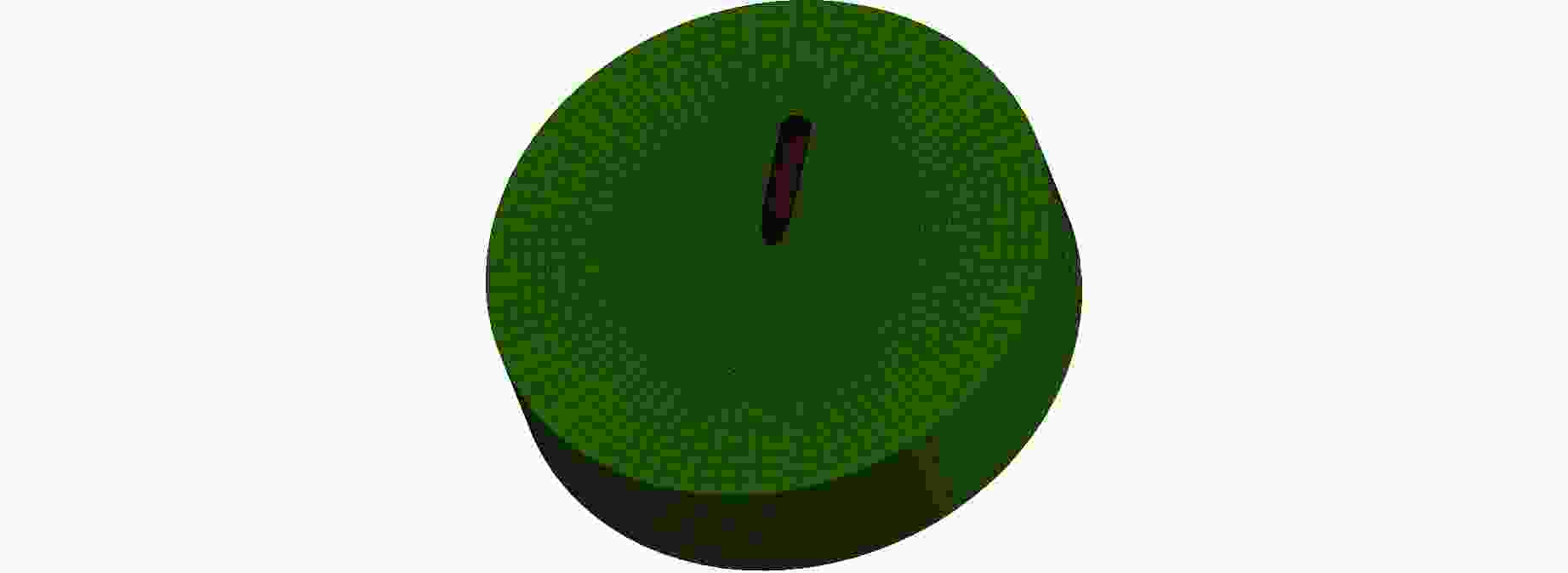

图 10 有限元模型

Figure 10. Finite element model

下载: 全尺寸图片幻灯片

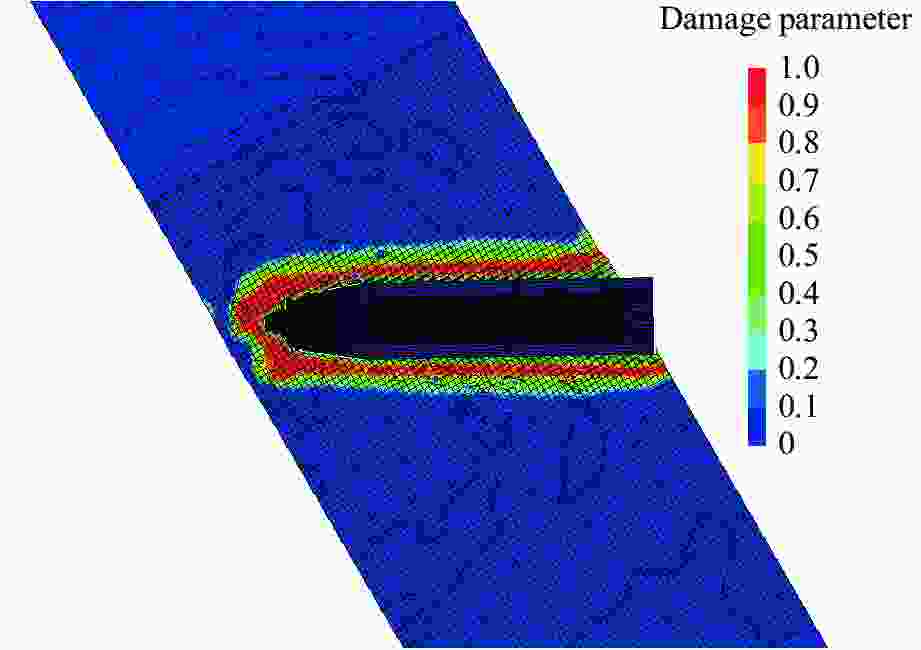

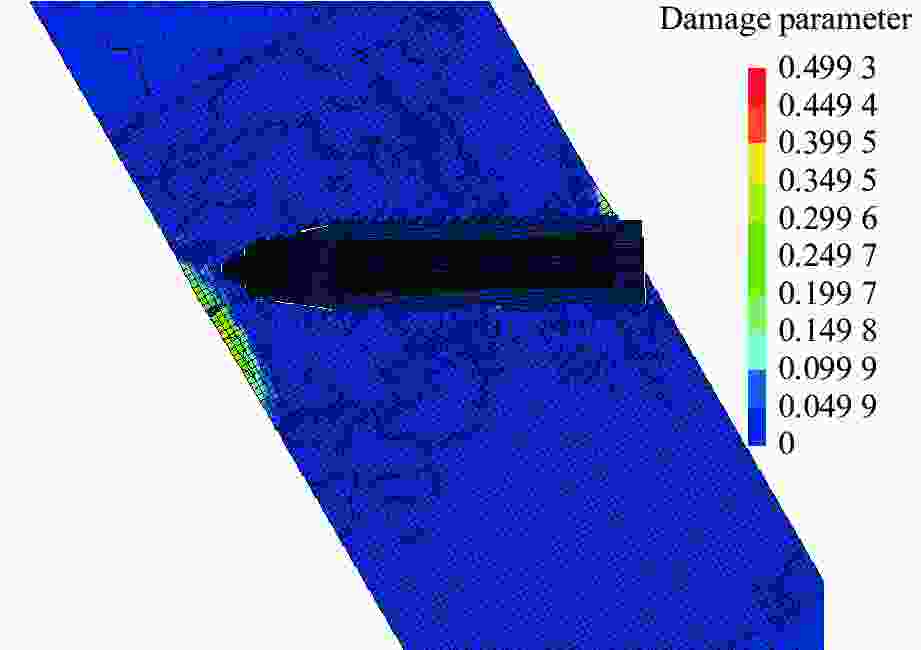

图 11 HJC模型压缩损伤云图

Figure 11. Compression damage obtained by HJC model

下载: 全尺寸图片幻灯片

图 12 TCK模型拉伸损伤云图

Figure 12. Tensile damage obtained by TCK model

下载: 全尺寸图片幻灯片

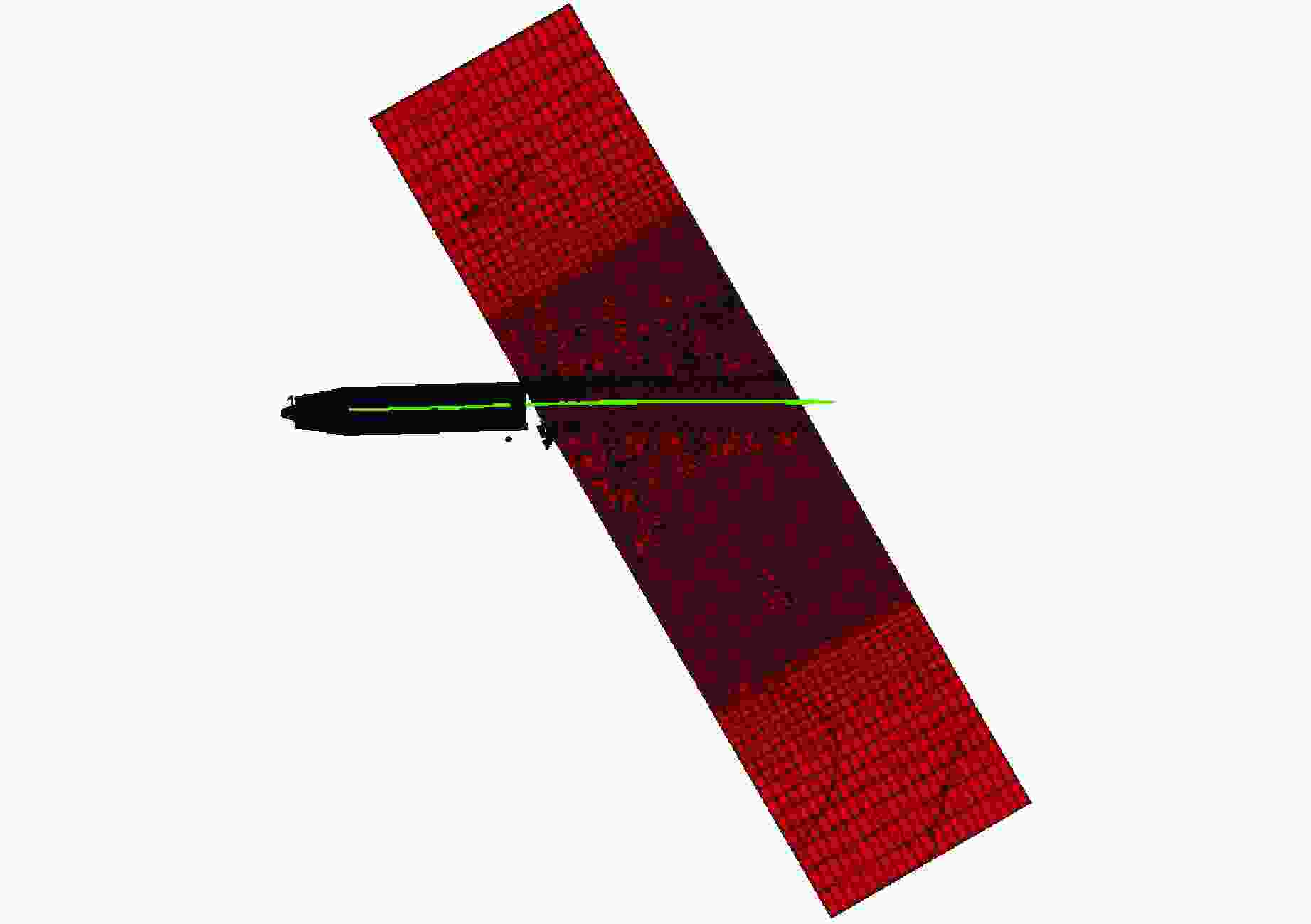

图 13 弹道偏转

Figure 13. Ballistic trajectory

下载: 全尺寸图片幻灯片

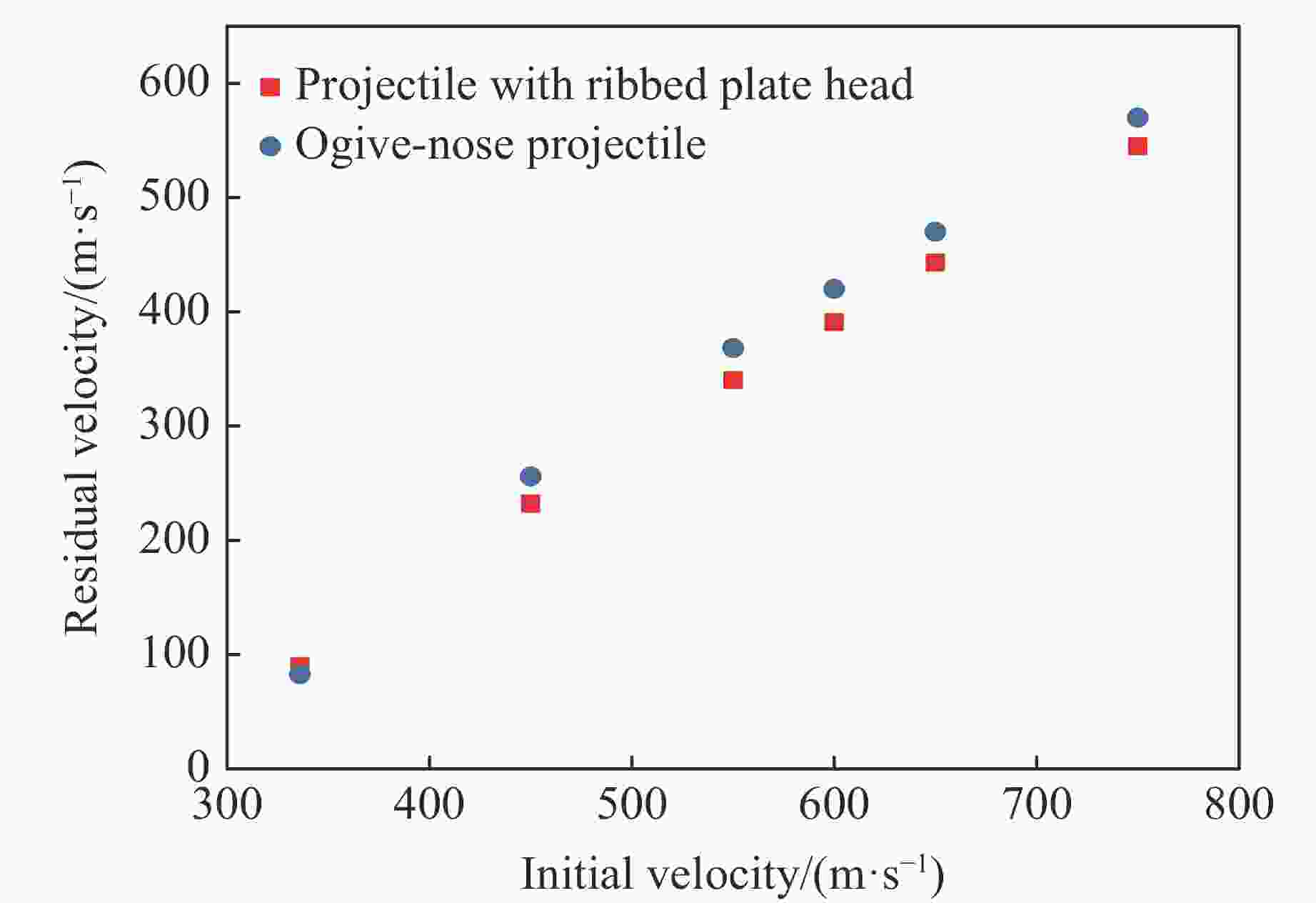

图 14 不同工况下弹体的剩余速度

Figure 14. Residual velocities of projectilesunder different cases

下载: 全尺寸图片幻灯片

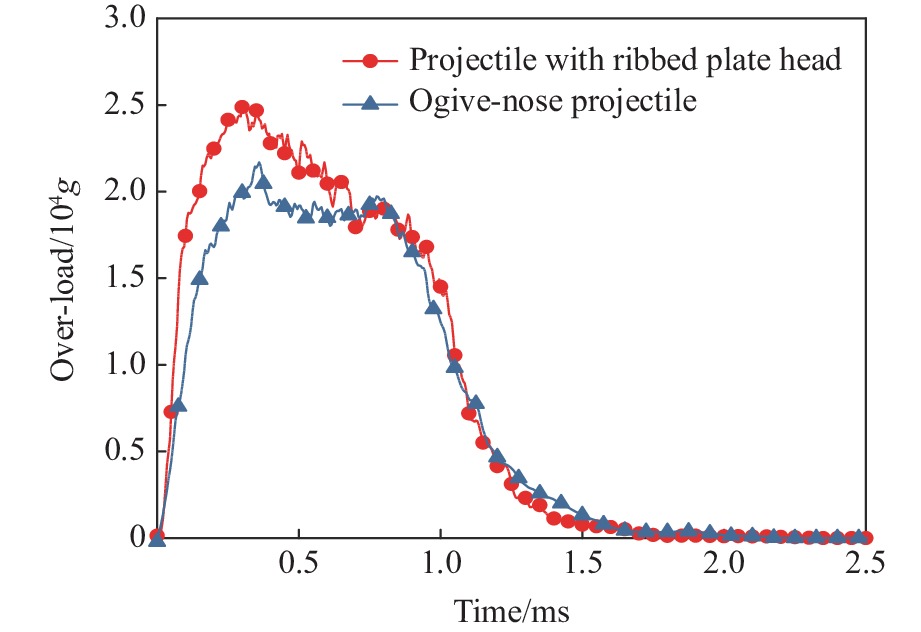

图 15 侵彻过载-时程曲线

Figure 15. Over-load versus time curves of projectiles

下载: 全尺寸图片幻灯片

图 16 以不同初始速度侵彻时弹体的姿态角-时间变化曲线

Figure 16. Attitude angle versus time curves of projectile under different initial velocities

下载: 全尺寸图片幻灯片

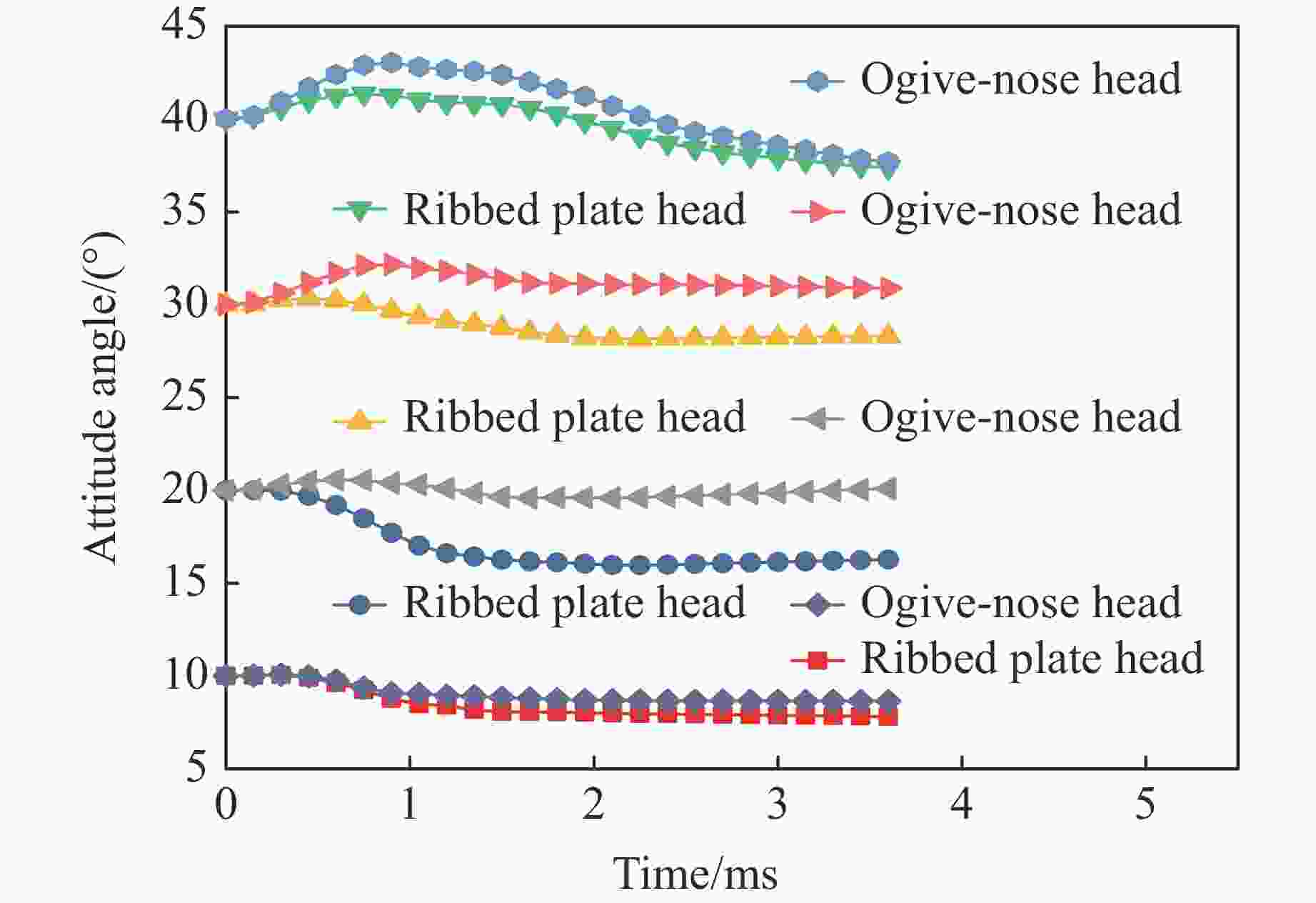

图 17 不同倾角侵彻时的姿态角-时间变化曲线

Figure 17. Attitude angle curves of projectile underdifferent inclination angles

下载: 全尺寸图片幻灯片

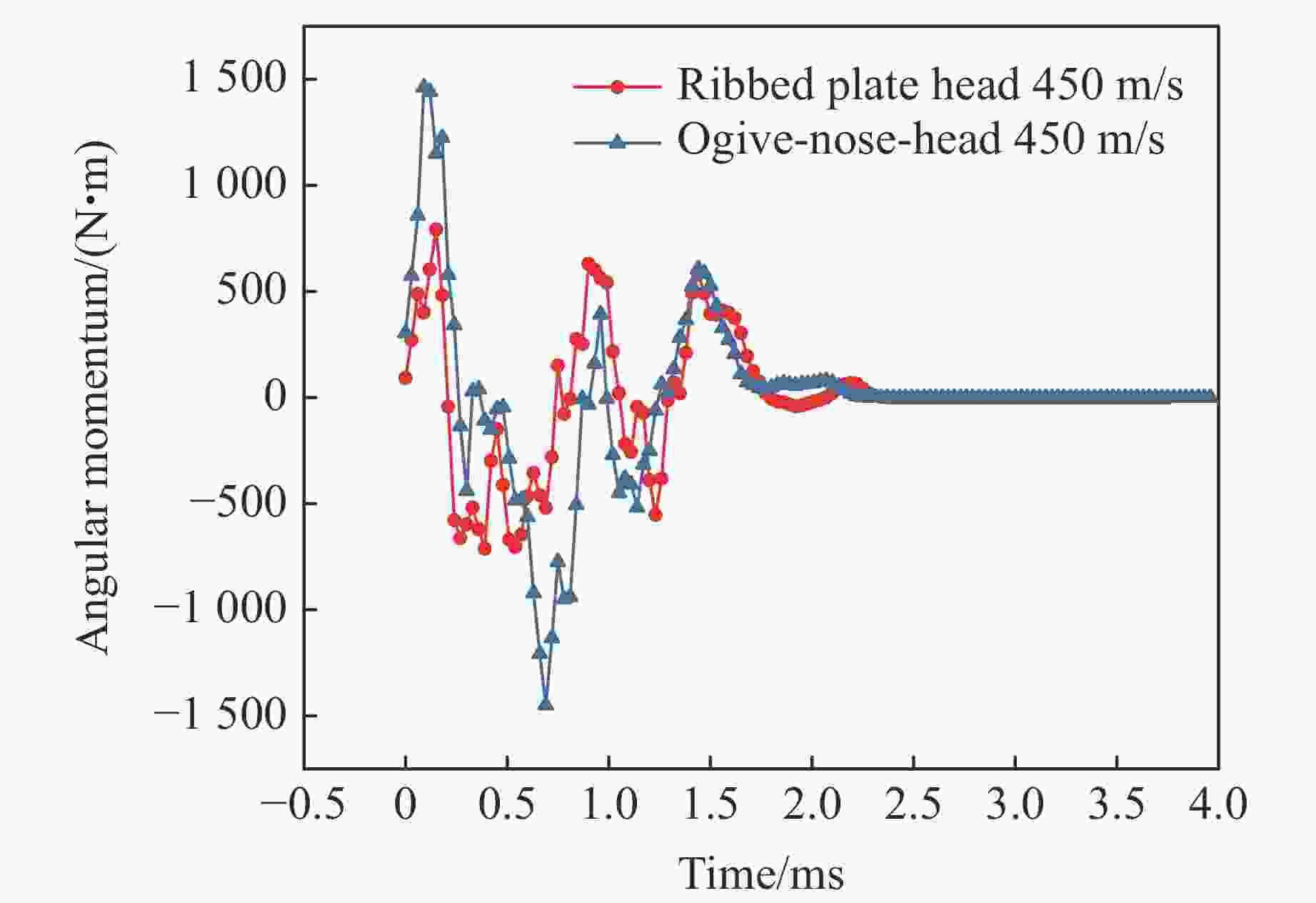

图 18 弹体偏转力矩变化曲线

Figure 18. Deflection moment curves of projectiles

下载: 全尺寸图片幻灯片

表 1 弹体贯穿混凝土靶实验结果

Table 1. Experimental results of projectiles penetrating concrete targets

No.	$\,\beta $₀/(°)	$\,\beta $₁/(°)	v₀/(m·s⁻¹)	v₁/(m·s⁻¹)	d₁/cm	d₂/cm
1	0	0	322.3	133.5	59.4	70.1
2	15	−4	330.8	106.4	53.6	62.0
3	15	−27	258.0	25.2	39.1	62.5
4	30	1	335.9	81.7	59.6	74.5
5	30	−31	259.6	13.4	55.5	55.9

下载: 导出CSV

表 2 HJC材料模型参数

Table 2. Parameters of HJC material model

$\,\rho $/(g·cm⁻³)	G/GPa	A	B	C	N	f_c/MPa
2.52	14	0.79	1.6	0.007	0.61	38
T/MPa	ɛ_f,min	S_max	EPSO	p_c/MPa	μ_c	p_L/GPa
3.82	0.01	7	10⁻⁶	12.73	6.78×10⁻⁴	0.8
U_L	D₁	D₂	K₁/GPa	K₂/GPa	K₃/GPa
0.11	0.037	1.0	85	−171	208

下载: 导出CSV

表 3 TCK材料模型参数

Table 3. Parameters of TCK material model

$\,\rho $/(g·cm⁻³)	E/GPa	G/GPa	K/GPa	ν	k/m⁻³	m	f_c/MPa
2.52	33.6	14	18.68	0.2	5.753×10²¹	6	38
K_IC/(MPa·m^1/2)	ε_f,min	A	B	C	N	D₁	D₂
2.747	0.01	0.79	1.6	0.007	0.61	0.037	1.0

下载: 导出CSV

表 4 实验与数值模拟结果对比

Table 4. Comparison of experimental and numerical simulation results

No.	v₀/(m·s⁻¹)	$\,\beta $₀/(°)	v₁/(m·s⁻¹)			Error of v₁/%		$\,\beta $₁/(°)			Error of $\,\beta $₁
No.	v₀/(m·s⁻¹)	$\,\beta $₀/(°)	Exp.	HJC	TCK	HJC	TCK	Exp.	HJC	TCK	HJC	TCK
1	322.3	0	133.5	126.4	132.4	5.3	0.8	0	0	0	0	0
2	330.8	15	106.4	103.9	112.1	2.3	5.4	−4	−6.9	−5.5	3.1	1.6
3	258.0	15	25.2	No perforation		No perforation		−27	No perforation		No perforation
4	335.9	30	81.7	73.9	89.7	9.5	8.0	1	−4.7	−2.1	5.7	3.3
5	259.6	30	13.4	No perforation		No perforation		−31	No perforation		No perforation

下载: 导出CSV
