王莲仿生梯度蜂窝的面外压缩行为

王海任; 李世强; 刘志芳; 雷建银; 李志强; 王志华

doi:10.11858/gywlxb.20200562

王莲仿生梯度蜂窝的面外压缩行为

doi: 10.11858/gywlxb.20200562

太原理工大学机械与运载工程学院应用力学研究所，山西太原　030024

基金项目: 国家自然科学基金（11772216，11772215，11902215）

详细信息

作者简介:
王海任（1988－），男，博士研究生，主要从事冲击动力学研究. E-mail：wanghairen0125@link.tyut.edu.cn

通讯作者:
王志华（1977－），男，博士，教授，主要从事冲击动力学研究. E-mail：wangzh@tyut.edu.cn

中图分类号: O347
计量
- 文章访问数: 8029
- HTML全文浏览量: 3636
- PDF下载量: 51
出版历程
- 收稿日期: 2020-05-26
- 修回日期: 2020-06-10

Out-of-Plane Compression Performance of Gradient Honeycomb Inspired by Royal Water Lily

Institute of Applied Mechanics, College of Mechanical and Vehicle Engineering, Taiyuan University of Technology, Taiyuan 030024, Shanxi, China

摘要

摘要: 利用ABAQUS有限元软件对仿王莲脉络分层梯度蜂窝进行准静态与动态压缩数值模拟，分析了其准静态压缩平台应力与相对密度，以及动态压缩强度与相对密度、冲击速度之间的关系。结果表明：当冲击速度较低时（10 m/s），芯层呈现渐进压溃模式；在高速冲击下（200 m/s），芯层压溃模式与梯度分布方式密切相关，初始为渐进压溃模式，当冲击波传播至远端时，各层的压溃和密实化取决于其静态压缩强度，密实化依次出现在压缩强度较低的芯层。
- 仿生蜂窝 /
- 梯度芯层 /
- 压缩强度 /
- 变形模式
Abstract: Inspired by the venation of Royal Water Lily leaves, we conducted numerical simulations on the quasi-static and dynamic compression of layered-gradient honeycomb using the finite element software ABAQUS. Then the relationship of the quasi-static compression plateau stress with the relative density, as well as the relationship of the dynamic compressive strength with the relative density and the impact velocity was analyzed. The results show that: the progressive collapse mode appears at a low impact velocity (10 m/s); the collapse mode presents closely related to the gradient distribution at the impact velocity of 200 m/s, and the initial collapse mode just turns to be progressive. When the shock wave propagates to the far end (fixed end), the layer’s collapse and compaction depend on its static compressive strength, and the compaction occurs in the layer with lower compressive strength in turn.
- bionic honeycomb /
- gradient core /
- compressive strength /
- deformation mode

HTML全文

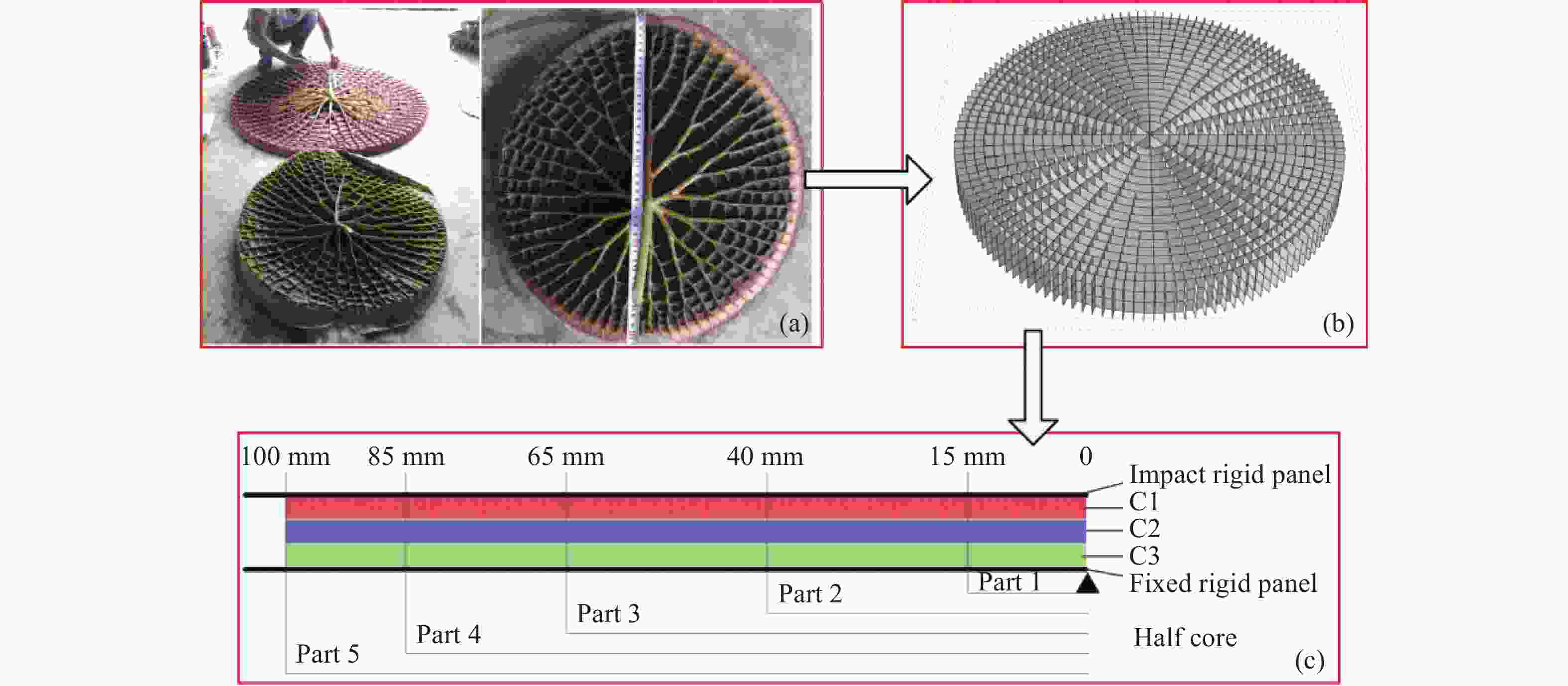

图 1 仿生蜂窝设计策略： (a)王莲叶脉， (b)王莲叶脉简化模型，(c)梯度蜂窝压缩模型

Figure 1. Bionic honeycomb design: (a) natural Royal Water Lily vein structure, (b) a simplified model of natural Royal Water Lily vein, (c) compression model of gradient honeycomb

下载: 全尺寸图片幻灯片

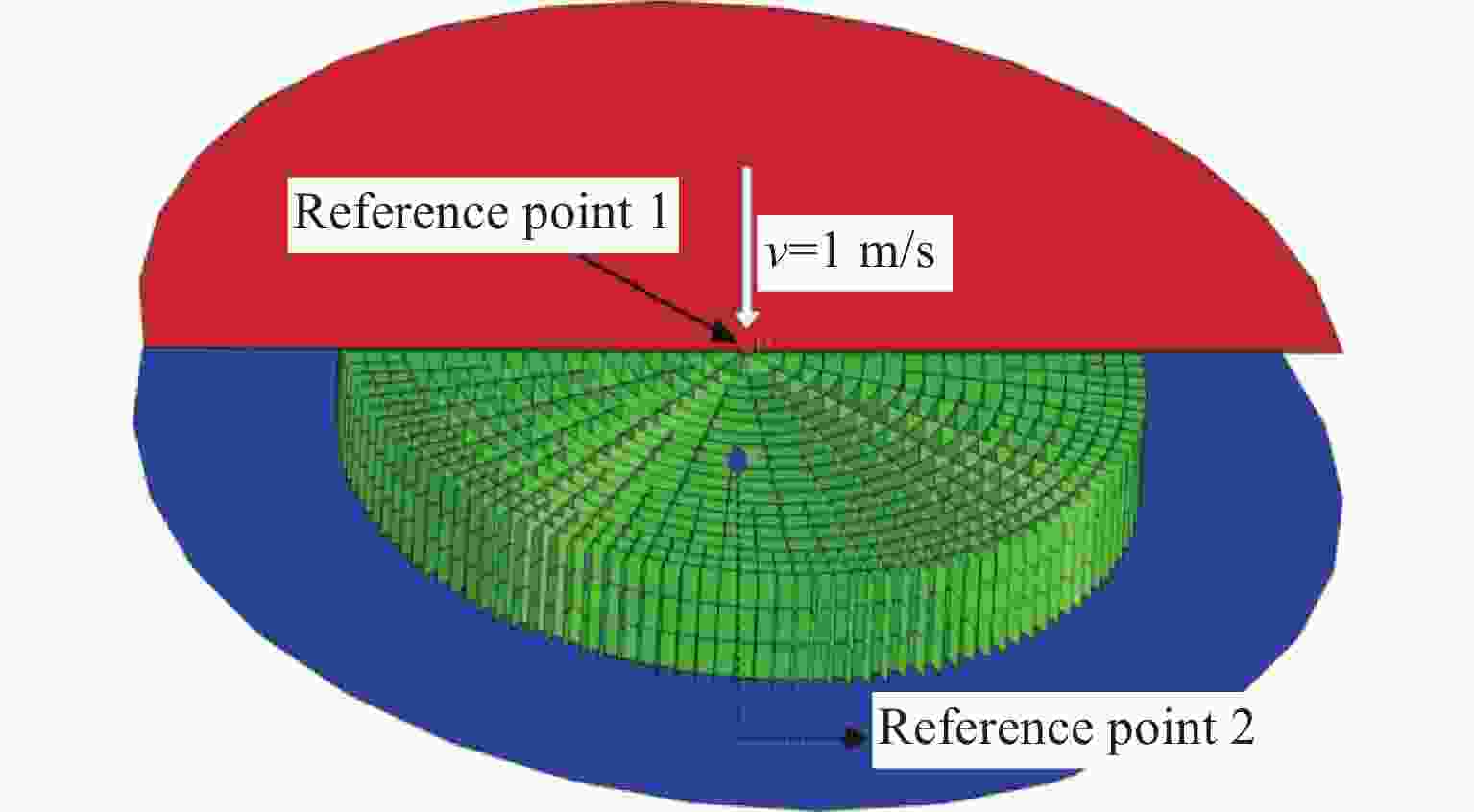

图 2 面外压缩模型

Figure 2. Schematic diagram of out-of-plane compression model

下载: 全尺寸图片幻灯片

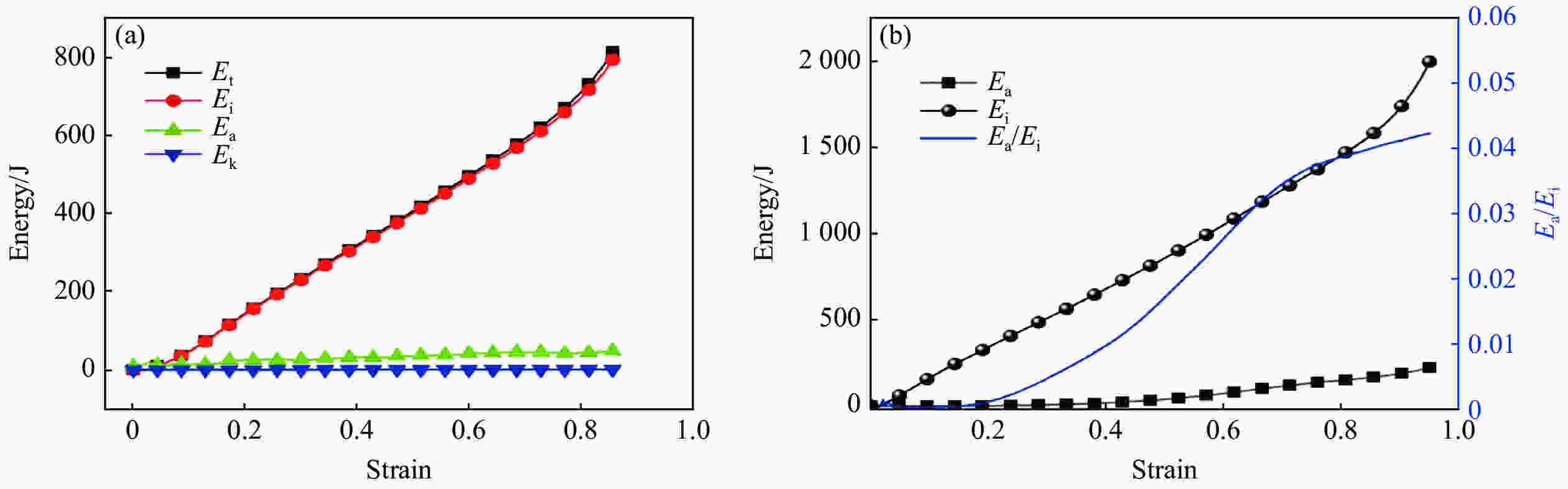

图 3 相对密度为2%的均匀仿生蜂窝的能量验证： (a) 准静态压缩， (b) 250 m/s动态压缩

Figure 3. Energy verification of uniform bionic honeycomb with relative density 2%: (a) quasi-static compression, (b) 250 m/s dynamic compression

下载: 全尺寸图片幻灯片

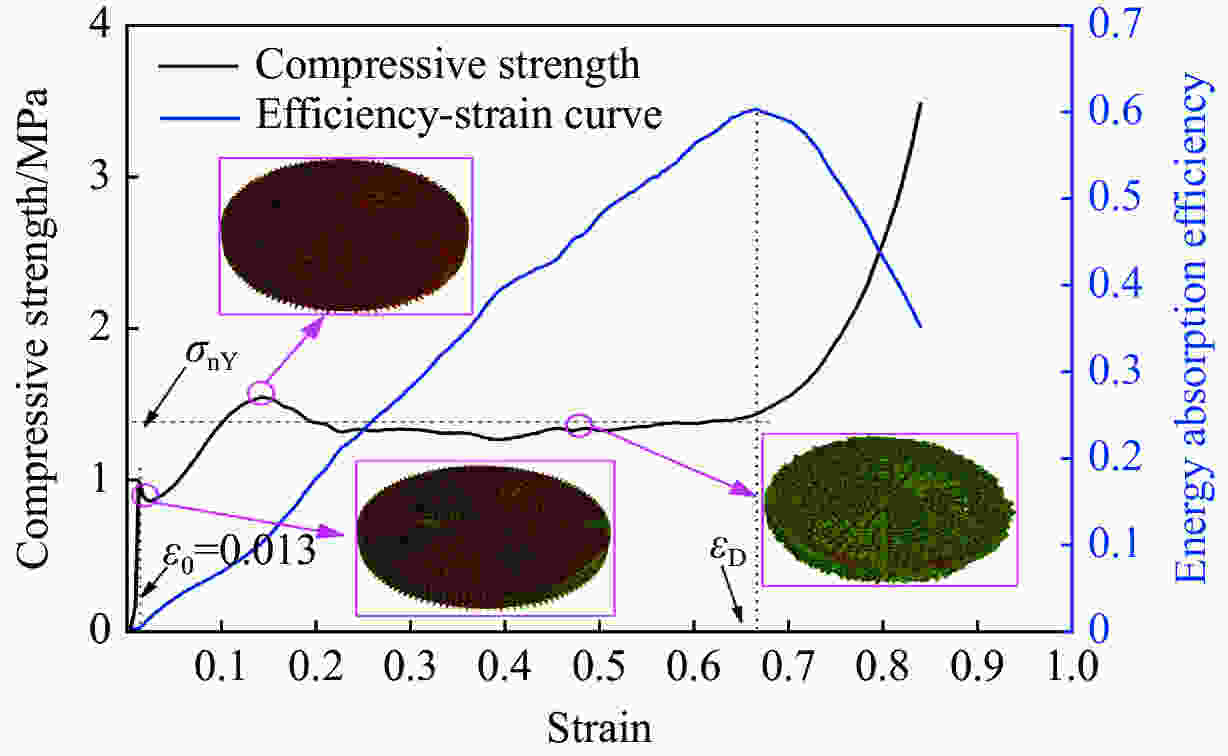

图 4 均匀仿生蜂窝准静态压缩曲线与能量吸收效率

Figure 4. Quasi-static compression curve and energy absorption efficiency of uniform bionic honeycomb

下载: 全尺寸图片幻灯片

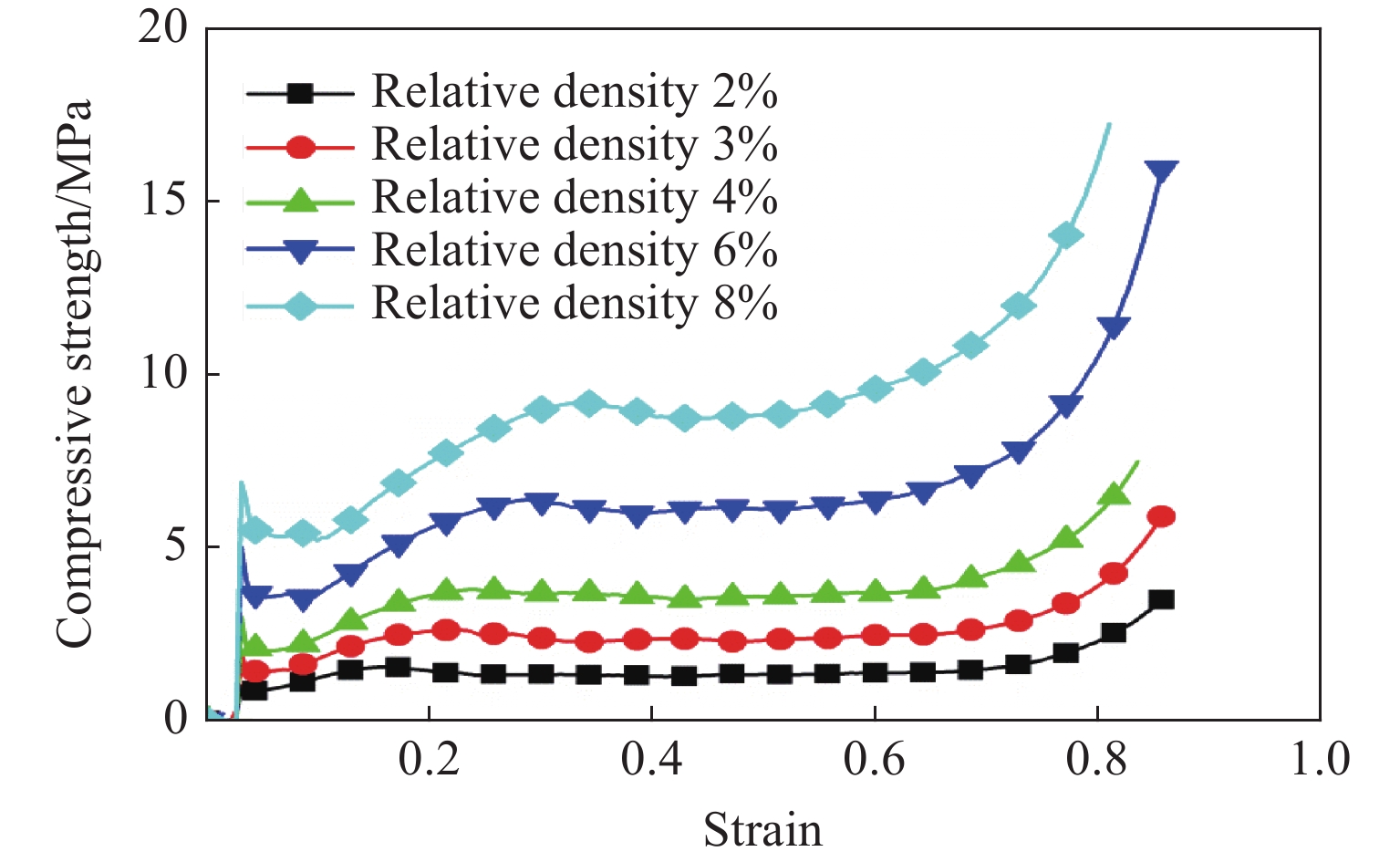

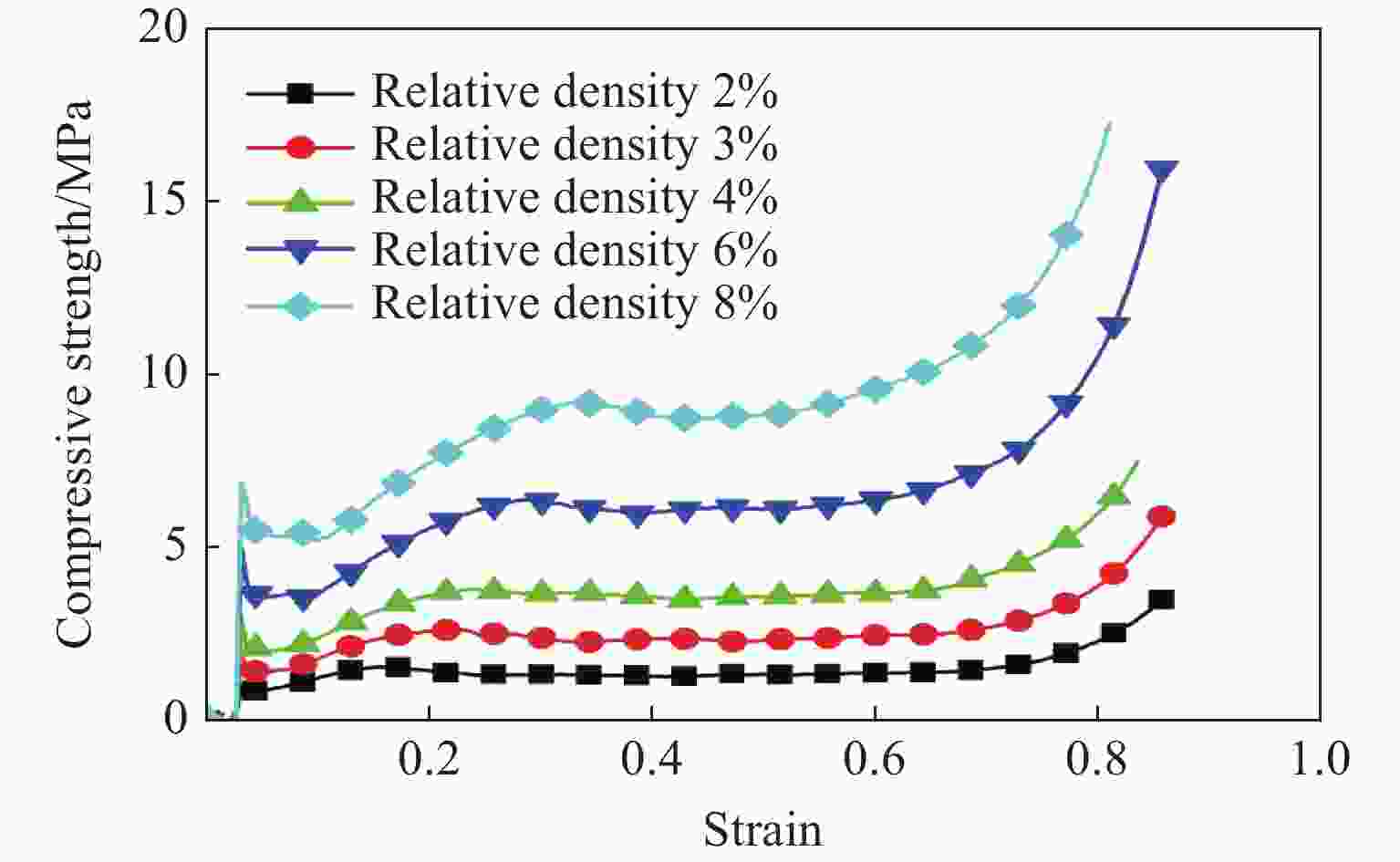

图 5 不同相对密度均匀仿生蜂窝准静态压缩曲线

Figure 5. Quasi-static compression curves of bionic honeycomb with different relative densities

下载: 全尺寸图片幻灯片

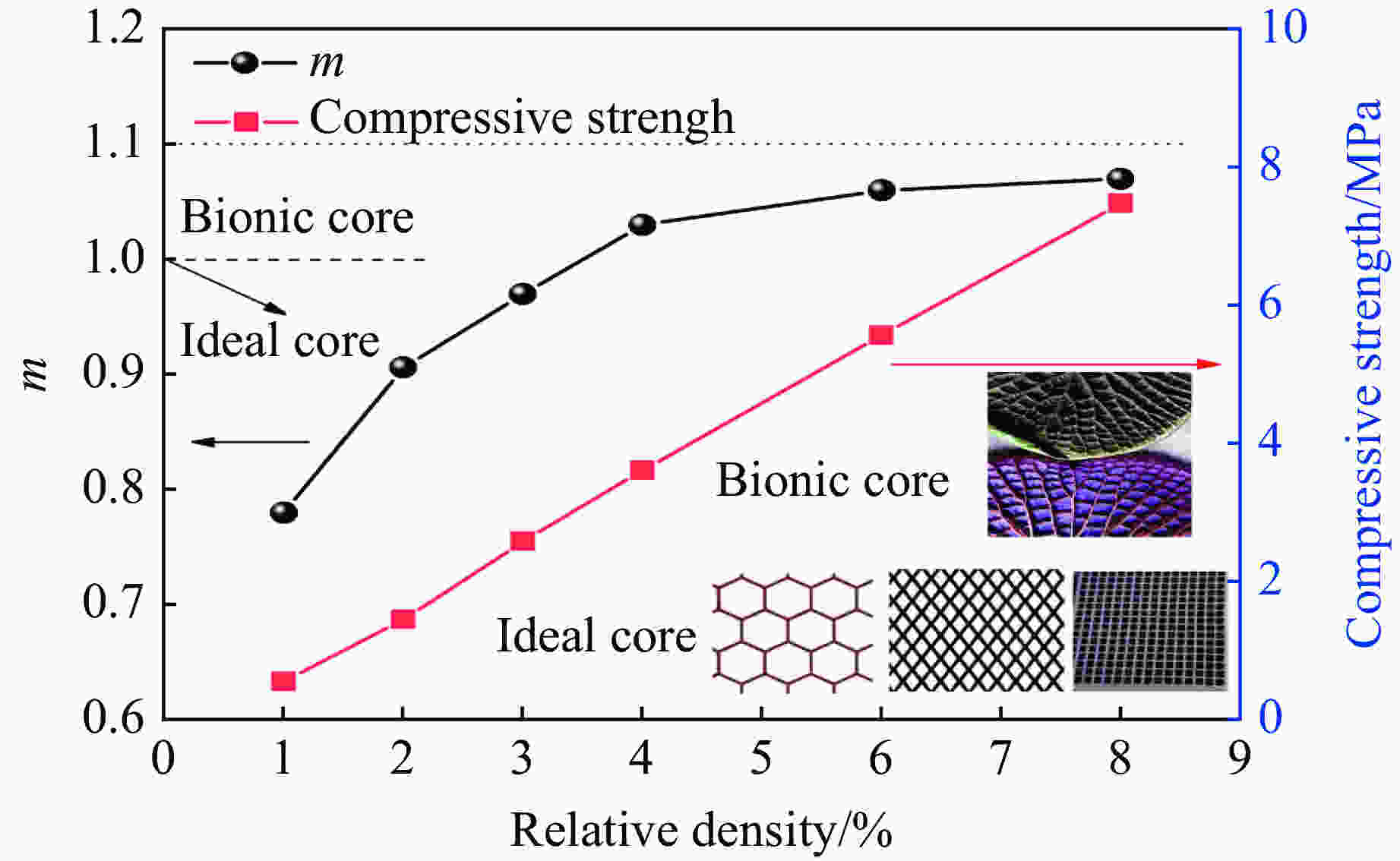

图 6 不同相对密度的m值与准静态压缩强度

Figure 6. m and quasi-static compressive strengths of different relative densities

下载: 全尺寸图片幻灯片

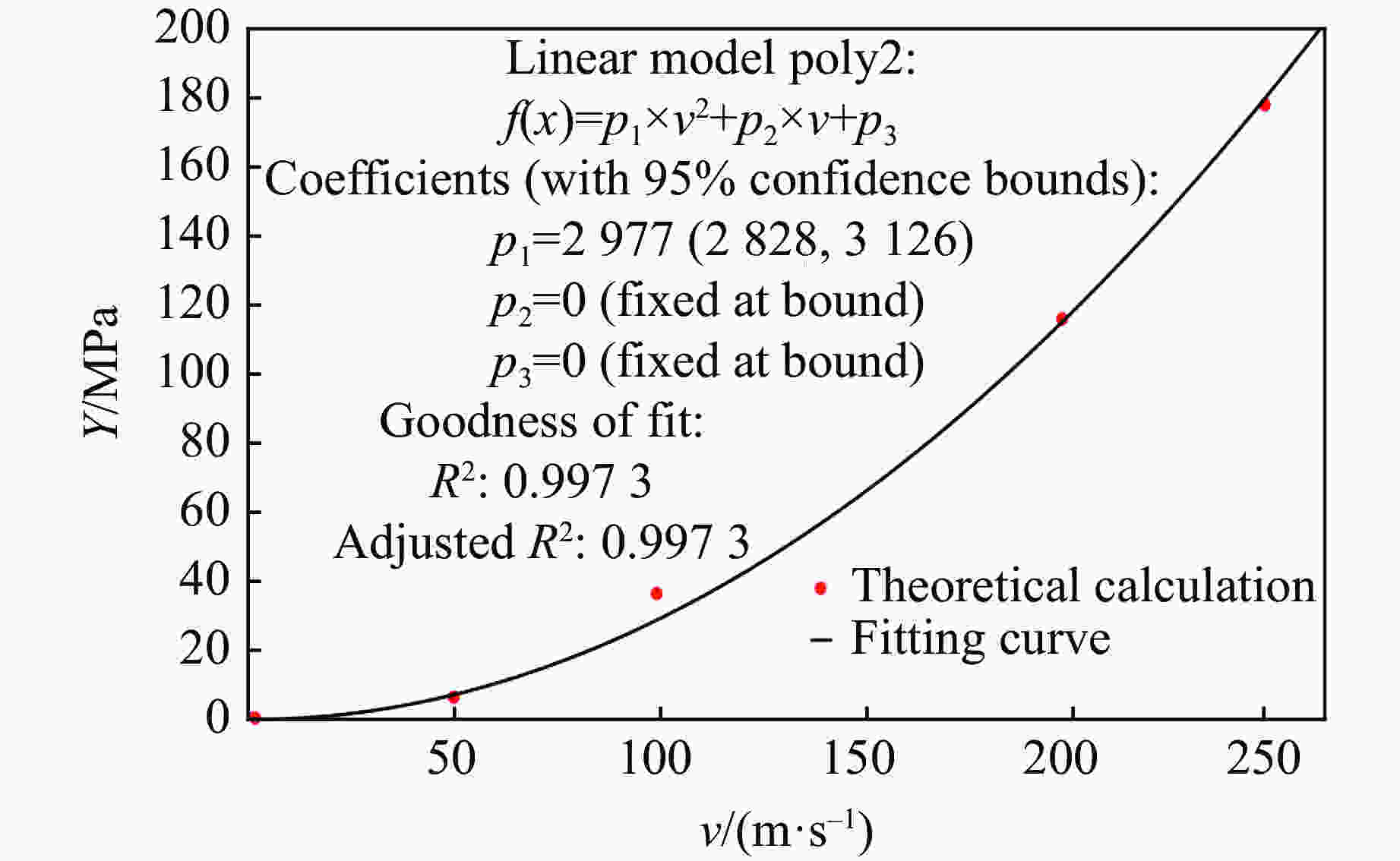

图 7 动态参数A的拟合曲线

Figure 7. Fitting curves of dynamic parameter A

下载: 全尺寸图片幻灯片

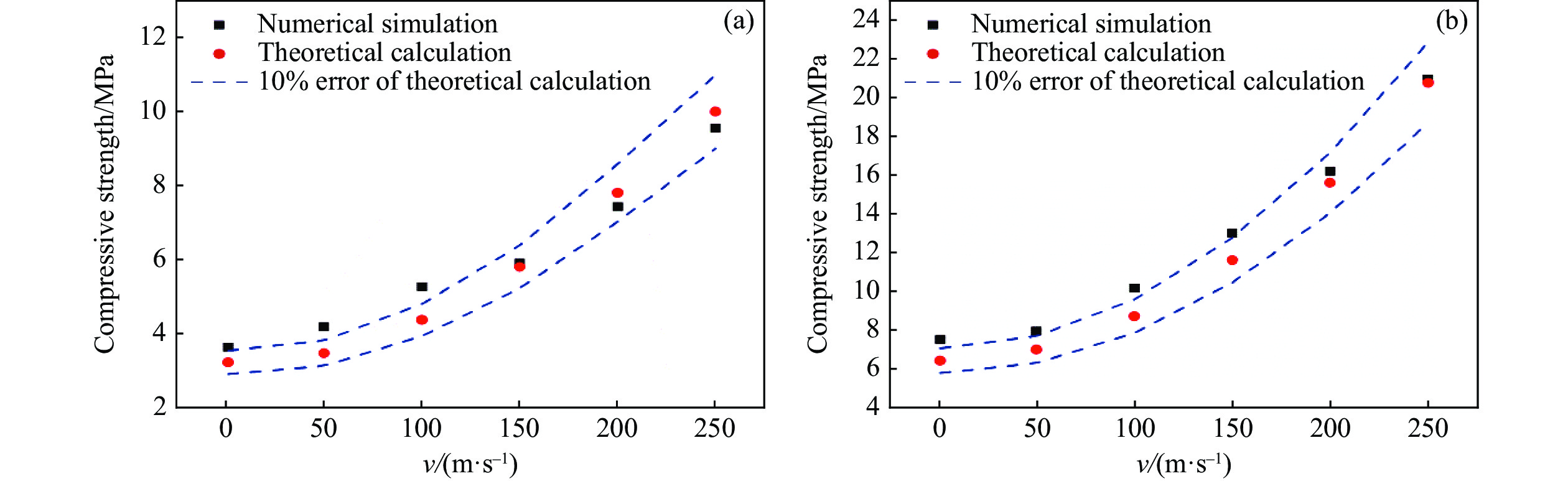

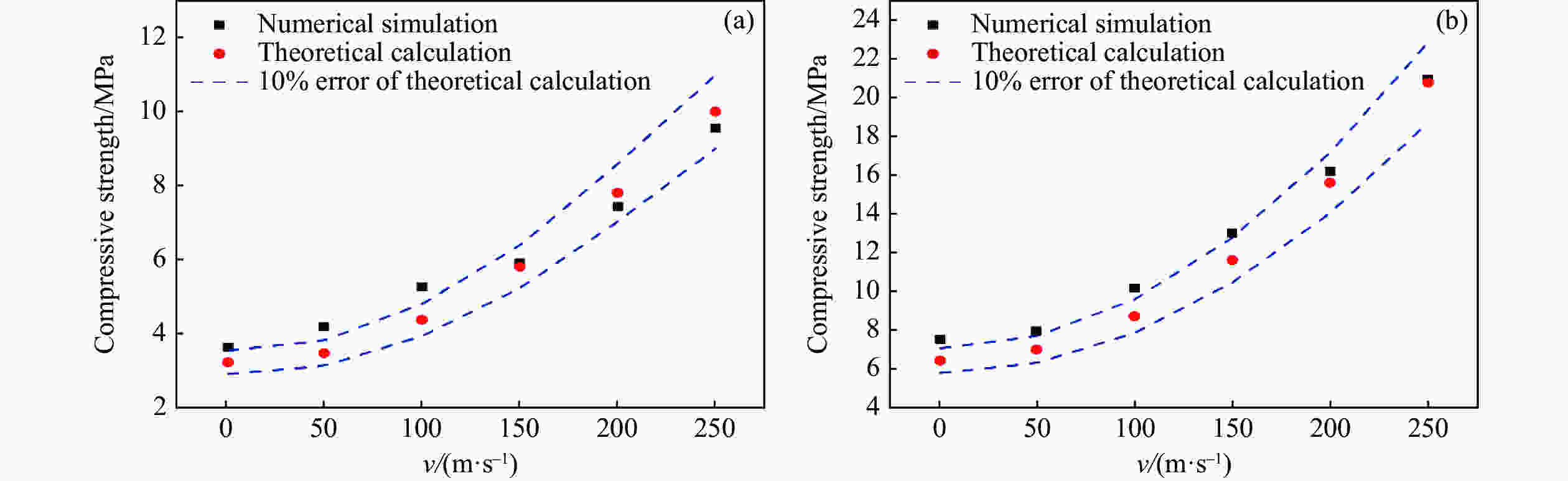

图 8 均匀仿生蜂窝动态压缩强度理论值与模拟值对比：(a)相对密度4%，(b)相对密度8%

Figure 8. Comparison between theoretical calculations and simulation values of dynamic compressive strengths ofuniform bionic honeycomb: (a) relative density 4%, (b) relative density 8%

下载: 全尺寸图片幻灯片

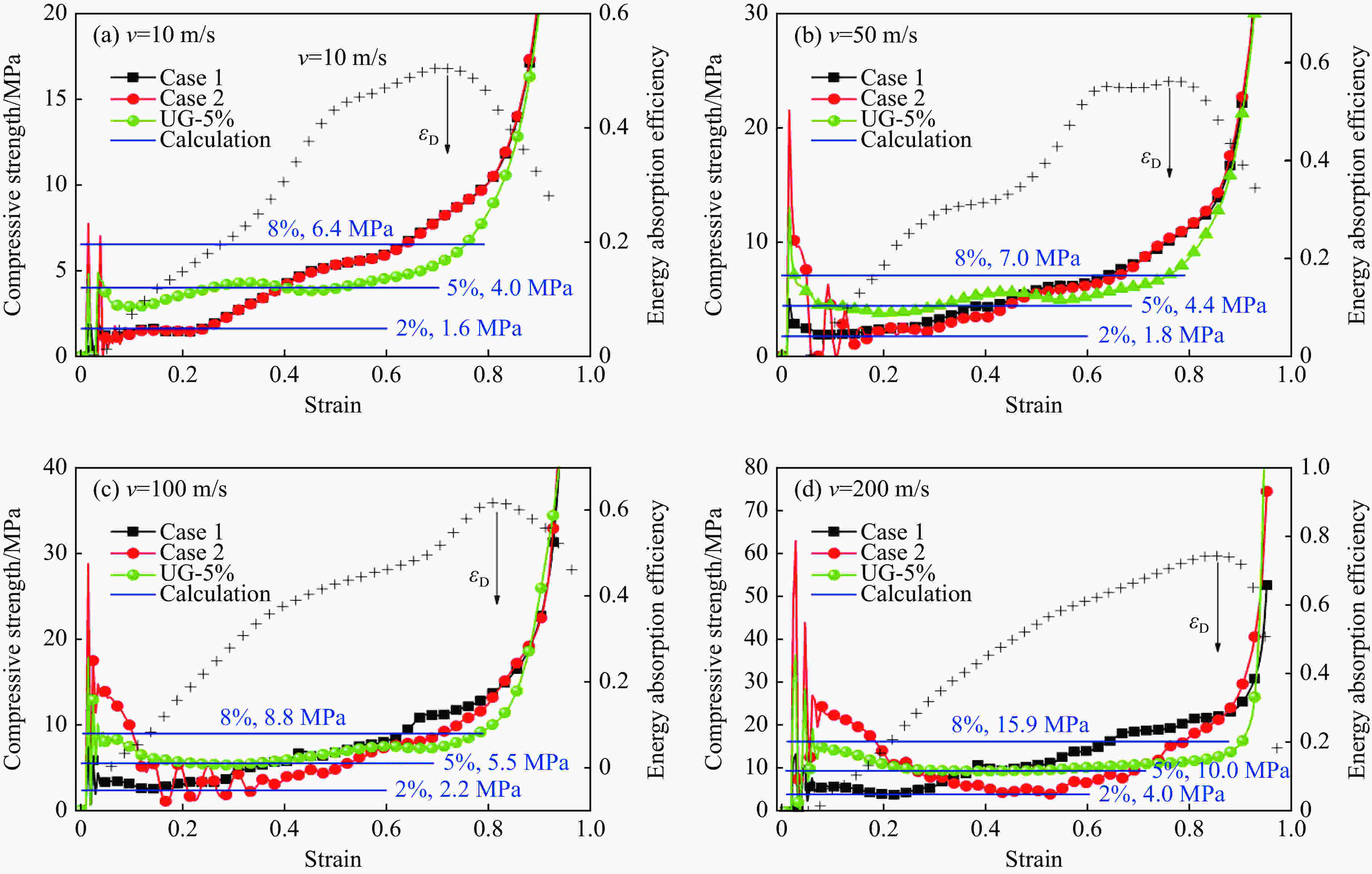

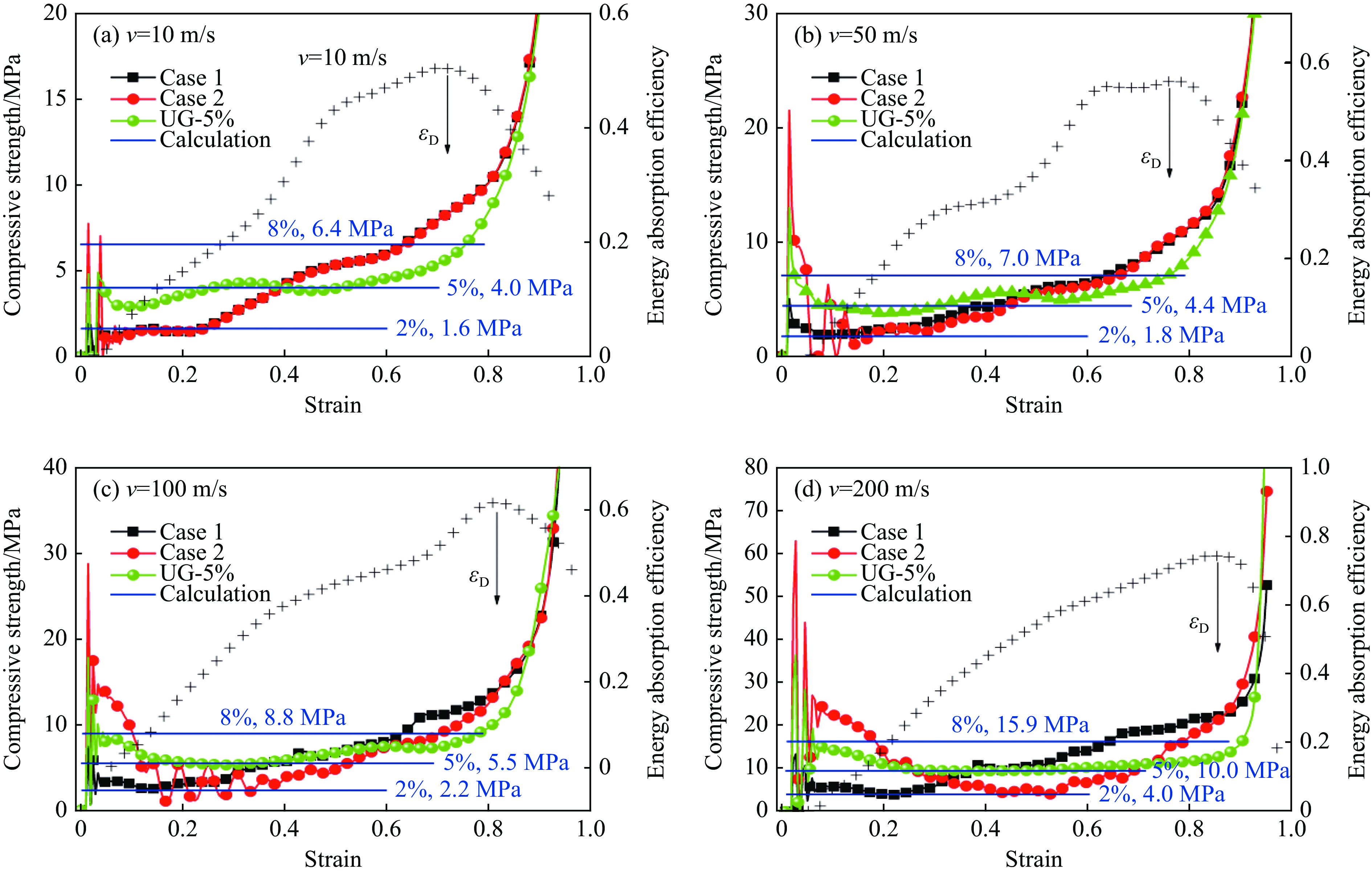

图 9 面外梯度仿生蜂窝在不同冲击速度下的压缩强度曲线与能量吸收效率曲线
