RDX单晶炸药的冲击-斜波加载实验研究

种涛; 莫建军; 蔡进涛; 王桂吉

doi:10.11858/gywlxb.20200529

RDX单晶炸药的冲击-斜波加载实验研究

doi: 10.11858/gywlxb.20200529

中国工程物理研究院流体物理研究所，四川绵阳　621999

基金项目: 国家自然科学基金（11702276，11972031）；冲击波物理与爆轰物理重点实验室基金（6142A03192007）

详细信息

作者简介:
种　涛（1986－），男，博士，助理研究员，主要从事动高压实验加载技术和材料动力学行为研究.E-mail：maoda318@163.com

通讯作者:
蔡进涛（1984－），男，博士，副研究员，主要从事含能材料动力学特性研究.E-mail：goldennoon@163.com

中图分类号: O521.2; O347.3
计量
- 文章访问数: 6836
- HTML全文浏览量: 3297
- PDF下载量: 40
出版历程
- 收稿日期: 2020-03-12
- 修回日期: 2020-06-17

Experimental Study on Shock-Ramp Wave Profiles in RDX Single Crystal Explosive

Institute of Fluid Physics, CAEP, Mianyang 621999, Sichuan, China

摘要

摘要: 基于磁驱动加载装置CQ-4，完成了冲击-斜波复杂加载实验设计，开展了RDX单晶(210)、(100)两个晶向在不同加载压力下的冲击-斜波压缩实验，获得了RDX单晶样品与LiF窗口界面的速度历史曲线和纵波声速。实验结果显示：速度波剖面可分为冲击压缩、斜波压缩和卸载3部分；当冲击压力较高时，冲击压缩段中不再出现弹塑性转变以及4 GPa附近相变的速度特征波形；当冲击压力较低时，在冲击压缩段观测到了弹-黏塑性波形。
- RDX单晶炸药 /
- 冲击-斜波加载 /
- 弹塑性转变 /
- 斜波压缩
Abstract: The shock-ramp wave loading experiment is fulfilled using pulsed power generator CQ-4. For RDX single crystal samples with the orientations of (210) and (100), the interfacial velocity profiles between the RDX sample and LiF window are obtained by photonic Doppler velocimetry (PDV). The experimental results show that the interfacial velocity profile is divided into three parts: shock compression, ramp wave compression and unloading waves. At the shock pressure of 4 GPa, an elastic-viscoplastic waveform is observed. When the shock pressure is as high as 7 GPa, the characteristic waveform corresponding to the elastic-plastic transition disappears in the measured wave profile.
- RDX crystal /
- shock-ramp loading /
- elastic-plastic transition /
- ramp wave compression

HTML全文

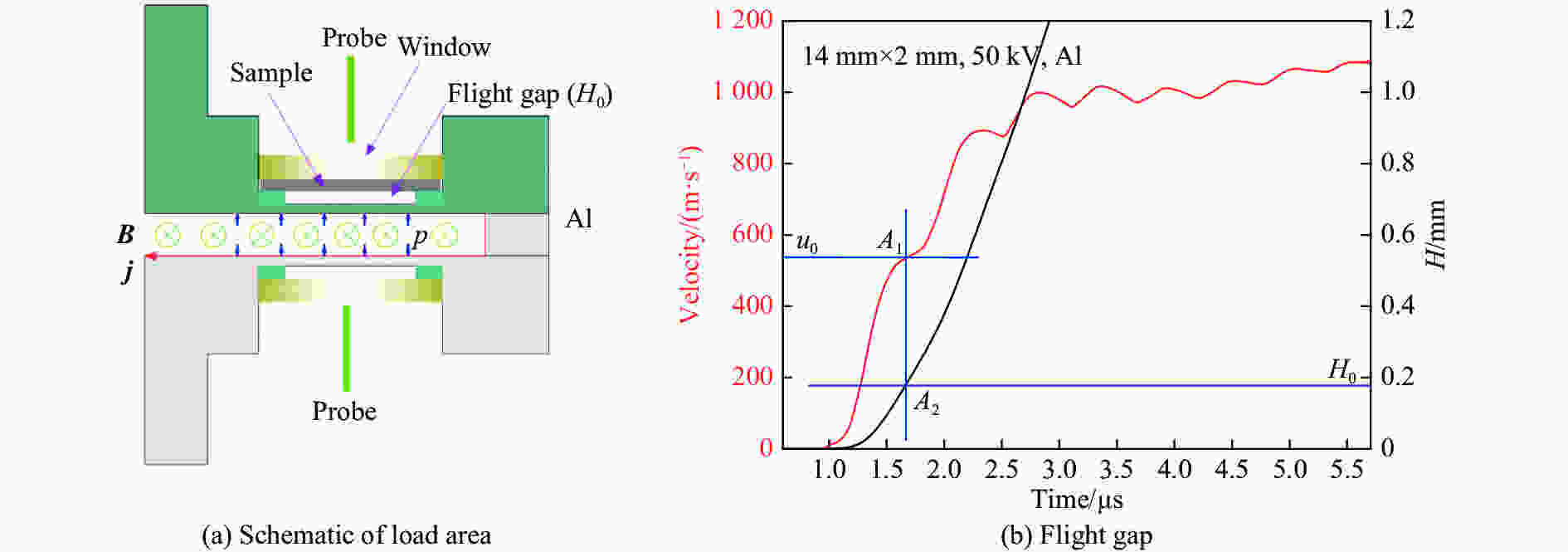

图 1 冲击-斜波加载实验设计示意图

Figure 1. Schematic of shock-ramp wave loading experiment

下载: 全尺寸图片幻灯片

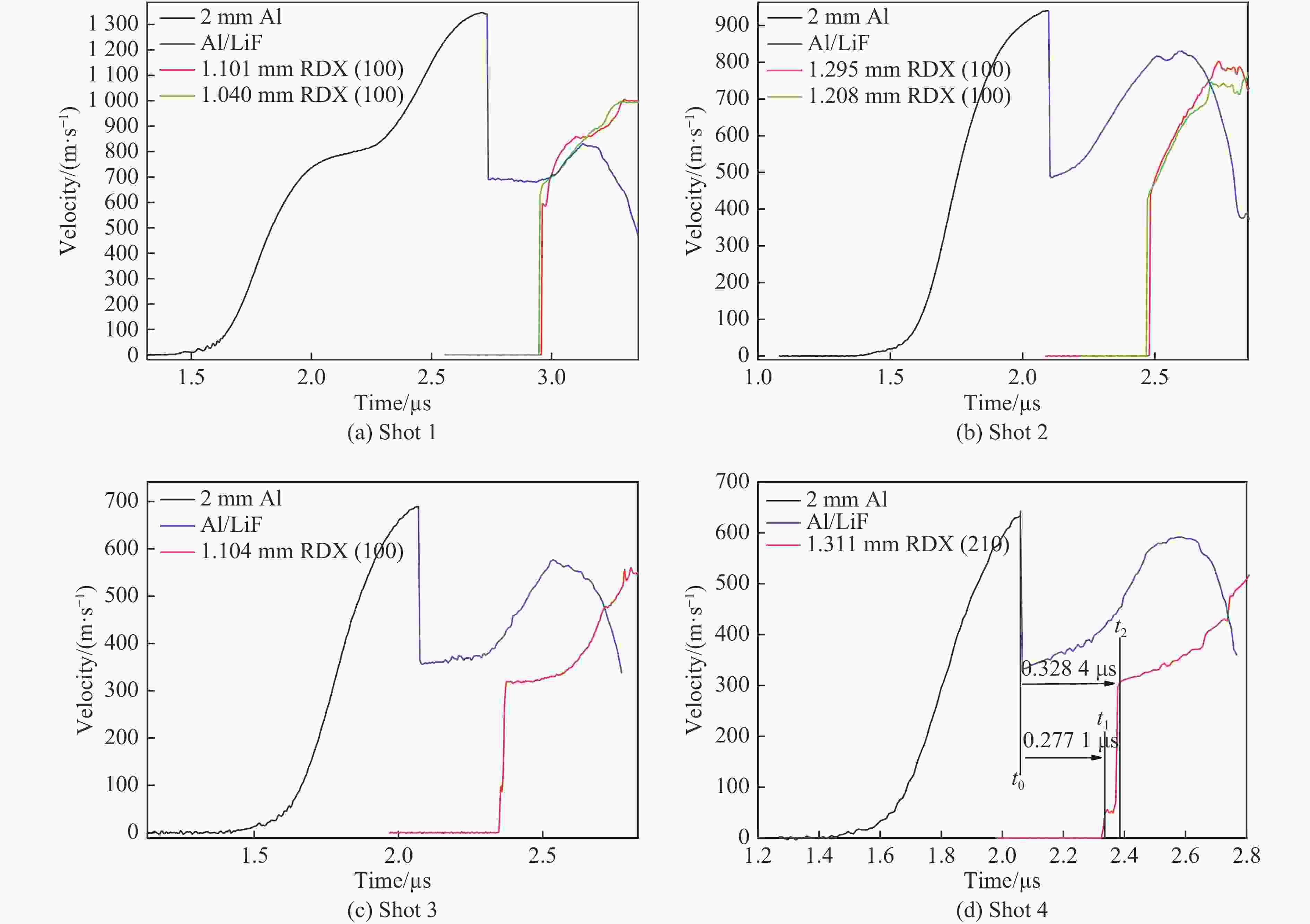

图 2 不同晶向RDX单晶的冲击-斜波加载实验速度曲线

Figure 2. Experimental data of shock-ramp wave loading on RDX single crystals with different orientations

下载: 全尺寸图片幻灯片

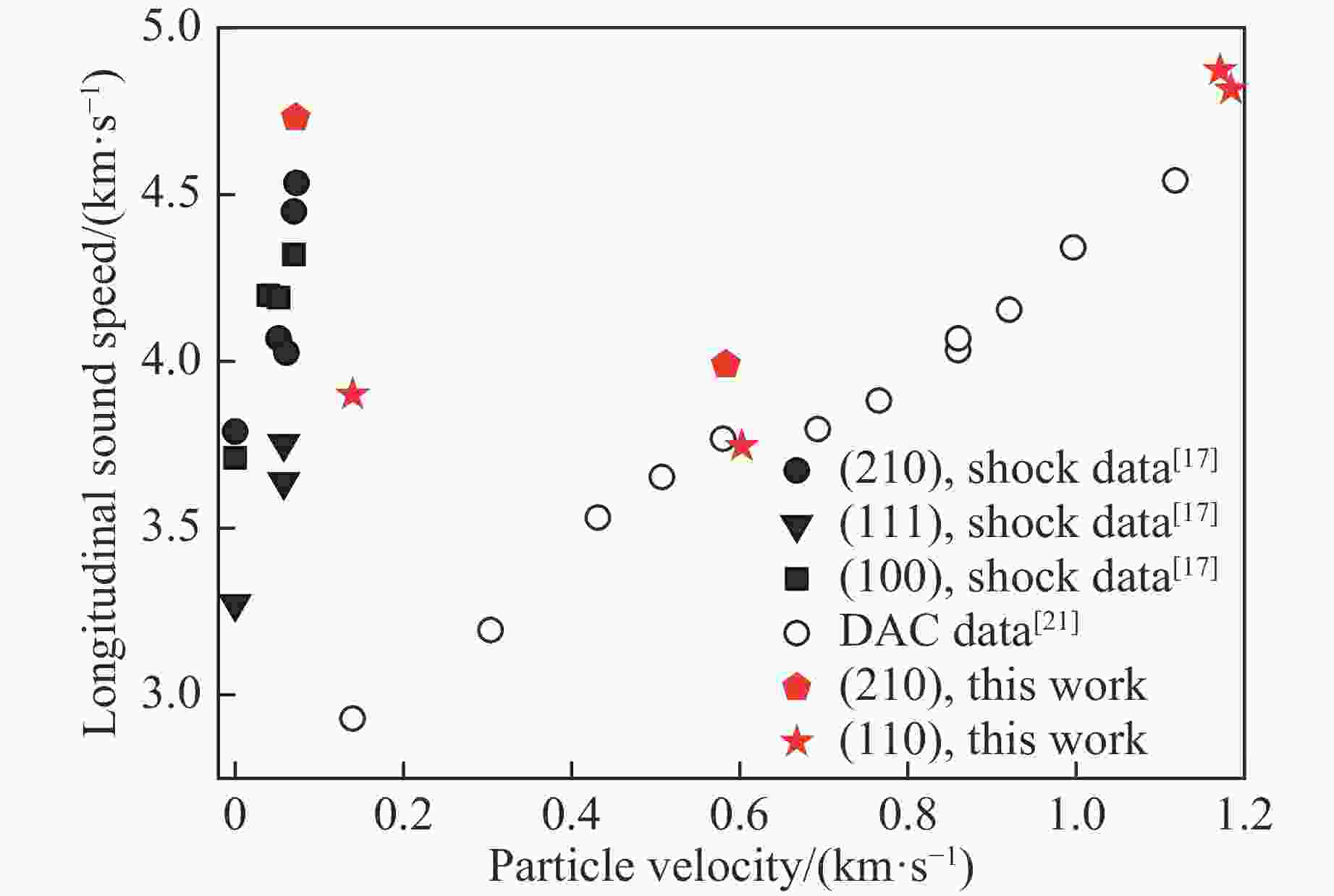

图 3 RDX单晶的纵波声速与文献结果的比较

Figure 3. Comparison of the longitudinal sound speed of RDX single crystal with the results of literatures

下载: 全尺寸图片幻灯片

表 1 实验条件

Table 1. Experimental conditions

Exp. No.	Sample 1-LiF		Sample 2-LiF		Lattice orientation of RDX	U₀/kV	H₀/mm
Exp. No.	d_s/mm	Size of LiF/ (mm × mm)	d_s/mm	Size of LiF/ (mm × mm)	Lattice orientation of RDX	U₀/kV	H₀/mm
Shot 1	1.101	$\varnothing $10.0 × 4.035	1.040	$\varnothing $10.0 × 4.157	(100)	60	0.85
Shot 2	1.295	$\varnothing $10.0 × 4.042	1.208	$\varnothing $10.0 × 4.204	(100)	60	0.35
Shot 3	1.104	$\varnothing $10.0 × 4.075			(100)	50	0.17
Shot 4	1.311	$\varnothing $10.0 × 3.985			(210)	50	0.16

下载: 导出CSV

参考文献(21)

[1]	谭武军. 含能晶体力学性能研究 [D]. 绵阳: 中国工程物理研究院, 2008. TAN W J. Studies on the mechanical properties of energetic crystals [D]. Mianyang: China Academy of Engineering Physics, 2008.
[2]	李明, 陈天娜, 庞海燕, 等. RDX晶体的破碎与细观断裂行为 [J]. 含能材料, 2013, 21(2): 200–204. doi: 10.3969/j.issn.1006-9941.2013.02.008 LI M, CHEN T N, PANG H Y, et al. Ruptures and mesoscale fracture behaviors of RDX crystals [J]. Chinese Journal of Energetic Materials, 2013, 21(2): 200–204. doi: 10.3969/j.issn.1006-9941.2013.02.008
[3]	王国栋, 刘玉存. 神经网络在炸药晶体密度预测中的应用 [J]. 火炸药学报, 2007, 30(1): 57–59. doi: 10.3969/j.issn.1007-7812.2007.01.016 WANG G D, LIU Y C. Application of artificial neural network in predicting the density of explosives [J]. Chinese Journal of Explosives & Propellants, 2007, 30(1): 57–59. doi: 10.3969/j.issn.1007-7812.2007.01.016
[4]	花成, 傅华, 田勇, 等. 冲击波作用下HMX晶体的细观响应 [J]. 火炸药学报, 2010, 33(3): 5–8. doi: 10.3969/j.issn.1007-7812.2010.03.002 HUA C, FU H, TIAN Y, et al. Meso-scale response of HMX crystal under the shock waveeffect [J]. Chinese Journal of Explosives & Propellants, 2010, 33(3): 5–8. doi: 10.3969/j.issn.1007-7812.2010.03.002
[5]	HALL C A, ASAY J R, KNUDSON M D, et al. Experimental configuration for isentropic compression of solids using pulsed magnetic loading [J]. Review of Scientific Instruments, 2001, 72(9): 3587–3595. doi: 10.1063/1.1394178
[6]	HARE D E, FORBES J W, REISMAN D B, et al. Isentropic compression loading of octahydro-1, 3, 5, 7-tetranitro-1, 3, 5, 7-tetrazocine (HMX) and the pressure-induced phase transition at 27 GPa [J]. Applied Physics Letters, 2004, 85(6): 949–951. doi: 10.1063/1.1771464
[7]	HARE D E, REISMAN D B, GARCIA F, et al. The isentrope of unreacted LX-04 to 170 kbar [J]. AIP Conference Proceedings, 2004, 706(1): 145–148.
[8]	HARE D E, REISMAN D B, DICK J J, et al. Isentropic compression loading of HMX and the pressure-induced phase transition at 27 GPa: UCRL-JRNL-202601 [R]. Livermore, USA: Lawrence Livermore National Laboratory, 2004.
[9]	BAER M R, ROOT S, DATTELBAUM D, et al. Shockless compression studies of HMX-based explosives [J]. AIP Conference Proceedings, 2009, 1195(1): 699–702.
[10]	BAER M R, HALL C A, GUSTAVSEN R L, et al. Isentropic loading experiments of a plastic bonded explosive and constituents [J]. Journal of Applied Physics, 2007, 101(3): 034906. doi: 10.1063/1.2399881
[11]	INFANTE-CASTILLO R, PACHECO-LONDOÑO L C, HERNÁNDEZ-RIVERA S P. Monitoring the α →β solid-solid phase transition of RDX with Raman spectroscopy: atheoretical and experimental study [J]. Journal of Molecular Structure, 2010, 970(1/2/3): 51–58.
[12]	GOTO N, FUJIHISA H, YAMAWAKI H, et al. Crystal structure of the high-pressure phase of hexahydro-1, 3, 5-trinitro-1, 3, 5-triazine (γ-RDX) [J]. The Journal of Physical Chemistry B, 2006, 110(47): 23655–23659. doi: 10.1021/jp0635359
[13]	PATTERSON J E, DREGER Z A, GUPTA Y M. Shock wave-induced phase transition in RDX single crystals [J]. The Journal of Physical Chemistry B, 2007, 111(37): 10897–10904. doi: 10.1021/jp079502q
[14]	CAWKWELL M J, RAMOS K J, HOOKS D E, et al. Homogeneous dislocation nucleation in cyclotrimethylene trinitramine under shock loading [J]. Journal of Applied Physics, 2010, 107(6): 063512. doi: 10.1063/1.3305630
[15]	RAMOS K J, HOOKS D E, SEWELL T D, et al. Anomalous hardening under shock compression in (021)-oriented cyclotrimethylene trinitramine single crystals [J]. Journal of Applied Physics, 2010, 108(6): 066105. doi: 10.1063/1.3485807
[16]	CAWKWELL M J, SEWELL T D, ZHENGL Q, et al. Shock-induced shear bands in an energetic molecular crystal: application of shock-front absorbing boundary conditions to molecular dynamics simulations [J]. Physical Review B, 2008, 78(1): 014107. doi: 10.1103/PhysRevB.78.014107
[17]	HOOKS D E, RAMOS K J, MARTINEZ A R. Elastic-plastic shock wave profiles in oriented single crystals of cyclotrimethylene trinitramine (RDX) at 2.25 GPa [J]. Journal of Applied Physics, 2006, 100(2): 024908. doi: 10.1063/1.2214639
[18]	种涛, 蔡进涛, 赵剑衡, 等. 斜波压缩下RDX单晶弹塑性及相变过程的数值模拟 [C]//第11届全国爆轰学术会议. 玉溪, 2016. CHONG T, CAI J T, ZHAO J H, et al. Numerical simulation of elastoplasticity and phase transformation of RDX single crystal under ramp wave loading [C]//11th National Detonation Conference. Yuxi, 2016.
[19]	CAI J T, ZHAO F, WANG G J, et al. Experimental research on elastic-plastic transition and α to γ phase transformation of RDX crystal under ramp loading [C]//Proceedings of 2015 International Autumn Seminar on Propellants, Explosives and Pyrotechnics. Qingdao, 2015.
[20]	WANG G J, LUO B Q, ZHANG X P, et al. A 4 MA, 500 ns pulsed power generator CQ-4 for characterization of material behaviors under ramp wave loading [J]. Review of Scientific Instruments, 2013, 84(1): 015117. doi: 10.1063/1.4788935
[21]	OLINGER B, ROOF B, CADY H H. The linear and volume compression of β -HMX and RDX [C]//Proceedings of Symposium (International) on High Dynamic Pressures. Paris: CEA, 1978: 3–8.
