High Precision Targets Fabrication for Sound Velocity Measurements in Terapascal Pressure
-
摘要: 声速反映小应力扰动在介质中的传播特征，是材料在一定热力学状态下的重要属性，是研究材料状态方程、相变（包括固-固相变）以及物质构成等的重要手段。超高压声速测量对于地球和行星物理、惯性约束聚变以及第一性原理的建模等多个物理研究领域具有重要意义。基于侧向稀疏方法连续测量冲击绝热线上的体声速是获取超高压声速的全新方法。该方法对靶的制备要求很高。为此，详细介绍了基于该方法的靶的制备要求，探讨了制备工艺、测量技术以及影响实验精度的主要因素，并根据“神光Ⅲ”原型装置的实验结果进行相应的分析。Abstract: Sound velocity is an intrinsic property of material, which is equal to the spread velocity of weak perturbation. Measurements of sound velocity are very important for the research of equation of state, phase transition and component of matter at extreme conditions. A continuous side-release method which can work to terapascal pressure was newly developed. In this paper, we described details of high precision targets fabrication of this method, including requirements, methodology and detection. Also, key factors which lead to fatal issues are analyzed for better signals and reliability. Experimental results on SGIII prototype laser facility are shown to validate the technology of targets fabrication.
-
Key words:
- sound velocity /
- high pressure /
- Hugoniot curve /
- target physics
-

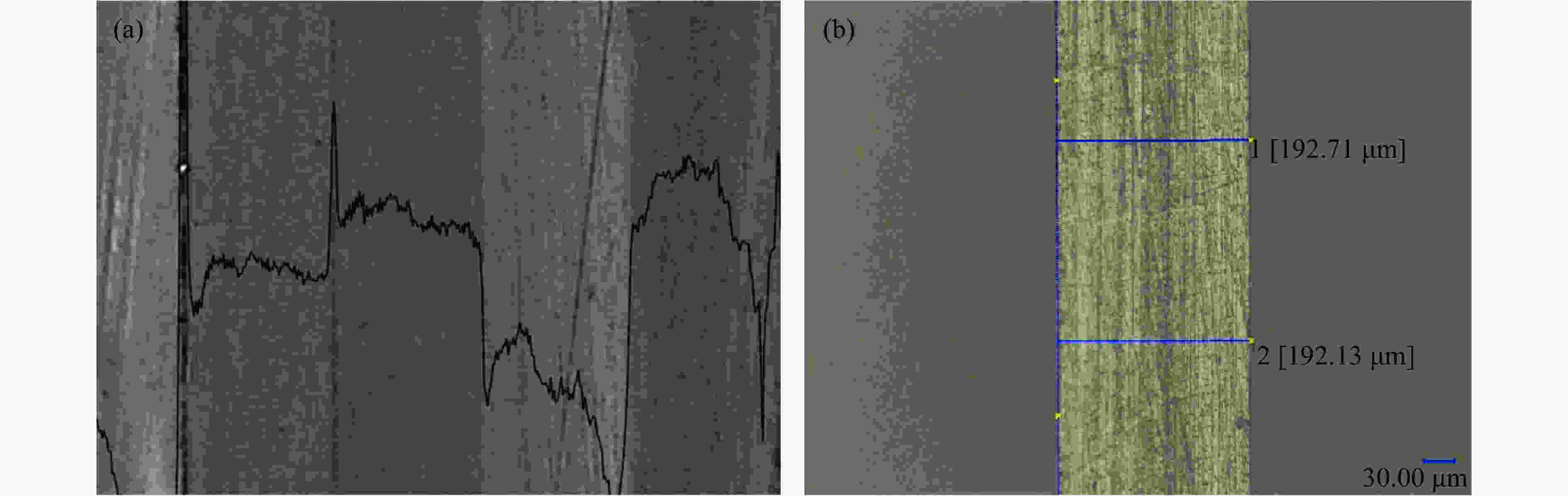

图 1 多层聚苯乙烯压片侧面抛光（a）及单片测量结果（b）
Figure 1. Side view of polished multiple (a) and single (b) polystyrene sample

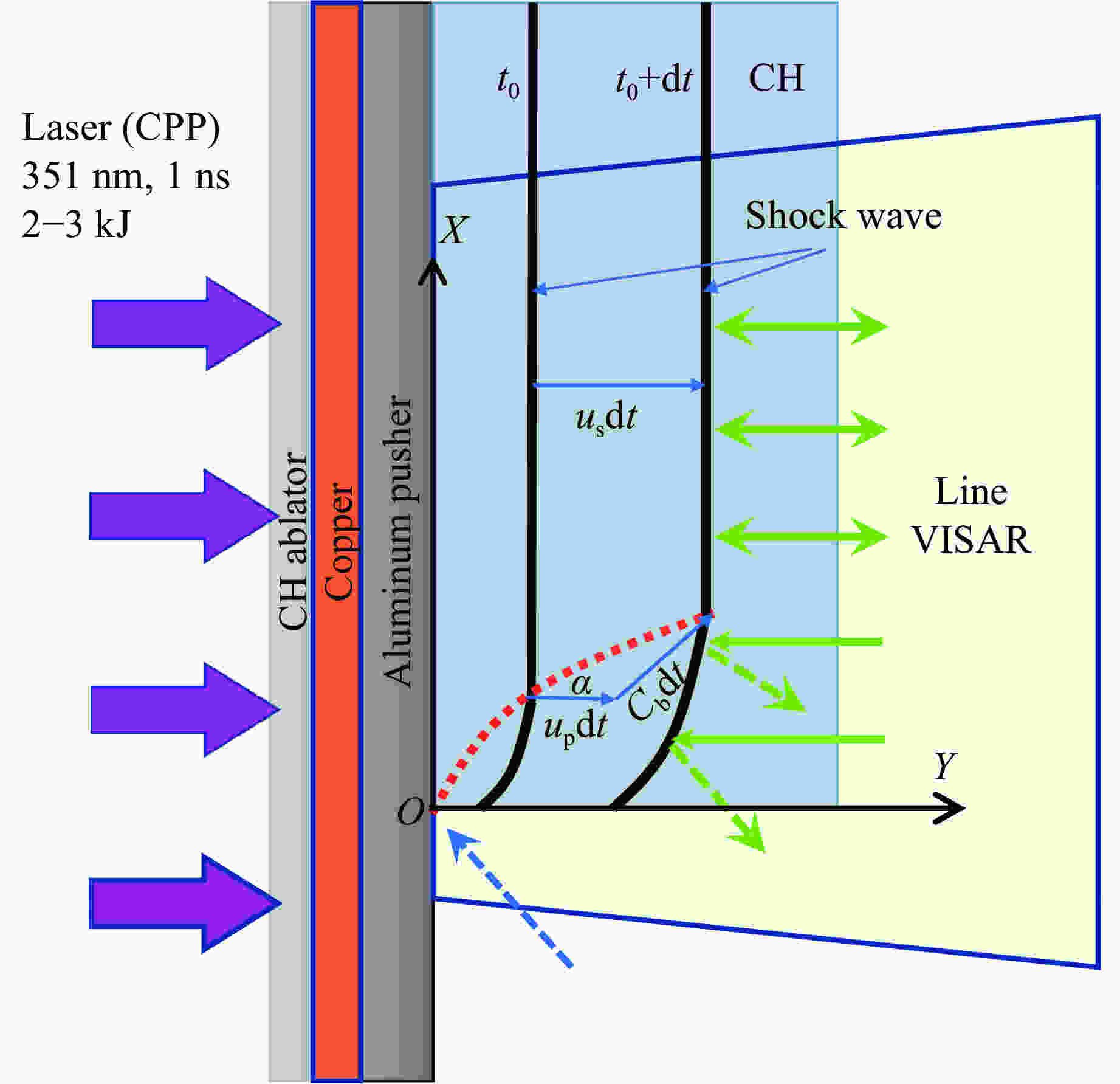

图 2 “神光Ⅲ”原型上使用的侧向稀疏靶装配示意图
Figure 2. Illustrations of assembled lateral-release target or SGⅢ prototype laser experiments

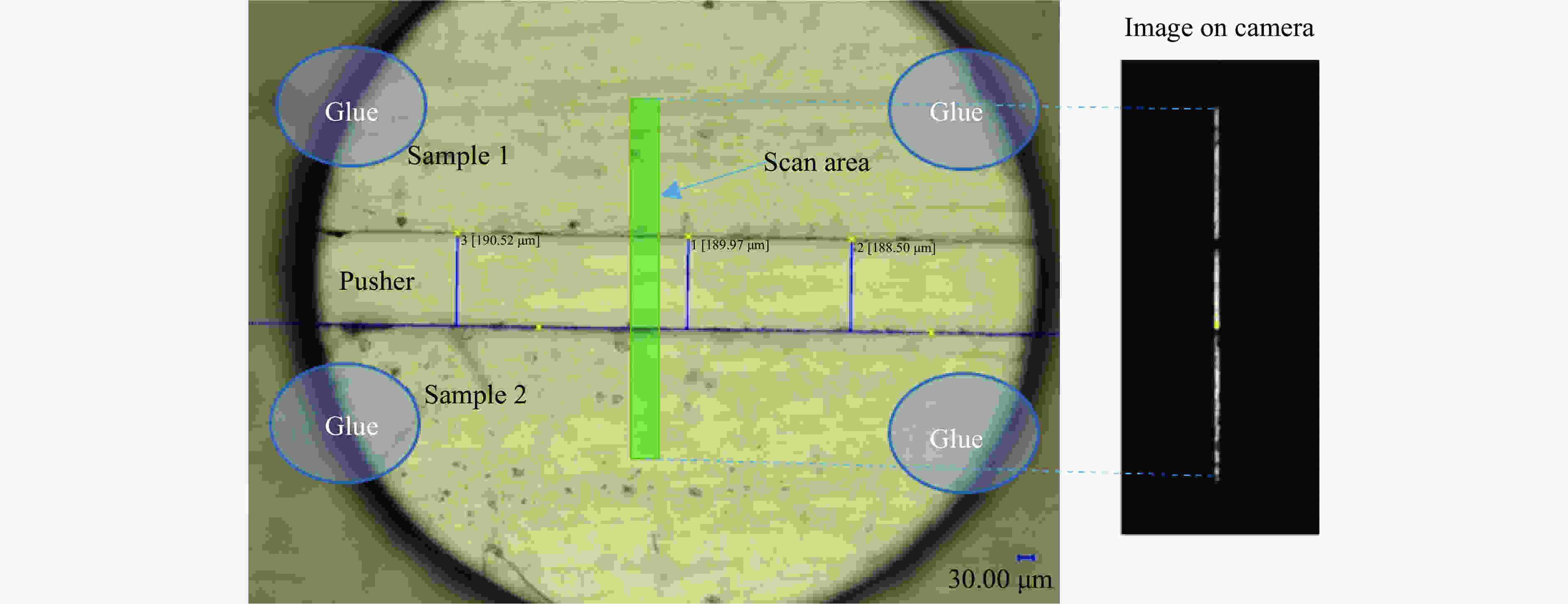

图 3 单次实验靶使用两块样品的装配实物、测量区域与条纹相机静态图像
Figure 3. Scanned area of a target with two samples for one shot and calibration result on streak camera

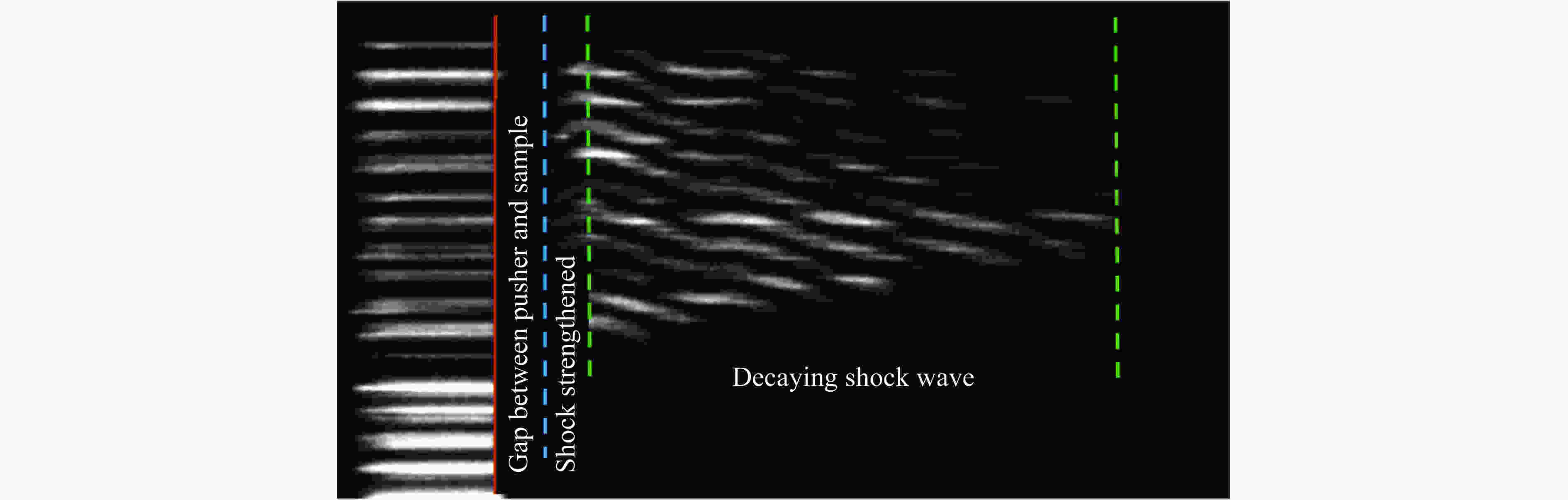

图 4 基板与透明样品之间存在间隙时的典型VISAR信号
Figure 4. VISAR data with a gap between pusher and transparent sample

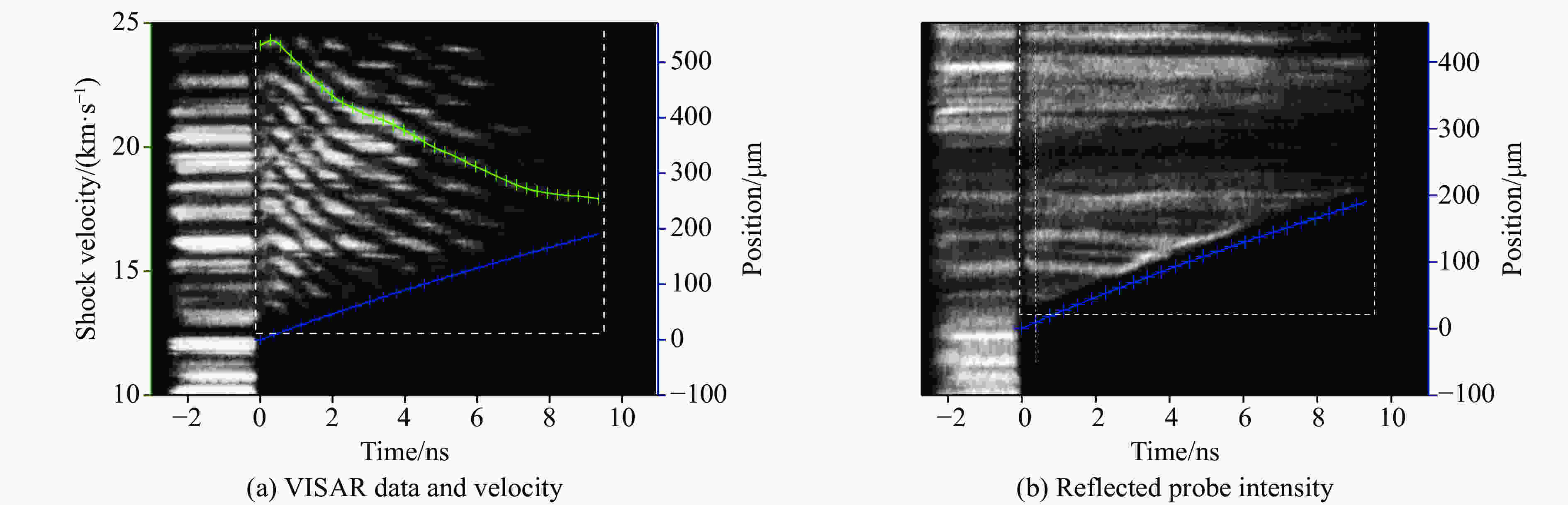

图 5 聚苯乙烯超高压冲击加载侧向稀疏测量的实验结果
Figure 5. Experimental results of lateral-release of shocked polystyrene
表 1 基于“神光Ⅲ”原型装置的驱动方式和靶参数对致盲及预热的影响
Table 1. Effects of drive modes and target parameters on sample preheating and reflection of probe beam in SGⅢ prototype laser experiments
