Fe-3.24%Si的状态方程和声速的第一性原理计算:地球内核Si元素的约束

李佩芸 黄海军 李艳丽

李正鹏, 曲艳东. 爆炸载荷作用下焊缝区附近埋地X70钢管的动力响应分析[J]. 高压物理学报, 2020, 34(3): 034204. doi: 10.11858/gywlxb.20190831
引用本文: 李佩芸, 黄海军, 李艳丽. Fe-3.24%Si的状态方程和声速的第一性原理计算:地球内核Si元素的约束[J]. 高压物理学报, 2019, 33(6): 060101. doi: 10.11858/gywlxb.20190781
LI Zhengpeng, QU Yandong. Dynamic Response Analysis of Buried X70 Steel Pipe near Weld Zone under Blast Loads[J]. Chinese Journal of High Pressure Physics, 2020, 34(3): 034204. doi: 10.11858/gywlxb.20190831
Citation: LI Peiyun, HUANG Haijun, LI Yanli. First-Principles Calculations of the Equation of State and Sound Velocity of Fe-3.24%Si: Implications for the Composition of Earth’s Inner Core[J]. Chinese Journal of High Pressure Physics, 2019, 33(6): 060101. doi: 10.11858/gywlxb.20190781

Fe-3.24%Si的状态方程和声速的第一性原理计算:地球内核Si元素的约束

doi: 10.11858/gywlxb.20190781
基金项目: 国家自然科学基金(41874103);中央高校基本科研经费(2017IB013,2018IB009,2018B011)
详细信息
    作者简介:

    李佩芸(1994-),女,硕士研究生,主要从事第一性原理计算研究. E-mail:lipeiyun@whut.edu.cn

    通讯作者:

    李艳丽(1977-),女,博士,副教授,主要从事第一性原理研究.E-mail:liyanli128@whut.edu.cn

  • 中图分类号: O521.2

First-Principles Calculations of the Equation of State and Sound Velocity of Fe-3.24%Si: Implications for the Composition of Earth’s Inner Core

  • 摘要: 硅(Si)被认为是地球内核的主要轻元素,但其在内地核中的含量仍然存在争议。为了探索内地核中Si的含量,应用第一性原理方法对Fe-3.24%Si(Si的质量分数为3.24%)进行了研究。构造了4种Fe-3.24%Si的超晶胞,研究了不同的晶胞大小和自旋对优化结构的影响。结果表明:在100 GPa以上,自旋对Fe-3.24%Si的密度无影响;而在100 GPa以下,考虑自旋时的计算结果更接近实验值。基于0 K下的声速、状态方程和相关热力学参数,计算了Fe-3.24%Si在内地核条件下的密度和声速。研究发现:Fe-3.24%Si的密度低于纯铁的密度,略高于内地核的密度;纵波声速及剪切波声速与纯铁的声速很接近,但均明显高于内地核声速,因此排除了内地核含有大量Si元素的可能性。



  • 作为液体和气体长距离运输的一种重要方式,管道运输在国家经济发展和国民生活中发挥着重要作用。然而,随着城镇化进程的加速,城市管网系统密集分布,爆炸作用引起的管道安全问题受到国内外广泛关注[1-3]。都的箭等[4]通过实验研究发现,正对爆心管段背面受到很大的轴向拉应力作用,且管道受爆炸载荷的影响主要与爆心距有关。Ji等[5]研究了X70钢管在局部爆炸载荷下的动力响应,发现管道的挠度和损伤程度随炸药量和接触面积的增大而增大,且壁厚对管道损伤和失效后的运动有重要作用。数值模拟是研究爆炸问题的一种重要方法,只要方法得当,模拟效果可与实际情况相吻合[6-7]。为此,梁政等[8]利用数值模拟方法研究了管道埋深、药量和管道壁厚因素对爆炸载荷下的埋地管道动力响应的影响。房冲[9]通过模拟研究发现,在爆炸载荷下充水管道的变形量、位移和峰值压强都比内空管道小。余洋等[10]采用野外实验与数值计算相结合的方法研究了初始条件对钢质方管在侧向局部爆炸载荷作用下损伤破坏效应的影响。

    迄今为止,对爆炸载荷作用下焊缝区附近埋地钢管的动力响应的相关研究鲜有报道。基于此,以两种含Y型焊缝(坡口有2 mm余高焊缝和坡口无余高焊缝)的埋地X70钢管为例,采用有限元软件ANSYS/LS-DYNA,数值模拟研究爆炸载荷作用下焊缝区附近埋地X70钢管的动力响应规律,以期为埋地管线附近的爆破施工设计和埋地管线的安全防护提供一定的理论参考。

    采用cm-g-μs单位制,建立由TNT炸药、黄土和焊接管道组成的计算模型,如图1所示。模型纵向长38.4 cm,管道中心到模型侧面的宽度为130.0 cm,模型整体高271.6 cm,其中:TNT炸药为边长14.0 cm的正方体,采用中心起爆方式;焊接管道为外径1 016.0 mm、壁厚14.6 mm的X70钢管。焊缝选取两种尺寸[11],分别为Y型坡口有余高(H = 2.0 mm)焊缝和Y型坡口无余高(H = 0)焊缝,如图2所示。为了提高计算收敛速度,将焊缝尺寸设计图进行适当的简化,简化模型如图3所示。两种焊缝均不考虑分层焊接工艺的影响,焊缝与管道采用共节点方式连接。

    图  1  计算模型
    Figure  1.  Calculation model
    图  2  焊缝的设计尺寸
    Figure  2.  Design of weld size
    图  3  焊缝的简化模型
    Figure  3.  Simplified diagram of weld model

    考虑到计算模型的对称性,取1/2模型建模。炸药、黄土、管道及焊缝选用SOLID164六面体实体单元,用扫掠方式划分网格,并对焊缝位置进行网格细化处理。炸药和黄土采用欧拉网格,焊接管道和焊缝采用拉格朗日网格,运用任意拉格朗日-欧拉算法及管土间流固耦合算法模拟爆炸载荷作用下埋地焊接管道的动力响应。在土体外侧和底面设置透射边界条件,模型对称面施加对称约束。

    为了初步揭示爆炸载荷作用下两种焊缝形式的埋地焊接管道的动力响应规律,选取药包尺寸为14.0 cm × 14.0 cm × 14.0 cm的TNT炸药,对埋深为1.5 m的焊缝有余高(H = 2.0 mm)管道(管道A)和焊缝无余高(H = 0)管道(管道B),在炸高分别为60.0、85.0和110.0 cm的3种条件下的6种工况进行模拟计算,如表1所示,其中,hB为炸高。

    表  1  计算工况
    Table  1.  Calculation conditions
    Weld typeBuried depth of pipeline/mSize of TNT/(cm × cm × cm)hB/cm
    No weld reinforcement (H = 0)1.514.0 × 14.0 × 14.060.0, 85.0, 110.0
    Weld reinforcement (H = 2.0 mm)1.514.0 × 14.0 × 14.060.0, 85.0, 110.0
    下载: 导出CSV
    | 显示表格

    TNT炸药选用高能炸药模型(Mat_High_Explosive_Burn)和JWL状态方程定义。JWL状态方程表达式为

    pz=A(1ωR1ν)eR1ν+B(1ωR2ν)eR2ν+ωEν (1)

    式中:pz为爆炸产物的压力,ABR1R2ω为TNT材料常数,v为爆炸产物的相对比容,E为炸药初始内能。炸药密度ρz、爆速D以及JWL状态方程参数见表2[12]

    表  2  炸药材料参数[12]
    Table  2.  Material parameters of explosive[12]
    ρz/(g·cm–3)D/(m·s–1)p/GPaA/GPaB/GPaR1R2ωE/(J·cm–3)
    1.586 93021373.773.754.150.900.356 000
    下载: 导出CSV
    | 显示表格

    黄土选用泡沫模型(Mat_Soil_and_Foam)描述。该材料模型的应力屈服常数f

    f=Sijδij/2(a0+a1pt+a2pt2) (2)

    式中:Sij为土体材料的Cauchy偏应力张量,δij为土体材料的Kronecker系数,a0a1a2分别为土体摩擦角、土体黏聚力和土体爆炸动载效应的影响系数,pt为土体压力。a0a1a2由土工实验测得的内摩擦角和土壤黏聚力参数确定,土体密度ρt、剪切模量G、体积模量K等参数见表3[13-14]

    表  3  土体材料参数[1314]
    Table  3.  Material parameters of soil[1314]
    ρt/(g·cm–3)G/MPaK/MPaa0/Pa2a1/Paa2
    1.841.1487.872.12 × 1085.23 × 1033.22 × 10–2
    下载: 导出CSV
    | 显示表格

    X70钢管道和焊缝均采用双线性随动材料模型(Mat_Plastic_Kinematic)描述,遵循von Mises屈服准则,其表达式为

    σ={Esεεεeσy+Et(εεe)ε>εe (3)

    式中:σ为应力;σy为屈服应力;Es为弹性模量;Et为切线模量,0 < Et < Esε为应变;εe为弹性极限应变。管道和焊缝的具体材料参数见表4[15-18],其中,μ为泊松比。

    表  4  管道及焊缝材料参数[1518]
    Table  4.  Material parameters of pipe and weld bead[1518]
    Materialρ/(g·cm–3)μEs/GPaEt/GPaσy/GPa
    X70-pipeline[1516]7.900.321013.50.48
    Weld bead[1718]7.250.322015.30.55
    下载: 导出CSV
    | 显示表格

    图4为边长14.0 cm的正方体TNT炸药爆炸时,炸高hB为60.0 cm,埋深为1.5 m的两种X70管道焊缝附近的von-Mises应力云图。由图4可以看出:当传播时间为1 440 μs时,爆炸应力波阵面已经接触管道;当传播时间为1 600 μs时,焊缝有2.0 mm余高的管道A和焊缝无余高的管道B的最大应力增幅分别为81.4 MPa和43.0 MPa;当传播时间为1 920 μs时,管道A和管道B的最大应力均大于焊缝与管道的材料屈服应力,且应力沿迎爆面正对爆心位置向外扩展,其中管道A的应力呈“十”字形扩展,而管道B的应力以椭圆形向四周扩展;在3 520 μs时,管道应力集中主要沿裂缝位置发展,管道A和管道B的应力最大值分别为601.2 MPa和591.0 MPa;在6 080 μs时,管道A和管道B继续变形但应力减小,应力最大值分别减小到581.8 MPa和565.8 MPa;在9 120 μs时,管道A和管道B的应力集中基本消失。

    图  4  不同时刻X70钢管道的von Mises应力
    Figure  4.  von Mises stress of X70 steel pipe at different moments

    图5图6分别为两种管道外表面上正对爆心位置的焊缝与管道分界面处焊缝单元与管道单元的应力时程曲线。在管道受爆炸载荷作用阶段,两种管道的应力在大约480 μs内呈跳跃式上升。其主要原因是管道为瞬时受力,一部分爆炸能量使管道变形并向管道四周传递,导致焊缝与管道分界面处两个典型单元的应力呈降低趋势,此现象与图4的应力云图吻合。根据应力集中系数和余高关系的经验公式[19]可得:管道A和管道B的应力集中系数分别为1.016和1.008,即随着余高增大,应力集中系数逐渐增大。对比图5图6可知,管道A的焊缝单元应力峰值较高,应力下降趋势相对较陡。这也说明焊缝余高的存在使得焊缝与管道分界面的截面尺寸突变增大,从而导致焊缝有余高的焊接管道受应力集中的影响较大。在1 912 μs时,图5(管道A)和图6(管道B)的焊缝单元应力最大,分别约为560.0 MPa(焊缝的屈服强度为550 MPa)和545.6 MPa。同时,管道A的焊缝处首先达到管道屈服强度(480 MPa),按照von Mises屈服准则,管道A开始进入局部塑性变形阶段,此时管道B的应力尚未达到材料的屈服强度。

    图  5  管道A(H = 2.0 mm)典型单元的应力时程曲线
    Figure  5.  Stress-time curves of classic element of A pipe (H = 2.0 mm)
    图  6  管道B(H = 0)典型单元的应力时程曲线
    Figure  6.  Stress-time curves of classic element of B pipe (H = 0)

    埋地X70管道的迎爆面和背爆面的最大位移如表5所示。从表5可知,由于爆炸冲击波的一部分能量在土中被耗散,且随着爆炸冲击波在土中传播距离的增大,两种焊缝形式管道的迎爆面和背爆面的最大位移均呈现减小的趋势。当炸高hB从60.0 cm增加到85.0 cm以及从85.0 cm增加到110.0 cm时,管道A和管道B迎爆面的最大位移减小量分别为2.303 cm、0.715 cm和2.300 cm、0.572 cm,而管道A和管道B背爆面的最大位移减小量分别为0.391 cm、0.235 cm和0.373 cm、0.280 cm。两种焊缝形式管道迎爆面的最大位移减小量大于背爆面,这是由于爆炸冲击载荷在土中传播后直接作用于管道迎爆面,对管道迎爆面产生的影响较大,土体对管道背爆面具有一定的支撑作用,从而减小了管道背爆面位移。在相同炸高下管道A比管道B的最大位移大,且在炸高为60.0、85.0和110.0 cm时,两种焊缝形式管道迎爆面的最大位移差值分别为0.270、0.267和0.124 cm,即随着炸高的增大,两种焊缝形式的埋地焊接管道最大位移的差值逐渐减小,也说明当炸高较小时,管道A整体抵抗变形的能力弱于管道B。然而,随着炸高的增大,作用于管道的能量减小[20],管道塑性变形较小,使得这种现象逐渐模糊。

    表  5  埋地X70管道的迎爆面和背爆面的最大位移
    Table  5.  Maximum displacement of explosion-front and explosion-back surfaces of buried X70 pipeline
    Types of weldhB/cmMaximum displacement/cm
    Explosion-front surfaceExplosion-back surface
    Weld reinforcement (H = 2.0 mm) 60.05.4820.846
    85.03.1790.455
    110.02.4640.220
    No weld reinforcement (H = 0) 60.05.2120.943
    85.02.9120.570
    110.02.3400.290
    下载: 导出CSV
    | 显示表格

    表6为两种不同类型焊缝的埋地焊接管道在不同炸高下的最大等效应变统计。从表6可知,管道A和管道B的最大等效应变均随炸高的增大而减小。当炸高从60.0 cm增大到85.0 cm时,管道A和管道B的最大等效应变分别减小约58.12%和61.13%;当炸高从85.0 cm增大到110.0 cm时,管道A和管道B的最大等效应变分别减小约45.92%和38.05%,在炸高相同时,管道A的最大等效应变大于管道B,且管道A的最大等效应变位于焊缝余高表面,而管道B的最大等效应变在焊缝与管道处一定范围内沿纵向分布。这在一定程度上说明管道B能更好地协调焊缝与管道分界处的应变,有利于保障焊缝与管道的局部协同变形性能。

    表  6  不同炸高时埋地X70管道的最大等效应变
    Table  6.  Maximum effective strain of buried X70 pipeline with different blasting heights
    Types of weldhB/cmPeak effective strain/10–3
    Weld reinforcement
    (H = 2.0 mm)
    60.09.937
    85.04.162
    110.02.251
    No weld reinforcement
    (H = 0)
    60.06.877
    85.02.673
    110.01.656
    下载: 导出CSV
    | 显示表格

    表7为不同炸高下两种焊缝形式管道的迎爆面和背爆面处焊缝位置中心单元X方向的最大振动速度。从表7可以看出,两种焊缝形式管道的迎爆面和背爆面的最大振动速度均随着炸高增大而减小,且迎爆面的最大振速均大于背爆面。这说明迎爆面受爆炸地震波的影响较大。当炸高hB为60.0、85.0和110.0 cm时,管道B的迎爆面的最大振动速度较管道A大,迎爆面差值分别为1.600、0.539和0.329 m/s,而背爆面差值在0.200 m/s以内。管道峰值速度随着管壁厚度的增大而减小[12],由于管道A增加了管道在焊缝位置的径向厚度,可将其视为管道焊缝位置的壁厚增大导致管道A的峰值振速减小。这说明管道A抵抗爆炸振动的性能优于管道B,且在炸高为60.0 cm时,管道A抵抗振动性能的优势较为明显。

    表  7  埋地X70管道的迎爆面和背爆面最大振速
    Table  7.  Maximum vibration velocity of explosion-front and explosion-back surfaces of buried X70 pipeline
    Types of weldhB/cmMaximum vibration velocity/(m·s–1)
    Explosion-front surfaceExplosion-back surface
    Weld reinforcement (H = 2.0 mm) 60.022.7484.431
    85.0 9.3162.817
    110.0 4.5031.693
    No weld reinforcement (H = 0) 60.024.3484.294
    85.0 9.8552.867
    110.0 4.8321.746
    下载: 导出CSV
    | 显示表格

    图7为不同炸高时两种焊缝形式的管道典型单元的速度时程曲线。当炸高hB分别为60.0、85.0和110.0 cm时,管道A和管道B达到最大振速的时间分别为2 560 μs和2 560 μs、4 500 μs和4 600 μs、7 200 μs和7 200 μs,两种焊缝形式的管道达到最大振速的时间差值均在100 μs以内。这说明两种焊缝形式的管道达到最大振速的时间主要受炸高的影响,受焊缝形式的影响较小。

    图  7  管道典型单元的速度时程曲线
    Figure  7.  Velocity-time curve of typical pipeline elements

    (1)当炸高为60.0 cm时,两种焊缝形式的埋地X70焊接管道在爆炸载荷作用下焊缝位置均出现应力集中,但焊缝有余高的管道受应力集中影响较大,且会先于焊缝无余高管道进入屈服阶段。

    (2)当炸高为60.0~110.0 cm时,由于爆炸载荷直接作用于迎爆面,且管土间的相互作用对管道背爆面具有一定的支撑作用,两种焊缝形式管道迎爆面的最大位移均大于背爆面的最大位移。当炸高为60.0、85.0 cm时,焊缝有余高的管道整体抵抗变形的能力明显弱于焊缝无余高的管道。

    (3)焊缝无余高管道较焊缝有余高管道在焊缝与管道分界处的应变更为协调,能更好地保障焊缝与管道的局部协同变形性能。

    (4)在相同的爆炸载荷下,焊缝有余高管道抵抗振动的性能优于焊缝无余高管道。药量相同条件下,相对于焊缝形式,炸高对含焊缝区管道的最大振速起主要作用。

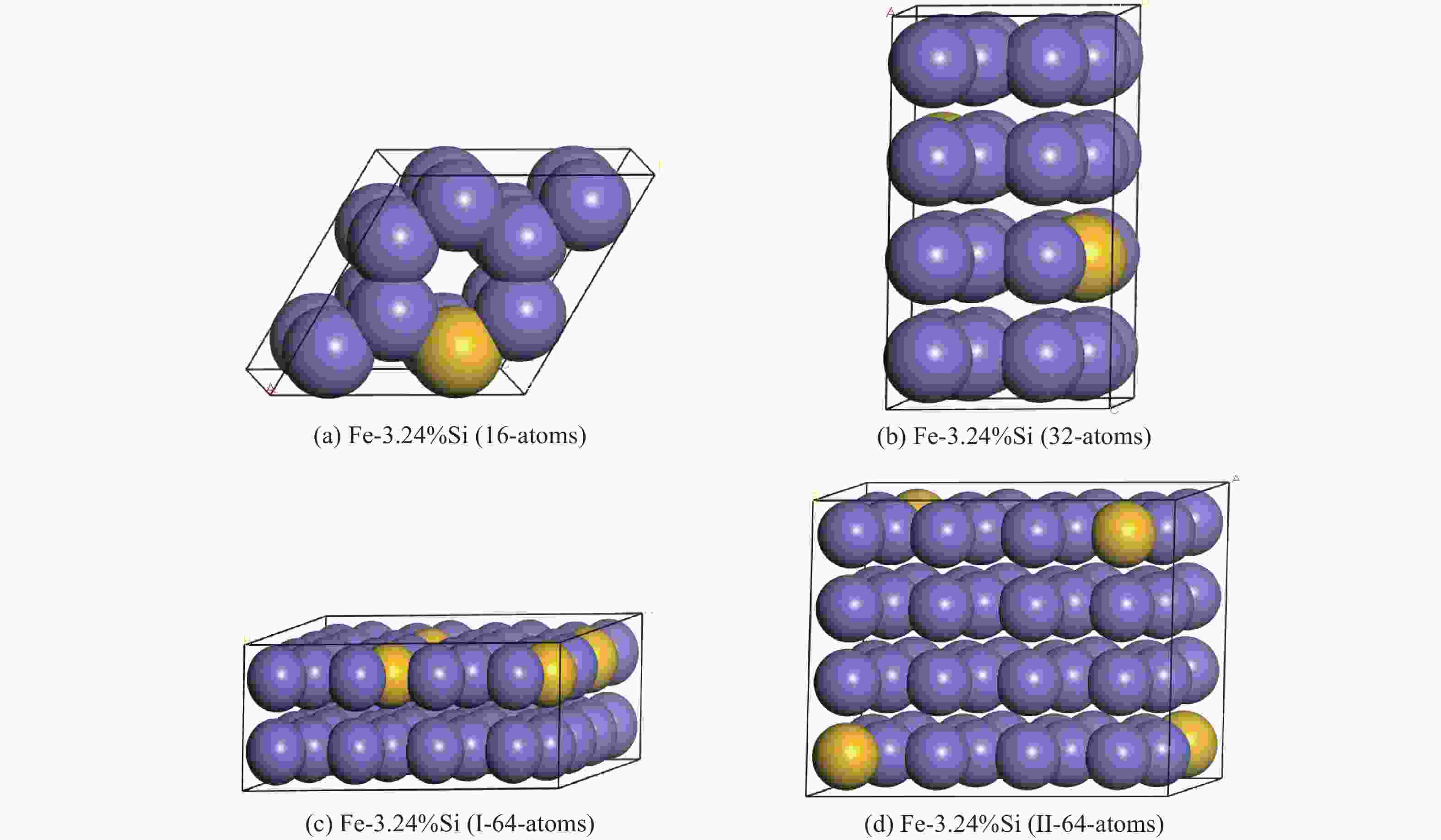

  • 图  hcp-Fe-3.24%Si的结构

    Figure  1.  Structure of hcp-Fe-3.24%Si

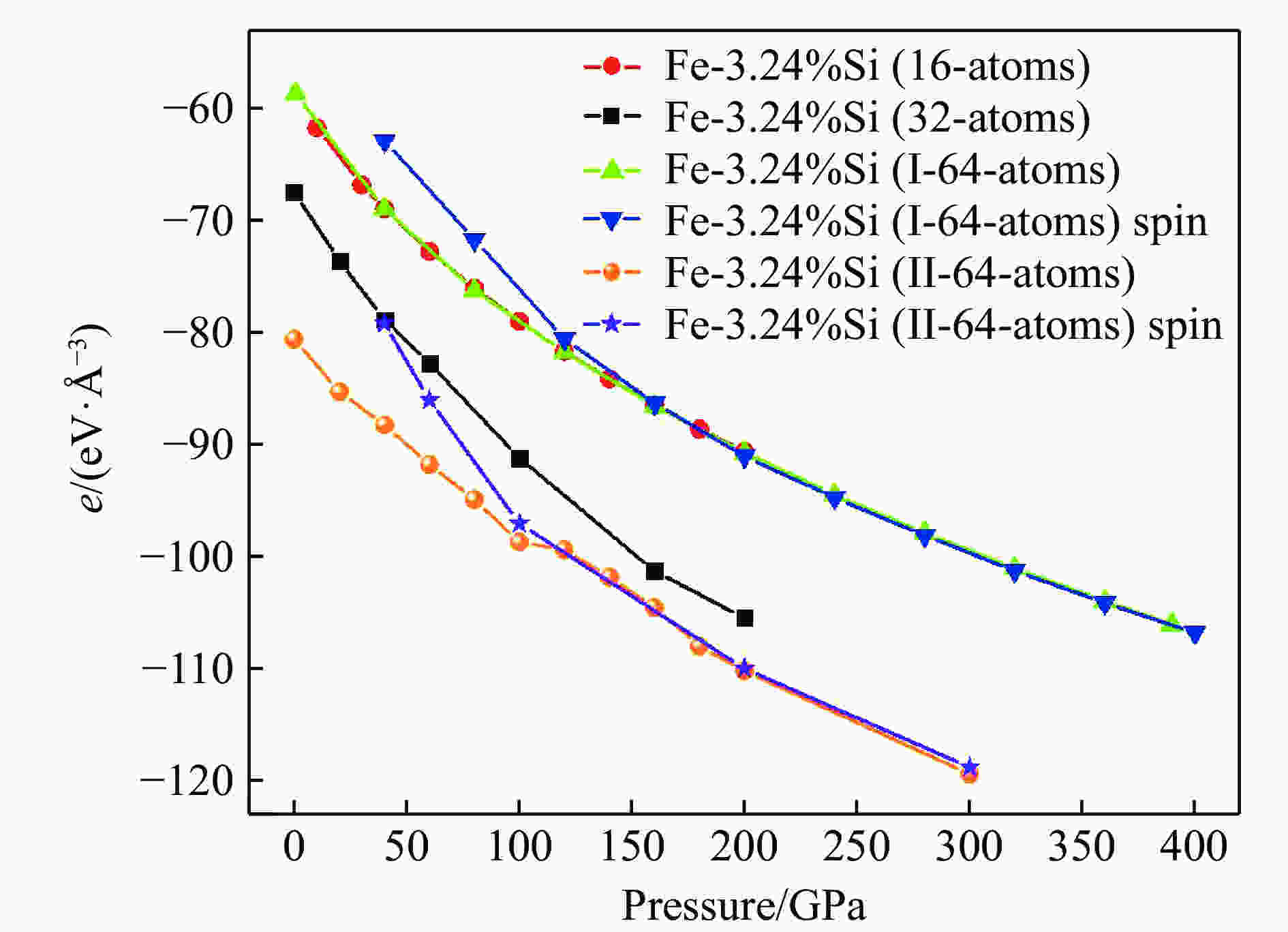

    图  单位体积内的能量e随压力的变化

    Figure  2.  Variation of the energy per unit volume e versus pressure

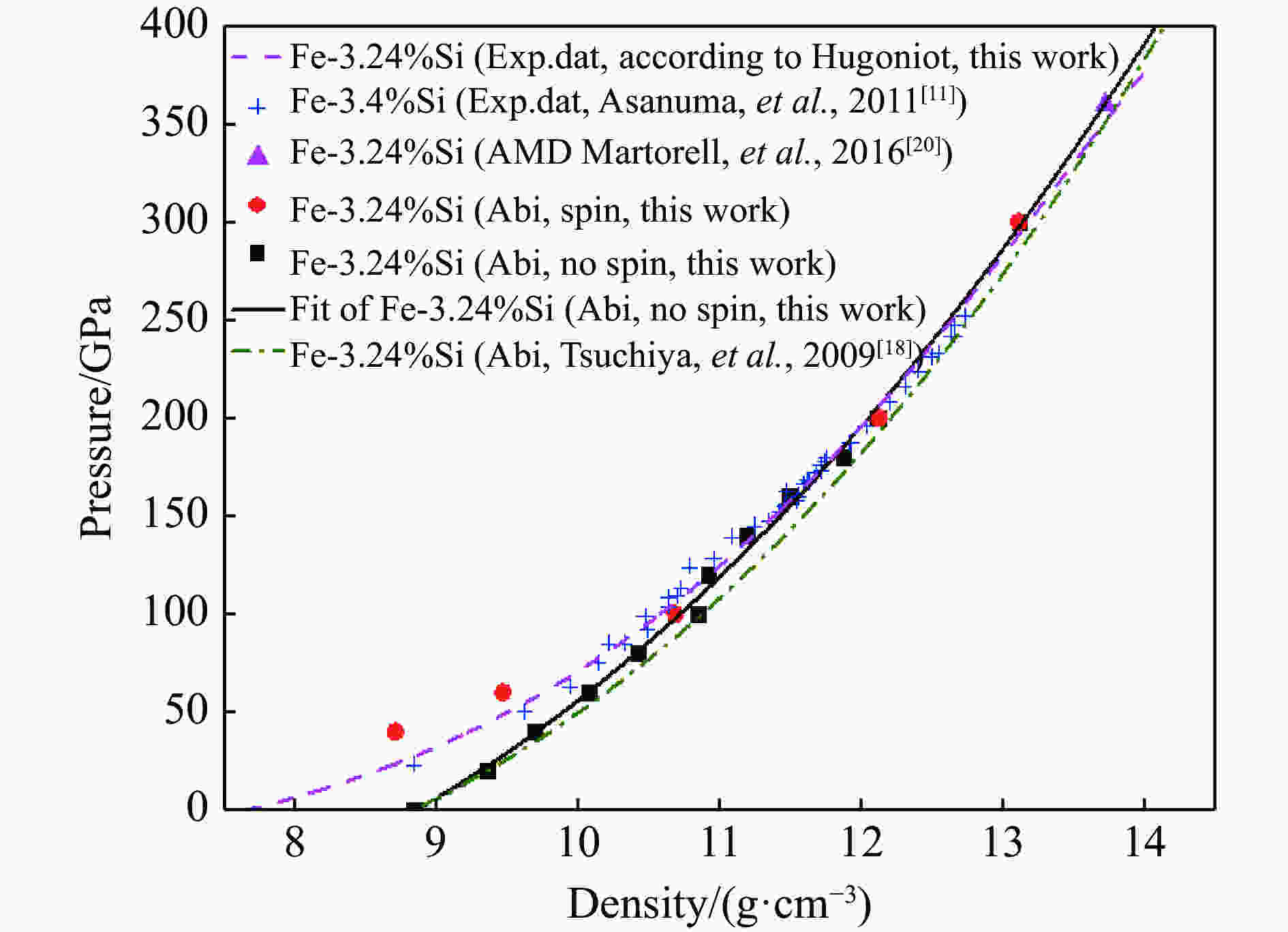

    图  Fe-3.24%Si的压力随密度的变化

    Figure  3.  Calculated density vs. pressure for Fe-3.24%Si

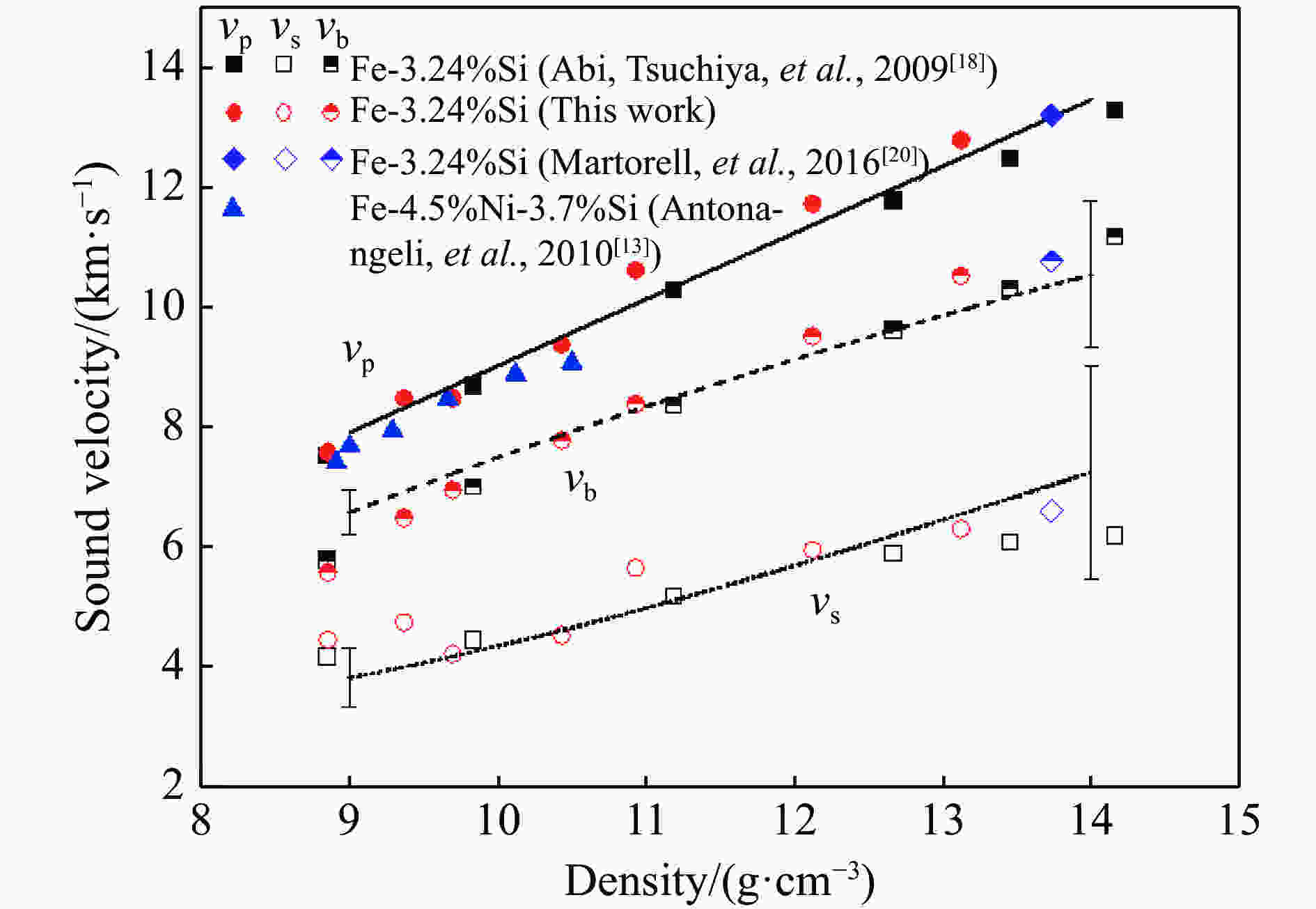

    图  0 K状态下Fe-3.24%Si的声速与密度的关系

    Figure  4.  Sound velocity of Fe-3.24%Si versus density at 0 K

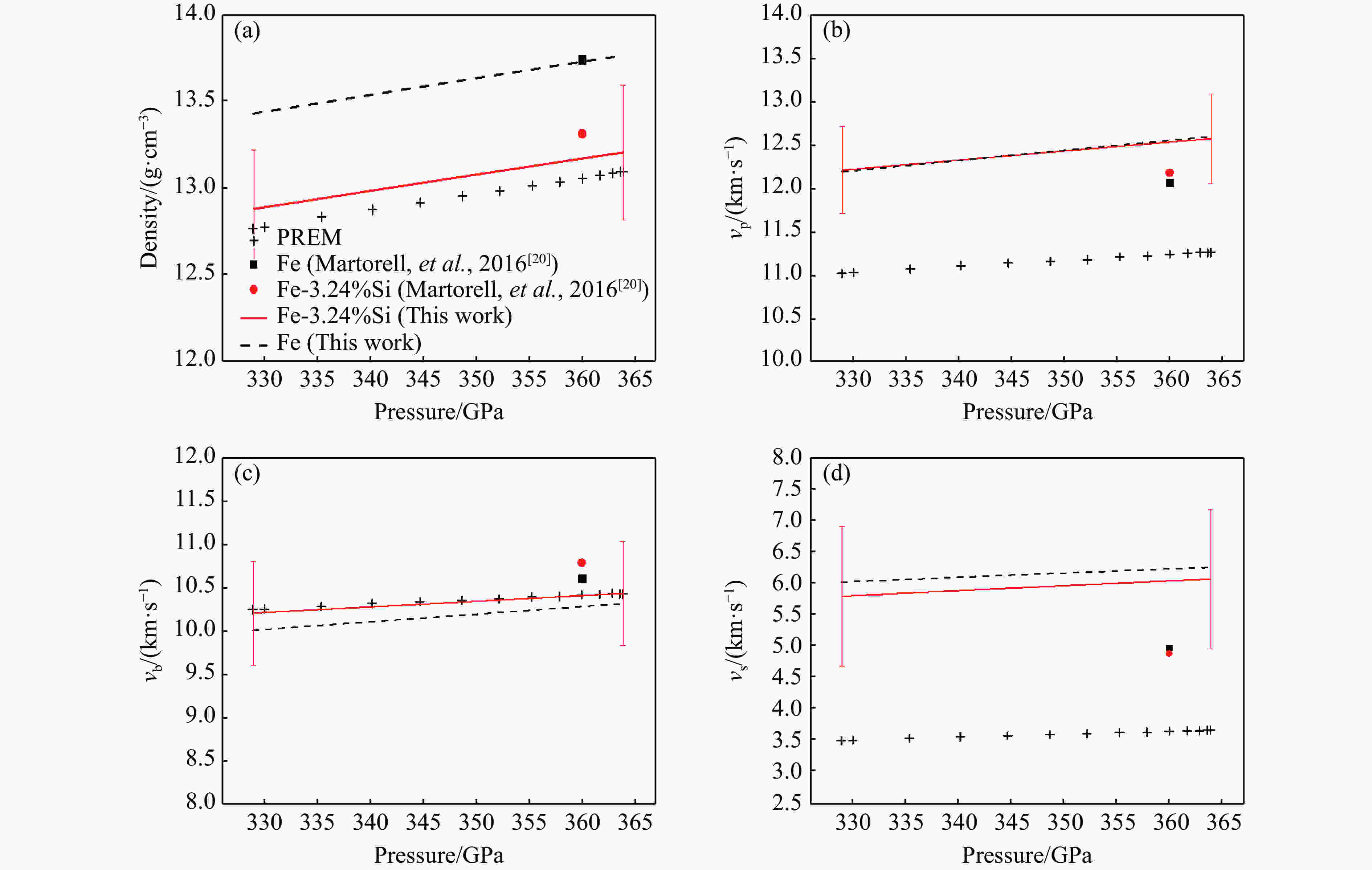

    图  内地核条件下Fe-3.24%Si的密度、纵波声速vp、体波声速vb和横波声速vs与铁和内地核的数据比较

    Figure  5.  Comparison of the density, longitudinal sound velocity vp, bulk sound velocity vb and shear velocity vs of Fe-3.24%Si with those of Fe and the data of the inner core

  • [1] RINGWOOD A E. On the chemical evolution and densities of the planets [J]. Geochimica et Cosmochimica Acta, 1959, 15(4): 257–283. doi: 10.1016/0016-7037(59)90062-6
    [2] BIRCH F. Density and composition of mantle and core [J]. Journal of Geophysical Research, 1964, 69(20): 4377–4388. doi: 10.1029/JZ069i020p04377
    [3] TAKAFUJI N, HIROSE K, MITOME M, et al. Solubilities of O and Si in liquid iron in equilibrium with (Mg, Fe)SiO3 perovskite and the light elements in the core [J]. Geophysical Research Letters, 2005, 32(6).
    [4] FISCHER R A, CAMPBELL A J, REAMAN D M, et al. Phase relations in the Fe-FeSi system at high pressures and temperatures [J]. Earth and Planetary Science Letters, 2013, 373: 54–64. doi: 10.1016/j.jpgl.2013.04.035
    [5] FISCHER R A, CAMPBELL A J, CARACAS R, et al. Equations of state in the Fe-FeSi system at high pressures and temperatures [J]. Journal of Geophysical Research: Solid Earth, 2014, 119(4): 2810–2827. doi: 10.1002/2013JB010898
    [6] TATENO S, KUWAYAMA Y, HIROSE K, et al. The structure of Fe-Si alloy in Earth’s inner core [J]. Earth and Planetary Science Letters, 2015, 418: 11–19. doi: 10.1016/j.jpgl.2015.02.008
    [7] OZAWA H, HIROSE K, YONEMITSU K, et al. High-pressure melting experiments on Fe-Si alloys and implications for silicon as a light element in the core [J]. Earth and Planetary Science Letters, 2016, 456: 47–54. doi: 10.1016/j.jpgl.2016.08.042
    [8] KNITTLE E, JEANLOZ R. Earth’s core-mantle boundary: results of experiments at high pressures and temperatures [J]. Science, 1991, 251(5000): 1438–1443. doi: 10.1126/science.251.5000.1438
    [9] DUBROVINSKY L, DUBROVINSKAIA N, LANGENHORST F, et al. Iron-silica interaction at extreme conditions and the electrically conducting layer at the base of Earth’s mantle [J]. Nature, 2003, 422(6927): 58. doi: 10.1038/nature01422
    [10] LIN J F, CAMPBELL A J, HEINZ D L, et al. Static compression of iron-silicon alloys: implications for silicon in the Earth’s core [J]. Journal of Geophysical Research: Solid Earth, 2003, 108(B1).
    [11] ASANUMA H, OHTANI E, SAKAI T, et al. Static compression of Fe0.83Ni0.09Si0.08 alloy to 374 GPa and Fe0.93Si0.07 alloy to 252 GPa: implications for the Earth’s inner core [J]. Earth and Planetary Science Letters, 2011, 310(1/2): 113–118. doi: 10.1016/j.jpgl.2011.06.034
    [12] BADRO J, FIQUET G, GUYOT F, et al. Effect of light elements on the sound velocities in solid iron: implications for the composition of Earth’s core [J]. Earth and Planetary Science Letters, 2007, 254(1/2): 233–238.
    [13] ANTONANGELI D, SIEBERT J, BADRO J, et al. Composition of the Earth’s inner core from high-pressure sound velocity measurements in Fe-Ni-Si alloys [J]. Earth and Planetary Science Letters, 2010, 295(1/2): 292–296.
    [14] MAO Z, LIN J F, LIU J, et al. Sound velocities of Fe and Fe-Si alloy in the Earth’s core [J]. Proceedings of the National Academy of Sciences, 2012, 109(26): 10239–10244. doi: 10.1073/pnas.1207086109
    [15] LIU J, LIN J F, ALATAS A, et al. Seismic parameters of hcp-Fe alloyed with Ni and Si in the Earth’s inner core [J]. Journal of Geophysical Research: Solid Earth, 2016, 121(2): 610–623. doi: 10.1002/2015JB012625
    [16] SAKAIRI T, SAKAMAKI T, OHTANI E, et al. Sound velocity measurements of hcp Fe-Si alloy at high pressure and high temperature by inelastic X-ray scattering [J]. American Mineralogist, 2018, 103(1): 85–90. doi: 10.2138/am-2018-6072
    [17] ANTONANGELI D, MORARD G, PAOLASINI L, et al. Sound velocities and density measurements of solid hcp-Fe and hcp-Fe-Si (9 wt.%) alloy at high pressure: constraints on the Si abundance in the Earth’s inner core [J]. Earth and Planetary Science Letters, 2018, 482: 446–453. doi: 10.1016/j.jpgl.2017.11.043
    [18] TSUCHIYA T, FUJIBUCHI M. Effects of Si on the elastic property of Fe at Earth’s inner core pressures: first principles study [J]. Physics of the Earth and Planetary Interiors, 2009, 174(1): 212–219.
    [19] CÔTÉ A S, VOČADLO L, DOBSON D P, et al. Ab initio lattice dynamics calculations on the combined effect of temperature and silicon on the stability of different iron phases in the Earth’s inner core [J]. Physics of the Earth and Planetary Interiors, 2010, 178(1/2): 2–7.
    [20] MARTORELL B, WOOD I G, BRODHOLT J, et al. The elastic properties of hcp-Fe1− xSi x at Earth’s inner-core conditions [J]. Earth and Planetary Science Letters, 2016, 451: 89–96. doi: 10.1016/j.jpgl.2016.07.018
    [21] HOHENBERG P, KOHN W. Inhomogeneous electron gas [J]. Physical Review, 1964, 136(3B): B864. doi: 10.1103/PhysRev.136.B864
    [22] PERDEW J P. Exchange and correlation in atoms, molecules, and solids: the density functional picture [M]//Electron Correlations and Materials Properties. Boston: Springer, 1999: 287–298.
    [23] GROSS E K U, DREIZLER R M. Density functional theory: an approach to the quantum many-body problem [M]. Berlin: Springer, 1990.
    [24] KOHN W, SHAM L J. Quantum density oscillations in an inhomogeneous electron gas [J]. Physical Review, 1965, 137(6A): A1697. doi: 10.1103/PhysRev.137.A1697
    [25] LANGRETH D C, PERDEW J P. Theory of nonuniform electronic systems. I. analysis of the gradient approximation and a generalization that works [J]. Physical Review B, 1980, 21(12): 5469. doi: 10.1103/PhysRevB.21.5469
    [26] PERDEW J P, CHEVARY J A, VOSKO S H, et al. Atoms, molecules, solids, and surfaces: applications of the generalized gradient approximation for exchange and correlation [J]. Physical Review B, 1992, 46(11): 6671. doi: 10.1103/PhysRevB.46.6671
    [27] SEGALL M D, LINDAN P J D, PROBERT M J, et al. First-principles simulation: ideas, illustrations and the CASTEP code [J]. Journal of Physics: Condensed Matter, 2002, 14(11): 2717. doi: 10.1088/0953-8984/14/11/301
    [28] VOIGT W. The relation between the two elastic moduli of isotropic materials [J]. Annals of Physics (Leipzig), 1889, 33: 573.
    [29] REUSS A. Calculation of the flow limits of mixed crystals on the basis of the plasticity of monocrystals [J]. Zeitschrift für Angewandte Mathematik und Mechanik, 1929, 9: 49–58. doi: 10.1002/zamm.19290090104
    [30] HILL R. The elastic behaviour of a crystalline aggregate [J]. Proceedings of the Physical Society Section A, 1952, 65(5): 349. doi: 10.1088/0370-1298/65/5/307
    [31] WANG C S, KLEIN B M, KRAKAUER H. Theory of magnetic and structural ordering in iron [J]. Physical Review Letters, 1985, 54(16): 1852. doi: 10.1103/PhysRevLett.54.1852
    [32] ASADA T, TERAKURA K. Cohesive properties of iron obtained by use of the generalized gradient approximation [J]. Physical Review B, 1992, 46(20): 13599. doi: 10.1103/PhysRevB.46.13599
    [33] COHEN R E, MUKHERJEE S. Non-collinear magnetism in iron at high pressures [J]. Physics of the Earth and Planetary Interiors, 2004, 143: 445–453.
    [34] BROWN J M, FRITZ J N, HIXSON R S. Hugoniot data for iron [J]. Journal of Applied Physics, 2000, 88(9): 5496–5498. doi: 10.1063/1.1319320
    [35] 冯磊. 高压下温度对Fe-8.6Si声速的影响 [D]. 武汉: 武汉理工大学, 2017: 72–83.

    FENG L. Effect of temperature on Fe-8.6Si sound velocity at high pressure [D]. Wuhan: Wuhan University of Technology, 2017: 72–83.
    [36] 经福谦. 实验物态方程导引 [M]. 2版. 北京: 科学出版社, 1999: 188–197.

    JING F Q. Introduction to experimental equation of state [M]. 2nd ed. Beijing: Science Press, 1999: 188–197.
    [37] BROWN J M, MCQUEEN R G. Phase transitions, Grüneisen parameter, and elasticity for shocked iron between 77 GPa and 400 GPa [J]. Journal of Geophysical Research: Solid Earth, 1986, 91(B7): 7485–7494. doi: 10.1029/JB091iB07p07485
    [38] BONESS D A, BROWN J M, MCMAHAN A K. The electronic thermodynamics of iron under Earth core conditions [J]. Physics of the Earth and Planetary Interiors, 1986, 42(4): 227–240. doi: 10.1016/0031-9201(86)90025-7
    [39] FEI Y, MURPHY C, SHIBAZAKI Y, et al. Thermal equation of state of hcp-iron: constraint on the density deficit of Earth’s solid inner core [J]. Geophysical Research Letters, 2016, 43(13): 6837–6843. doi: 10.1002/2016GL069456
    [40] ANDERSON O L. The power balance at the core-mantle boundary [J]. Physics of the Earth and Planetary Interiors, 2002, 131(1): 1–17. doi: 10.1016/S0031-9201(02)00009-2
    [41] BIRCH F. Elasticity and constitution of the Earth’s interior [J]. Journal of Geophysical Research, 1952, 57(2): 227–286. doi: 10.1029/JZ057i002p00227
    [42] HIROSE K, LABROSSE S, HERNLUND J. Composition and state of the core [J]. Annual Review of Earth and Planetary Sciences, 2013, 41: 657–691. doi: 10.1146/annurev-earth-050212-124007
    [43] ZHANG Y, SEKINE T, LIN J F, et al. Shock compression and melting of an Fe-Ni-Si alloy: implications for the temperature profile of the Earth’s core and the heat flux across the core-mantle boundary [J]. Journal of Geophysical Research: Solid Earth, 2018, 123(2): 1314–1327. doi: 10.1002/2017JB014723
    [44] ANTONANGELI D, KOMABAYASHI T, OCCELLI F, et al. Simultaneous sound velocity and density measurements of hcp iron up to 93 GPa and 1100 K: an experimental test of the Birch’s law at high temperature [J]. Earth and Planetary Science Letters, 2012, 331: 210–214.
    [45] ANTONANGELI D, OHTANI E. Sound velocity of hcp-Fe at high pressure: experimental constraints, extrapolations and comparison with seismic models [J]. Progress in Earth and Planetary Science, 2015, 2(1): 3. doi: 10.1186/s40645-015-0034-9
    [46] LIN J F, STURHAHN W, ZHAO J, et al. Sound velocities of hot dense iron: Birch’s law revisited [J]. Science, 2005, 308(5730): 1892–1894. doi: 10.1126/science.1111724
    [47] SAKAMAKI T, OHTANI E, FUKUI H, et al. Constraints on Earth’s inner core composition inferred from measurements of the sound velocity of hcp-iron in extreme conditions [J]. Science Advances, 2016, 2(2): e1500802. doi: 10.1126/sciadv.1500802
    [48] CHEN B, LAI X, LI J, et al. Experimental constraints on the sound velocities of cementite Fe3C to core pressures [J]. Earth and Planetary Science Letters, 2018, 494: 164–171. doi: 10.1016/j.jpgl.2018.05.002
    [49] GAO L, CHEN B, WANG J, et al. Pressure-induced magnetic transition and sound velocities of Fe3C: implications for carbon in the Earth’s inner core [J]. Geophysical Research Letters, 2008, 35(17).
