镁铝合金的冲击熔化行为实验研究

谭叶; 肖元陆; 薛桃; 李俊; 金柯

doi:10.11858/gywlxb.20190729

镁铝合金的冲击熔化行为实验研究

doi: 10.11858/gywlxb.20190729

中国工程物理研究院流体物理研究所冲击波物理与爆轰物理重点实验室，四川绵阳　621999

基金项目: 国家自然科学基金青年科学基金（11802285）

详细信息

作者简介:
谭　叶（1986－），男，硕士，副研究员，主要从事材料高压物性研究. E-mail: yetan@caep.cn

通讯作者:
金　柯（1976－），男，博士，研究员，主要从事材料高压物性研究. E-mail: jinke102@caep.cn

中图分类号: O521.2
计量
- 文章访问数: 9503
- HTML全文浏览量: 4197
- PDF下载量: 43
出版历程
- 收稿日期: 2019-02-26
- 修回日期: 2019-03-14
- 刊出日期: 2019-06-25

Melting of MB2 Alloy under Shock Compression

National Key Laboratory of Shock Waves and Detonation Physics, Institute of Fluid Physics, CAEP, Mianyang 621999, China

摘要

摘要: 采用反向碰撞实验技术，结合具有高时空分辨率的全光纤激光干涉测速技术，对镁铝合金开展了极端动态压缩条件下的动力学行为实验研究，获得了镁铝合金在30～73 GPa压力范围内的Hugoniot和声速实验数据。深入的数据分析表明，所获得的Hugoniot数据与早期的Hugoniot数据一致，但是纵波声速却呈现出明显的向体波声速转变的趋势，对应冲击加载下镁铝合金的固-液熔化相变，相变压力区间为40～57 GPa。
- 冲击压缩 /
- 熔化 /
- 声速 /
- 镁铝合金 /
- 相变
Abstract: Reverse impact experiments were performed at a shock pressure range from 30 GPa to 73 GPa to investigate the dynamic response of magnesium aluminum alloy. A displacement interferometer system for any reflector was employed to measure the impact velocity and sample/window interface particle velocities. The Hugoniot data obtained in this study had a good agreement with the data published before, however, the sound velocities extracted from our experiments showed a transition from longitudinal to bulk sound velocity. This discontinuity is attributed to melting transition under shock compression, and the transition pressure range is estimated from 40 GPa to 57 GPa.
- shock compression /
- melting /
- sound velocity /
- magnesium aluminum alloy /
- phase transition

HTML全文

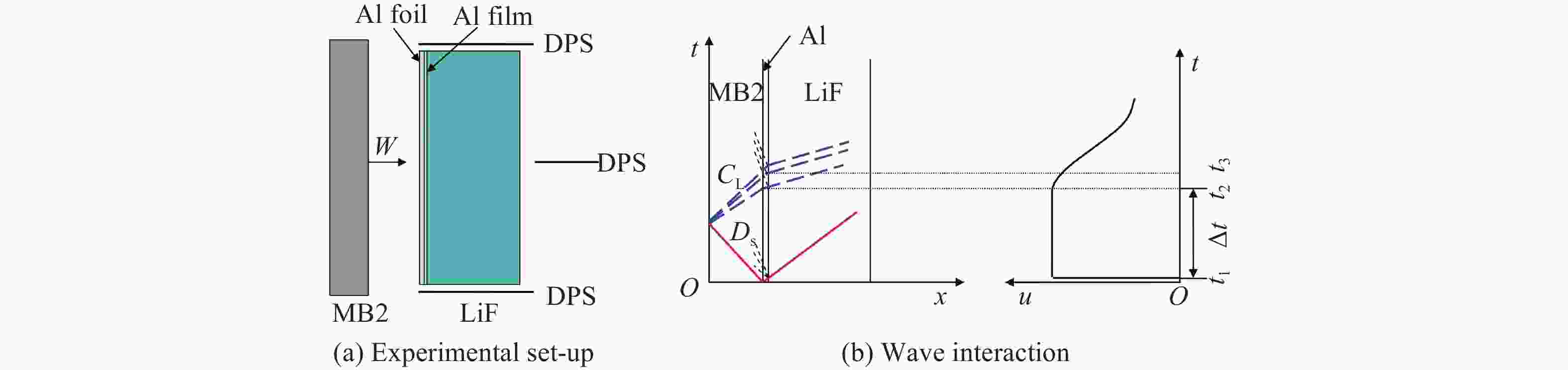

图 1 反向碰撞实验示意图

Figure 1. Schematic of backward-impact experimental configuration

下载: 全尺寸图片幻灯片

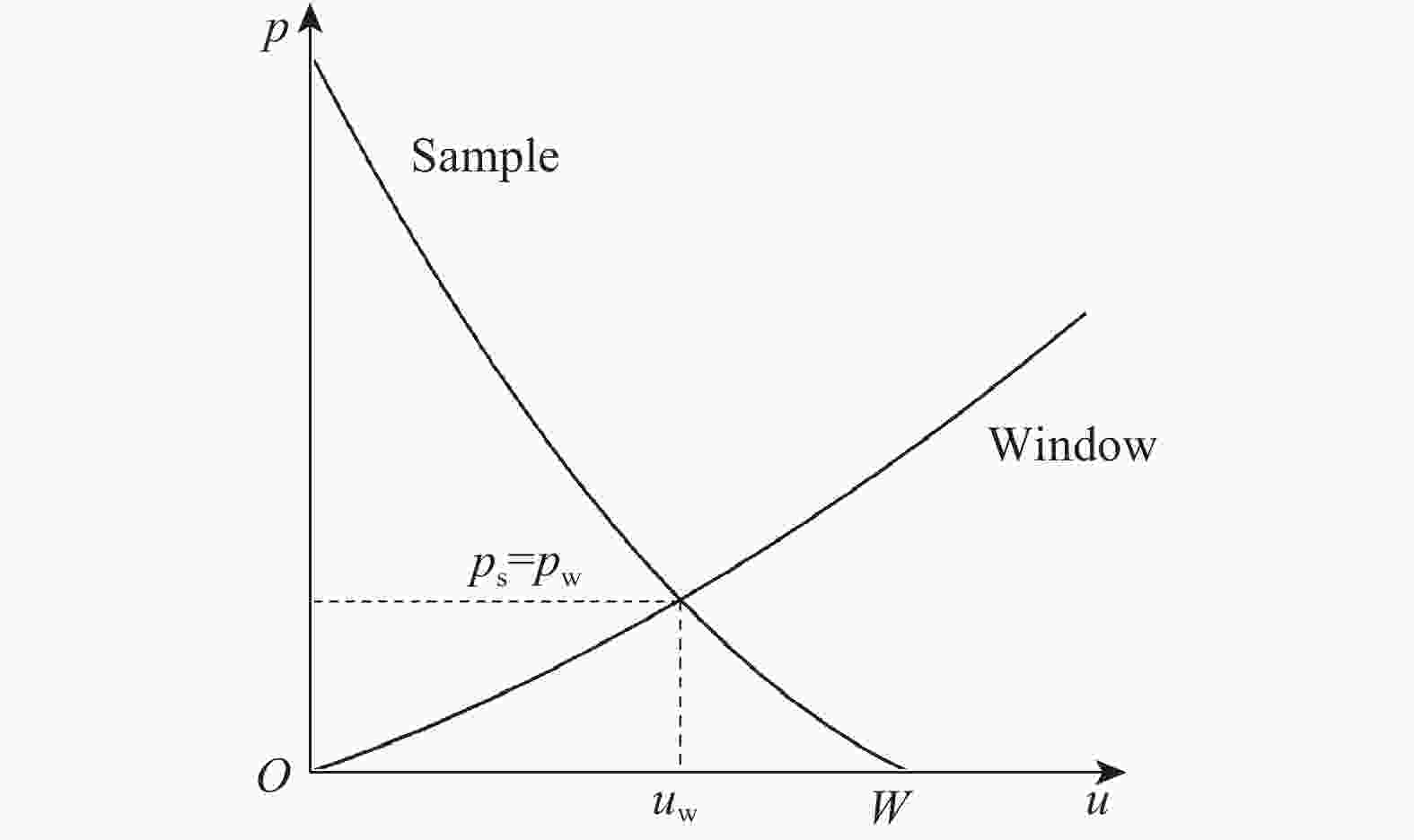

图 2 反向碰撞实验p-u图

Figure 2. p-u relation for backward-impact experiment

下载: 全尺寸图片幻灯片

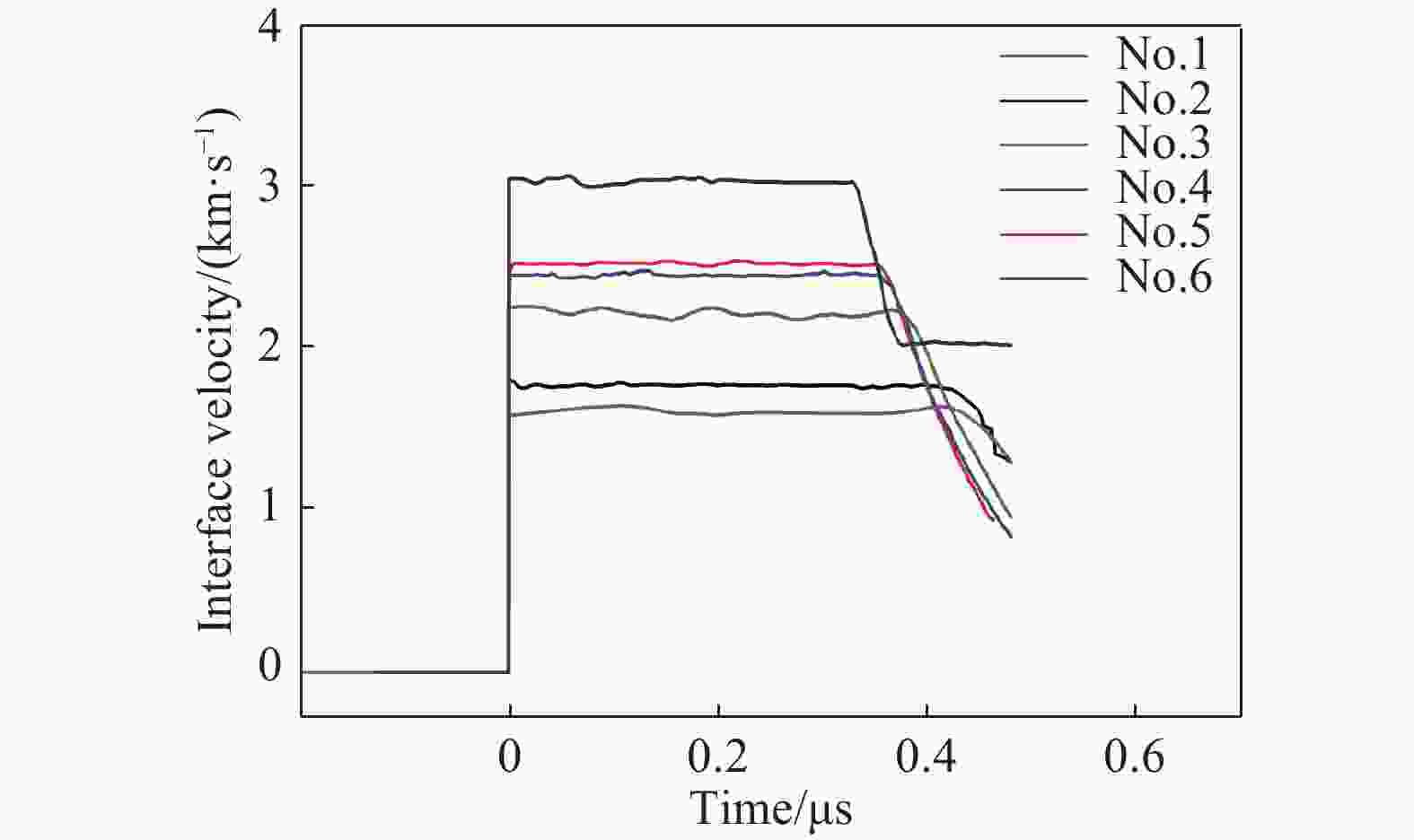

图 3 MB2/LiF界面粒子速度剖面

Figure 3. Particle velocity profile of MB2/LiF interface

下载: 全尺寸图片幻灯片

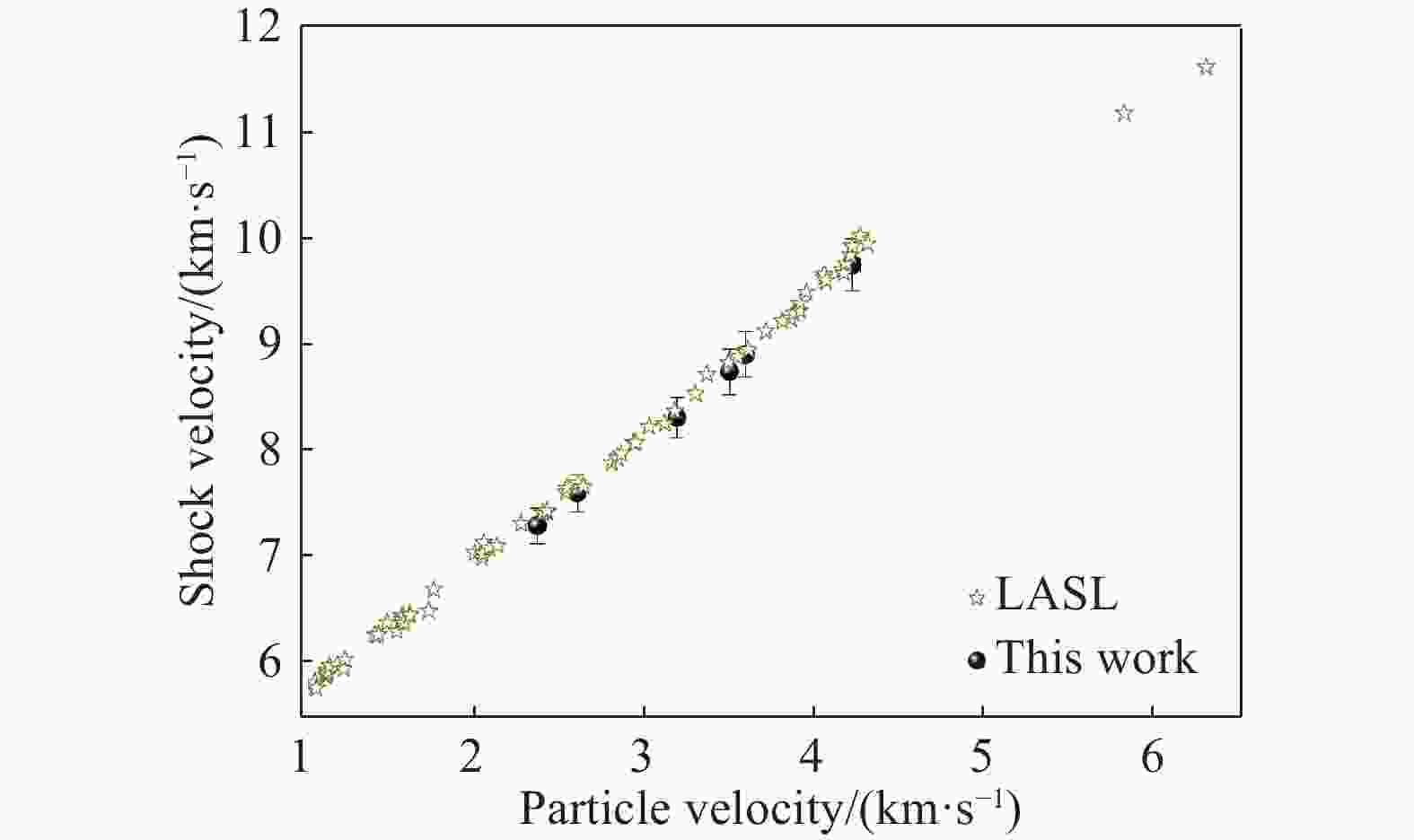

图 4 冲击波速度与粒子速度的关系

Figure 4. Shock velocity vs. particle velocity

下载: 全尺寸图片幻灯片

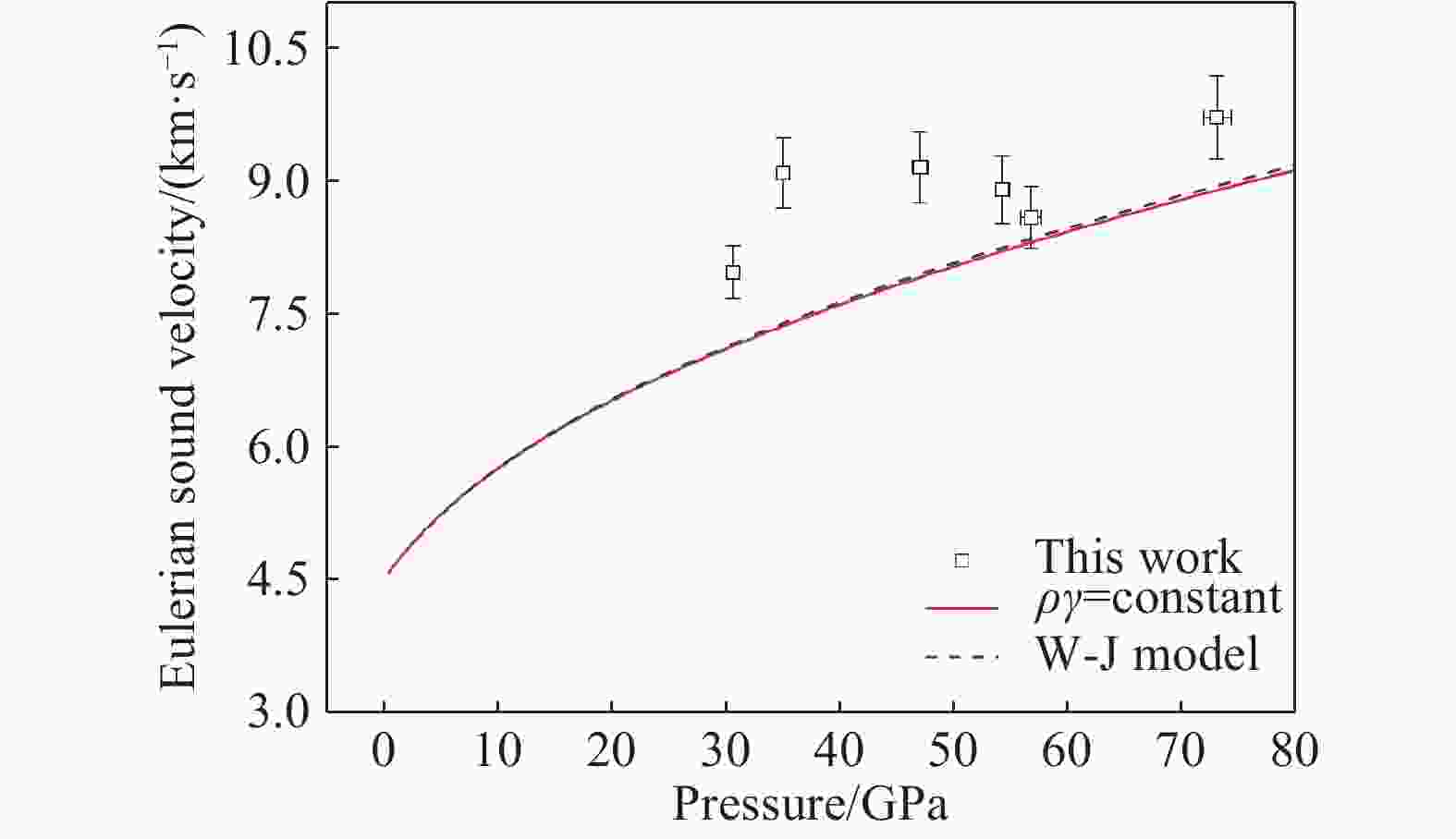

图 5 声速与冲击压力的关系

Figure 5. Sound velocity vs. shock pressure

下载: 全尺寸图片幻灯片

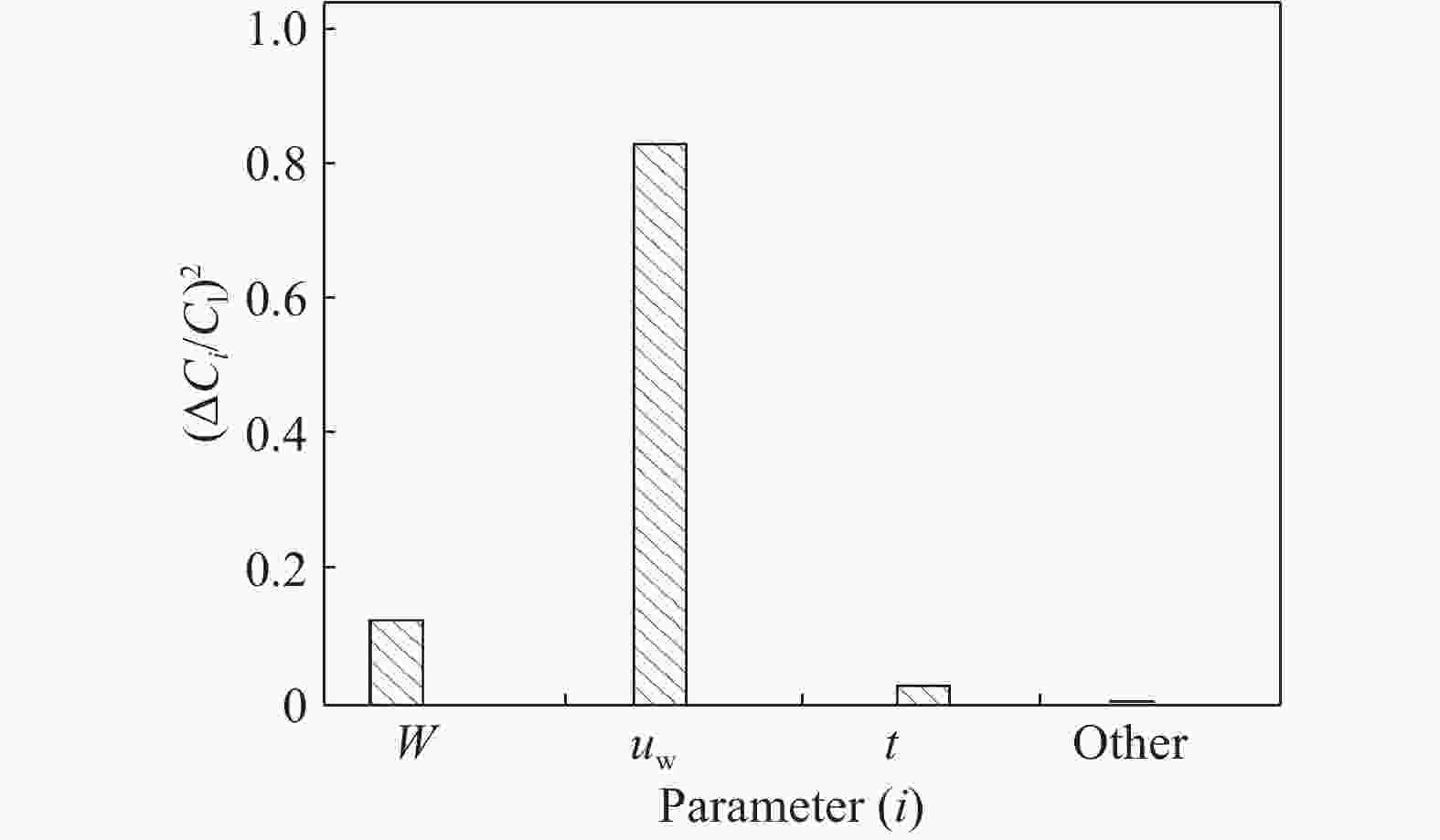

图 6 反碰撞法测量声速实验中不确定度

Figure 6. Uncertainties for backward-impact experiment based on law of propagation

下载: 全尺寸图片幻灯片

表 1 MB2样品冲击实验参数及结果

Table 1. Shock experiment parameters and results of MB2

Exp.No.	h_s/mm	W/(km·s^–1)	u_w/(km·s^–1)	u_s/(km·s^–1)	D_s/(km·s^–1)	p/GPa	C_l/(km·s^–1)
1	1.980±0.004	3.949±0.020	1.589±0.016	2.360±0.026	7.303±0.166	30.6±0.4	7.983±0.297
2	1.997±0.004	4.358±0.020	1.763±0.018	2.595±0.027	7.607±0.175	35.0±0.5	9.101±0.394
3	1.978±0.004	5.379±0.027	2.195±0.022	3.184±0.030	8.317±0.191	47.0±0.7	9.167±0.402
4	1.981±0.004	5.928±0.030	2.435±0.024	3.493±0.039	8.746±0.214	54.2±0.9	8.912±0.380
5	1.981±0.004	6.100±0.030	2.514±0.025	3.586±0.039	8.907±0.213	56.7±0.9	8.601±0.348
6	1.987±0.004	7.220±0.036	3.003±0.030	4.217±0.050	9.747±0.245	73.0±1.2	9.723±0.463

下载: 导出CSV

参考文献(16)

[1]	GAO C Y, ZHANG L C, GUO W G, et al. Dynamic plasticity of AZ31 magnesium alloy: experimental investigation and constitutive modeling [J]. Materials Science and Engineering A, 2014, 613: 379–389. doi: 10.1016/j.msea.2014.06.112
[2]	胡昌明, 李英雷, 胡时胜, 等. 高温-高应变率下MB2合金的动态力学性能及变形机理 [J]. 兵器材料科学与工程, 2009, 32(5): 8–11 doi: 10.3969/j.issn.1004-244X.2009.05.003 HU C M, LI Y L, HU S S, et al. Dynamic mechanical properties and deformation mechanical of MB2 alloy under high temperature and high strain rates [J]. Ordnance Material Science and Engineering, 2009, 32(5): 8–11 doi: 10.3969/j.issn.1004-244X.2009.05.003
[3]	SCHMIDT R M, DAVIES F W, LEMPRIERE B M, et al. Temperature dependent spall threshold of four metal alloys [J]. Journal of Physics and Chemistry of Solids, 1978, 39(4): 375–385. doi: 10.1016/0022-3697(78)90079-3
[4]	MILLETT J C F, STIRK S M, BOURNE N K, et al. On the behaviour of the magnesium alloy, AZ61 to one-dimensional shock loading [J]. Acta Materialia, 2010, 58(17): 5675–5682. doi: 10.1016/j.actamat.2010.06.042
[5]	MARSH S P. LASL shock Hugoniot data [M]. Berkeley: University of California Press, 1980: 208.
[6]	YU Y Y, TAN H, HU J B, et al. Shear modulus of shock-compressed LY12 aluminium up to melting point [J]. Chinese Physics B, 2008, 17(1): 264–269. doi: 10.1088/1674-1056/17/1/046
[7]	胡建波, 谭华, 俞宇颖, 等. 铝的动态屈服强度测量及再加载弹性前驱波的形成机理分析 [J]. 物理学报, 2008, 57(1): 405–410 doi: 10.3321/j.issn:1000-3290.2008.01.063 HU J B, TAN H, YU Y Y, et al. Measurements of dynamic yield strength of aluminum alloy and mechanism analysis of elastic precursor during reloading [J]. Acta Physica Sinica, 2008, 57(1): 405–410 doi: 10.3321/j.issn:1000-3290.2008.01.063
[8]	谭叶, 俞宇颖, 戴诚达, 等. 反向碰撞法测量Bi的低压Hugoniot数据 [J]. 物理学报, 2011, 60(10): 106401 doi: 10.7498/aps.60.106401 TAN Y, YU Y Y, DAI C D, et al. Measurement of low-pressure Hugoniot data for bismuth with reverse-impact geometry [J]. Acta Physica Sinica, 2011, 60(10): 106401 doi: 10.7498/aps.60.106401
[9]	俞宇颖, 谭叶, 戴诚达, 等. 钒的高压声速测量 [J]. 物理学报, 2014, 63(2): 026202 YU Y Y, TAN Y, DAI C D, et al. Sound velocities of vanadium under shock compression [J]. Acta Physica Sinica, 2014, 63(2): 026202
[10]	WENG J D, TAN H, WANG X, et al. Optical-fiber interferometer for velocity measurements with picosecond resolution [J]. Applied Physics Letters, 2006, 89(11): 111101. doi: 10.1063/1.2335948
[11]	谭华. 实验冲击波物理导 [M]. 北京: 国防工业出版社, 2006: 5. TAN H. Introduction to experimental shock-wave physics [M]. Beijing: National Defense Industry Press, 2006: 5.
[12]	RIGG P A, KNUDSON M D, SCHARFF R J, et al. Determining the refractive index of shocked [J]. Journal of Applied Physics, 2014, 116(3): 033515. doi: 10.1063/1.4890714
[13]	URTIEW P A, GROVER R. The melting temperature of magnesium under shock loading [J]. Journal of Applied Physics, 1977, 48(3): 1122–1126. doi: 10.1063/1.323789
[14]	徐锡申, 张万箱. 实用物态方程理论导引 [M]. 北京: 科学出版社, 1986: 527. XU X S, ZHANG W X. Introduction to equation of state theory [M]. Beijing: National Defense Industry Press, 1986: 527.
[15]	WU Q, JING F Q. Thermodynamic equation of state and application to Hugoniot predictions for porous materials [J]. Journal of Applied Physics, 1996, 80(8): 4343–4349. doi: 10.1063/1.363391
[16]	国家质量技术监督局计量司. 测量不确定度评定与表示指南 [M]. 北京: 中国计量出版社, 2000.
