First-Principles Investigations on Metallic Silicon Allotropes
-
摘要: 从理论上提出了一种新型金属性硅的同素异形体hP12-Si。 hP12-Si结构可以看作是由六元环形成的一种隧道型结构，与之前报道的Si24结构近似。弹性常数和声子谱的计算结果验证了该结构在常压下的稳定性。通过结构遗传性和热力学稳定性分析表明，可以效仿Si24的制备方法，通过预先合成出高压前驱物LiSi12再除去其中的Li原子来获得hP12-Si。在这种结构中, 有一半的硅原子为5配位，其他硅原子为4配位。电子结构计算表明，该结构具有金属导电性，导电性主要是由于5配位原子的存在导致价电子具有离域性。Abstract: A new metallic metastable silicon allotrope hP12-Si has been theoretically proposed using the particle swarm optimization method. The hP12-Si structure can be seen as a combination of a tunnel-type structure formed from six-membered sp3 silicon rings, which is similar to the previously reported Si24 structure. Its stability was verified by calculating its elastic constants and phonon spectrum. The analysis of structural heritability and thermodynamic stability shows that hP12-Si might be obtained by removing Li atoms from the pre-synthetic LiSi12 precursor, which is analogous with the recent preparation of Si24. There are 50% five coordinated silicon atoms, whereas the others are four coordinated in the hP12-Si structure. Electronic band structure calculation indicated that this structure could perform the metallic properties, which might be resulted from the delocalization of valence electrons caused by the existence of five coordinated atoms.
-
Key words:
- metallic silicon /
- first-principles /
- high density silicon /
- structural transition
-

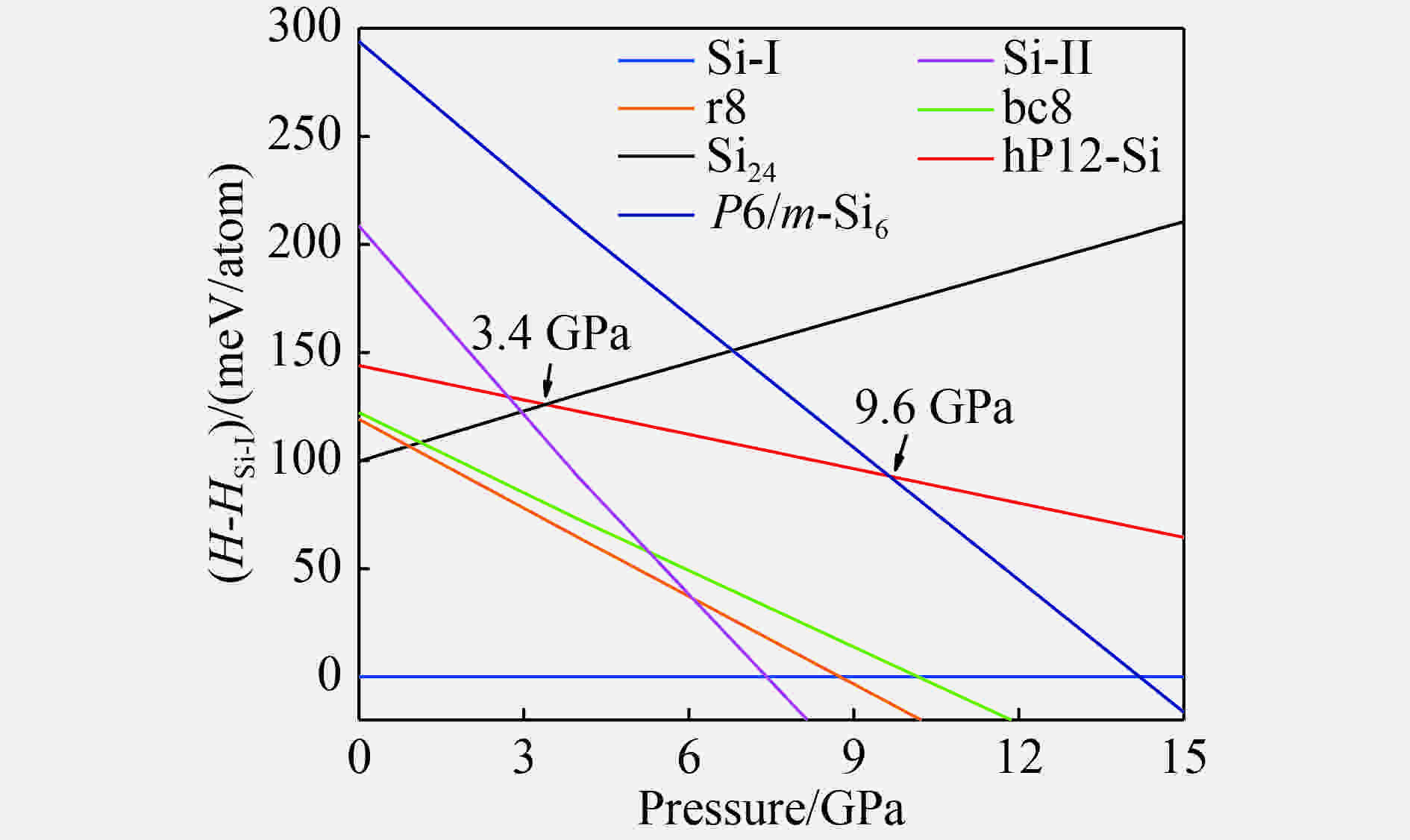

图 3 硅同素异形体相对于Si-I相的焓压曲线
Figure 3. Enthalpies of various Si allotropes relative to Si-I as a function of pressure

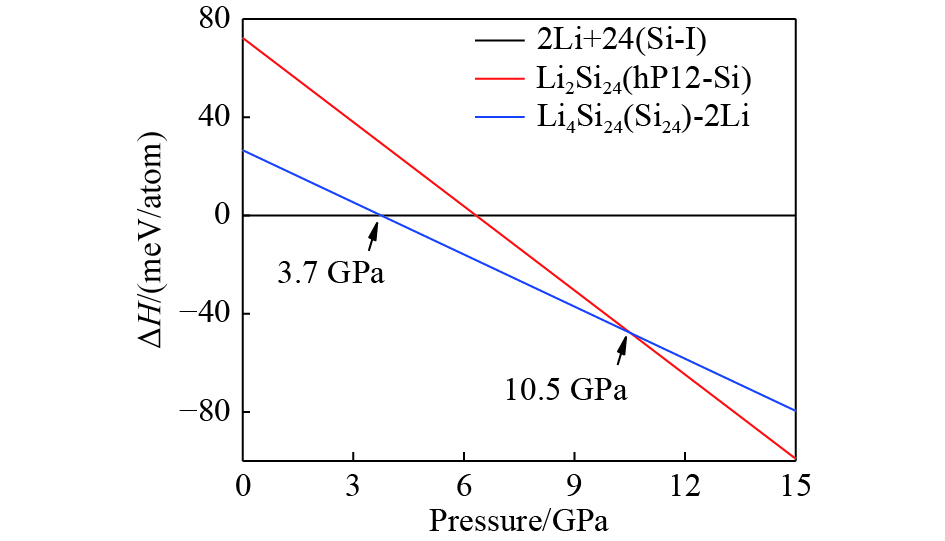

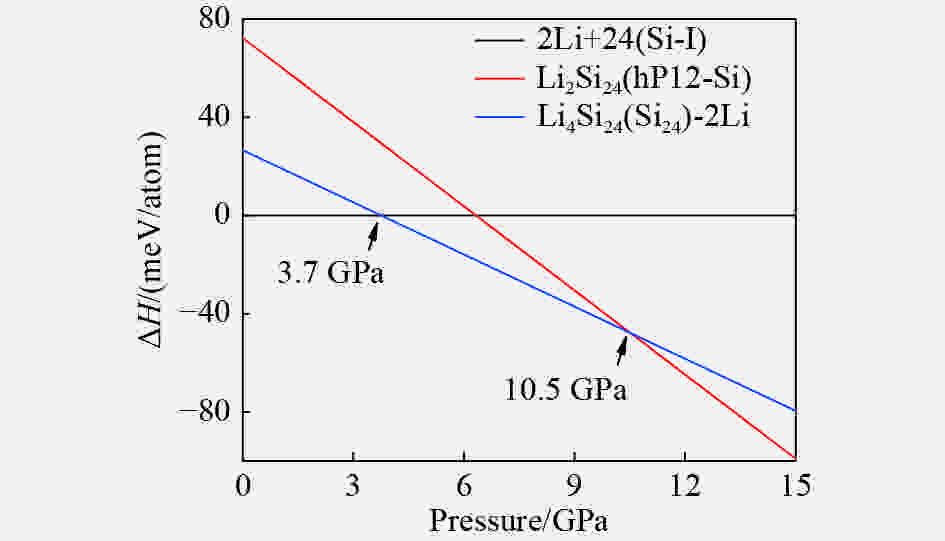

图 5 Li2Si24和Li4Si24原料的焓压曲线
Figure 5. Enthalpies of Li2Si24 and Li4Si24 phase relative to reactants (Li and Si-I) as a function of pressure

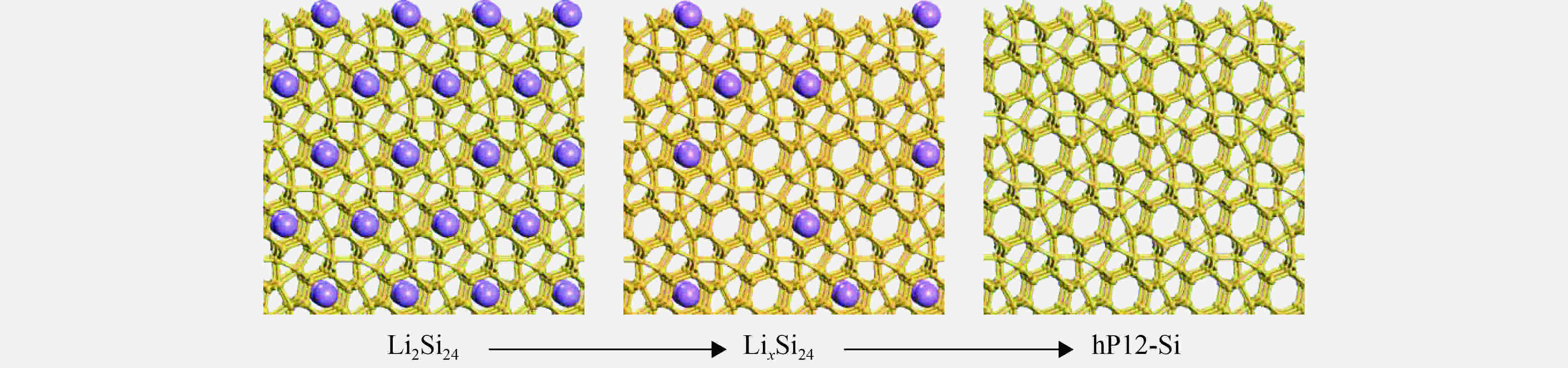

图 6 Li2Si24脱Li过程
Figure 6. Schematic of the compositional change from Li2Si24 (left) to hP12-Si (right)
表 1 常压下hP12-Si单胞的晶体结构数据
Table 1. Crystallographic data for hP12-Si conventional cell
Space group a/Å c/Å ρ/(g·cm–3) Atomic positions P6/m (175) 8.202 3.823 2.512 Si:6k (0.499 33, 0.846 42, 0.5) Si:6j (0.679 02, 0.892 27, 0.0)
下载: 导出CSV
表 2 hP12-Si单胞中化学键的布居数和键长
Table 2. Populations and length of silicon bond in hP12-Si conventional cell
Silicon bond Populations Length of silicon bond/Å Si-7—Si-11, Si-7—Si-12, Si-8—Si-10 0.76 2.321 Si-8—Si-12, Si-9—Si-10, Si-9—Si-11 Si-1—Si-7, Si-2—Si-8, Si-3—Si-9 0.77 2.327 Si-4—Si-10, Si-5—Si-11, Si-6—Si-12 Si-1—Si-2, Si-1—Si-3, Si-2—Si-3 0.33 2.462 Si-4—Si-5, Si-4—Si-6, Si-5—Si-6 Si-1—Si-4, Si-2—Si-5, Si-3—Si-6 0.41 2.514
下载: 导出CSV
表 3 常压下hP12-Si、Si24和Si-I结构的密度、弹性常数、体弹性模量和剪切模量
Table 3. Calculated density, elastic constants , bulk moduli, and shear moduli of hP12-Si, Si24 and Si-I at ambient pressure
Structure ρ/(g·cm–3) Elastic constants/GPa B/GPa G/GPa C11 C22 C33 C44 C55 C66 C12 C13 C23 hP12-Si 2.512 166 166 148 51 51 56 66 66 94 94 51 Si24 2.236 164 204 147 37 42 51 40 46 85 85 50 Si-I 2.402 161 161 161 76 76 76 62 62 95 95 64
下载: 导出CSV
表 4 常压下hP12-Si结构的原子位置、配位数和布居数
Table 4. Wyckoff positions, coordination numbers, and populations of silicon atoms in hP12-Si
Atomic number Wyckoff positions Coordination numbers Populations Si-1–Si-6 6k (0.499 33, 0.846 42, 0.5) 5 –0.02 Si-7–Si-12 6j (0.679 02, 0.892 27, 0.0) 4 0.02
下载: 导出CSV
-
