旋转对卵形弹侵彻钢板影响的FEM-SPH耦合模拟

肖毅华; 吴和成; 朱爱华; 董晃晃; 平学成

doi:10.11858/gywlxb.20180675

旋转对卵形弹侵彻钢板影响的FEM-SPH耦合模拟

doi: 10.11858/gywlxb.20180675

1.
华东交通大学机电与车辆工程学院，江西南昌　330013
2.
杭叉集团股份有限公司，浙江杭州　310000
3.
天津科技大学机械工程学院，天津　300457

基金项目: 国家自然科学基金地区基金（11862005）；江西省青年科学基金（20181BAB211012）；天津市高校“中青年骨干创新人才”培养计划（津教委人函[2017]23号）

详细信息

作者简介:
肖毅华（1984—），男，博士，副教授. 主要从事防护材料/结构设计与分析、机械结构强度与破坏研究. E-mail：xiaoyihua@ecjtu.edu.cn

中图分类号: O385
计量
- 文章访问数: 7530
- HTML全文浏览量: 4025
- PDF下载量: 46
出版历程
- 收稿日期: 2018-11-07
- 修回日期: 2018-11-28

Effect of Rotation on Penetration of Steel Plate by Ogival Projectile Using Coupled FEM-SPH Simulation

1.
School of Mechatronics and Vehicle Engineering, East China Jiaotong University, Nanchang 330013, China
2.
Hangcha Group Co., Ltd, Hangzhou 310000, China
3.
College of Mechanical Engineering, Tianjin University of Science and Technology, Tianjin 300457, China

摘要

摘要: 建立了卵形弹侵彻钢板的FEM-SPH耦合计算模型，研究了弹靶间摩擦系数对弹体剩余速度计算结果的影响，根据实验结果确定了合理的摩擦系数，使耦合计算模型能准确地预测弹体剩余速度和靶板弹道极限。以该模型为基础，在两种不同着靶速度下，研究了弹体的旋转对其正侵彻和以不同入射角斜侵彻钢板时剩余速度和弹道偏转的影响。正侵彻下：旋转对弹体剩余速度的影响大，而对弹道偏转的影响很小；随着转速的增加，剩余速度增大，弹体侵彻能力提高。斜侵彻下：旋转对弹体的剩余速度和弹道偏转都有明显影响，但弹体转速的增大并不总使其侵彻能力提高，与入射角和着靶速度有关；同时旋转使弹体沿入射面外发生偏转，其偏转方向与弹体的旋转方向相关。
- 旋转 /
- 侵彻 /
- 剩余速度 /
- 弹道偏转
Abstract: A coupled FEM-SPH model for an ogival-nosed projectile penetrating into a steel plate was established. The influence of friction coefficient between projectile and plate on residual velocity estimation for projectile was analyzed. Based on the experimental data, a suitable friction coefficient was determined such that the model can accurately predict residual velocities of projectile and ballistic limit of target. Based on the model, effects of projectile rotation on its residual velocity and ballistic deflection were studied for normal and oblique penetration with two different incident velocities and different incident angles. For normal penetration, rotation has a significant influence on residual velocity of projectile while few effects on ballistic deflection. The residual velocity and penetration capability of projectile increase with the growth of rotation speed. For oblique penetration, rotation has obvious effects on both residual velocity and ballistic deflection of projectile. The penetration capability of projectile does not monotonically increase with the growth of rotation speed and is dependent on incident angle and velocity. Deflections out of incident plane are induced by projectile rotation, and the deflection direction is related to the rotation direction of projectile.
- rotation /
- penetration /
- residual velocity /
- ballistic deflection

HTML全文

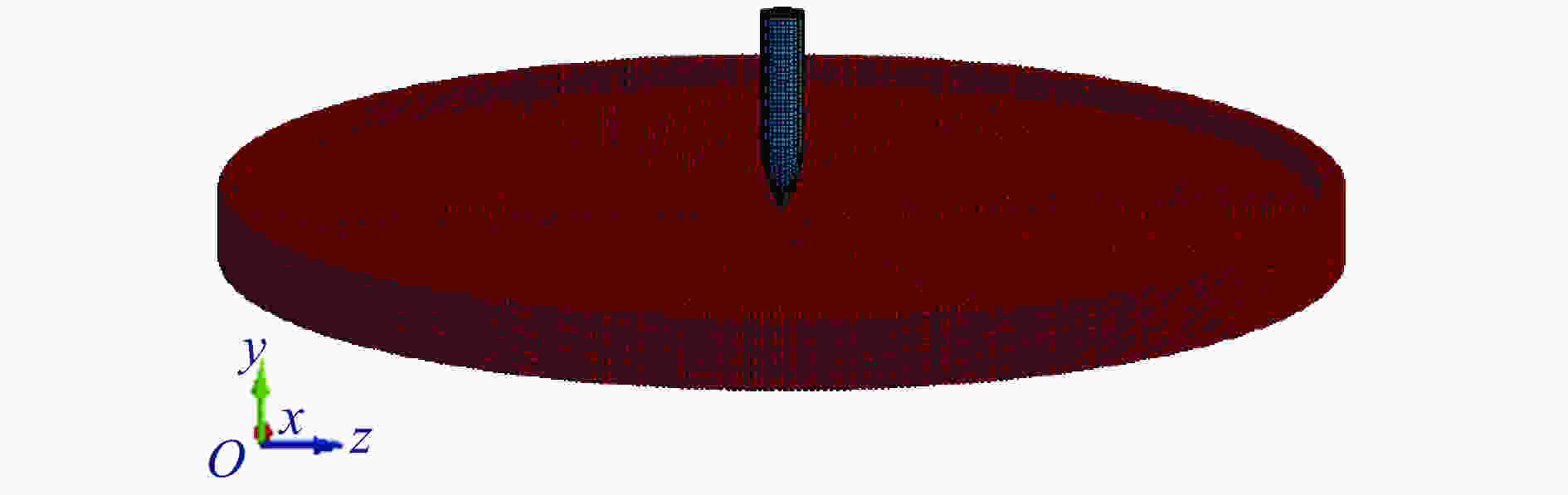

图 1 FEM-SPH耦合计算模型

Figure 1. Coupled FEM-SPH model

下载: 全尺寸图片幻灯片

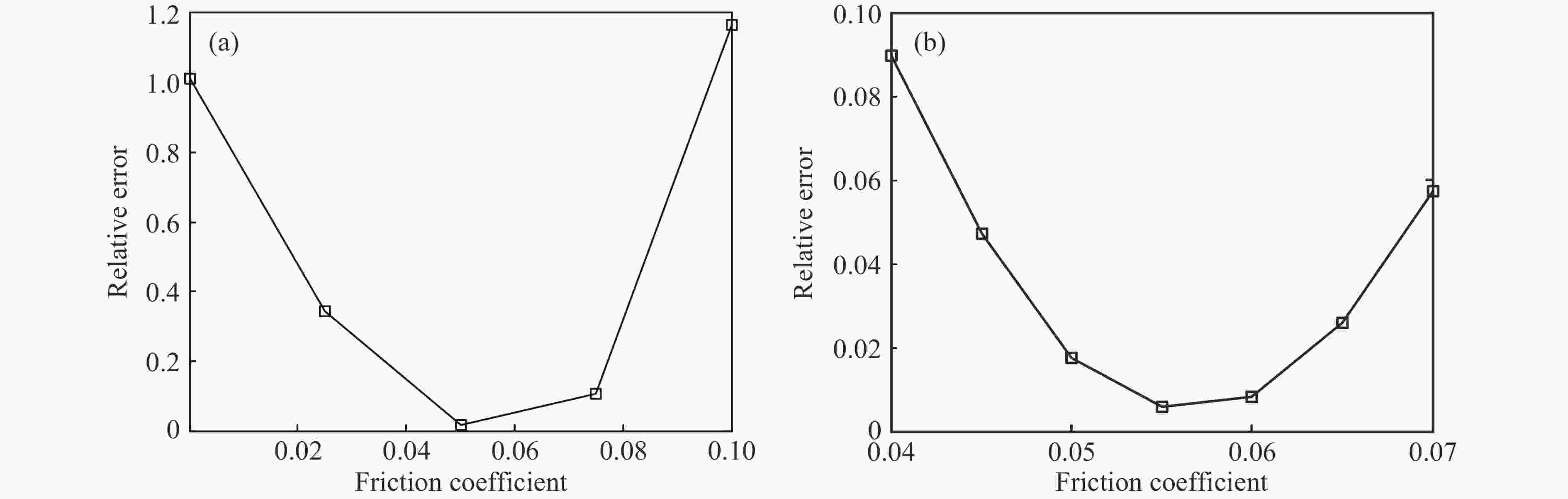

图 2 不同摩擦系数下的剩余速度总体相对误差

Figure 2. Overall relative error of residual velocity for different friction coefficients

下载: 全尺寸图片幻灯片

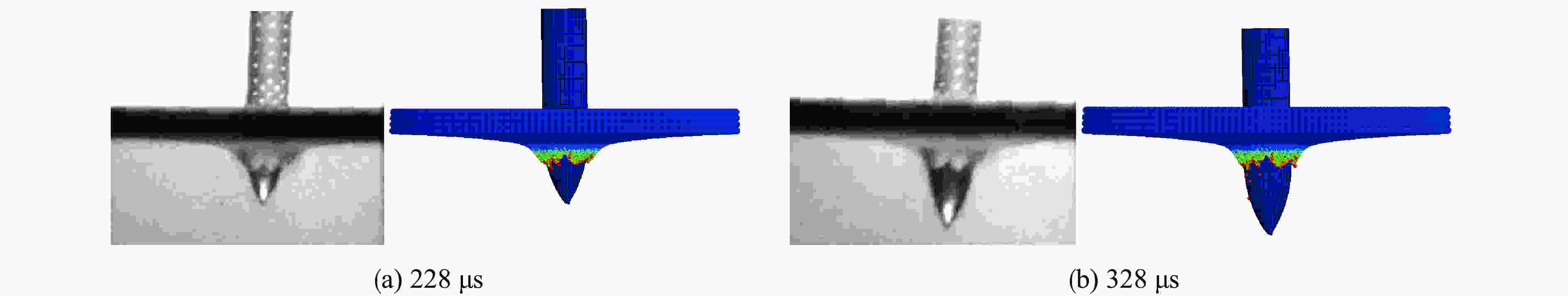

图 3 数值模拟和实验^[10]获得的弹靶变形情况对比

Figure 3. Comparison of deformations of projectile and target obtained by numerical simulation and experiment^[10]

下载: 全尺寸图片幻灯片

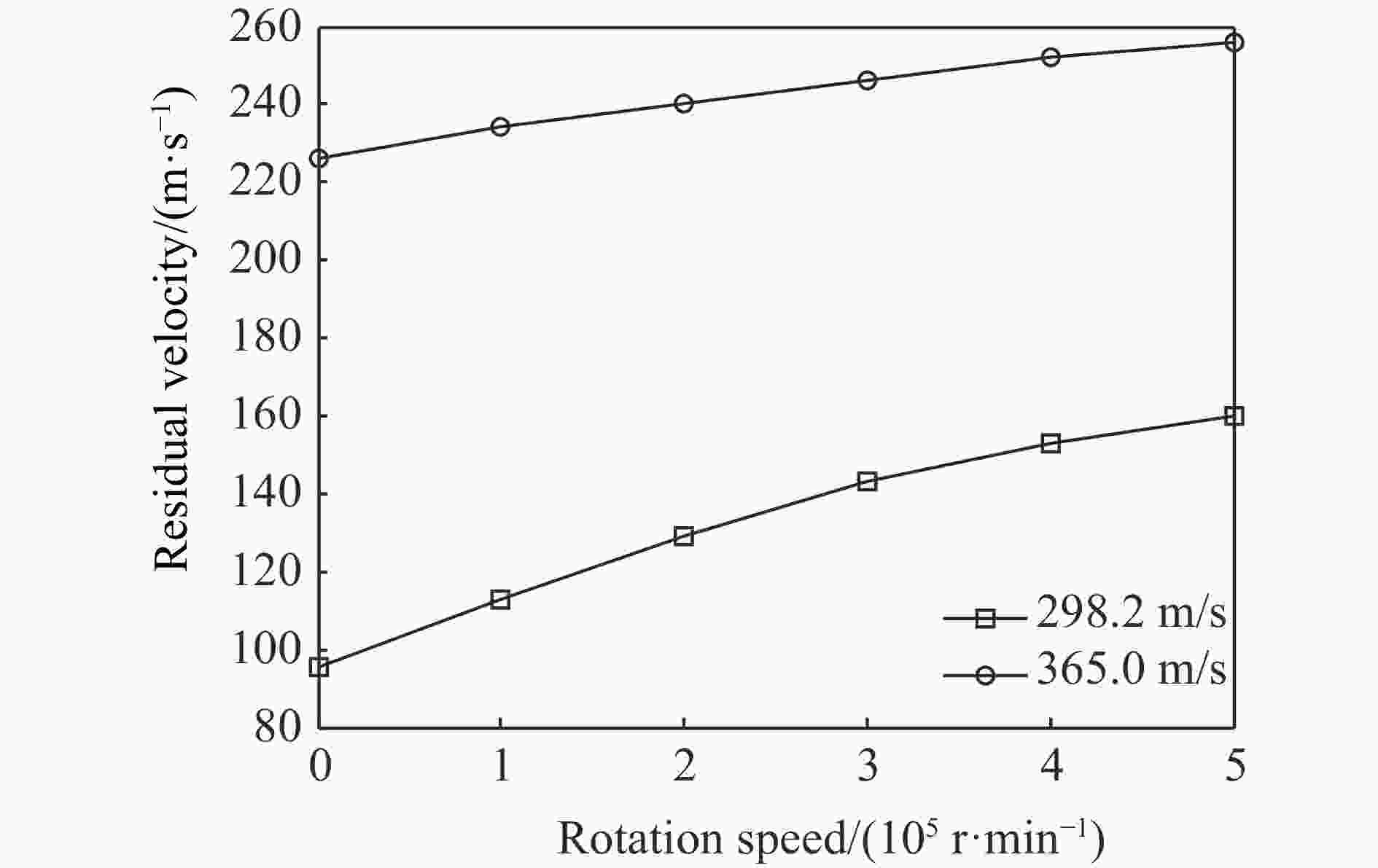

图 4 剩余速度随转速的变化曲线

Figure 4. Residual velocity-rotation speed curves

下载: 全尺寸图片幻灯片

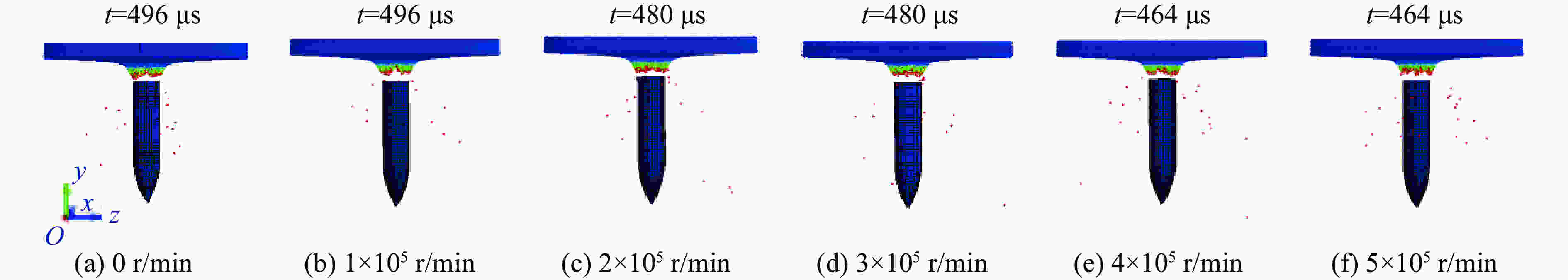

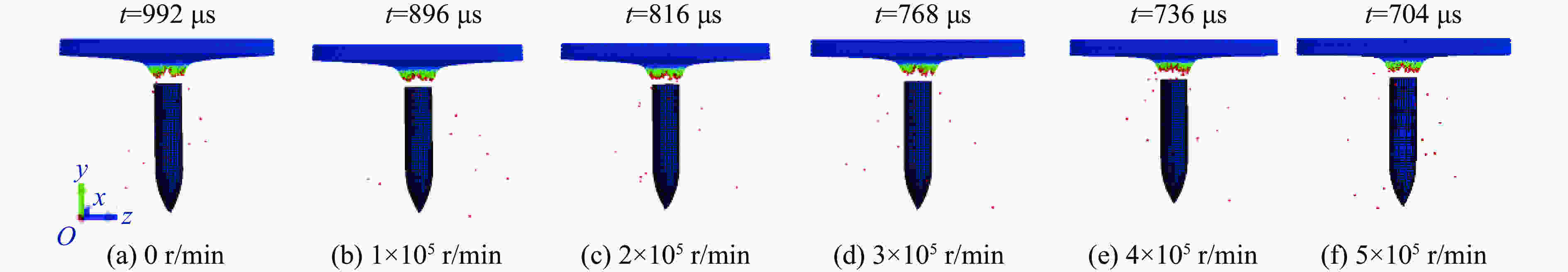

图 5 着靶速度为298.2 m/s时不同转速下弹体侵彻钢板过程中的变形

Figure 5. Penetration deformations of steel plate with different rotation speeds of projectile at an incident velocity of 298.2 m/s

下载: 全尺寸图片幻灯片

图 6 着靶速度为365.0 m/s时不同转速下弹体侵彻钢板过程中的变形

Figure 6. Penetration deformations of steel plate with different rotation speeds of projectile at an incident velocity of 365.0 m/s

下载: 全尺寸图片幻灯片

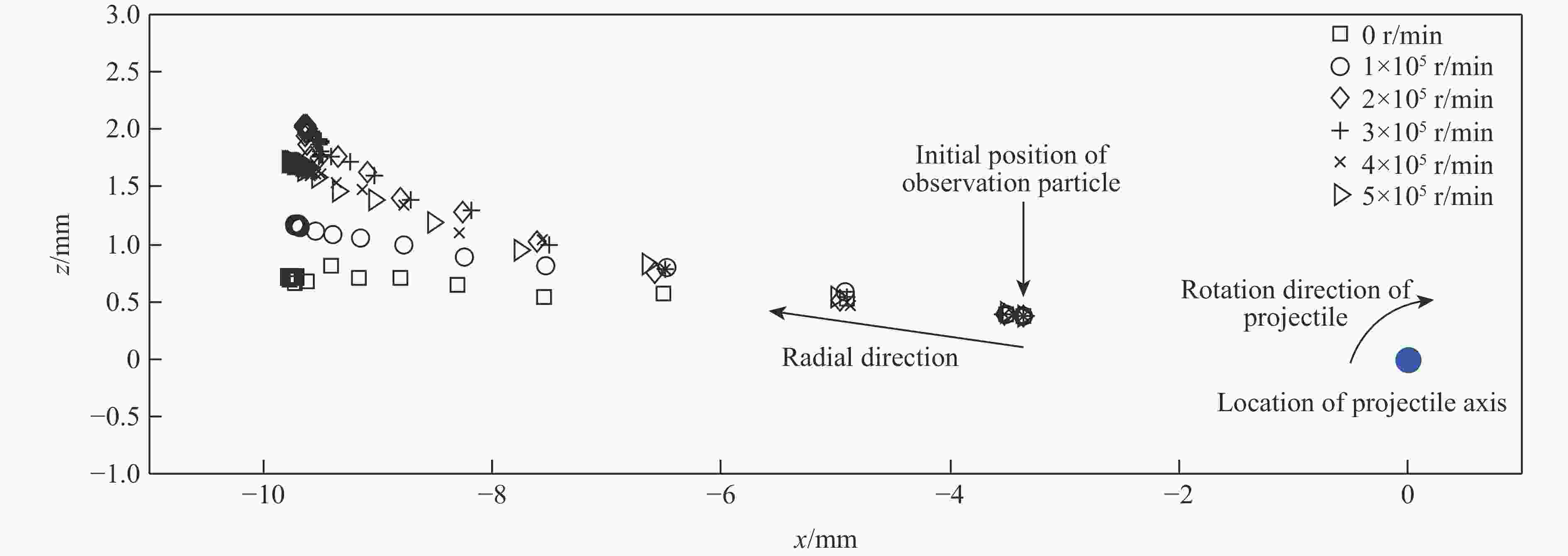

图 7 靶板中观测粒子在xz平面内的运动轨迹（着靶速度298.2 m/s）

Figure 7. Trajectories in xz plane of the observed particles in the target (Incident velocity: 298.2 m/s)

下载: 全尺寸图片幻灯片

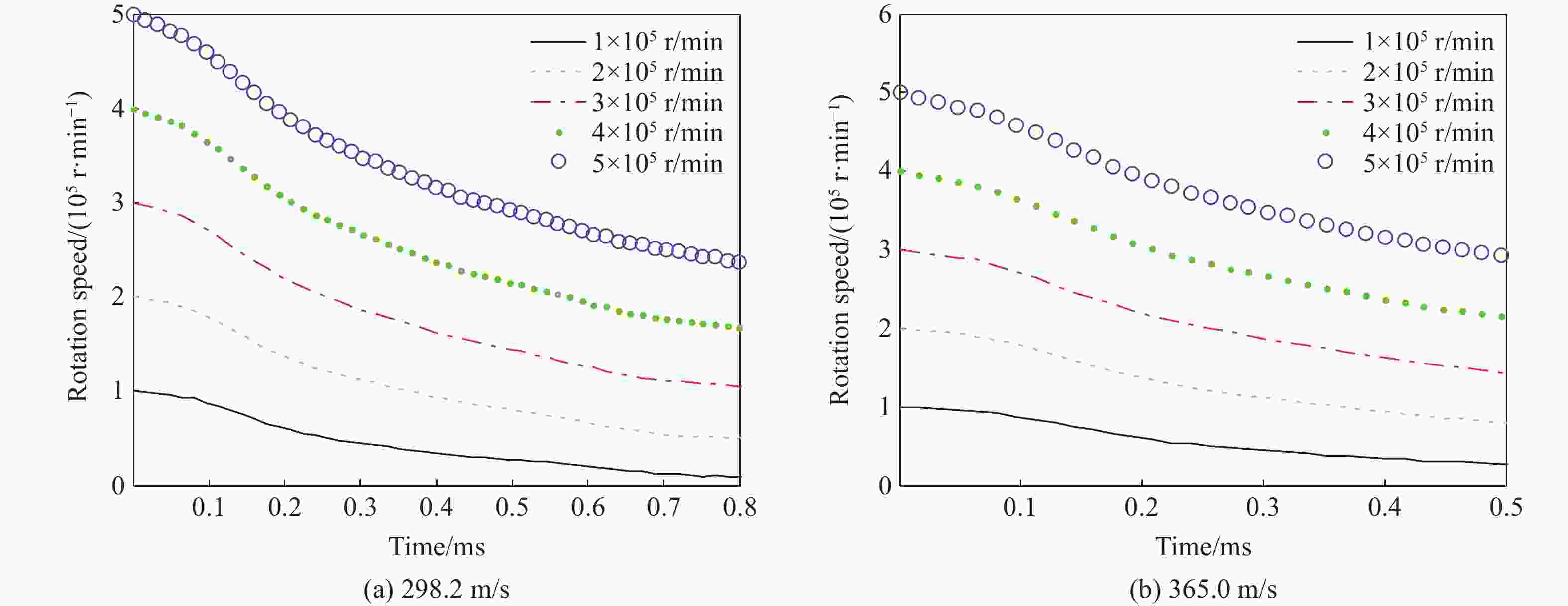

图 8 转速随时间的变化曲线

Figure 8. Curves of rotation speed time history

下载: 全尺寸图片幻灯片

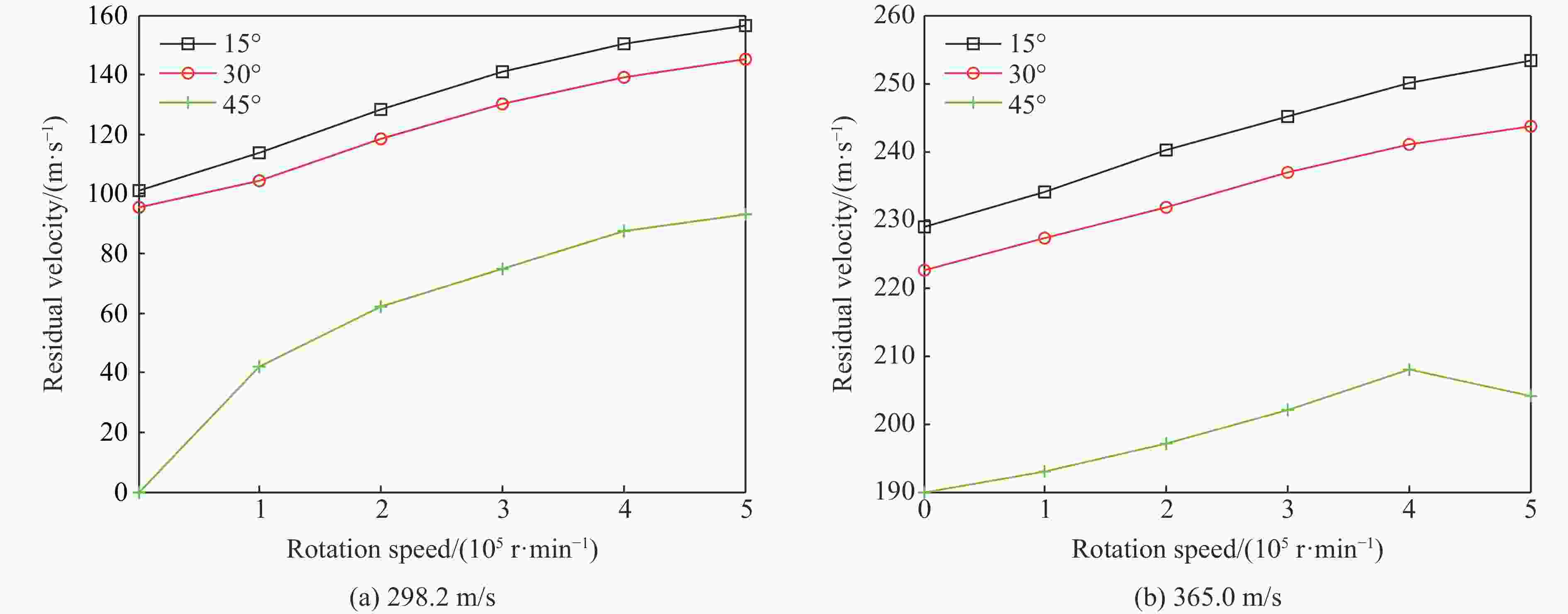

图 9 不同着靶速度时剩余速度随转速的变化曲线

Figure 9. Residual velocity-rotation speed curves for different incident velocities

下载: 全尺寸图片幻灯片

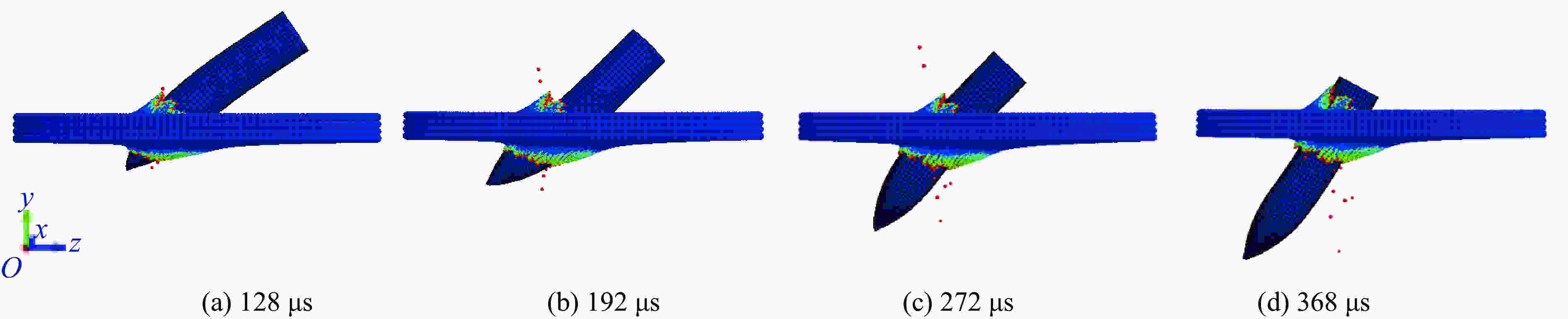

图 10 着靶速度365.0 m/s、入射角45°和转速5×10⁵ r/min时的变形

Figure 10. Deformations for incident velocity 365.0 m/s, incident angle 45° and rotation speed 5×10⁵ r/min

下载: 全尺寸图片幻灯片

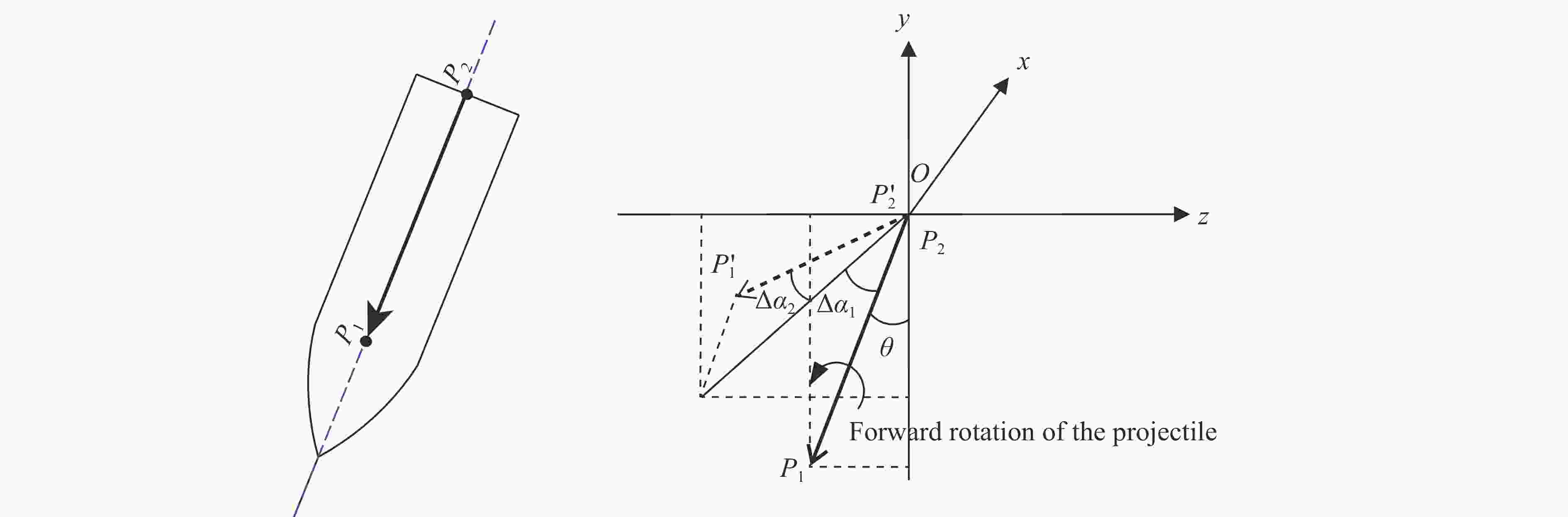

图 11 侵彻过程中任意时刻的弹体偏转角示意图

Figure 11. Schematic for deflection angles of projectile at an arbitrary time of penetration process

下载: 全尺寸图片幻灯片

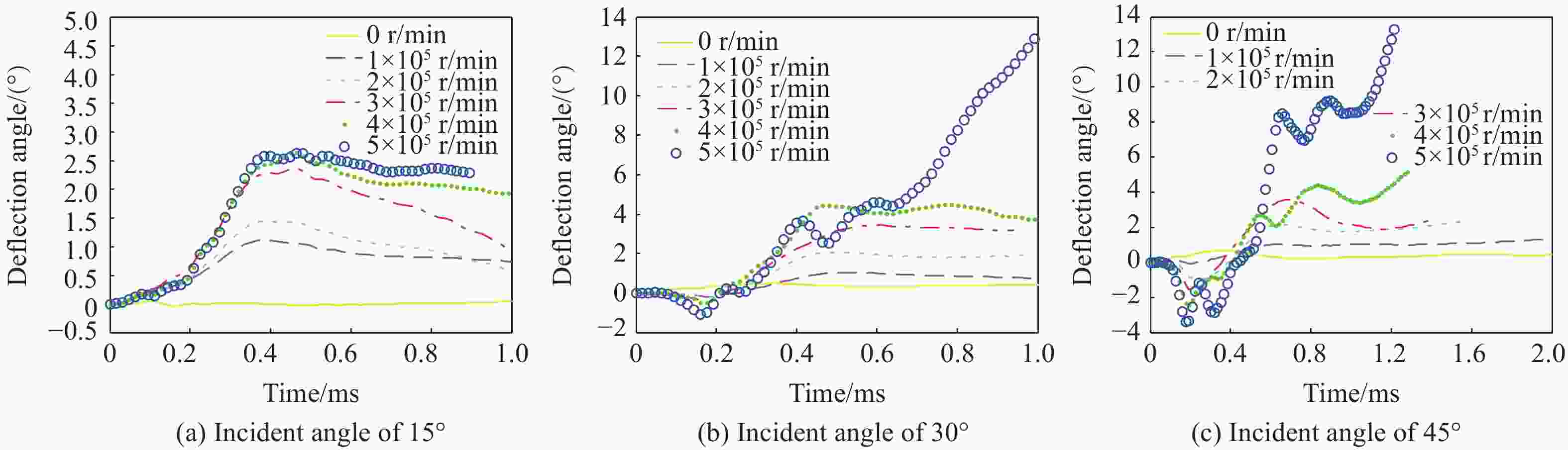

图 12 着靶速度298.2 m/s时弹体偏转角$\Delta {\alpha _1}$的变化曲线

Figure 12. Changes of projectile deflection angle $\Delta {\alpha _1}$ for incident velocity of 298.2 m/s

下载: 全尺寸图片幻灯片

图 13 着靶速度298.2 m/s时弹体偏转角$\Delta {\alpha _2}$的变化曲线

Figure 13. Changes of projectile deflection angle $\Delta {\alpha _2}$ for incident velocity of 298.2 m/s

下载: 全尺寸图片幻灯片

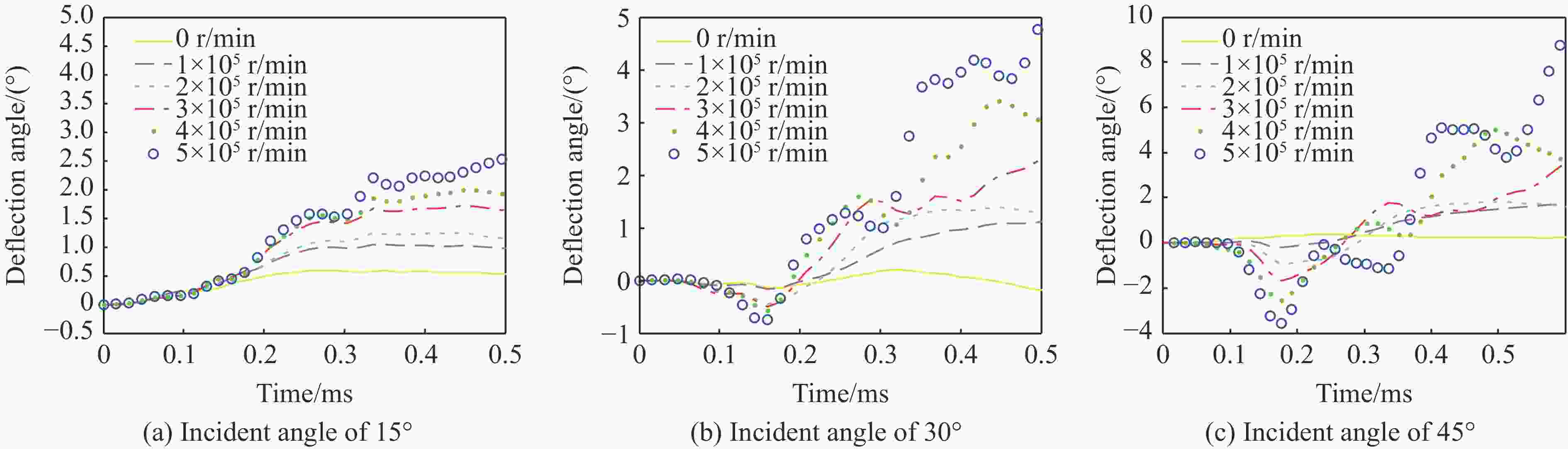

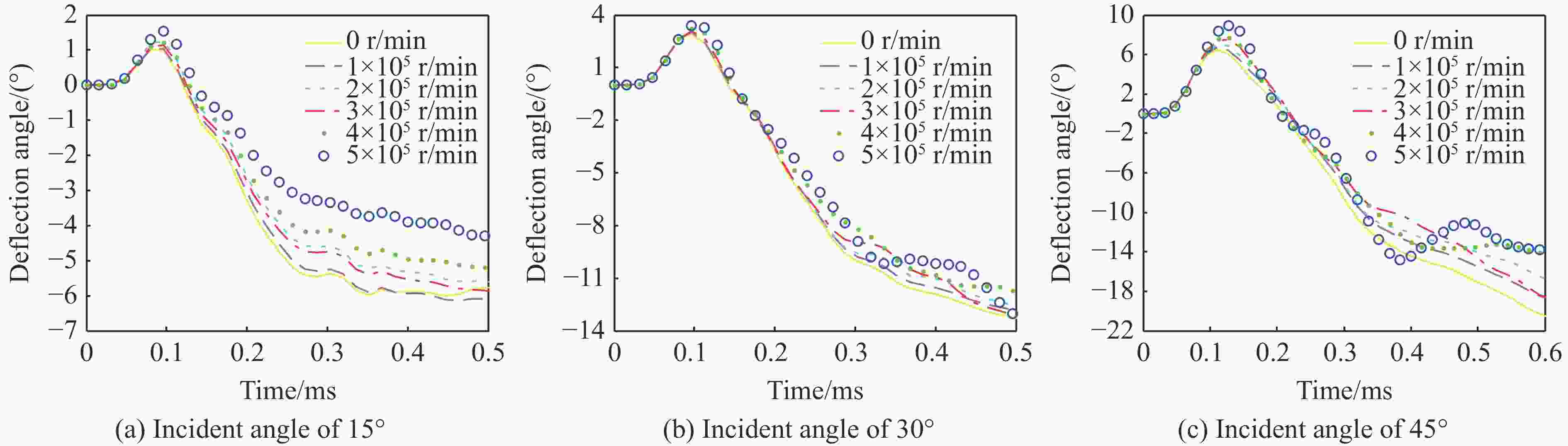

图 14 着靶速度365.0 m/s时弹体偏转角$\Delta {\alpha _1}$的变化曲线

Figure 14. Changes of projectile deflection angle $\Delta {\alpha _1}$ for incident velocity of 365.0 m/s

下载: 全尺寸图片幻灯片

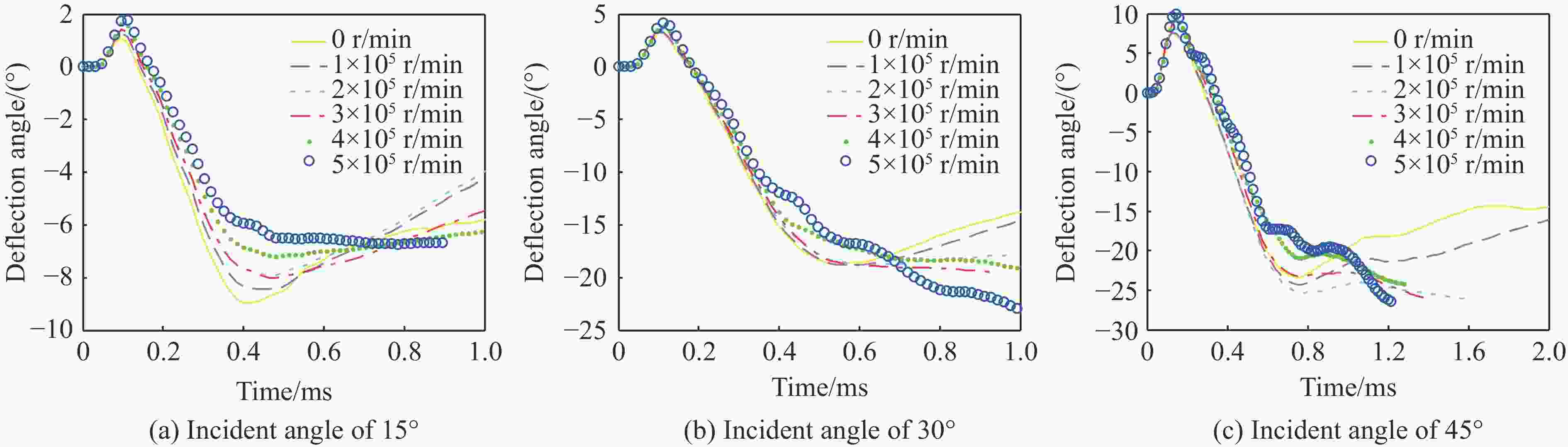

图 15 着靶速度为365.0 m/s时弹体偏转角$\Delta {\alpha _2}$的变化曲线

Figure 15. Changes of projectile deflection angle $\Delta {\alpha _2}$ for incident velocity of 365.0 m/s

下载: 全尺寸图片幻灯片

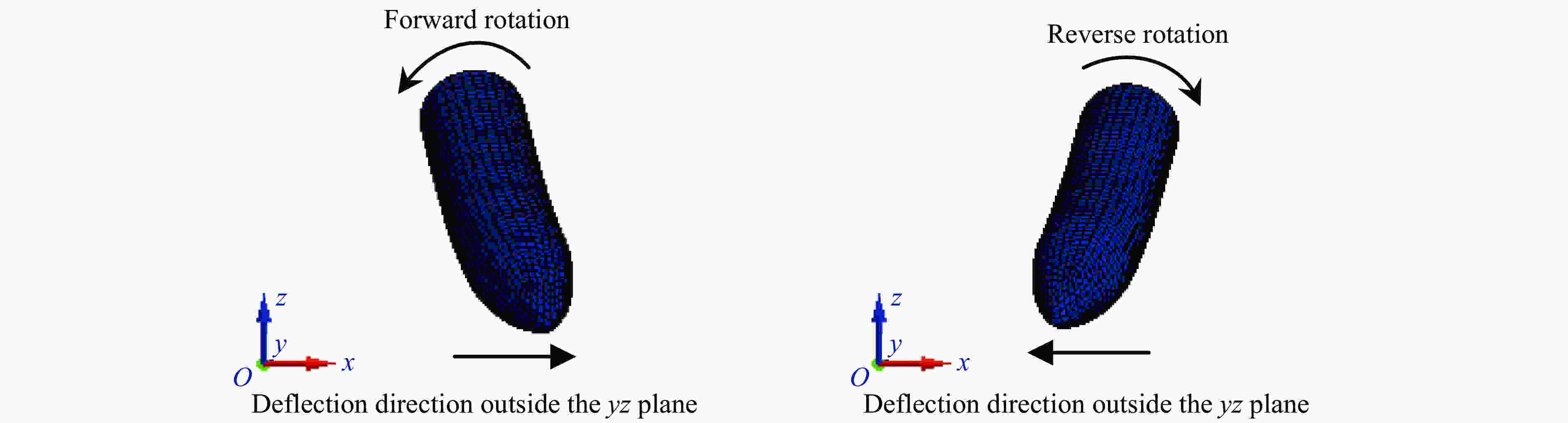

图 16 弹体沿相反方向旋转时弹体姿态的对比

Figure 16. Comparison of projectile attitudes for projectile rotating in opposite directions

下载: 全尺寸图片幻灯片

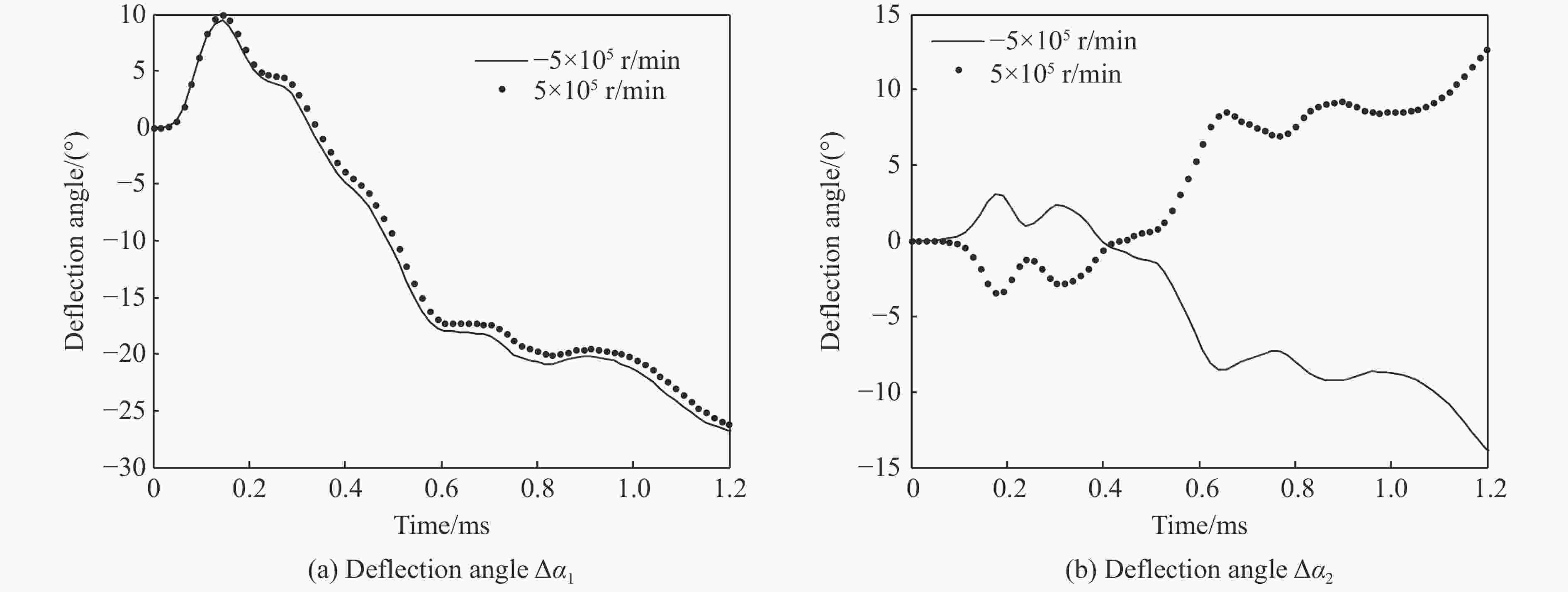

图 17 弹体沿相反方向旋转时弹体偏转角的对比

Figure 17. Comparison of projectile deflection angles for projectile rotating in opposite directions

下载: 全尺寸图片幻灯片

表 1 钢板的材料参数^[11]

Table 1. Material parameters for steel plate^[11]

Mass density/ (kg·m^–3)	Young’s modulus/GPa	Poisson’s ratio	Taylor-Quinney coefficient $\chi $	Specific heat C_p/(J·kg^–1·K^–1)	Thermal expansion coefficient $\alpha $/K^–1	Damage coupling parameter $\beta $
7850	210	0.33	0.9	452	1.2×10^–5	0

Johnson-Cook (JC) strength model parameters
A/MPa	B/MPa	n	C	${\dot \varepsilon _0}$/s^–1	m	T_r/K
499	382	0.458	0.0079	5×10^–4	0.893	293

JC strength model parameters		JC damage model parameters
T_m/K	T₀/K	D₁	D₂	D₃	D₄	D₅
1800	293	0.636	1.936	–2.969	–0.014	1.014

JC damage model parameters		Voce hardening parameters				Critical temperature parameter T_c/K
D_c	p_d	Q₁	C₁	Q₂	C₂	Critical temperature parameter T_c/K
1	0	0	0	0	0	1800

下载: 导出CSV

表 2 弹体材料参数^[11]

Table 2. Material parameters for projectile^[11]

Mass density/(kg·m^–3)	Young’s modulus/GPa	Poisson’s ratio	Yield stress ${\sigma _{\rm{y}}}$/MPa	Tangent modulus E_TAN/GPa
7850	204	0.33	1900	15

下载: 导出CSV

表 3 剩余速度和弹道极限的数值模拟结果与实验结果对比

Table 3. Comparison of residual velocity and ballistic limit obtained by numerical simulation and experiment

Method	Residual velocity/(m·s^–1)				Ballistic limit/(m·s^–1)
Method	v_i = 298.2 m·s^–1	v_i = 324.6 m·s^–1	v_i = 346.6 m·s^–1	v_i = 365.0 m·s^–1	Ballistic limit/(m·s^–1)
Experiment^[10]	91.2	160.3	193.3	239.9	295.9
Simulation	95.3	158.7	197.6	226.2	284.0
Relative error/%	4.5	1.0	2.2	5.7	4.0

下载: 导出CSV
