线性装药爆破去除输电线覆冰研究

宋巍; 谢东升; 黄铁铮; 孙滔; 李海涛; 范志强

doi:10.11858/gywlxb.20180605

线性装药爆破去除输电线覆冰研究

doi: 10.11858/gywlxb.20180605

宋巍^1,,
谢东升¹,
黄铁铮¹,
孙滔¹,
李海涛²,
范志强^2,*, ,

1.
国网山西省电力公司经济技术研究院，山西太原　030051
2.
中北大学理学院，山西太原　030051

基金项目: 国家电网公司科技项目（520533160002）

详细信息

作者简介:
宋　巍（1976－），男，硕士，高级工程师，主要从事电网规划设计及电力系统发展研究. E-mail：songweidj95@126.com

通讯作者:
范志强（1989－），男，博士，讲师，主要从事爆炸冲击动态测试技术研究. E-mail：fanzhq@nuc.edu.cn

中图分类号: O383.3
计量
- 文章访问数: 5034
- HTML全文浏览量: 2298
- PDF下载量: 23
出版历程
- 收稿日期: 2018-07-25
- 修回日期: 2018-08-21

De-Icing Power Line by Linear Shaped Explosive Blast

1.
Economic Research Institute of State Grid Shanxi, Taiyuan 030051, China
2.
School of Science, North University of China, Taiyuan 030051, China

摘要

摘要: 针对输电线由于覆冰引起各类事故灾害的问题，采用线装药爆破方式进行除冰是一种新思路。为研究该方法的除冰机理和关键技术，通过小尺寸覆冰输电线的爆破实验和数值模拟，研究爆破除冰机理和爆破参数影响规律。结果表明：爆炸载荷的直接作用使迎爆面覆冰大量粉碎，背部覆冰内形成贯穿型裂纹，随后解体或者在电线的冲击振动下脱除。当覆冰对导爆索约束较弱时，爆炸能量从约束较弱侧迅速衰减，当覆冰无法形成贯穿型裂纹时则不能脱冰。导爆索位于覆冰内部时有利于爆破除冰，因此应根据覆冰厚度预估装药间隔。
- 输电线 /
- 覆冰 /
- 线性装药爆破 /
- 有限元 /
- 延米药量
Abstract: To control the risk of disaster that may be caused by ice-coated power line, a novel de-icing method by applying linear shaped explosive blast has been proposed in the past decade. To investigate the mechanism and the key technology, blast tests on short ice-coated power line are performed as well as corresponding LS-DYNA simulations. The effects of blast parameters on de-icing efficiency are also discussed. Results show that, ice on the blast side immediately crush while through-wall cracks appear in the other side ice which then fractures or falls from the line. The blast energy rapidly attenuates from the weakly constrained side of ice when the detonation cord is placed outside of the ice. As a consequence, in order to de-ice with high efficiency, the gap between conductor and detonation cord should be optimized according to estimation ice coating thickness to ensure that the detonation cord is located within the ice coating.
- power line /
- de-ice /
- linear shaped explosive blast /
- finite element /
- charge per meter

HTML全文

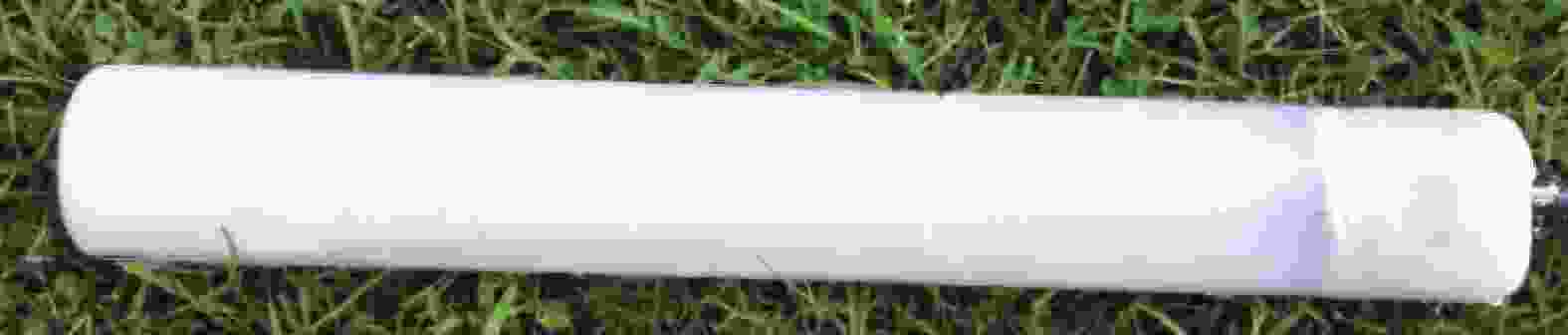

图 1 实验模拟覆冰输电线试样

Figure 1. Experimental sample of ice-coated power line

下载: 全尺寸图片幻灯片

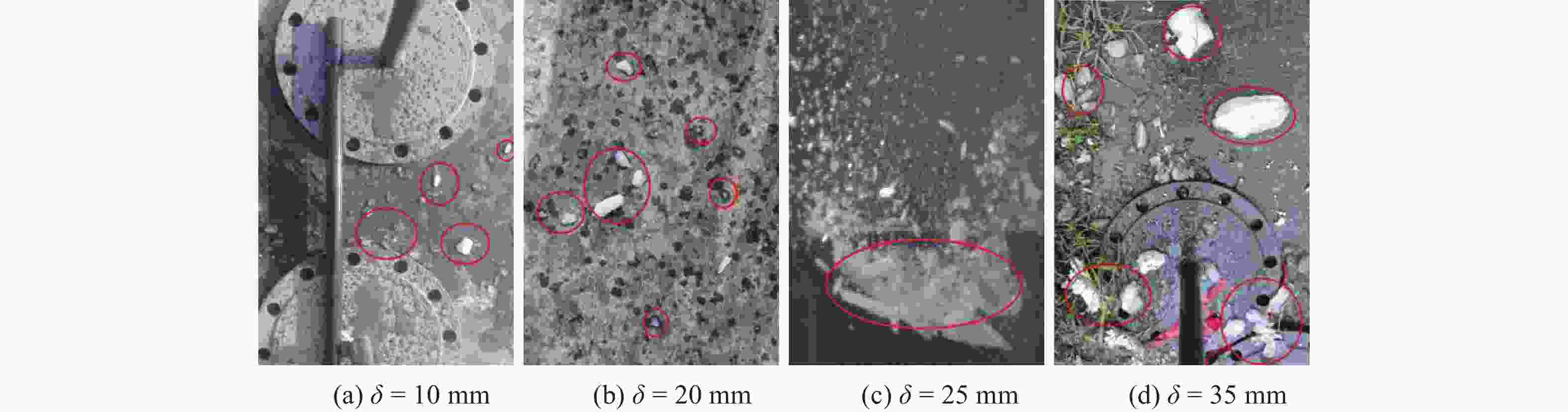

图 2 A型导爆索实验冰体破碎效果

Figure 2. Crushing results of Type A detonating cord

下载: 全尺寸图片幻灯片

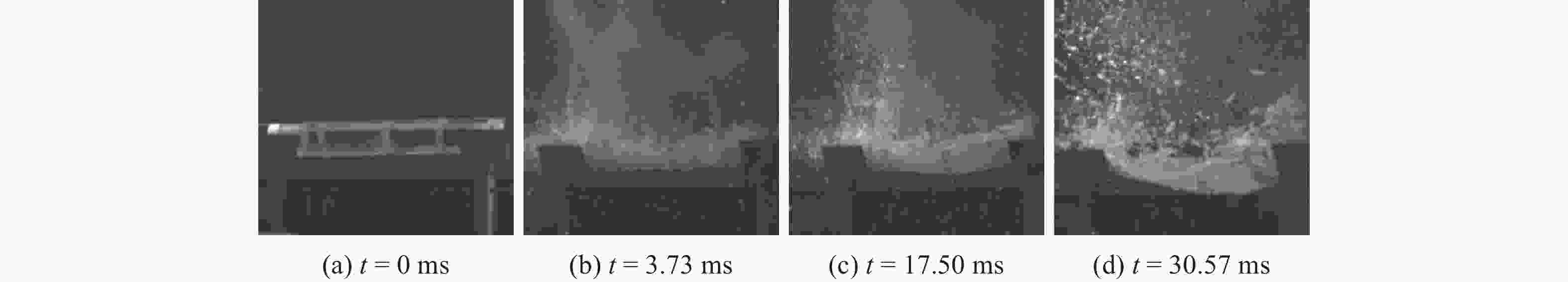

图 4 覆冰破碎过程（A型导爆索，$\delta$=25 mm）

Figure 4. Ice crushing process (Type A detonating cord, $\delta$=25 mm)

下载: 全尺寸图片幻灯片

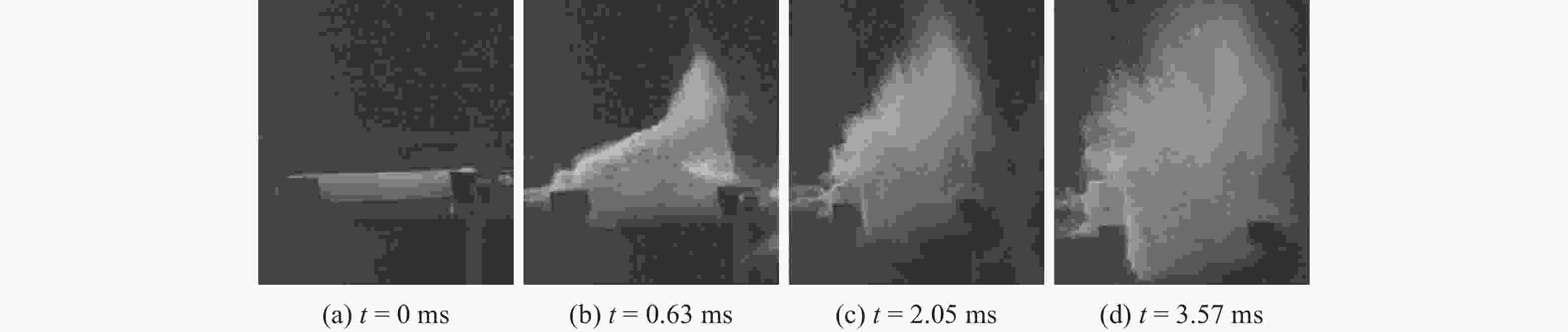

图 3 覆冰破碎过程（A型导爆索，$\delta$=20 mm）

Figure 3. Ice crushing process (Type A detonating cord, $\delta$=20 mm)

下载: 全尺寸图片幻灯片

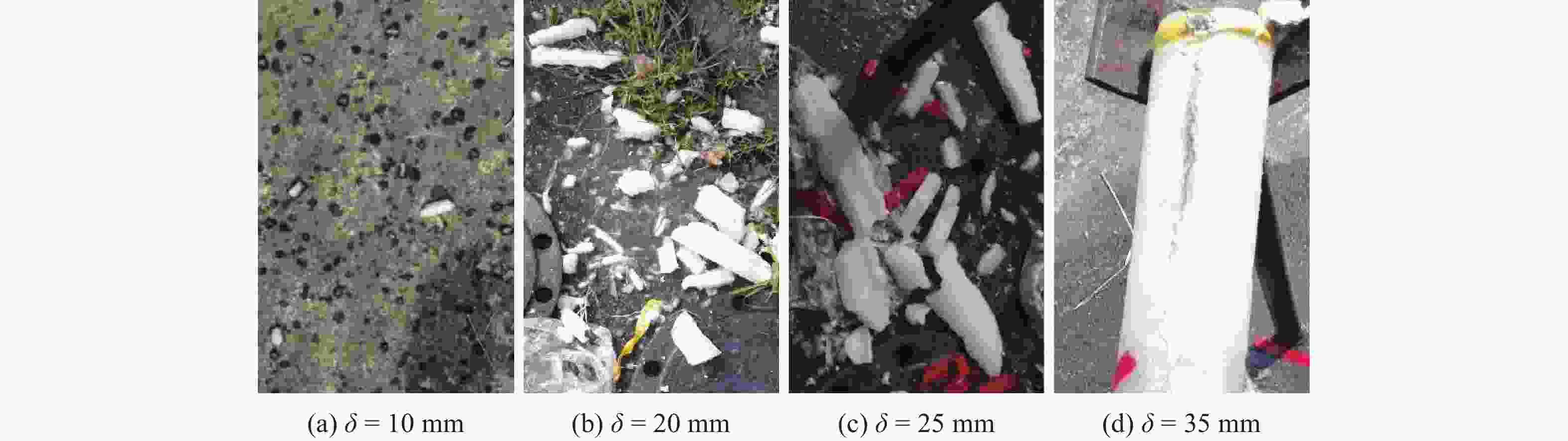

图 5 B型导爆索脱冰效果

Figure 5. Crushing results of Type B detonating cord

下载: 全尺寸图片幻灯片

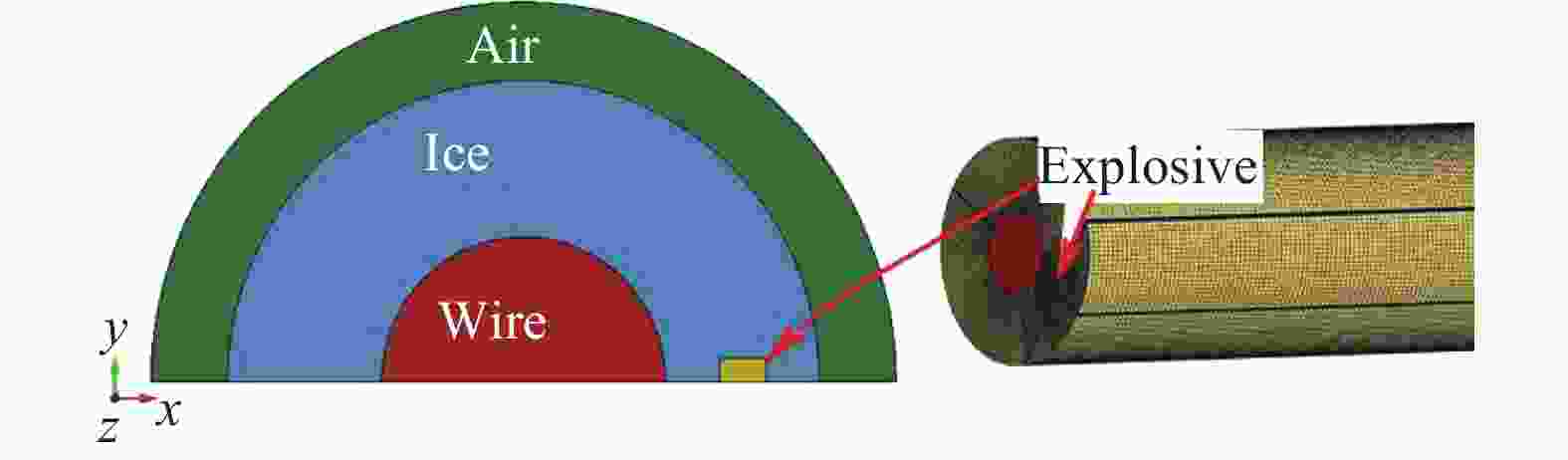

图 6 覆冰-输电线有限元模型

Figure 6. Finite element model of ice-coated power line

下载: 全尺寸图片幻灯片

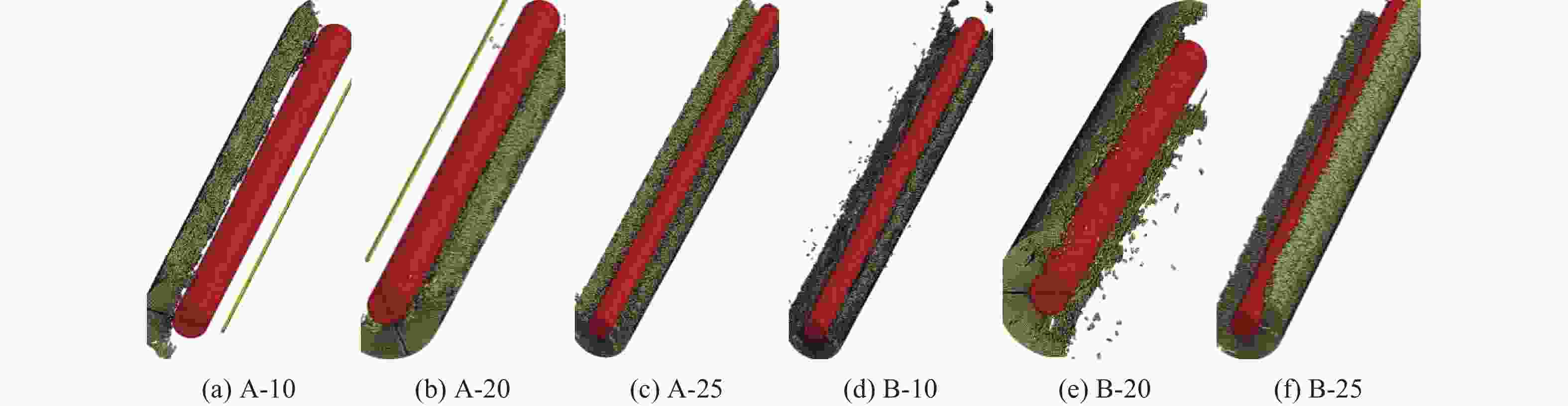

图 7 典型工况的数值模拟结果

Figure 7. Numerical simulation results of typical tests

下载: 全尺寸图片幻灯片

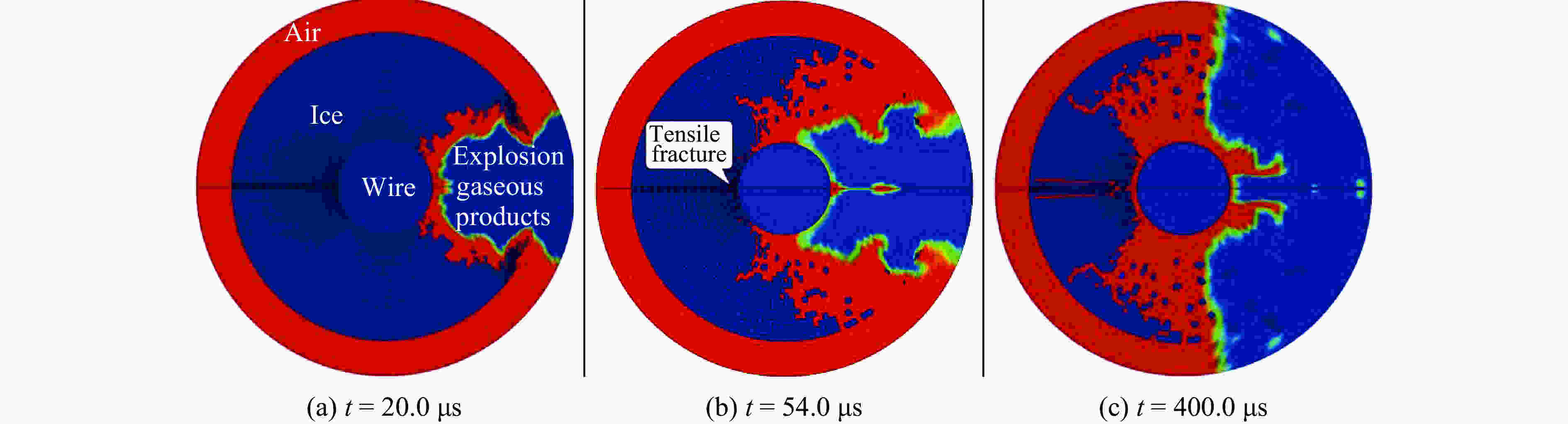

图 8 爆炸载荷作用下覆冰破碎过程（A-20）

Figure 8. Ice crushing process under blast (A-20)

下载: 全尺寸图片幻灯片

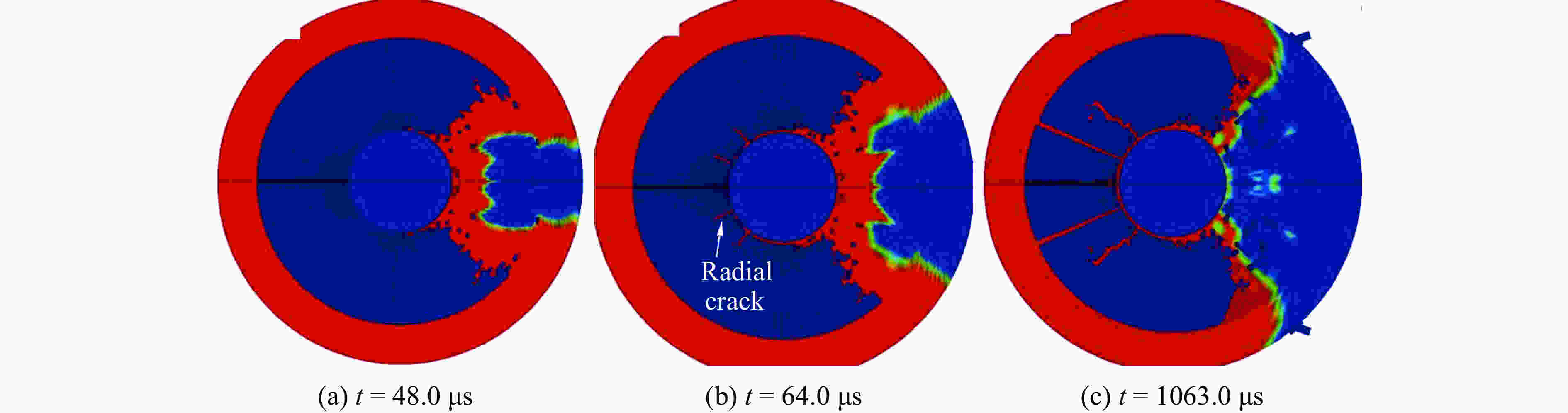

图 9 爆炸载荷作用下覆冰破碎过程（B-20）

Figure 9. Ice crushing process under blast (B-20)

下载: 全尺寸图片幻灯片

参考文献(16)

[1]	韩军科, 杨靖波, 杨风利. 500 kV酒杯塔覆冰破坏形态分析 [J]. 电力建设, 2009, 30(11): 21–23. HAN J K, YANG J B, YANG F L. Analysis of failure mode on iced 500 kV transmission cup type tower [J]. Electric Power Construction, 2009, 30(11): 21–23.
[2]	陈科全, 严波, 吕欣, 等. 四分裂导线机械式除冰装置及可行性研究 [J]. 振动与冲击, 2013, 32(20): 48–54. doi: 10.3969/j.issn.1000-3835.2013.20.010 CHEN K Q, YAN B, LÜ X, et al. A mechanical de-icing device for iced quad-bundled conductors and its feasibility [J]. Journal of Vibration and Shock, 2013, 32(20): 48–54. doi: 10.3969/j.issn.1000-3835.2013.20.010
[3]	向往, 谭艳军, 陆佳政, 等. 交直流输电线路热力融冰技术分析 [J]. 电力建设, 2014, 35(8): 101–107. doi: 10.3969/j.issn.1000-7229.2014.08.018 XIANG W, TAN Y J, LU J Z, et al. Thermodynamic ice-melting technology for AC/DC transmission lines [J]. Electric Power Construction, 2014, 35(8): 101–107. doi: 10.3969/j.issn.1000-7229.2014.08.018
[4]	谷山强, 陈家宏, 蔡炜, 等. 输电线路激光除冰技术试验分析及工程应用设计 [J]. 高压电技术, 2009, 35(9): 2243–2249. GU S Q, CHEN J H, CAI W, et al. Experimental analysis and engineering designing of laser de-icing technology for transmission lines [J]. High Voltage Engineering, 2009, 35(9): 2243–2249.
[5]	LI Q Y, BAI T, ZHU C L. Deicing excitation simulation and structural dynamic analysis of the electro-impulse deicing system [J]. Applied Mechanics and Materials, 2011, 66/68: 390–395. doi: 10.4028/www.scientific.net/AMM.66-68
[6]	范志强, 马宏昊, 沈兆武, 等. 水下连续脉冲冲击波的声学特性 [J]. 爆炸与冲击, 2013, 33(5): 501–506. doi: 10.3969/j.issn.1001-1455.2013.05.008 FAN Z Q, MA H H, SHEN Z W, et al. Acoustic characteristics of underwater continuous pulse shock wave [J]. Explosion and Shock Waves, 2013, 33(5): 501–506. doi: 10.3969/j.issn.1001-1455.2013.05.008
[7]	贾虎, 沈兆武. 纤维爆炸索水下爆炸声信号特征的小波分析 [J]. 振动与冲击, 2011, 30(9): 243–247. doi: 10.3969/j.issn.1000-3835.2011.09.050 JIA H, SHEN Z W. Characteristics of underwater detonation acoustics signals of fiber-based detonating cord based on wavelet analysis and power spectrum [J]. Journal of Vibration and Shock, 2011, 30(9): 243–247. doi: 10.3969/j.issn.1000-3835.2011.09.050
[8]	Livermore Software Technology Corporation. LS-DYNA keyword user’s manual [Z]. Livermore, CA: Livermore Software Technology Corporation, 2015.
[9]	丁金波, 董威. 表面粗糙度对冰冻黏强度影响试验研究 [J]. 航空发动机, 2012, 38(4): 42–46. doi: 10.3969/j.issn.1672-3147.2012.04.011 DING J B, DONG W. Experimental study of influence of surface roughness on ice adhesion [J]. Aeroengine, 2012, 38(4): 42–46. doi: 10.3969/j.issn.1672-3147.2012.04.011
[10]	TAVANA H, NEUMANN A W. Recent progress in the determination of solid surface tensions from contact angles [J]. Advances in Colloid and Interface Science, 2007, 132(1): 1–32. doi: 10.1016/j.cis.2006.11.024
[11]	王国刚, 穆静静, 周红伟, 等. 覆冰垂直粘结强度的测试研究 [J]. 工程热物理学报, 2012, 33(2): 282–284. WANG G G, MU J J, ZHOU H W, et al. Research on the test technology for vertical ice adhesion strength [J]. Journal of Engineering Thermophysics, 2012, 33(2): 282–284.
[12]	HU Z K, GUI H B, XIA P P, et al. Dynamic response analys is of the collision between ice and propeller at high speed [C]//The Society for Underwater Technology Conference (SUTTC 2013). Shanghai, China, 2013: 72–76.
[13]	XIA P P, GUI H B, HU Z K. The effect of the excitation position on the sound radiation of propeller [C]//The Society for Underwater Technology Conference (SUTTC 2013). Shanghai, China, 2013: 82–86.
[14]	JONES S J. A review of the strength of iceberg and other freshwater ice and the effect of temperature [J]. Cold Regions Science & Technology, 2007, 47(3): 256–262.
[15]	ZHANG L M, LI Z J, JIA Q, et al. Uniaxial compressive strengths of artificial freshwater ice [J]. Advanced Materials Research, 2011, 243: 4634–4637.
[16]	李志军, 周庆, 汪恩良, 等. 加载方式对冰单轴压缩强度影响的试验研究 [J]. 水利学报, 2013, 44(9): 1037–1043. LI Z J, ZHOU Q, WANG E L, et al. Experimental study on the loading mode effects on the ice uniaxial compressive strength [J]. Journal of Hydraulic Engineering, 2013, 44(9): 1037–1043.
