Experimental Investigation on Load Characteristics and Structure Response of Finite-Size Plate Subjected to Underwater Explosions
-
摘要: 为研究近结构边界下水下爆炸冲击波和气泡载荷特性，设计几种典型尺寸的平板模型，通过调整爆径比、平板厚度等参数，试验研究了水下非接触爆炸下的气泡脉动过程，分析平板边界处的低压流场特性，并基于应变分析获得了平板结构的局部及整体响应特征。研究发现：在近平板爆炸气泡的运动过程中，平板边界处会出现低压（负压）流场，低压维持时间约占气泡脉动周期的60%~80%，最大负压值可达0.1 MPa；随着爆径比的减小，平板的最终变形由弹性变形、中垂变形向中拱变形转变。Abstract: In order to study the loading characteristics of underwater explosion shock wave and bubble near the structural boundary, we designed and tested several plate models.By changing the ratio of stand-off to the maximum bubble radius, the flat thickness and other parameters, we analyzed the bubble pulsation and the low-pressure flow field at the plate boundary, as well as the local and global response characteristics of the slab based on the strain analysis.The results show that a low-pressure (negative pressure) flow field appears at the boundary of the plate during the movement of the bubble in near-flat explosion.The duration of the low-pressure accounts for 60%-80% of the bubble pulsation period and the maximum negative pressure can reach 0.1 MPa.With the reduction of the ratio of stand-off to the maximum bubble radius, the final deformation of the plate changes from elastic and sagging deformation to hogging deformation.
-
Key words:
- underwater explosion /
- negative pressure /
- load characteristics /
- bubble pulsation /
- structure response
-

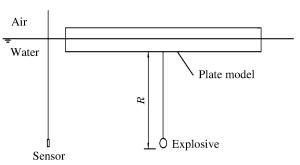

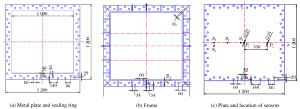

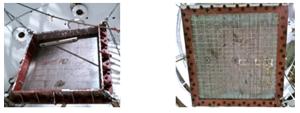

表 1 试验工况
Table 1. Test cases
Case Model h/m w/g R/rmax Tb/ms 1 M3 1.0 18 2.46 69.82 2 M3 0.8 18 1.96 70.34 3 M6 0.6 18 1.46 71.40 4 M3 0.4 18 0.97 72.51 5 M6 1.0 10 2.99 56.98 6 M6 1.0 5 3.77 45.23
下载: 导出CSV

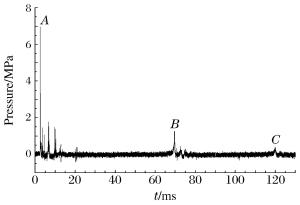

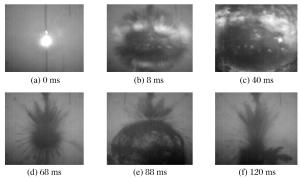

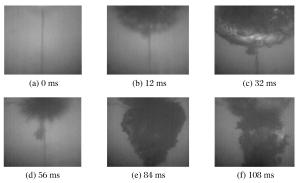

表 2 不同工况下冲击波和气泡脉动的压力峰值
Table 2. Peak pressures of shock wave and bubble pulsation in test cases
Case R/rmax pw/MPa pb1/MPa pb2/MPa $\frac{{{p_{{\rm{b1}}}}}}{{{p_{\rm{w}}}}}/\% $ 1 2.46 2 1.96 6.963 1.274 0.416 18.30 3 1.46 8.804 1.097 0.522 12.46 4 0.97 6.932 0.637 9.18 5 2.99 5.464 0.950 0.406 17.38 6 3.77 4.610 0.762 0.218 16.53
下载: 导出CSV

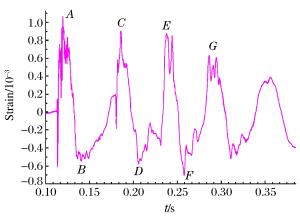

表 3 不同工况下平板在各个阶段的应变峰值
Table 3. Peak strains at each stage of plate in different cases
Case R/rmax Peak strain/(10-3) Hogging phase Sagging phase Stabilization phase S1 S2 S3 S4 S1 S2 S3 S4 S1 S2 S3 S4 1 2.46 0.577 0.684 0.306 0.366 -0.212 -0.470 -0.267 -0.334 -0.090 -0.014 -0.026 -0.011 2 1.96 0.780 0.606 0.388 0.305 -0.385 -0.503 -0.371 -0.321 0.011 0.023 -0.031 -0.050 4 0.97 0.533 -0.148 -0.171 -0.008 -0.111 -0.539 -0.600 0.407 0.055 -0.403 -0.452 5 2.99 0.543 0.535 0.269 0.345 -0.472 -0.492 -0.746 -0.939 0 0 0 0 6 3.77 0.613 0.553 0.097 0.097 -0.338 -0.240 -0.177 -0.233 0 0 0 0
下载: 导出CSV

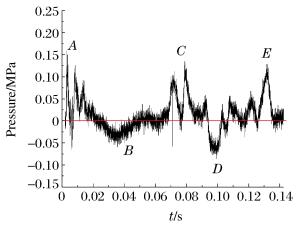

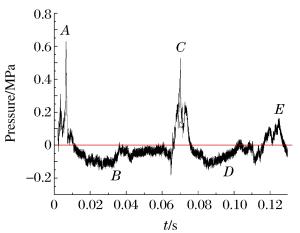

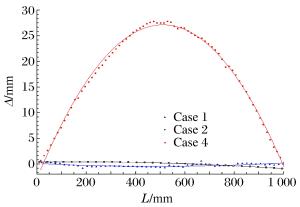

表 4 工况2和工况4的压力对比
Table 4. Comparison of pressures in Case 2 and Case 4
Case First pulsation Second pulsation tp1/ms tn1/ms pn1/MPa tp2/ms tn2/ms pn2/MPa 2 13.90 51.45 -0.067 5.33 40.95 -0.095 4 4.40 55.05 -0.184 5.60 52.77 -0.142
下载: 导出CSV
表 5 R/rmax对气泡脉动周期的影响
Table 5. Effect of R/rmax on the period of bubble pulsation
Case R/rmax Bubble pulsation period Test/ms Theor./ms Error/% 1 2.46 69.82 2 1.96 67.10 70.34 4.6 3 1.46 67.17 71.40 5.9 4 0.97 66.32 72.51 8.5 5 2.99 53.34 56.98 6.4 6 3.77 42.22 45.23 6.7
下载: 导出CSV
-
[1] 刘建湖. 舰船非接触水下爆炸动力学的理论与应用[D]. 无锡: 中国船舶科学研究中心, 2002. http://cdmd.cnki.com.cn/Article/CDMD-86205-2002091208.htm [2] 罗泽立, 周章涛, 毛海斌, 等.水下爆炸强冲击波与平板结构相互作用的理论分析方法[J].高压物理学报, 2017, 31(4):443-452. doi: 10.11858/gywlxb.2017.04.014LUO Z L, ZHOU Z T, MAO H B, et al.Theoretical analysis of the interaction between the plate structure and strong shock wave in underwater explosion[J].Chinese Journal of High Pressure Physics, 2017, 31(4):443-452. doi: 10.11858/gywlxb.2017.04.014 [3] 李海涛, 朱锡, 段存成, 等.船舶工程领域内水下爆炸气泡的相关研究[J].船舶工程, 2008, 30(4):72-76. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGZC200103000.htmLI H T, ZHU X, DUAN C C, et al.Related research on bubbles due to underwater explosion in the field of ship engineering[J].Ship Engineering, 2008, 30(4):72-76. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGZC200103000.htm [4] 黄晓明, 朱锡, 牟金磊, 等.近距水下爆炸作用下箱形梁模型中垂破坏试验研究[J].振动与冲击, 2011, 30(2):19-23. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zdycj201102005HUANG X M, ZHU X, MU J L, et al.Sagging damage test of box-beam models subjected to close range underwater explosion[J].Journal of Vibration and Shock, 2011, 30(2):19-23. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zdycj201102005 [5] TAYLOR G I. The pressure and impulse of submarine explosion waves on plates[M]//TAYLOR G I. The Scientific Papers of Taylor G I: Vol Ⅲ. UK: Cambridge University Press, 1963: 287-303. [6] ZHANG P, GEERS T L.Excitation of a fluid-filled, submerged spherical shell by a transient acoustic wave[J].The Journal of the Acoustical Society of America, 1993, 93(2):696-705. doi: 10.1121/1.405433 [7] GAUCH E, LEBLANC J, SHILLINGS C, et al. Response of composite cylinders subjected to near field underwater explosions[M]//Dynamic Behavior of Materials: Volume 1. Springer, 2017: 153-157. [8] 唐廷, 朱锡, 韦灼彬, 等.水下爆炸冲击波作用下空气背衬平板的运动[J].兵工学报, 2012, 33(7):831-835. http://manu48.magtech.com.cn/Jwk_bgxb/CN/abstract/abstract499.shtmlTANG T, ZHU X, WEI Z B, et al.Movement of air backed plane plates subjected to shock wave of underwater explosion[J].Acta Armamentarii, 2012, 33(7):831-835. http://manu48.magtech.com.cn/Jwk_bgxb/CN/abstract/abstract499.shtml [9] 李海涛, 朱石坚, 陈志坚, 等.全入射角度下平板冲击波的壁压载荷及局部空化特性[J].爆炸与冲击, 2014, 34(3):354-360. doi: 10.11883/1001-1455(2014)03-0354-07LI H T, ZHU S J, CHEN Z J, et al.Characteristics of wall pressure and cavitation on the plate subjected to underwater explosion shockwaves at any angle of incidence[J].Explosion and Shock Waves, 2014, 34(3):354-360. doi: 10.11883/1001-1455(2014)03-0354-07 [10] 陈学兵, 李玉节.圆柱壳在水下爆炸气泡作用下的动态塑性响应研究[J].船舶力学, 2010, 14(8):922-929. http://mall.cnki.net/magazine/article/ZDCJ200803026.htmCHEN X B, LI Y J.Investigation of the dynamic responses of cylindrical shell subjected to underwater explosion bubble[J].Journal of Ship Mechanics, 2010, 14(8):922-929. http://mall.cnki.net/magazine/article/ZDCJ200803026.htm [11] KLASEBOER E, KHOO B C, HUNG K C.Dynamics of an oscillating bubble near a floating structure[J].Journal of Fluids and Structures, 2005, 21(4):395-412. doi: 10.1016/j.jfluidstructs.2005.08.006 [12] ZHANG A M, YAO X L, LI J.The interaction of an underwater explosion bubble and an elastic-plastic structure[J].Applied Ocean Research, 2008, 30(3):159-171. doi: 10.1016/j.apor.2008.11.003 [13] 李海涛, 朱石坚, 刁爱民, 等.水下爆炸气泡作用下梁中垂损伤及流场变化特性[J].高压物理学报, 2012, 26(5):494-500. doi: 10.11858/gywlxb.2012.05.003LI H T, ZHU S J, DIAO A M, et al.Characteristics of flow-field and sagging damage of free-free beam subjected to underwater explosion bubbles[J].Chinese Journal of High Pressure Physics, 2012, 26(5):494-500. doi: 10.11858/gywlxb.2012.05.003 [14] 朱锡, 牟金磊, 洪江波, 等.水下爆炸气泡脉动特性的试验研究[J].哈尔滨工程大学学报, 2007, 28(4):365-368. https://mall.cnki.net/lunwen-1014134071.htmlZHU X, MU J L, HONG J B, et al.Experimental study of characters of bubble impulsion induced by underwater explosions[J].Journal of Harbin Engineering University, 2007, 28(4):365-368. https://mall.cnki.net/lunwen-1014134071.html -
