不同形状DU合金破片侵彻性能研究

吴凡达; 赵捍东; 邵先锋; 马姗姗; 刘胜; 张程建

doi:10.11858/gywlxb.20180504

不同形状DU合金破片侵彻性能研究

doi: 10.11858/gywlxb.20180504

吴凡达^1,,
赵捍东^1,*, ,,
邵先锋^{1, 2},
马姗姗¹,
刘胜¹,
张程建¹

1.
中北大学机电工程学院, 山西太原 030051
2.
贵州航天电器股份有限公司, 贵州贵阳 550009

详细信息

作者简介:
吴凡达(1991-), 男, 硕士研究生, 主要从事战斗部毁伤技术研究.E-mail:995038735@qq.com

通讯作者:
赵捍东(1960-), 男, 博士, 教授, 硕士生导师, 主要从事战斗部毁伤技术研究.E-mail:hd_zhao@nuc.edu.cn

中图分类号: TJ410.3
计量
- 文章访问数: 7849
- HTML全文浏览量: 4752
- PDF下载量: 25
出版历程
- 收稿日期: 2018-01-09
- 修回日期: 2018-02-13

Study on the Penetration Performance of Different Shaped DU Alloy

1.
School of Mechanical and Electrical Engineering, North University of China, Taiyuan 030051, China
2.
Guizhou Space Appliance Co., Ltd., Guiyang 550009, China

摘要

摘要: 为研究不同形状贫铀（Depleted Uranium，DU）合金破片的侵彻性能，首先进行了终点弹道实验，得到了圆柱形DU破片侵彻20 mm厚Q235B钢靶的终点弹道相关参数。然后通过AUTODYN软件进行了相应终点弹道仿真模拟，结果表明，仿真与实验结果基本一致，验证了仿真结果的正确性。随后又在原仿真的基础上增加了圆柱形、立方形和球形破片以不同着靶姿态侵彻靶板的数值仿真。结果表明，在相同质量和相同初速的条件下，棱角着靶姿态的立方体、楞线着靶姿态的立方体和球形破片的侵彻能力依次减弱，圆柱形和平行着靶姿态的立方形破片侵彻能力最差。若均以垂直姿态着靶，圆柱形破片侵彻能力要强于立方体，以棱角或楞线着靶姿态着靶的立方体具有更强的侵彻能力。
- 贫铀合金 /
- 破片形状 /
- 侵彻性能 /
- 数值模拟 /
- 终点弹道
Abstract: To study the penetration performance of different shapes of a DU alloy fragment, we performed an experiment on a Q235B steel target with a thickness of 20 mm and obtained its terminal ballistic marriage parameters of cylindrical DU alloy fragment penetration.Then, we carried out the corresponding simulation of the key ballistic trajectory using the ANTODYN software.The results from the simulation were found to accord basically with those from the experiment, thereby verifying the simulation results as correct.Furthermore, on the basis of the original simulation, we simulated the cylindrical, cubic and spherical fragments penetrating the target plate with different target positions taken into account.The results show that, in the same quality and at the same velocity, the penetration capability of the cubic fragments in the attitude of the edges and the target cube diminishes in turn with the attitude of the target cube and the spherical fragment, with those in cylindrical and parallel attitude as the weakest.Moreover, hitting the target vertically, the cubic fragment exhibits a stronger penetration than that of the cylindrical, and it shows a better penetration capability when hitting the target in an angular or corrugated attitude.
- DU alloy /
- fragment shape /
- penetration performance /
- constitutive model /
- finishing trajectory

HTML全文

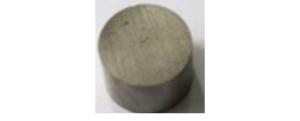

图 1 破片

Figure 1. Actual fragment

下载: 全尺寸图片幻灯片

图 2 靶板破坏情况及残余破片形状

Figure 2. Target damage and shape of residual fragment

下载: 全尺寸图片幻灯片

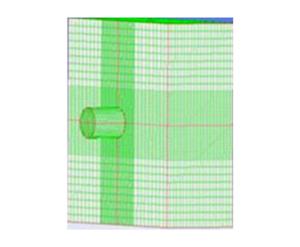

图 3 网格结构模型

Figure 3. Grid structure mode

下载: 全尺寸图片幻灯片

图 4 破片侵彻过程数值仿真及速度曲线

Figure 4. Numerical simulation and velocity curve of fragment penetration process

下载: 全尺寸图片幻灯片

图 5 靶板破坏情况和圆柱形残余破片实物与仿真结果对比

Figure 5. Comparison of physical and simulation results of the failure of target plate and cylindrical residual fragment

下载: 全尺寸图片幻灯片

图 6 各组网格结构模型

Figure 6. Grid structure model of each group

下载: 全尺寸图片幻灯片

图 7 A组破片侵彻过程数值仿真过程及速度曲线

Figure 7. Numerical simulation and velocity curve of fragment penetration process in A group

下载: 全尺寸图片幻灯片

图 8 B组破片侵彻过程数值仿真及速度曲线

Figure 8. Numerical simulation and velocity curve of fragment penetration process in B group

下载: 全尺寸图片幻灯片

图 9 C组破片侵彻过程数值仿真过程及速度曲线

Figure 9. Numerical simulation and velocity curve of fragment penetration process in C group

下载: 全尺寸图片幻灯片

图 10 D组破片侵彻过程数值仿真过程及速度曲线

Figure 10. Numerical simulation and velocity curve of fragment penetration process in D group

下载: 全尺寸图片幻灯片

图 11 E组破片侵彻过程数值仿真过程及速度曲线

Figure 11. Numerical simulation and velocity curve of fragment penetration process in E group

下载: 全尺寸图片幻灯片

图 12 各组残余破片形状对比

Figure 12. Comparison of the shape of residual fragments in each group

下载: 全尺寸图片幻灯片

表 1 破片侵彻靶板实验方案

Table 1. Scheme for experiment of target penetration by broken pieces

Experiment	Fragment material	ρ/(g·cm^-3)	Fragment size/mm	Fragment quality/g	Target material	Target size/mm	Maximum charge/g
1	DU	18.47	∅9 ×9	10.5	Q235B	100×100×20	14

下载: 导出CSV

表 2 破片侵彻靶板实验结果

Table 2. Summarized data of target experiment

Experiment	Fragment quality/g	Charge quality/g	Initial velocity/ (m·s^-1)	Remaining velocity/(m·s^-1)	Frontal aperture/mm	Back aperture/mm	Pentration depth/mm
1	10.5	14	1 295	234	15	10	Breakthrough

下载: 导出CSV

表 3 材料的本构参数和基本性质^[6-9]

Table 3. Constitutive parameters and basic properties of materials^[6-9]

Material	Yield stress	B	n	C	${{\dot \varepsilon }_0}$	T_m/K	T_r/K	G/GPa	ρ/(kg·m^-3)
DU alloy	1 079.0	1 120	0.25	0.007	1.00	1 473	293	83.3	18 620
Q235B	244.8	400	0.36	0.039	0.55	1 795	300	77.0	7 800

下载: 导出CSV

表 4 状态方程主要相关参数

Table 4. Main parameters of equation of state

Material	Grüneisen parameter	C₁	S₁
DU alloy	2.32	2 590	1.56
Q235B steel	1.93	4 070	1.49

下载: 导出CSV

表 5 材料的失效参数^[6-10]

Table 5. Failure parameters of the material^[6-10]

Material	C₁	C₂	C₃	C₄	C₅
DU alloy	1.8	0.33	-1.5	0.021	0
Q235B steel	-43.408	44.608	-0.016	0.015	0.046

下载: 导出CSV

表 6 破片侵彻靶板实验及仿真

Table 6. Experiment and simulation of target penetration by broken pieces

Method	Fragment quality/g	Initial velocity/ (m·s^-1)	Residual velocity/ (m·s^-1)	Frontal aperture/mm	Back aperture/mm	Pentration depth/mm
Experiment	10.5	1 295	234	15	10	Breakthrough
Simulation	10.5	1 295	250	16	11	Breakthrough

下载: 导出CSV

表 7 仿真模型设计参数

Table 7. Simulation model design parameters

Group	Fragment material	Fragment size and shape/mm	Target material	Target size/mm	Target attitude
A B C D E	DU DU DU DU DU	∅9×9 cylindrical 8.3×8.3×8.3 cube 8.3×8.3×8.3 cube 8.3×8.3×8.3 cube ∅10.3 spherical	Q235B Q235B Q235B Q235B Q235B	60×60×20 60×60×20 60×60×20 60×60×20 60×60×20	Parallel Vertical Arbitrary corrugated line Arbitrary angle Arbitrary

下载: 导出CSV

表 8 各组残余破片相关参数

Table 8. Residual fragment correlation parameters of each group

Group	Residual velocity/ (m·s^-1)	Residual mass/g	Mass loss/%
Initial	250	6.15	42.0
A	300	6.09	36.8
B	270	5.79	44.9
C	430	9.16	12.8
D	500	9.36	10.9
E	400	7.61	21.5

下载: 导出CSV
