Penetration Performance of Depleted Uranium Alloys Liner
-
摘要: 为分析贫铀合金药型罩的破甲性能，以某种结构的紫铜药型罩为比较对象，采取数值仿真的方法设计了贫铀合金药型罩结构，并分别以紫铜和铀铌合金为药型罩材料开展了静爆破甲效应实验，对比了两种材料药型罩形成的射流对45钢棒的侵彻能力。研究结果表明，在主药柱质量相当的情况下，贫铀合金药型罩形成的射流最高侵深较紫铜材料的平均侵深提高约33.4%。Abstract: In the present study, we redesigned the structure of a depleted uranium alloys liner to analyze its penetration performance using numerical simulation results on the basis of a copper liner, and compared the penetration capability of two liners, made of copper and uranium-niobium alloys respectively by penetration experiments.The results show that, with almost the same quality of the main charge, the maximum penetration depth of the depleted uranium liner was 33.4% bigger than that of the copper liner.
-
Key words:
- depleted uranium alloys /
- liner /
- armor penetrating
-

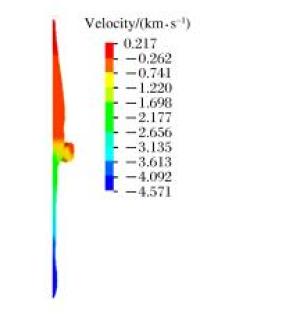

图 4 优化结构后药型罩速度分布数值仿真结果
Figure 4. Velocity distribution of depleted uranium alloys liner with redesigned structure
表 1 侵深实验结果
Table 1. Results of penetrating depth
No. Type of liner Penetrate depth/mm Mean penetrate depth/mm Penetrate depth from simulation results/mm 1 Original cooper liner 121 124.4 116.7 2 Original cooper liner 132 3 Original cooper liner 131 4 Original cooper liner 125 5 Original cooper liner 113 6 Original DU liner 126 109.8 88.5 7 Original DU liner 134 8 Original DU liner 118 9 Original DU liner 113 10 Original DU liner 118 11 Original DU liner 50 12 DU liner with redesigned structure 114 146.7 131.4 13 DU liner with redesigned structure 157 14 DU liner with redesigned structure 113 15 DU liner with redesigned structure 165 16 DU liner with redesigned structure 166 17 DU liner with redesigned structure 165
下载: 导出CSV
-
[1] 胡忠武, 李中奎, 张廷杰, 等.药型罩材料的发展[J].稀有金属材料与工程, 2004, 33(10):1009-1012. doi: 10.3321/j.issn:1002-185X.2004.10.001HU Z W, LI Z K, ZHANG T J, et al.Advanced progress in materials for shaped charge and explosively formed penetrator liners[J].Rare Metal Materials and Engineering, 2004, 33(10):1009-1012. doi: 10.3321/j.issn:1002-185X.2004.10.001 [2] 葛鹏.贫铀材料的工业应用[J].稀有金属快报, 2004, 23(2):36-37. http://www.docin.com/p-521454489.htmlGE P.Industrial application of depleted uranium[J].Rare Metals Letters, 2004, 23(2):36-37. http://www.docin.com/p-521454489.html [3] 王铁福, 阮文俊.贫铀中的碳含量对其聚能射流性能的影响[J].科学通报, 1997, 42(7):764-766. http://www.oalib.com/paper/1683892WANG T F, RUAN W J.The effects of carbon content of depleted uranium on the performance of shaped charge jets[J].Chinese Science Bulletin, 1997, 42(7):764-766. http://www.oalib.com/paper/1683892 [4] 王铁福, 阮文俊, 朱鹤荣, 等.贫铀药型罩及其聚能射流[J].爆炸与冲击, 1995, 15(2):180-184. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=bzcj502.012&dbname=CJFD&dbcode=CJFQWANG T F, RUAN W J, ZHU H R, et al.Depleted uranium liner and shaped charge jets[J].Explosion and Shock Waves, 1995, 15(2):180-184. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=bzcj502.012&dbname=CJFD&dbcode=CJFQ [5] SONG S C, GAO P, CAI H N.Numerical simulation for formed projectile of depleted uranium alloy[J].Applied Mechematics and Machanics, 2003, 24(9):1075-1080. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yysxhlx-e200309008 [6] 龚柏林, 王可慧, 初哲, 等.EFP战斗部破片场复合技术研究[J].弹道学报, 2015, 27(1):76-79. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ddxb201501015GONG B L, WANG K H, CHU Z, et al.Research on forming technology of composite fragments field of EFP[J].Journal of Ballistics, 2015, 27(1):76-79. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ddxb201501015 [7] 龚柏林, 初哲, 王可慧, 等.多模式毁伤元成形的数值仿真和实验研究[J].弹箭与制导学报, 2016, 36(5):45-47. http://or.nsfc.gov.cn/bitstream/00001903-5/181250/1/1000015033542.pdfGONG B L, CHU Z, WANG K H, et al.Numerical simulation and experimental research on forming of multimode penetrators[J].Journal of Projectiles, Rockets, Missiles and Guidance, 2016, 36(5):45-47. http://or.nsfc.gov.cn/bitstream/00001903-5/181250/1/1000015033542.pdf -
