K<sub>2</sub>N<sub>2</sub>中一维氮链的压力诱导聚合

陈磊; 张云; 陈雨轩; 魏群; 张美光

doi:10.11858/gywlxb.20240719

Pressure-Induced Polymerization of One-Dimensional Nitrogen Chains in K₂N₂

doi: 10.11858/gywlxb.20240719

1.
College of Physics and Optoelectronic Technology, Baoji University of Arts and Sciences, Baoji 721013，Shaanxi，China
2.
School of Physics, Xidian University, Xi’an 710071, Shaanxi, China

Funds: National Natural Science Foundation of China (11964026)；Natural Science Basic Research Program of Shaanxi (2023-JC-YB-021, 2024JC-YBMS-048)

More Information

Author Bio:
CHEN Lei (1983－), male, doctor, associate professor, major in high pressure materials and structures. E-mail: stonley@163.com

Corresponding author: ZHANG Meiguang (1981－), male, doctor, professor, major in high pressure materials and structures. E-mail: zhmgbj@126.com

摘要

摘要: 采用先进的粒子群晶体结构搜索方法对K₂N₂在0～150 GPa压强范围内进行晶体结构预测，结果表明，K₂N₂的基态稳定相为单斜C2/m结构，且在1.7、3.6和122 GPa压强下的结构分别为Na₂N₂型、Cmmm、C2/c。体积随压强的变化关系显示C2/m→Na₂N₂型、Na₂N₂型→Cmmm和Cmmm→C2/c这3个相变均为一级相变，对应的体积坍塌分别为14.4%、22.5%和4.0%。在K₂N₂高压相变过程中，K原子的配位数从5增加到10，并伴随着N-N成键性质的变化，即从基态C2/m结构中的准分子N＝N双键聚合为高压C2/c相中的N―N单键链。C2/m、Na₂N₂型、Cmmm相表现出金属性，而高压C2/c相表现出半导体（带隙为2.0 eV）性质。电子结构计算和电子局域函数分析表明，K₂N₂的高压结构相变来源于高压下K-p孤对电子的激活及其与N原子的成键。
- 高压 /
- K₂N₂ /
- 结构预测 /
- 结构相变 /
- 电子结构
Abstract: The crystal structure prediction of K₂N₂ in the pressure range of 0–150 GPa using an advanced particle swarm crystal structure search method was conducted. The results show that the stable ground state phase of K₂N₂ is a monoclinicC2/mstructure, and three high-pressure structures including Na₂N₂-type,Cmmm, andC2/care identified at pressures of 1.7, 3.6, 122 GPa, respectively. The volume dependence on pressure shows that the three phase transitions, i. e.,C2/m→Na₂N₂-type, Na₂N₂-type→Cmmm, andCmmm→C2/c, are all first order phase transitions, corresponding to volume collapses of 14.4%, 22.5%, and 4.0%, respectively. During the high pressure phase transitions of K₂N₂, the coordination number of K atom increases from 5 to 10, and a change in the nature of the N-N bonding from N＝N dimmer in the ground state ofC2/mstructure to N―N single bond chain in the high-pressureC2/cphase is accompanied. The high-pressureC2/cphase exhibits semiconducting properties with a band gap of 2.0 eV, whileC2/m, Na₂N₂-type, andCmmmphases have metallic behaviors. Electronic structure calculation and electron-localized function analysis indicate that the high-pressure structural phase transition of K₂N₂ is due to the K-plone-pair electrons activation and their participation in bonding with N atoms under high pressure.
- high pressure /
- K₂N₂ /
- structure predictions /
- phase transitions /
- electronic structures

HTML全文

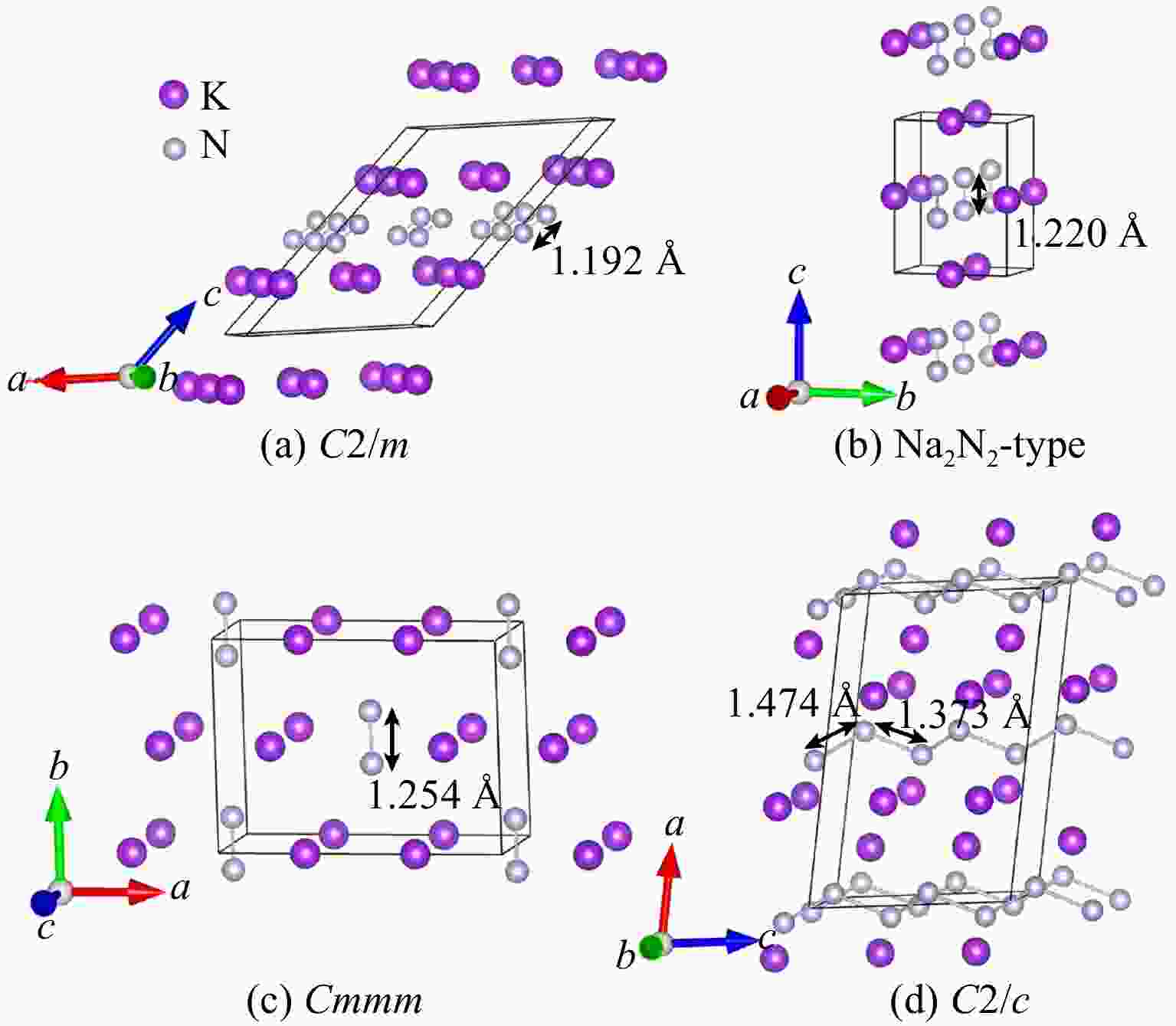

Figure 1. Crystal structure of C2/m, Na₂N₂-type, Cmmm, and C2/c phases (The large and small spheres represent K and N atoms, respectively.)

下载: 全尺寸图片幻灯片

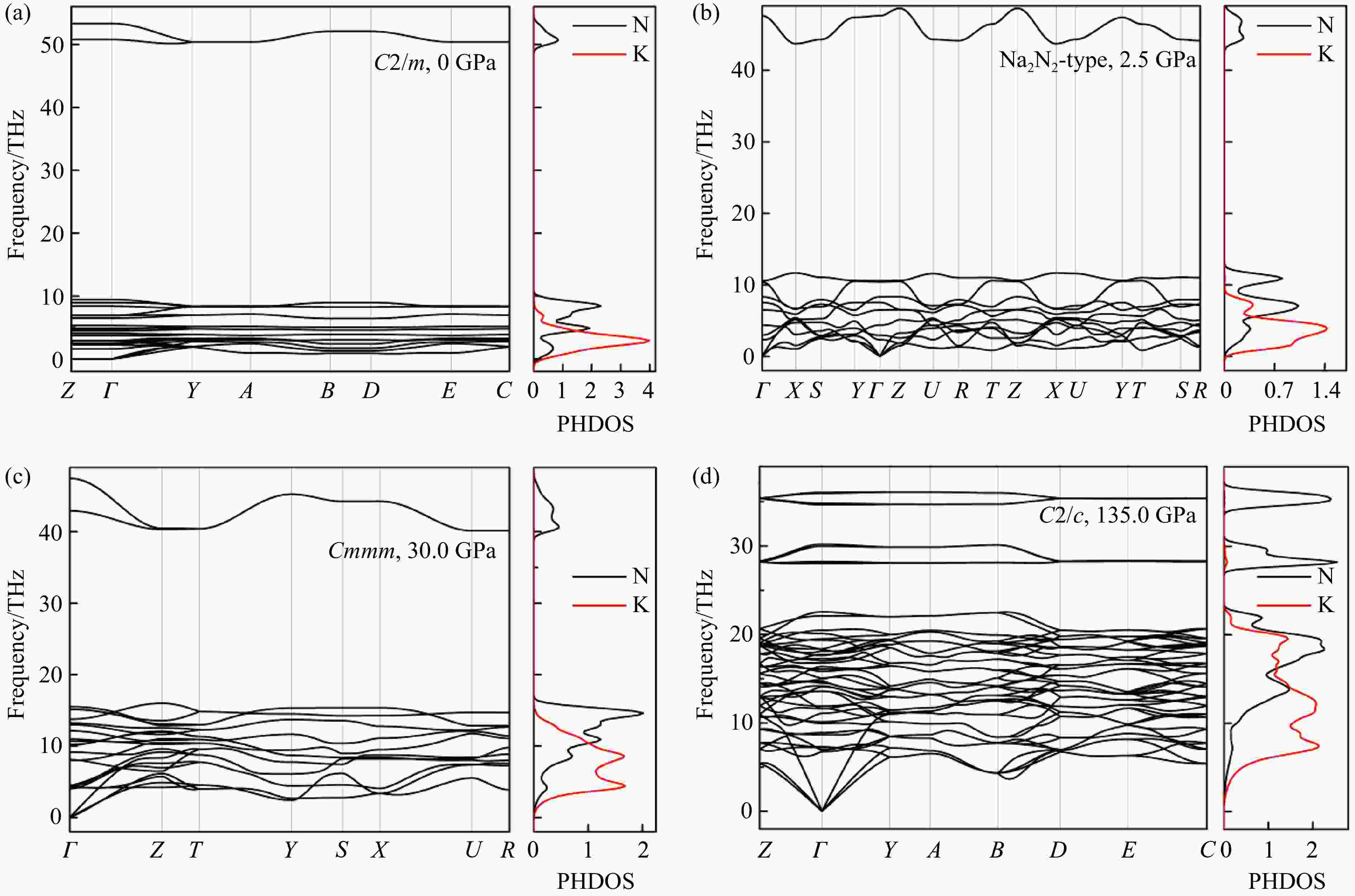

Figure 2. Calculated phonon curves of the C2/m (a), Na₂N₂-type (b), Cmmm (c), and C2/c (d) phases at selected pressure points

下载: 全尺寸图片幻灯片

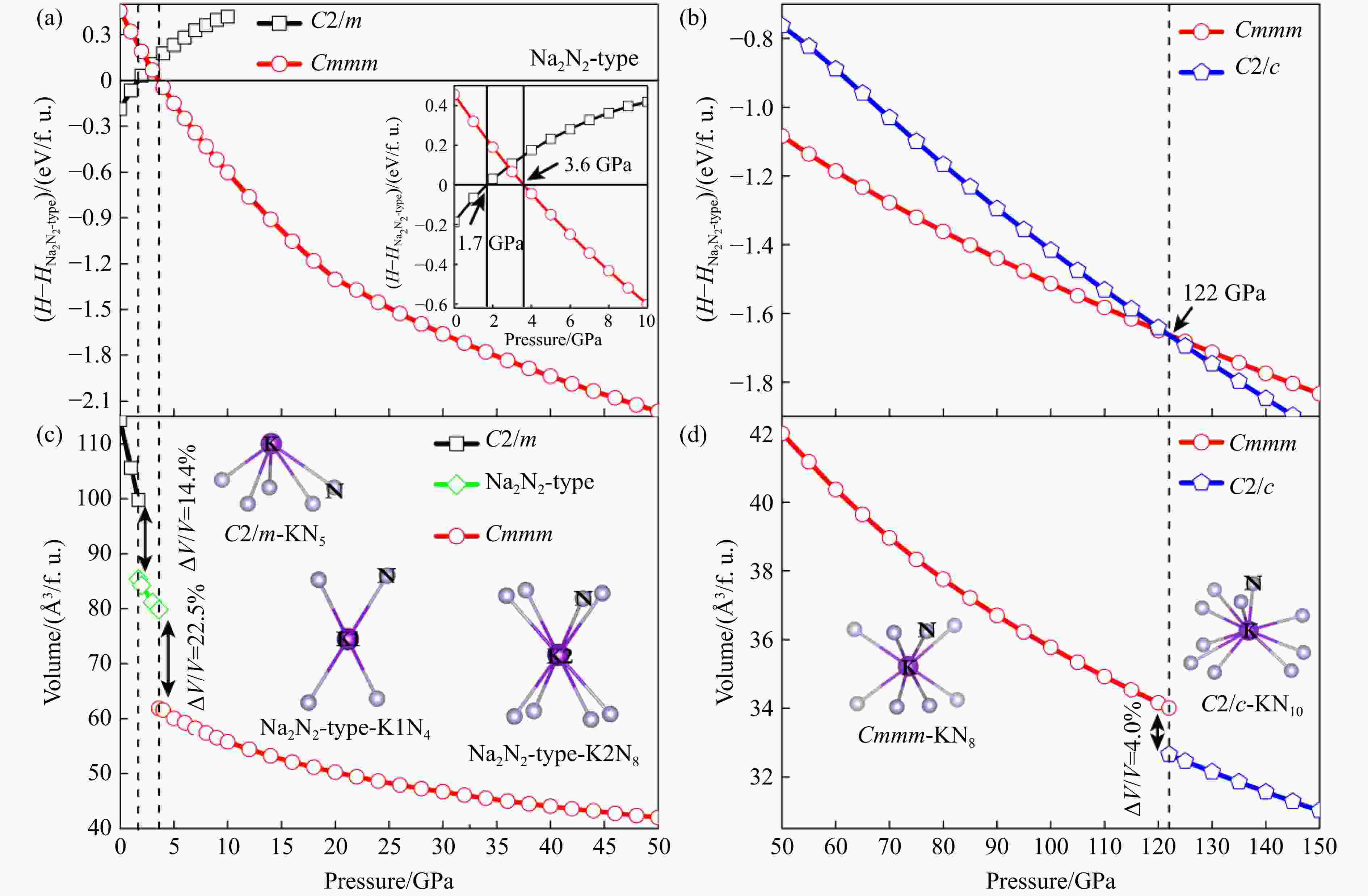

Figure 3. (a)–(b) Enthalpy differences of the different predicted structures relative to the Na₂N₂-type structure under pressure;(c)–(d) pressure dependence of the volume per f. u. of each structure for K₂N₂

下载: 全尺寸图片幻灯片

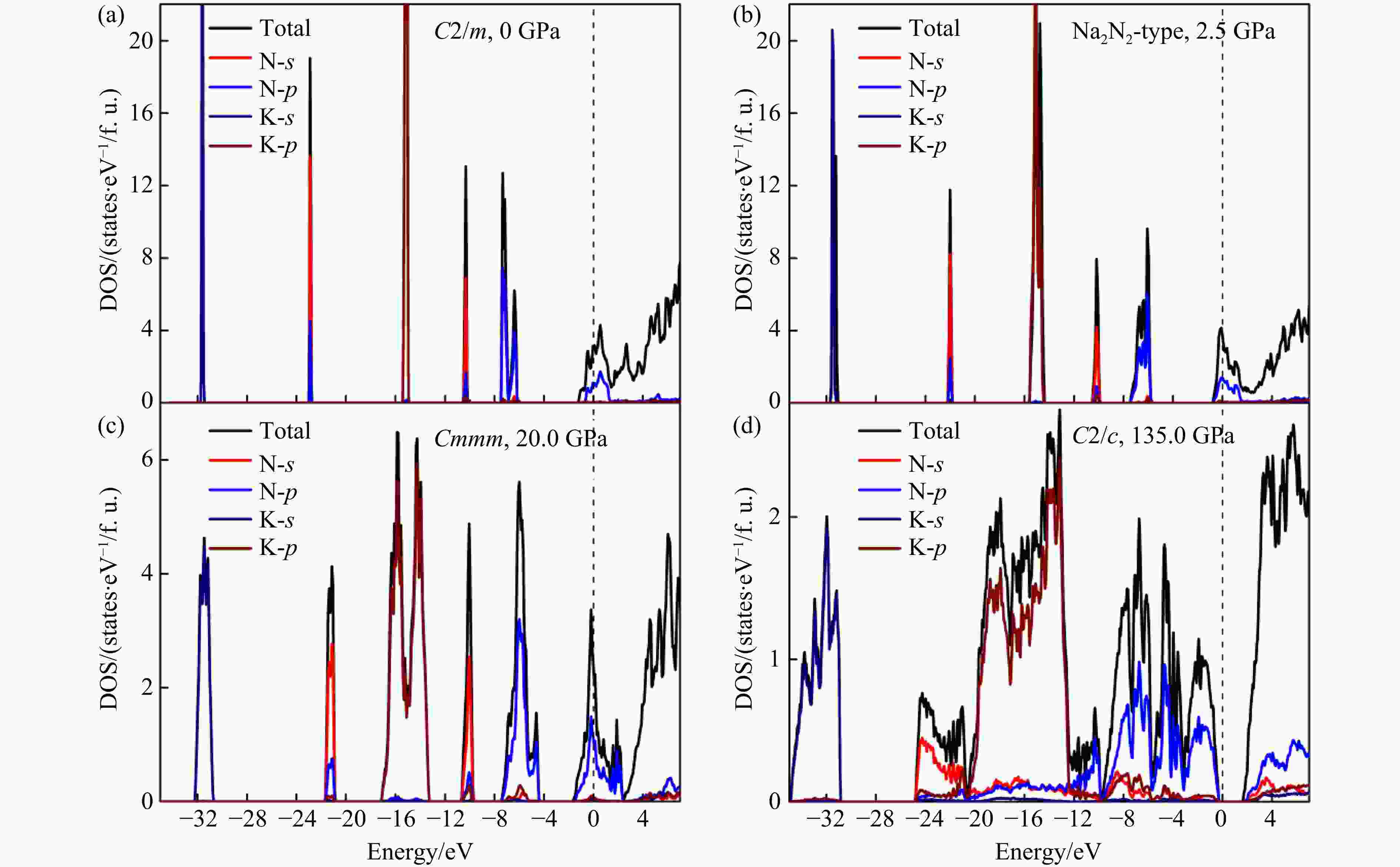

Figure 4. Total and site projected DOSs of C2/m (a), Na₂N₂-type (b), Cmmm (c), and C2/c (d) phases

下载: 全尺寸图片幻灯片

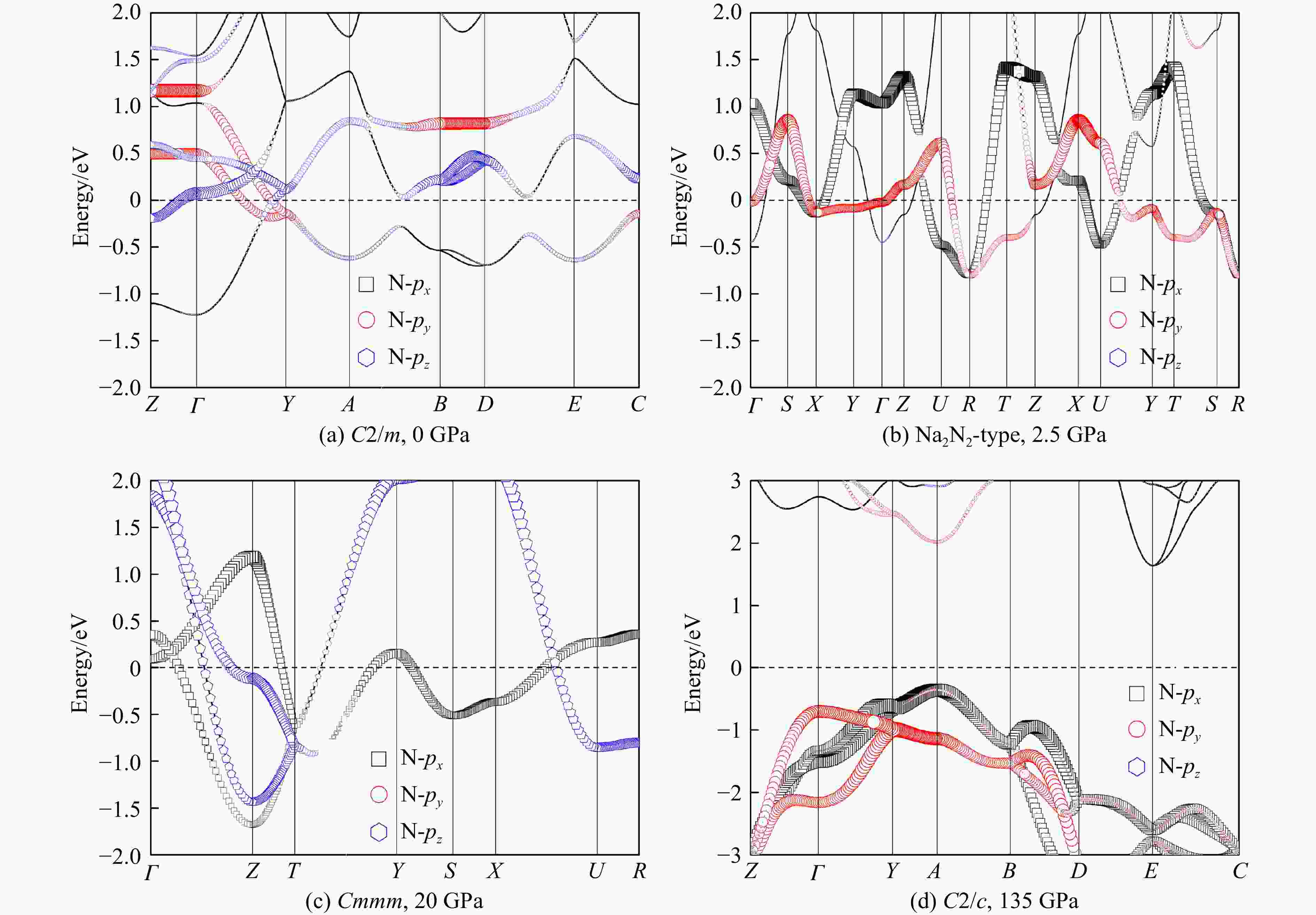

Figure 5. Projected weights of N-p orbitals in the band structures of C2/m (a), Na₂N₂-type (b), Cmmm (c), and C2/c phases (d) (The Fermi level is indicated by horizontal lines and the black solid lines denote the energy structures of each phase of K₂N₂)

下载: 全尺寸图片幻灯片

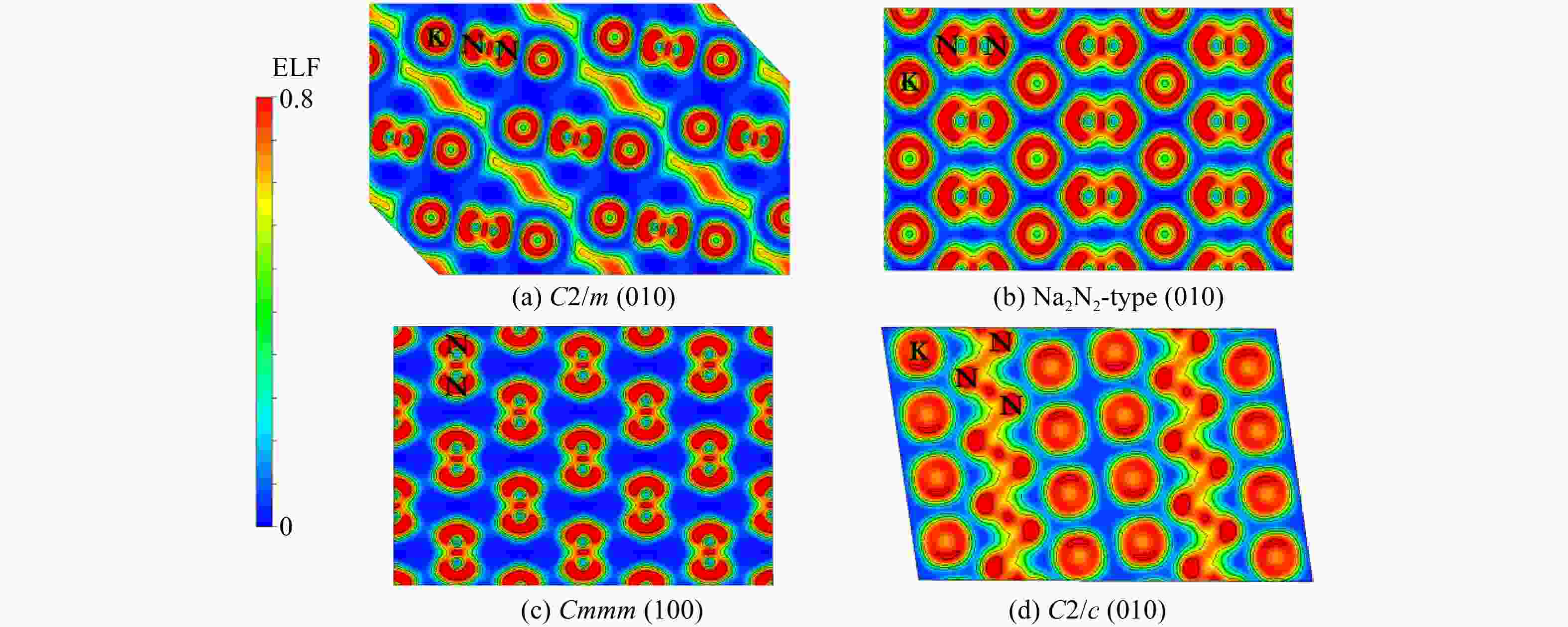

Figure 6. Contours of ELF for the C2/m on the (010) plane (a), Na₂N₂-type on the (010) plane (b), Cmmm on the (100) plane (c), and C2/c on the (010) plane (d)

下载: 全尺寸图片幻灯片

Table 1. Optimized structural parameters of the C2/m, Na₂N₂-type, Cmmm, and C2/c phases of K₂N₂

Phase	Pressure/GPa	Lattice parameters	d_N-N/Å	Atomic fractional coordinates
C2/m	0	a = 7.562 Å, b = 3.912 Å, c = 10.923 Å, α = γ = 90°, β= 134.955°	1.192	K 4i (0.613, 0, 0.260) N 4i (0.519, 0, 0.456)
Na₂N₂-type	2.5	a = 3.326 Å, b = 4.375 Å, c = 5.694 Å, α = β = γ = 90°	1.220	K1 1e (0, 0.500, 0) K2 1c (0, 0, 0.500) N 2t (0.500, 0.500, 0.393)
Cmmm	20.0	a = 6.896 Å, b = 5.104 Å, c = 2.855 Å, α = β = γ = 90°	1.254	K 4g (0.694, 0, 0) N 4j (0, 0.877, 0.500)
C2/c	135.0	a = 6.971 Å, b = 4.099 Å, c = 4.510 Å, α = γ = 90°, β= 81.342°	1.474, 1.373	K 8f (0.669, 0.909, 0.198) N 8f (0.041, 0.887, 0.102)

下载: 导出CSV

Table 2. Calculated Bader charges of K and N atoms in C2/m, Na₂N₂-type, Cmmm, and C2/c phases

Phase	Pressure/GPa	Atom	Charge value/e	Charge transfer/e
C2/m	0	K N	8.509 (×2) 5.491 (×2)	+0.491 −0.491
Na₂N₂-type	2.5	K1 K2 N	8.407 8.303 5.645 (×2)	+0.593 +0.697 −0.645
Cmmm	20.0	K N	8.310 (×2) 5.690 (×2)	+0.690 −0.690
C2/c	135.0	K N	8.377 (×2) 5.623 (×2)	+0.623 −0.623

下载: 导出CSV
