Flow Field Analysis and Efficiency Test of Muzzle Brake Used in First-Stage Gas Gun
-
摘要: 针对口径为50 mm的一级气体炮制退器，基于三维非定常Navier-Stokes方程，结合多区域动网格技术，对侧孔倾角为120°、孔径为16 mm的制退器流场形态进行了数值模拟，分析了发射压力对冲击波形成、发展和衰减的变化规律以及制退效率的影响。搭建了一级气体炮发射平台，并进行了制退效率测试。实验结果表明：模拟计算得到的一级气体炮制退器的制退效率与实验结果的最大相对偏差小于1.25%，制退器的流场动态发展与实验结果高度一致；制退效率随发射压力的升高呈线性增大，对于侧孔倾角为120°、孔径为16 mm的制退器，当发射压力由5 MPa提升至10 MPa时，制退效率由4.87%提高至12.71%。Abstract: In this study, for the muzzle brake with a side hole angle of 120° and the hole diameter of 16 mm used in a first-stage gas gun with a diameter of 50 mm, the flow field morphology is simulated, based on 3D unsteady Navier-Stokes equations and multi-region dynamic grid technology. The characteristics of the formation, development and attenuation of shock wave, as well as the brake efficiency, induced by different launch pressures are analyzed. The launching platform of the first-stage gas gun was built experimentally, and the muzzle brake efficiency was tested. The results show that the maximum deviation of the simulated brake efficiency is less than 1.25% compared with the experiment, and the dynamic development of the brake flow field highly agrees with the experiment. The brake efficiency increases linearly with the launch pressure. For the muzzle brake with a side hole angle of 120° and the diameter of 16 mm, when the launch pressure increases from 5 MPa to 10 MPa, the brake efficiency increases from 4.87% to 12.71%.
-
Key words:
- muzzle brake /
- shock wave /
- flow field morphology /
- brake efficiency
-

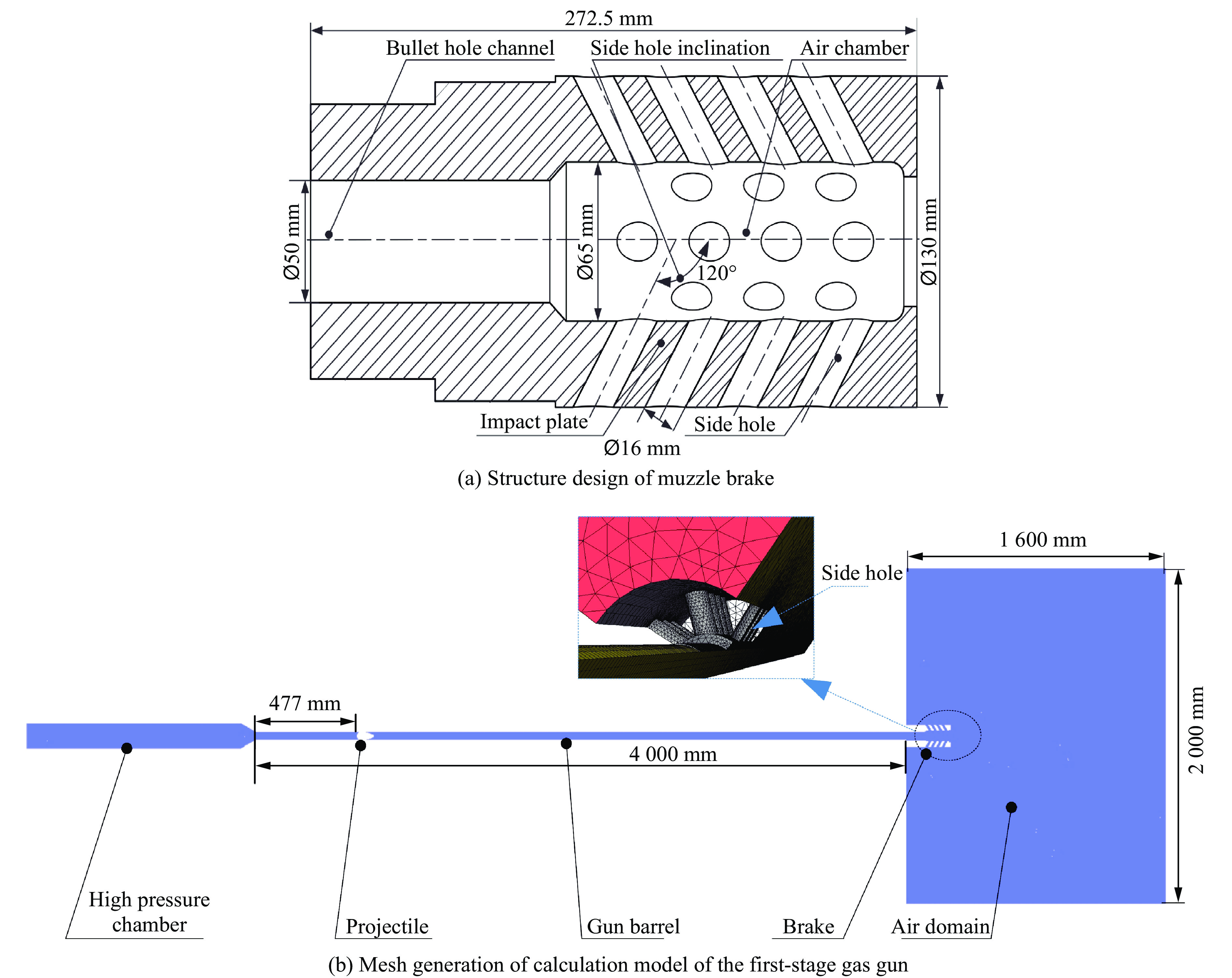

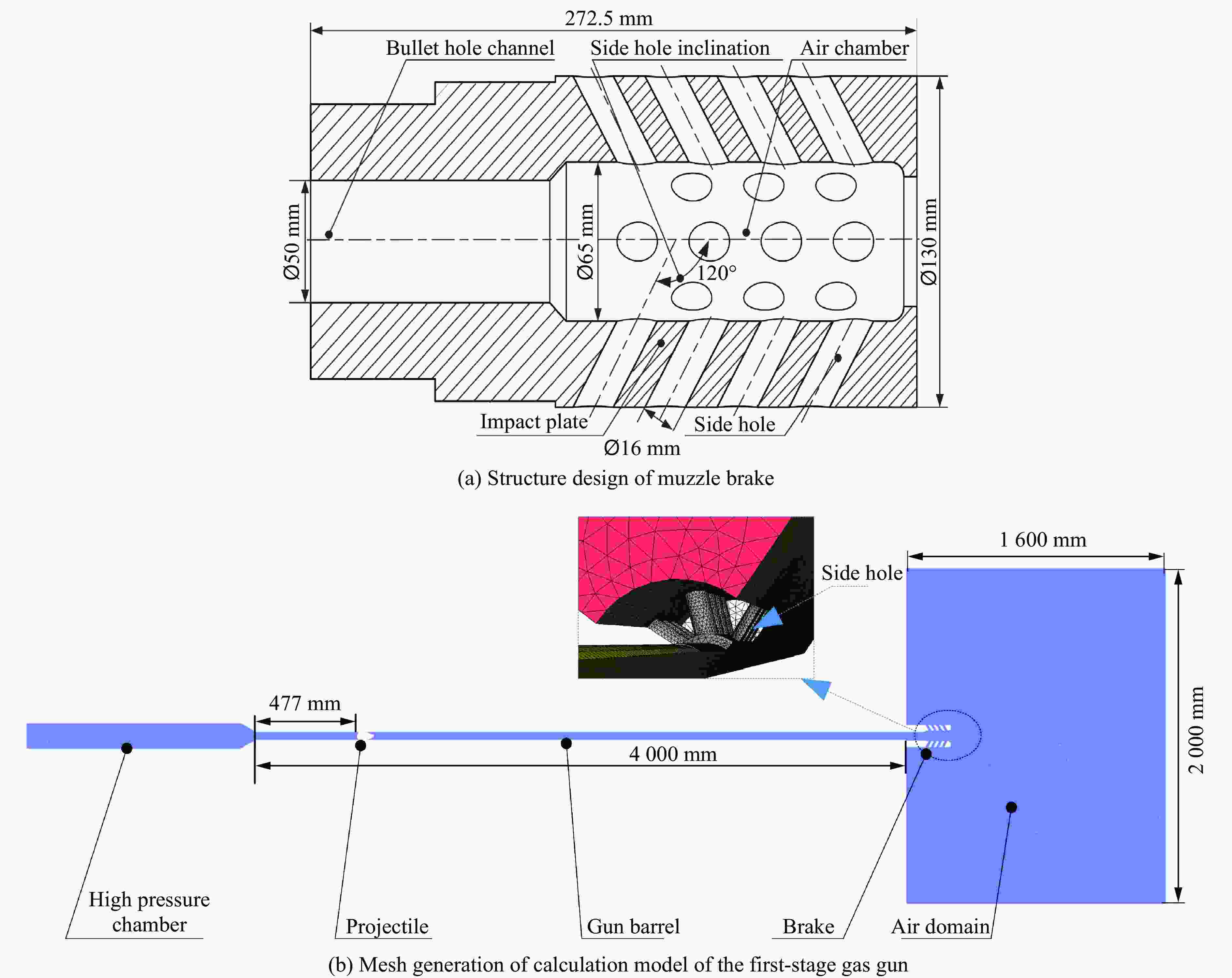

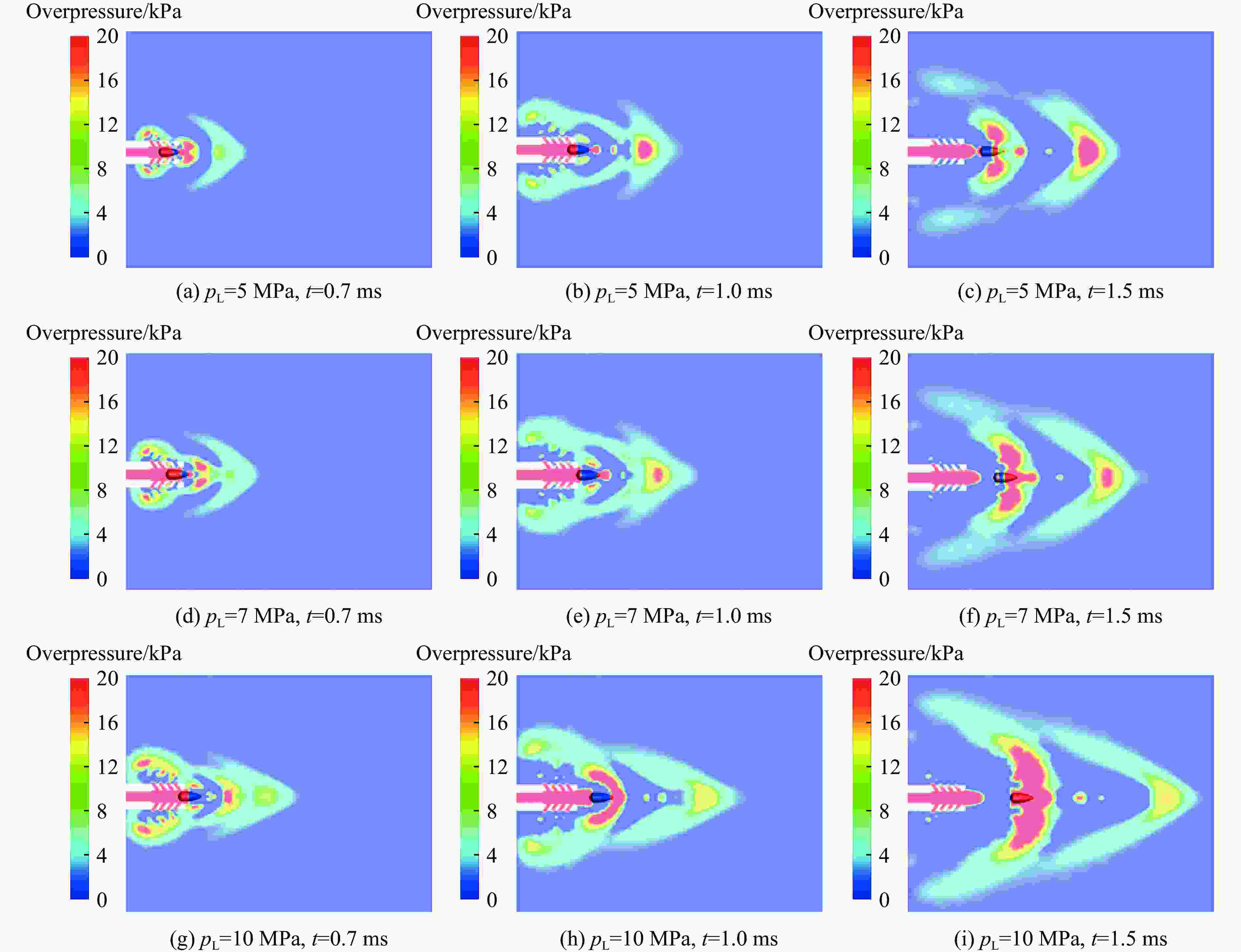

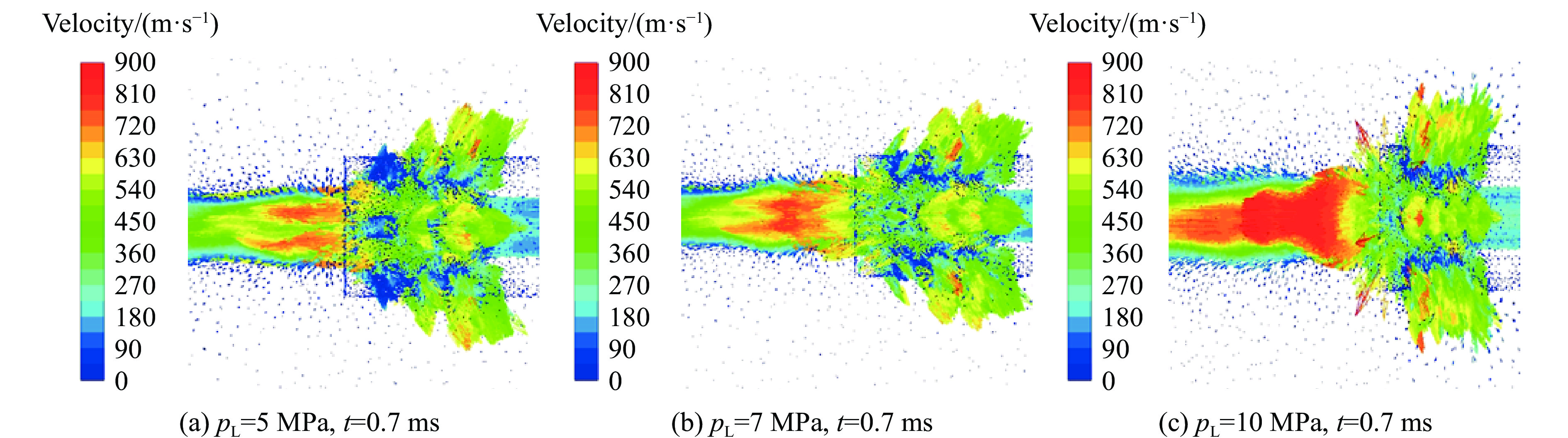

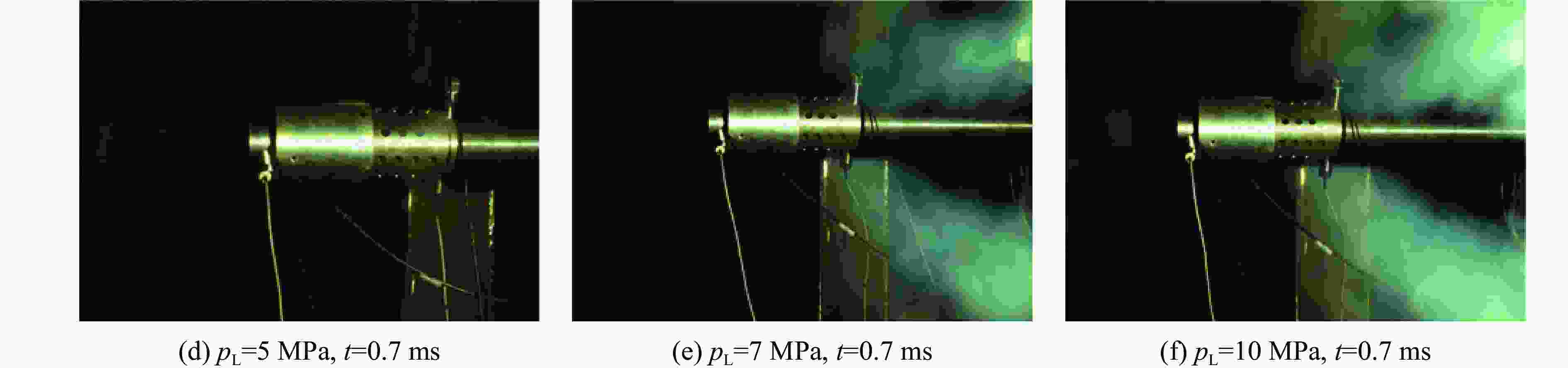

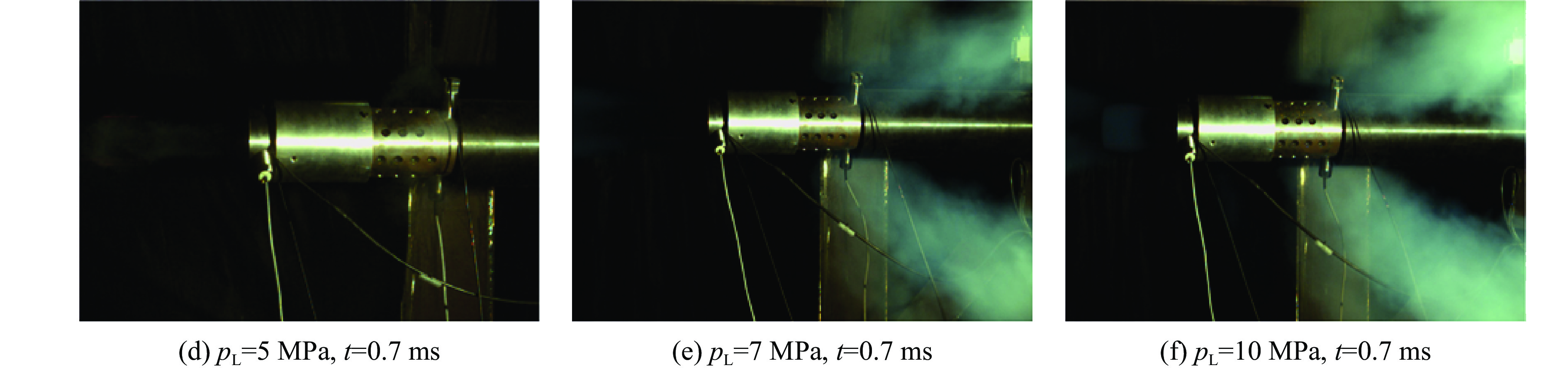

图 2 不同发射压力下制退器流场分布随时间演化云图
Figure 2. Cloud diagram of flow field distributions versus time of brake under different launch pressures

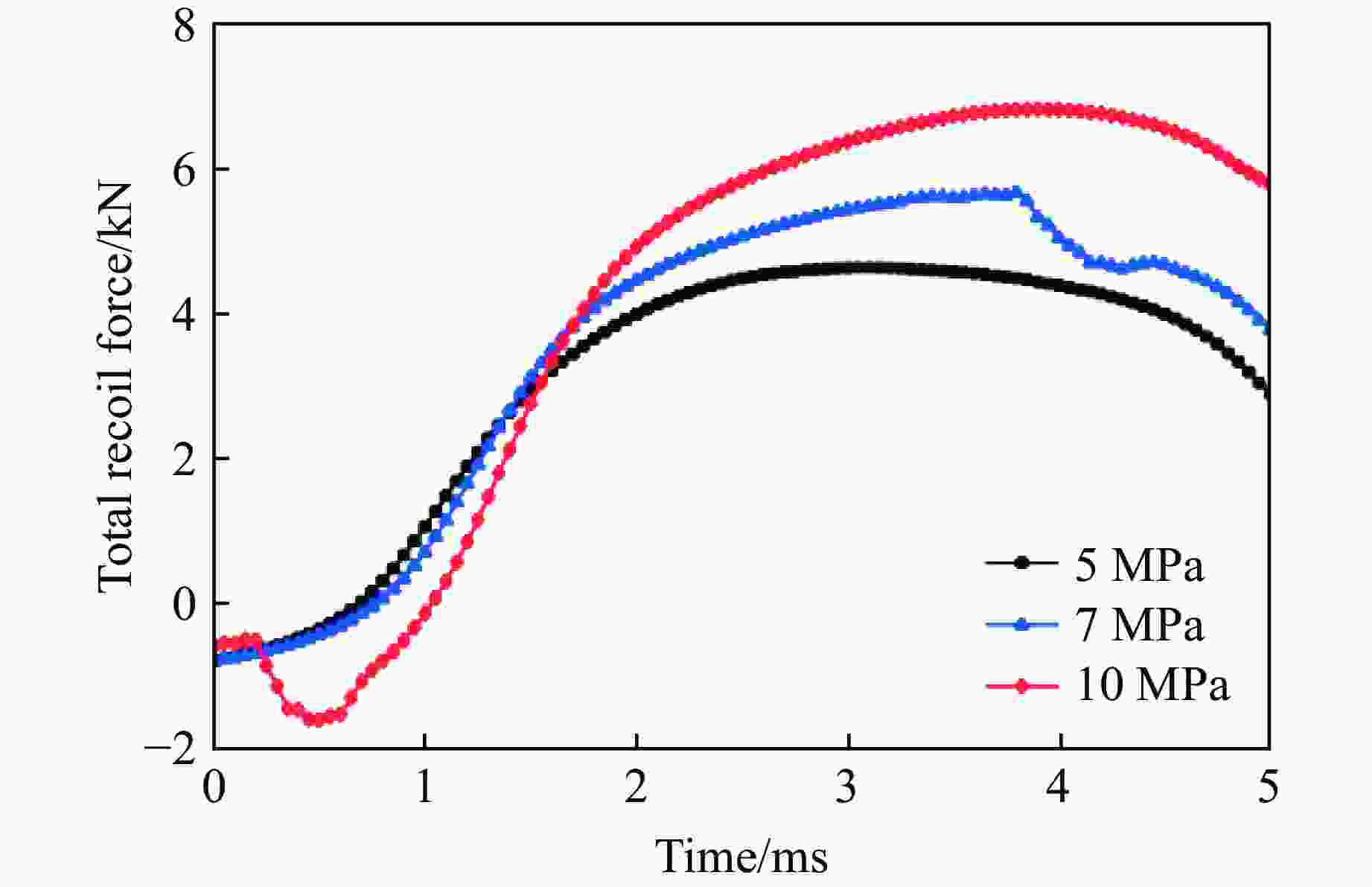

图 3 不同发射压力下制退器总后坐力变化曲线
Figure 3. Total recoil force versus time of brake under different launch pressures

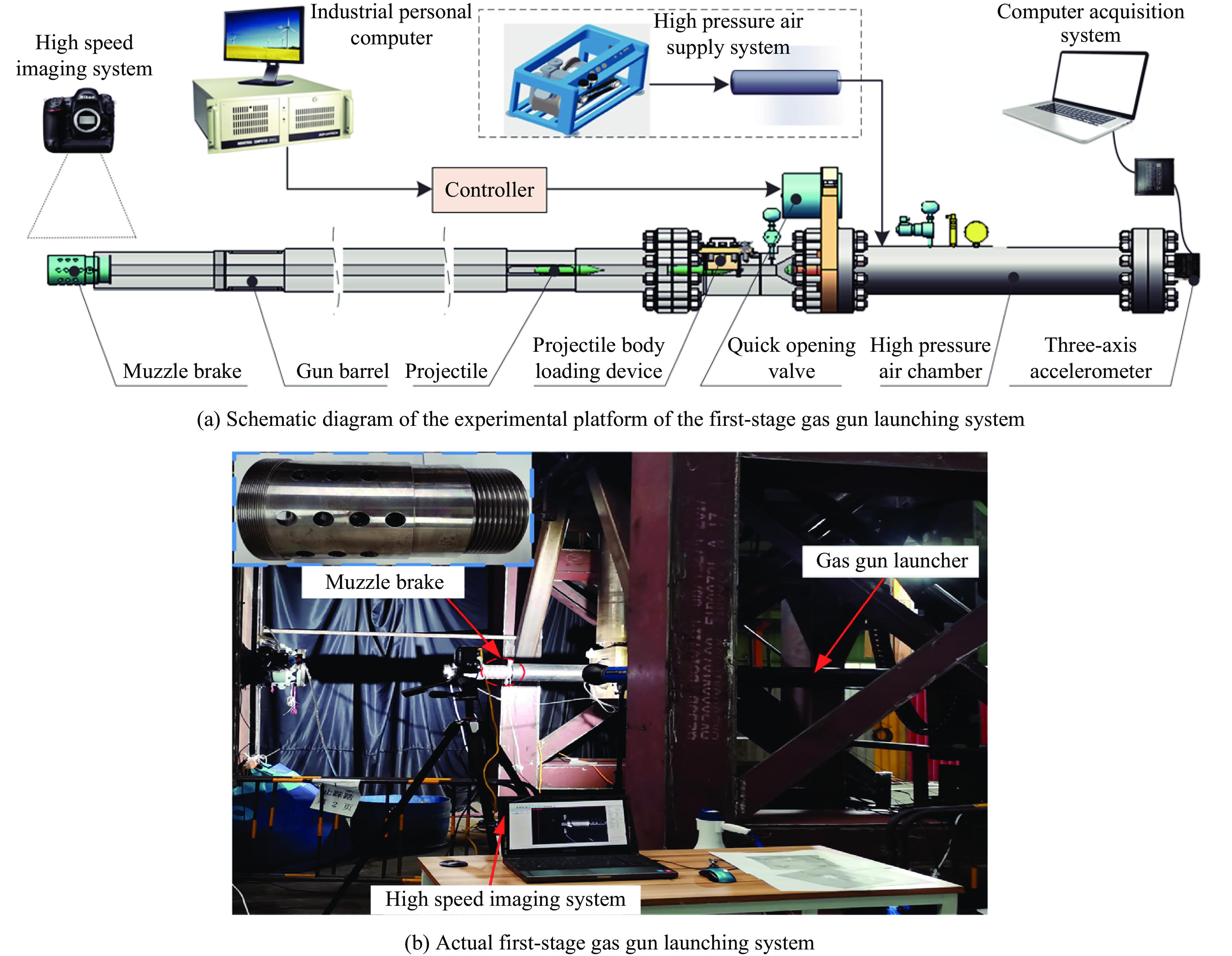

图 4 一级气体炮发射系统实验平台
Figure 4. Experimental platform of the first-stage gas gun launching system

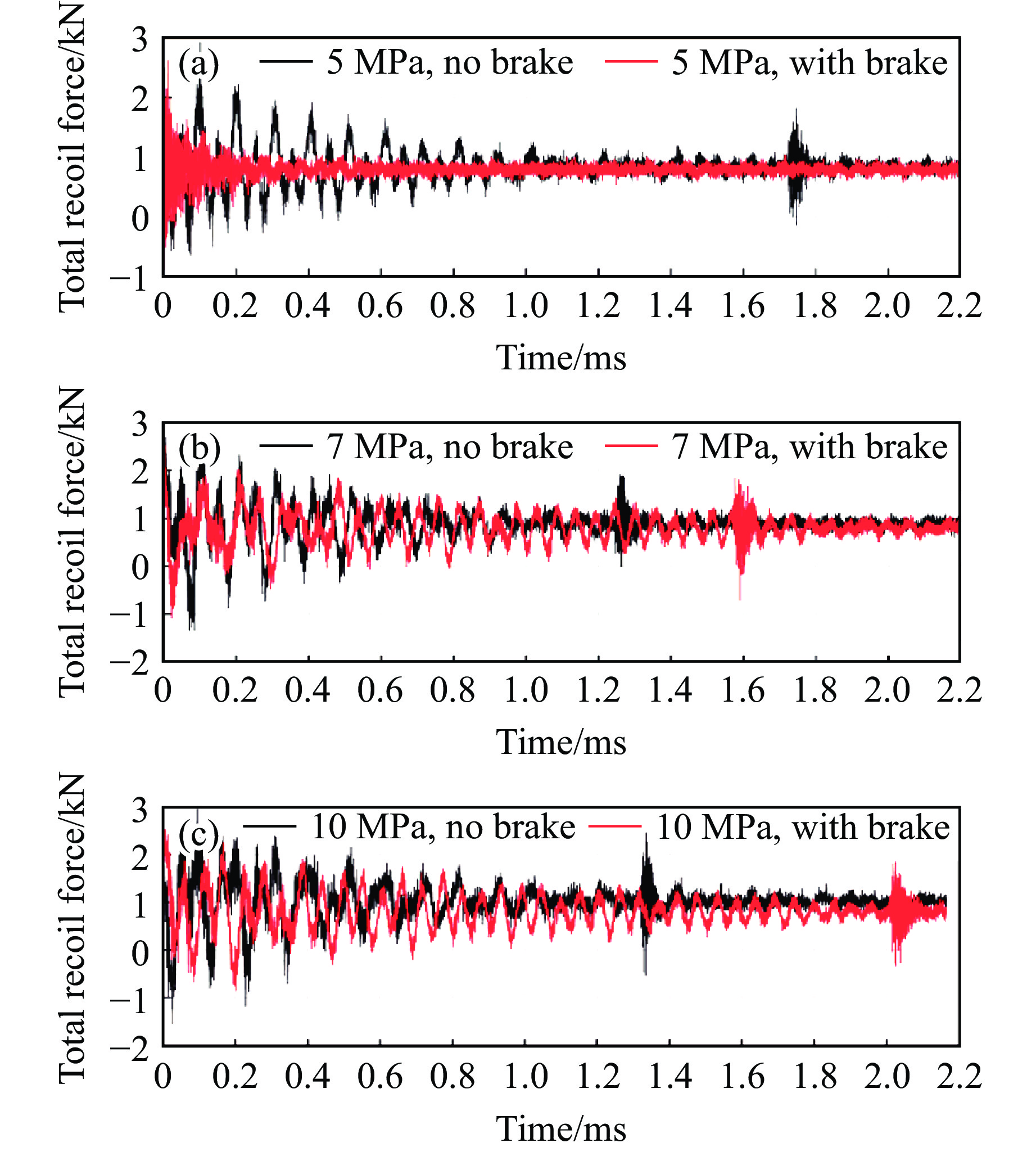

图 5 不同发射压力下气体炮实验测得的后坐力
Figure 5. Recoil forces measured by gas gun experiment under different launching pressures

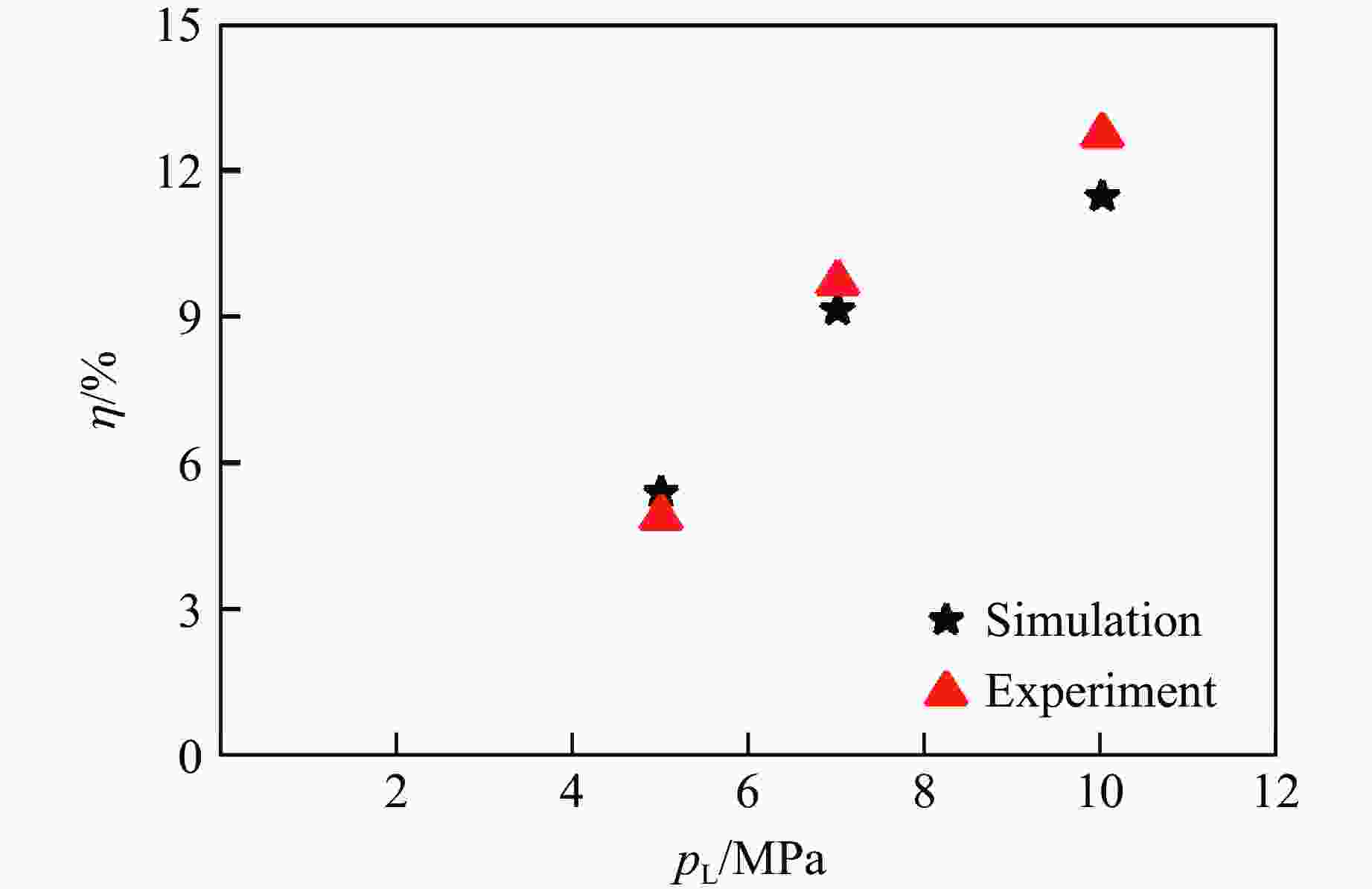

图 6 数值模拟与实验测得的制退效率
Figure 6. Brake efficiencies obtained by simulation calculation and experiment
-
[1] 闫文哲, 李强, 曲普, 等. 气体炮内弹道建模与实验研究 [J]. 火炮发射与控制学报, 2021, 42(4): 87–90, 96. doi: 10.19323/j.issn.1673-6524.2021.04.016YAN W Z, LI Q, QU P, et al. Interior ballistic modeling and experimental study of gas gun [J]. Journal of Gun Launch & Control, 2021, 42(4): 87–90, 96. doi: 10.19323/j.issn.1673-6524.2021.04.016 [2] 高跃飞. 火炮反后坐装置设计 [M]. 北京: 国防工业出版社, 2010: 212−213.GAO Y F. Design of the reverse recoil device of the cannon [M]. Beijing: National Defense Industry Press, 2010: 212−213. [3] 张旋, 余永刚, 张欣尉. 火炮在不同介质中发射的膛口流场特性分析 [J]. 爆炸与冲击, 2021, 41(10): 103901. doi: 10.11883/bzycj-2021-0056ZHANG X, YU Y G, ZHANG X W. Analysis of muzzle flow field characteristics of gun fired in different media [J]. Explosion and Shock Waves, 2021, 41(10): 103901. doi: 10.11883/bzycj-2021-0056 [4] 赵排航, 李永建, 董金龙, 等. 某型狙击榴弹发射器的膛口制退器优化设计 [J]. 火炮发射与控制学报, 2020, 41(2): 59–63. doi: 10.19323/j.issn.1673-6524.2020.02.012ZHAO P H, LI Y J, DONG J L, et al. The optimized design of muzzle brake for a sniper grenade launcher [J]. Journal of Gun Launch & Control, 2020, 41(2): 59–63. doi: 10.19323/j.issn.1673-6524.2020.02.012 [5] 赵佳俊, 郭张霞, 赵秀和, 等. 基于CFD的炮口制退器侧孔射流研究 [J]. 火炮发射与控制学报, 2021, 42(4): 13–17,22. doi: 10.19323/j.issn.1673-6524.2021.04.003ZHAO J J, GUO Z X, ZHAO X H, et al. Research of the airflow from muzzle brake side holes based on CFD [J]. Journal of Gun Launch & Control, 2021, 42(4): 13–17,22. doi: 10.19323/j.issn.1673-6524.2021.04.003 [6] 徐达, 罗业, 张杰, 等. 侧孔参数对炮口制退器流场结构及超压的影响研究 [J]. 火炮发射与控制学报, 2020, 41(4): 32–37, 69. doi: 10.19323/j.issn.1673-6524.2020.04.007XU D, LUO Y, ZHANG J, et al. Effects of side hole parameters on structure and overpressure of muzzle brake flow field [J]. Journal of Gun Launch & Control, 2020, 41(4): 32–37, 69. doi: 10.19323/j.issn.1673-6524.2020.04.007 [7] 咸东鹏, 廖振强, 肖俊波, 等. 喷管高效膛口制退器对机枪射击性能的影响 [J]. 振动、测试与诊断, 2019, 39(3): 560–564. doi: 10.16450/j.cnki.issn.1004-6801.2019.03.015XIAN D P, LIAO Z Q, XIAO J B, et al. Influence of nozzle high efficiency muzzle brake on firing performance of gun [J]. Journal of Vibration, Measurement & Diagnosis, 2019, 39(3): 560–564. doi: 10.16450/j.cnki.issn.1004-6801.2019.03.015 [8] LEI H X, WANG Z J, ZHAO J L. Stress analysis of muzzle brake by using fluid-solid coupled method [J]. Journal of Engineering Science and Technology Review, 2016, 9(4): 48–55. doi: 10.25103/jestr.094.07 [9] 张焕好, 陈志华, 姜孝海, 等. 高速弹丸穿越不同制退器时的膛口流场波系结构研究 [J]. 兵工学报, 2012, 33(5): 623–629.ZHANG H H, CHEN Z H, JIANG X H, et al. Investigation on the blast wave structures of a high-speed projectile flying through different muzzle brakes [J]. Acta Armamentarii, 2012, 33(5): 623–629. [10] 王杨, 姜孝海, 杨绪普, 等. 小口径膛口射流噪声的数值模拟 [J]. 爆炸与冲击, 2014, 34(4): 508–512. doi: 10.11883/1001-1455(2014)04-0508-05WANG Y, JIANG X H, YANG X P, et al. Numerical simulation on jet noise induced by complex flows discharging from small caliber muzzle [J]. Explosion and Shock Waves, 2014, 34(4): 508–512. doi: 10.11883/1001-1455(2014)04-0508-05 [11] 赵欣怡, 周克栋, 赫雷, 等. 带制退器的膛口射流噪声数值模拟与实验研究 [J]. 爆炸与冲击, 2019, 39(10): 103201. doi: 10.11883/bzycj-2018-0279ZHAO X Y, ZHOU K D, HE L, et al. Numerical simulation and experimental study on jet noise from a small caliber rifle with a muzzle brake [J]. Explosion and Shock Waves, 2019, 39(10): 103201. doi: 10.11883/bzycj-2018-0279 [12] 余海伟, 袁军堂, 汪振华, 等. 新型结构炮口制退器的膛口冲击波数值研究与性能分析 [J]. 高压物理学报, 2020, 34(6): 065102. doi: 10.11858/gywlxb.20200568YU H W, YUAN J T, WANG Z H, et al. Muzzle blast wave investigation and performance analysis of new-structure muzzle brake based on numerical simulation [J]. Chinese Journal of High Pressure Physics, 2020, 34(6): 065102. doi: 10.11858/gywlxb.20200568 [13] CHATURVEDI E, DWIVEDI R K. Computer aided design and analysis of a tunable muzzle brake [J]. Defence Technology, 2019, 15(1): 89–94. doi: 10.1016/j.dt.2018.06.011 -
